BODY ALIGNMENT

BRM-45

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR USA AND CANADA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Description

INFOID:0000000009718058

• All dimensions indicated in the figures are actual.
• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

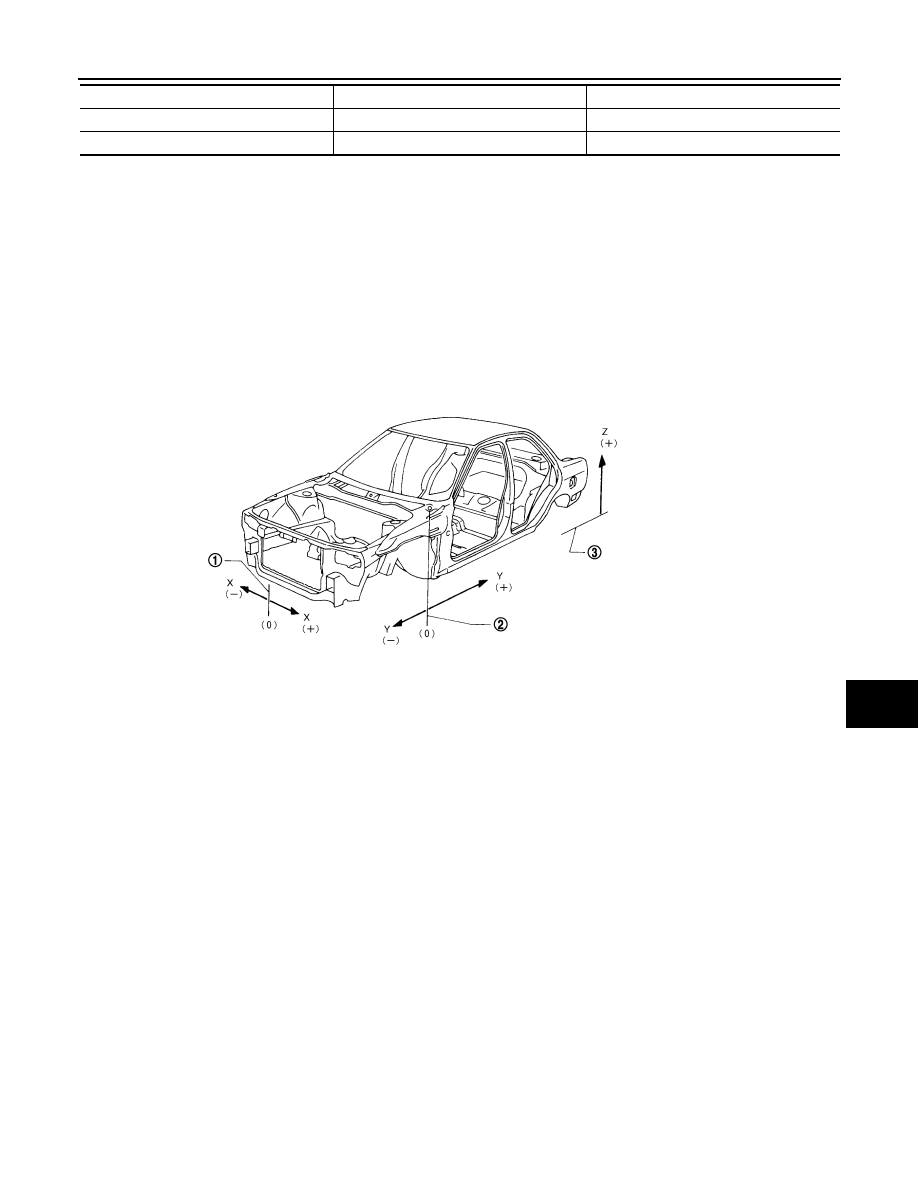

• The coordinates of the measurement points are the distances measured from the standard line of

″

X

″

,

″

Y

″

and

″

Z

″

.

•

″

Z

″

: Imaginary base line [200 mm (7.87 in) below datum line (

″

0Z

″

 at design plan)]

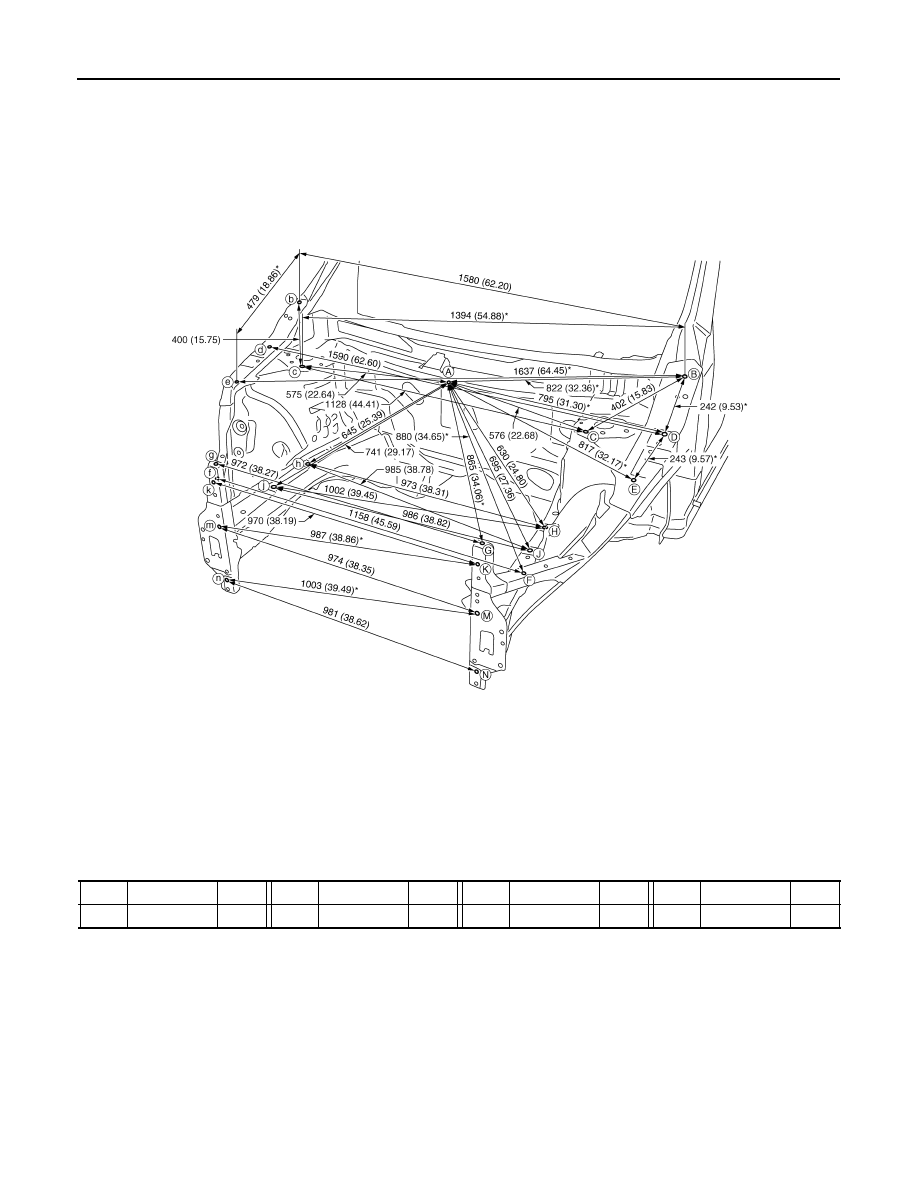

Engine Compartment

INFOID:0000000009718059

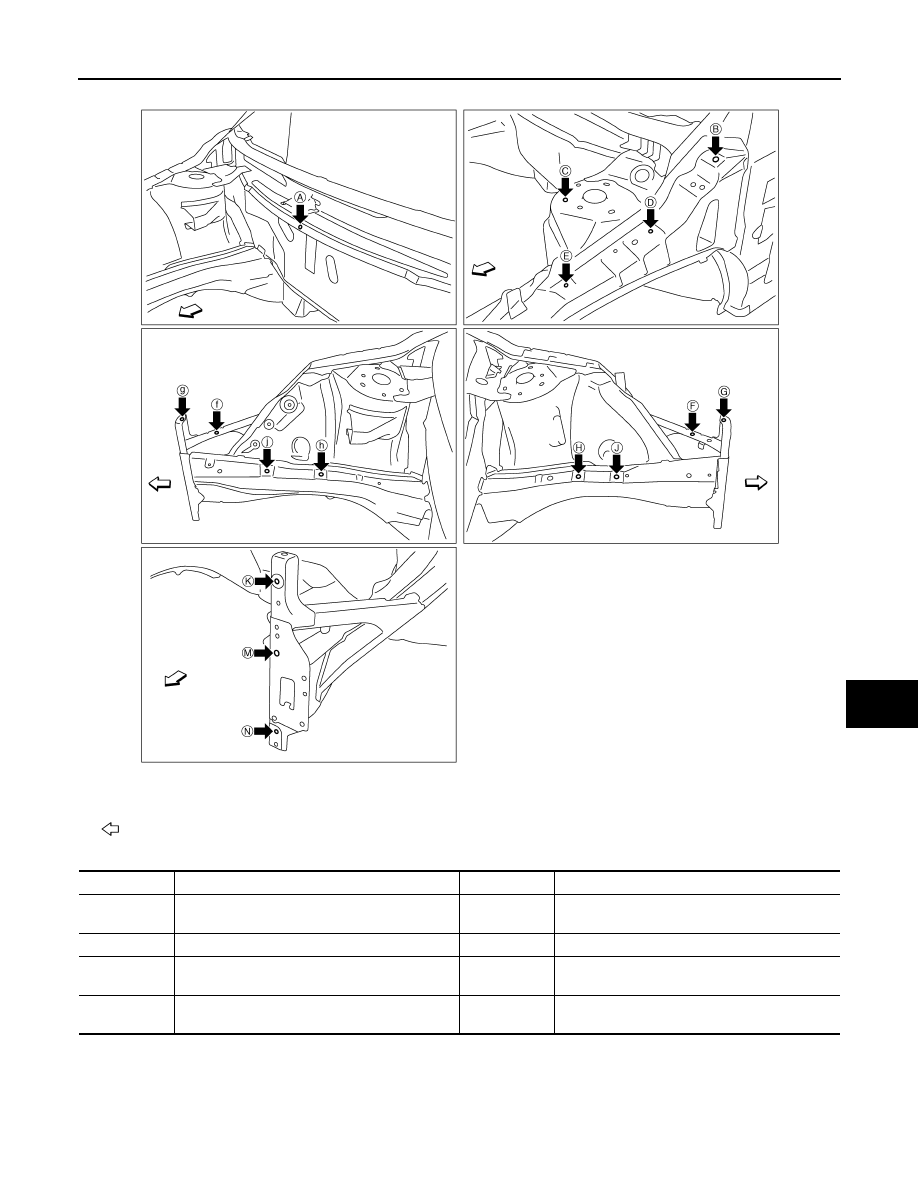

MEASUREMENT

Dimensions marked with

″

*

″

 indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

E

Front floor reinforcement

Hole

φ

9 (0.35)

F

Front floor

Embossment

Points

Portion

Marks

1.

Vehicle center

2.

Front axle center

3.

Imaginary base line

JSKIA0073GB

BRM-46

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR USA AND CANADA]

BODY ALIGNMENT

«The others»

Unit: mm (in)

MEASUREMENT POINTS

Unit: mm (in)

JSKIA0544GB

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

B - c

1394 (54.88)*

E - e

1550 (61.02)

BODY ALIGNMENT

BRM-47

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR USA AND CANADA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Unit: mm (in)

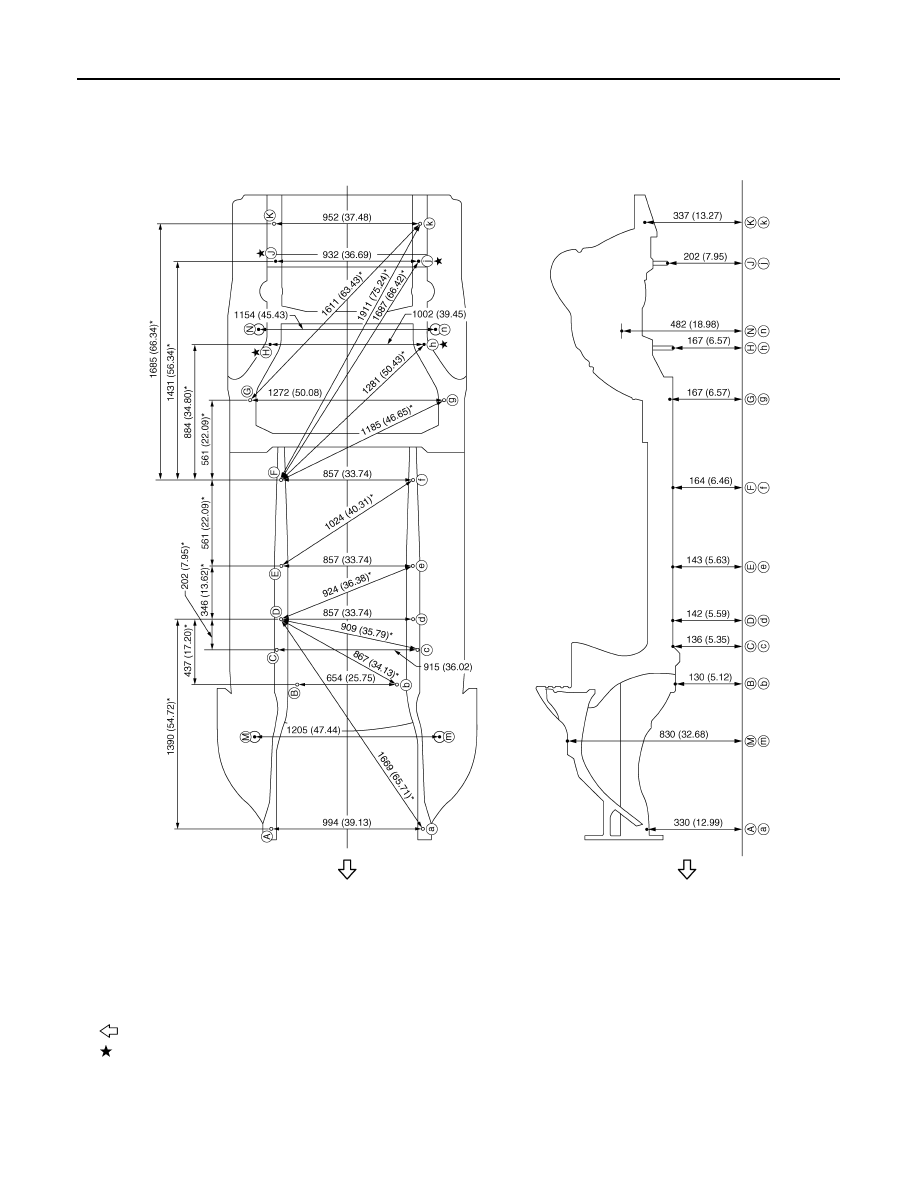

Underbody

INFOID:0000000009718060

MEASUREMENT

Dimensions marked with

″

*

″

 indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

: Vehicle front

JSKIA0545ZZ

Point

Material

Point

Material

A

Cowl top extension installing hole center of cen-
ter positioning mark

φ

7 (0.28)

F, f

Upper radiator core support hole center

φ

12

(0.47)

B, b

Hood hinge installing hole center

φ

13 (0.51)

G, g, K, k, N, n

Front end module installing hole center

φ

9 (0.35)

C, c

Front strut installing hole center 16

×

10

(0.63

×

0.39)

H, h, J, j

Front side member hole center

φ

14 (0.55)

D, d, E, e

Upper front fender bracket installing hole center

φ

7 (0.28)

M, m

Bumper stay installing hole center

φ

12 (0.47)

BRM-48

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR USA AND CANADA]

BODY ALIGNMENT

MEASUREMENT POINTS

Unit: mm (in)

: Vehicle front

: Bolt head

JSKIA0790GB
