REPLACEMENT OPERATIONS

BRM-29

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

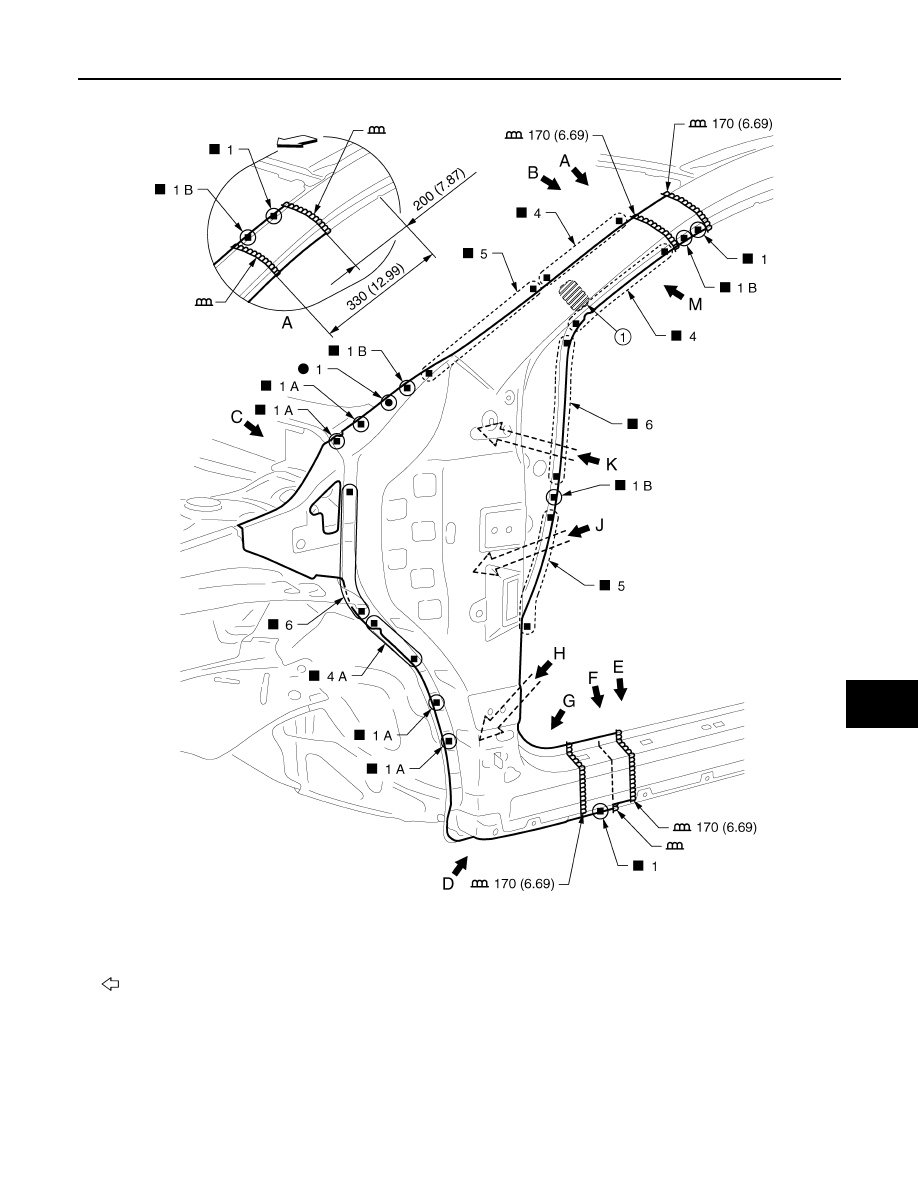

1.

Urethane foam

Unit: mm (in)

: Vehicle front

Replacement parts

z

Side body assembly (LH)

z

Side dash (LH)

z

Inner side roof rail (LH)

JSKIA0529GB

BRM-30

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

REPLACEMENT OPERATIONS

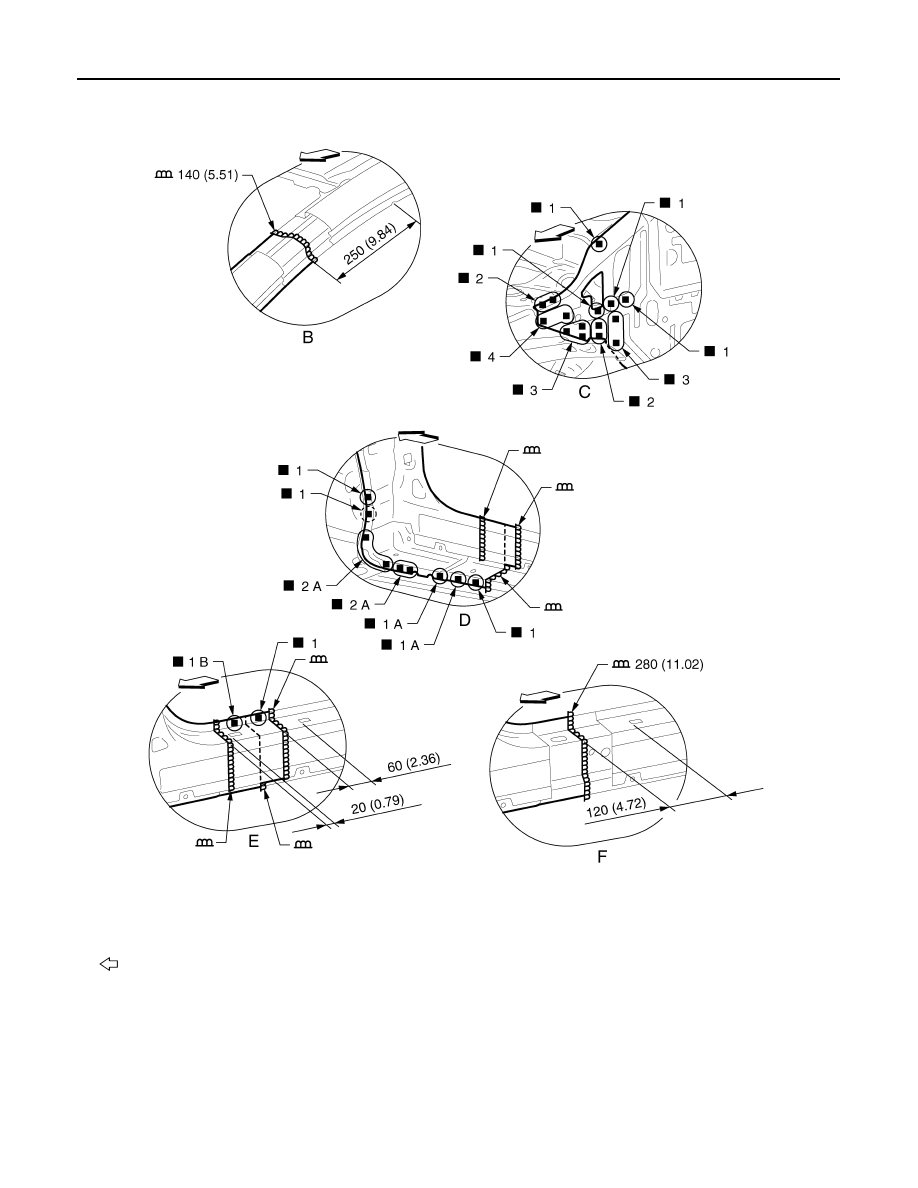

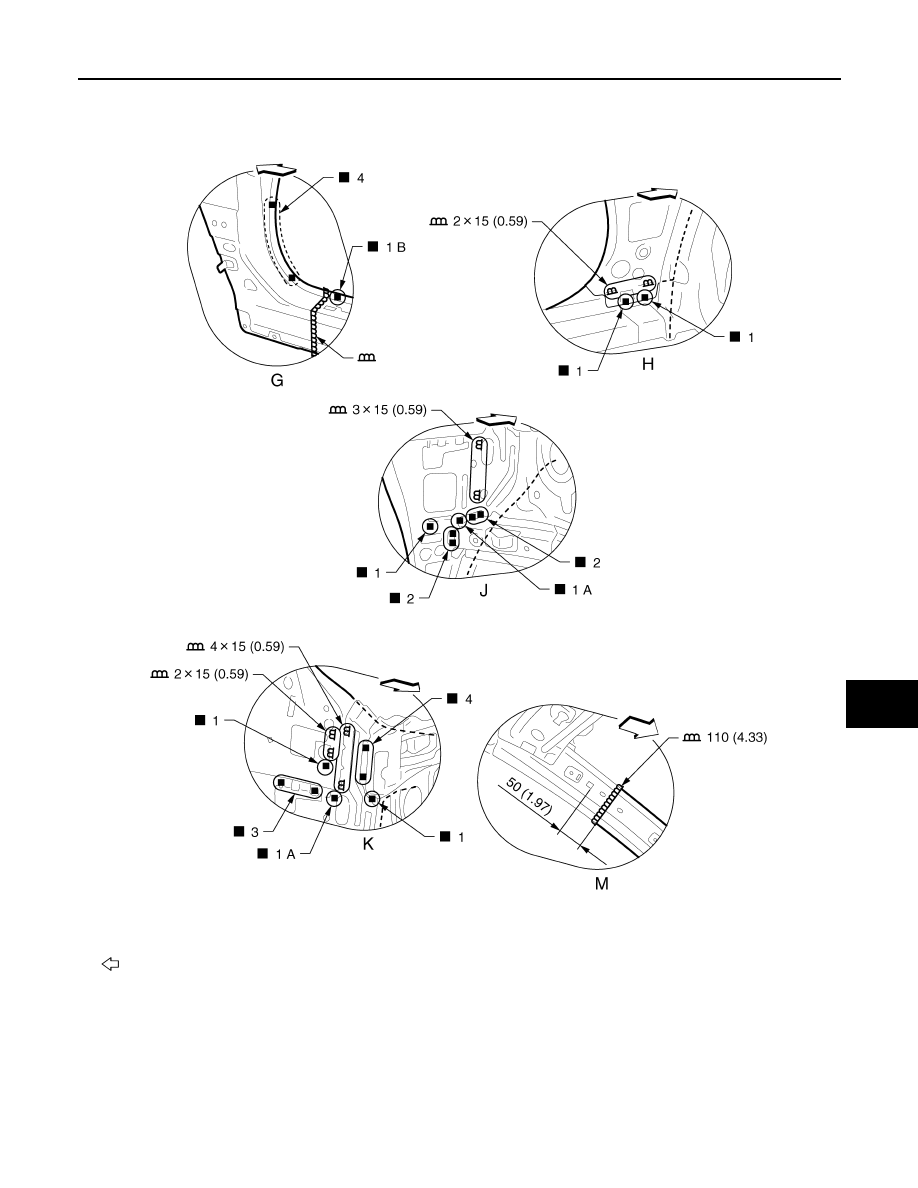

View B and F: Before installing outer front side body
View C: Before installing side body assembly

Unit: mm (in)

: Vehicle front

JSKIA0530GB

REPLACEMENT OPERATIONS

BRM-31

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

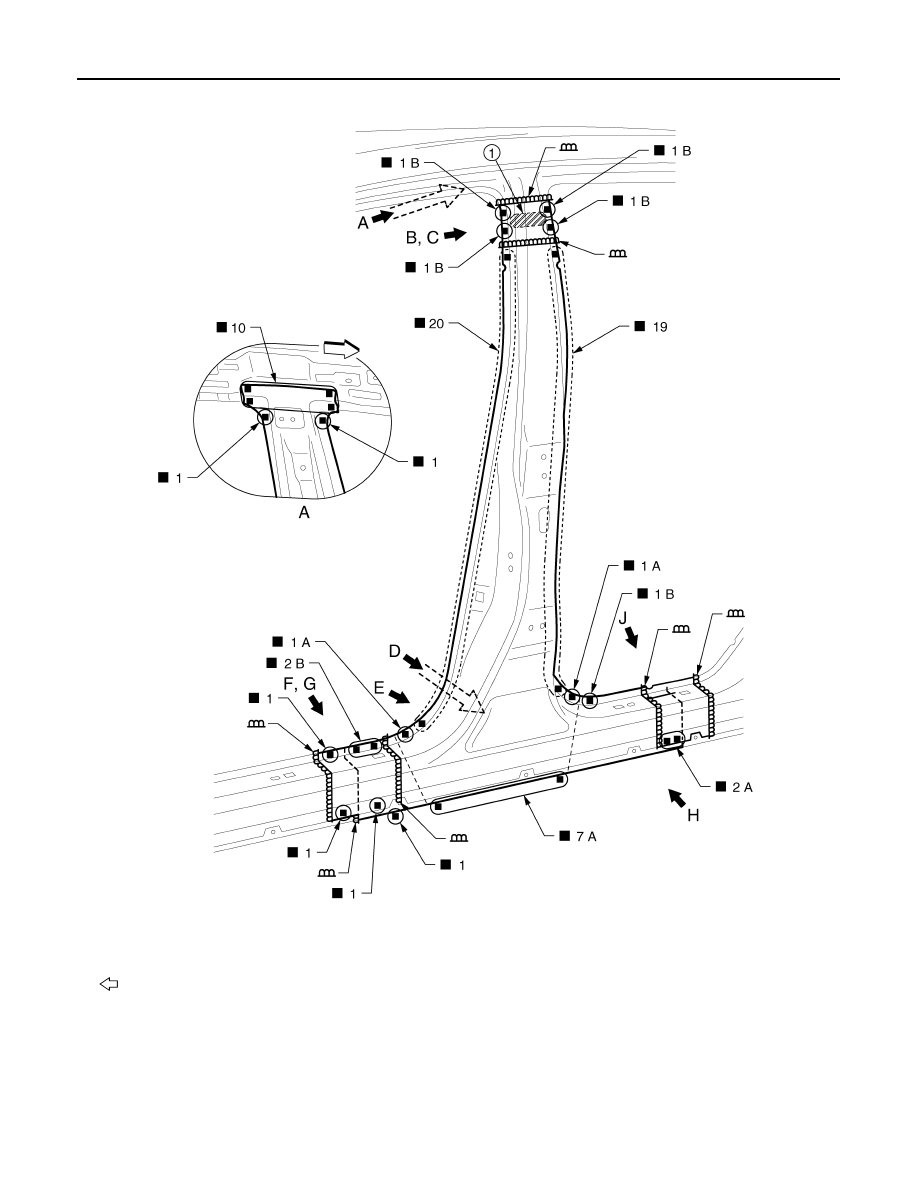

Center Pillar

INFOID:0000000009718051

Install the inner center pillar to the side body assembly as shown in the figure for repairing the hidden welding
point

″

View E

″

.

Unit: mm (in)

: Vehicle front

JSKIA0531GB

BRM-32

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

REPLACEMENT OPERATIONS

1.

Urethane foam

Unit: mm (in)

: Vehicle front

Replacement parts

z

Side body assembly (LH)

z

Inner center pillar (LH)

JSKIA0532ZZ
