Nissan Murano. Manual - part 197





BCS

PRECAUTIONS

BCS-97

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

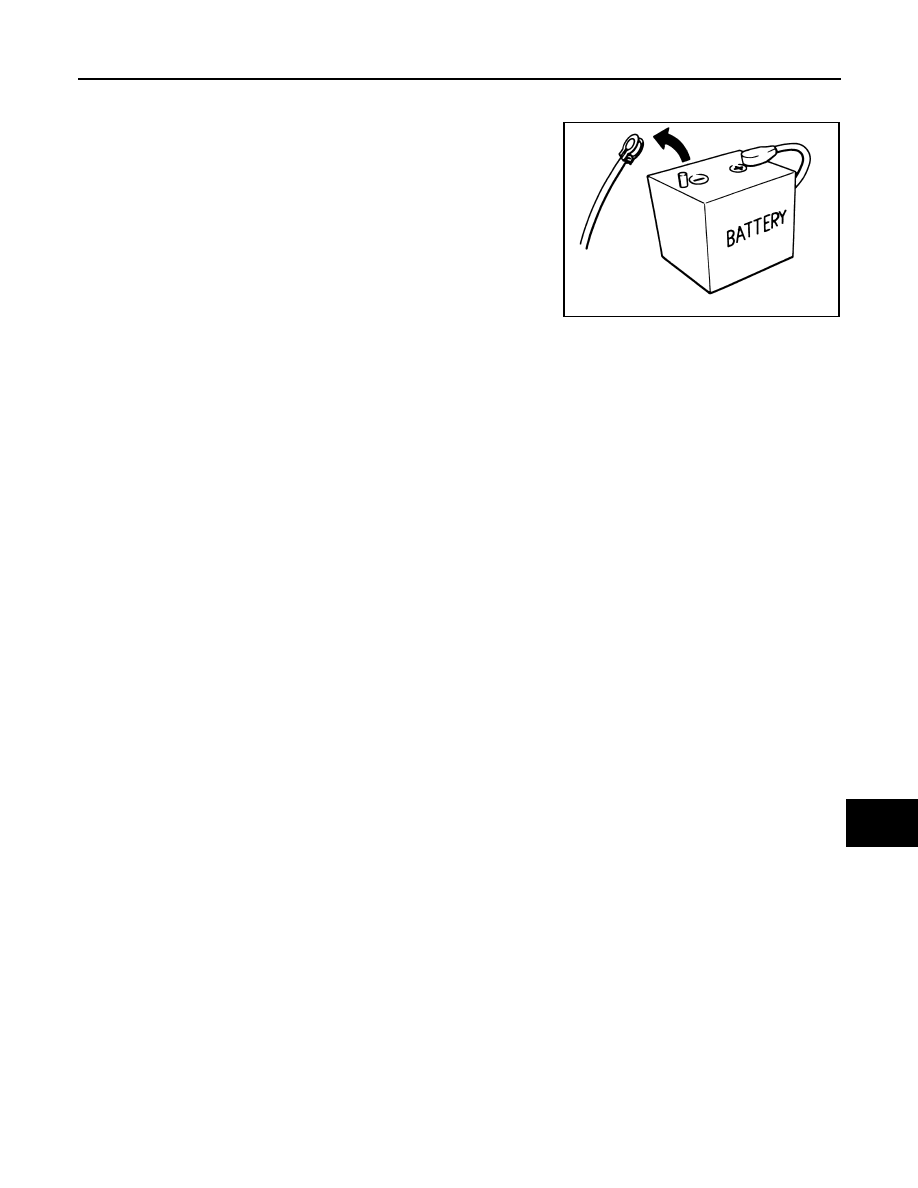

FOR MEXICO : Precautions for Removing of Battery Terminal

INFOID:0000000010032048

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

FOR MEXICO : Precaution for Supplemental Restraint System (SRS) "AIR BAG" and
"SEAT BELT PRE-TENSIONER"

INFOID:0000000009722480

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

SEF289H

BCS-98

< REMOVAL AND INSTALLATION >

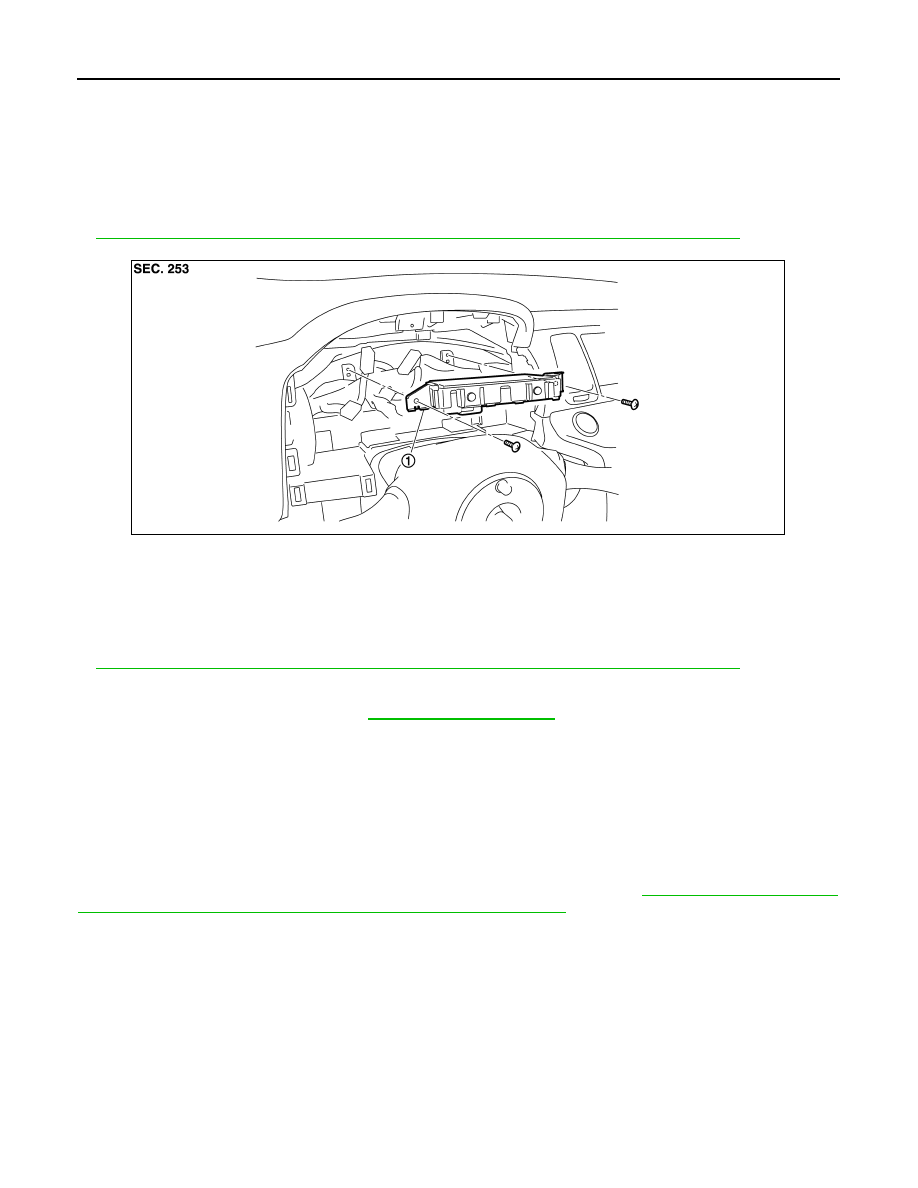

BCM (BODY CONTROL MODULE)

REMOVAL AND INSTALLATION

BCM (BODY CONTROL MODULE)

Exploded View

INFOID:0000000009722481

NOTE:
Before replacing BCM, perform “READ CONFIGURATION” to save or print current vehicle specification. Refer
to

BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Description"

.

Removal and Installation

INFOID:0000000009722482

NOTE:
Before replacing BCM, perform “READ CONFIGURATION” to save or print current vehicle specification. Refer
to

BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Description"

.

REMOVAL

1.

Remove combination meter. Refer to

MWI-105, "Exploded View"

.

2.

Remove screws.

3.

Remove BCM and disconnect the connector.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to perform “WRITE CONFIGURATION” when replacing BCM. Or not doing so, BCM control
function does not operate normally.
NOTE:
Be sure to perform the system initialization (NATS) when replacing BCM. Refer to

BCS-3, "ADDITIONAL SER-

VICE WHEN REPLACING CONTROL UNIT (BCM) : Work Procedure"

.

1.

BCM

JPMIA0895ZZ

BCS

COMBINATION SWITCH

BCS-99

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

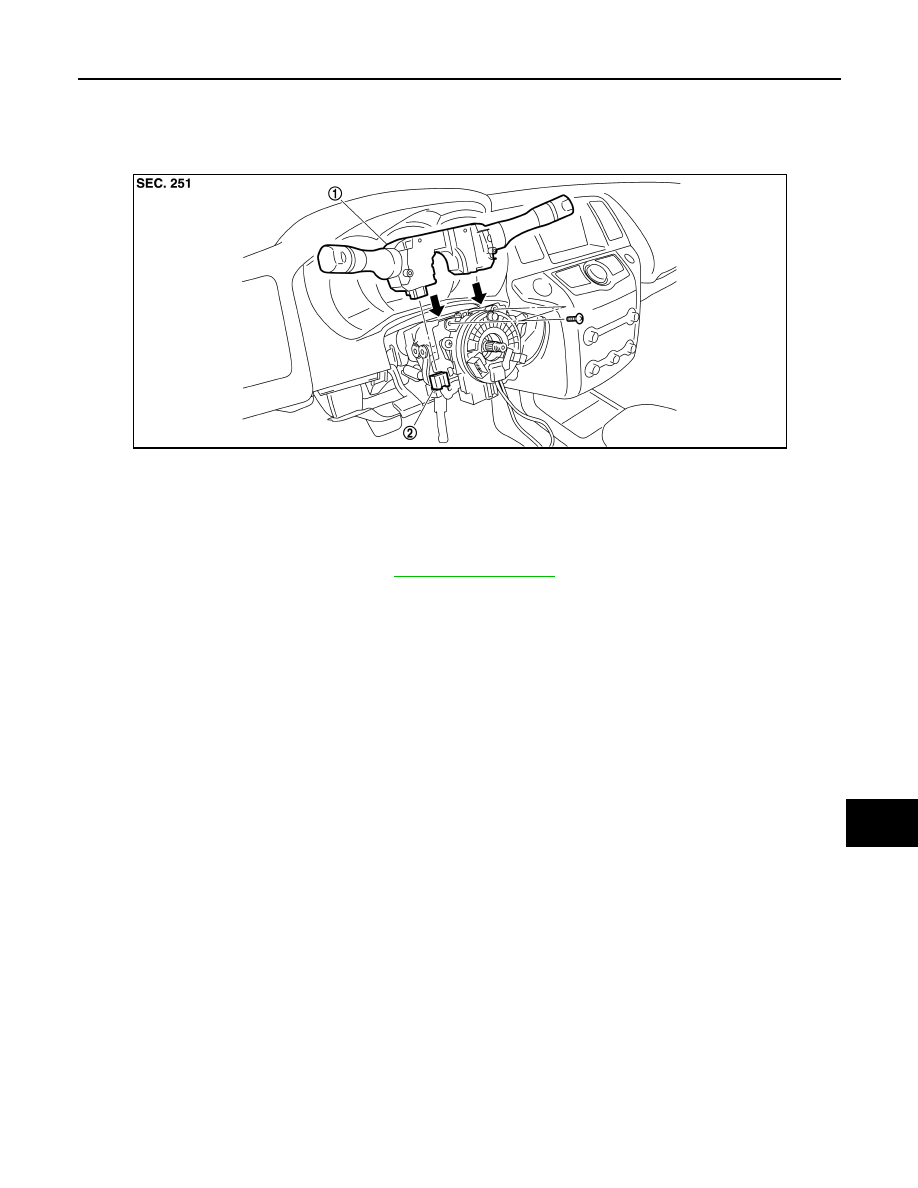

COMBINATION SWITCH

Exploded View

INFOID:0000000009722483

Removal and Installation

INFOID:0000000009722484

REMOVAL

1.

Remove steering column cover. Refer to

IP-14, "Exploded View"

.

2.

Remove screws.

3.

Disconnect the connector.

4.

Pull up the combination switch to remove it.

INSTALLATION

Install in the reverse order of removal.

1.

Combination switch

2.

Combination switch connector

JPMIA0896ZZ

BR-1

BRAKES

C

D

E

G

H

I

J

K

L

M

SECTION

BR

A

B

BR

N

O

P

CONTENTS

BRAKE SYSTEM

SYMPTOM DIAGNOSIS  ...............................

3

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

3

NVH Troubleshooting Chart  ......................................

3

PRECAUTION ...............................................

4

PRECAUTIONS ...................................................

4

FOR USA AND CANADA ............................................

4

FOR USA AND CANADA : Precaution for Supple-
mental Restraint System (SRS) "AIR BAG" and
"SEAT BELT PRE-TENSIONER" ............................
..

4

FOR USA AND CANADA : Precaution for Proce-
dure without Cowl Top Cover ..................................
..

4

FOR USA AND CANADA : Precaution for Brake
System ....................................................................
..

4

FOR USA AND CANADA : Precautions for Re-
moving of Battery Terminal  .....................................
..

5

FOR MEXICO  ..............................................................

5

FOR MEXICO : Precaution for Supplemental Re-
straint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER" .................................................
..

5

FOR MEXICO : Precaution for Procedure without
Cowl Top Cover  ......................................................
..

6

FOR MEXICO : Precaution for Brake System ...........

6

FOR MEXICO : Precautions for Removing of Bat-
tery Terminal  ...........................................................
..

7

PREPARATION ............................................

8

PREPARATION ...................................................

8

Commercial Service Tool  ..........................................

8

PERIODIC MAINTENANCE ..........................

9

BRAKE PEDAL  ...................................................

9

Inspection and Adjustment ........................................

9

BRAKE FLUID ....................................................

12

Inspection ................................................................

12

Draining ...................................................................

12

Refilling ....................................................................

12

Bleeding Brake System  ...........................................

13

BRAKE MASTER CYLINDER  ..........................

14

Inspection ................................................................

14

BRAKE BOOSTER  ...........................................

15

Inspection ................................................................

15

FRONT DISC BRAKE .......................................

16

BRAKE PAD  ..............................................................

16

BRAKE PAD : Inspection and Adjustment ...............

16

DISC ROTOR  .............................................................

16

DISC ROTOR : Inspection and Adjustment .............

16

REAR DISC BRAKE .........................................

18

BRAKE PAD  ..............................................................

18

BRAKE PAD : Inspection and Adjustment ...............

18

DISC ROTOR  .............................................................

18

DISC ROTOR : Inspection and Adjustment .............

18

REMOVAL AND INSTALLATION  ...............

20

BRAKE PEDAL .................................................

20

Exploded View .........................................................

20

Removal and Installation  .........................................

20

Inspection and Adjustment  ......................................

21

BRAKE PIPING .................................................

22

FRONT .......................................................................

22

FRONT : Exploded View  .........................................

22

FRONT : Hydraulic Piping  .......................................

23

FRONT : Removal and Installation ..........................

23

FRONT : Inspection .................................................

24

REAR .........................................................................

24

REAR : Exploded View ............................................

24

REAR : Hydraulic Piping ..........................................

25
