DIAGNOSIS SYSTEM (BCM)

Item

Description

ID READ

Registered tire pressure sensor ID can be displayed.

ID REGIST

Tire pressure sensor ID can be registered.

BCM

WT-13

< ECU DIAGNOSIS INFORMATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000009722249

ECU

Reference

BCM

BCS-51, "Reference Value"

BCS-89, "Fail-safe"

BCS-90, "DTC Inspection Priority Chart"

BCS-91, "DTC Index"

WT-14

< WIRING DIAGRAM >

TIRE PRESSURE MONITORING SYSTEM

WIRING DIAGRAM

TIRE PRESSURE MONITORING SYSTEM

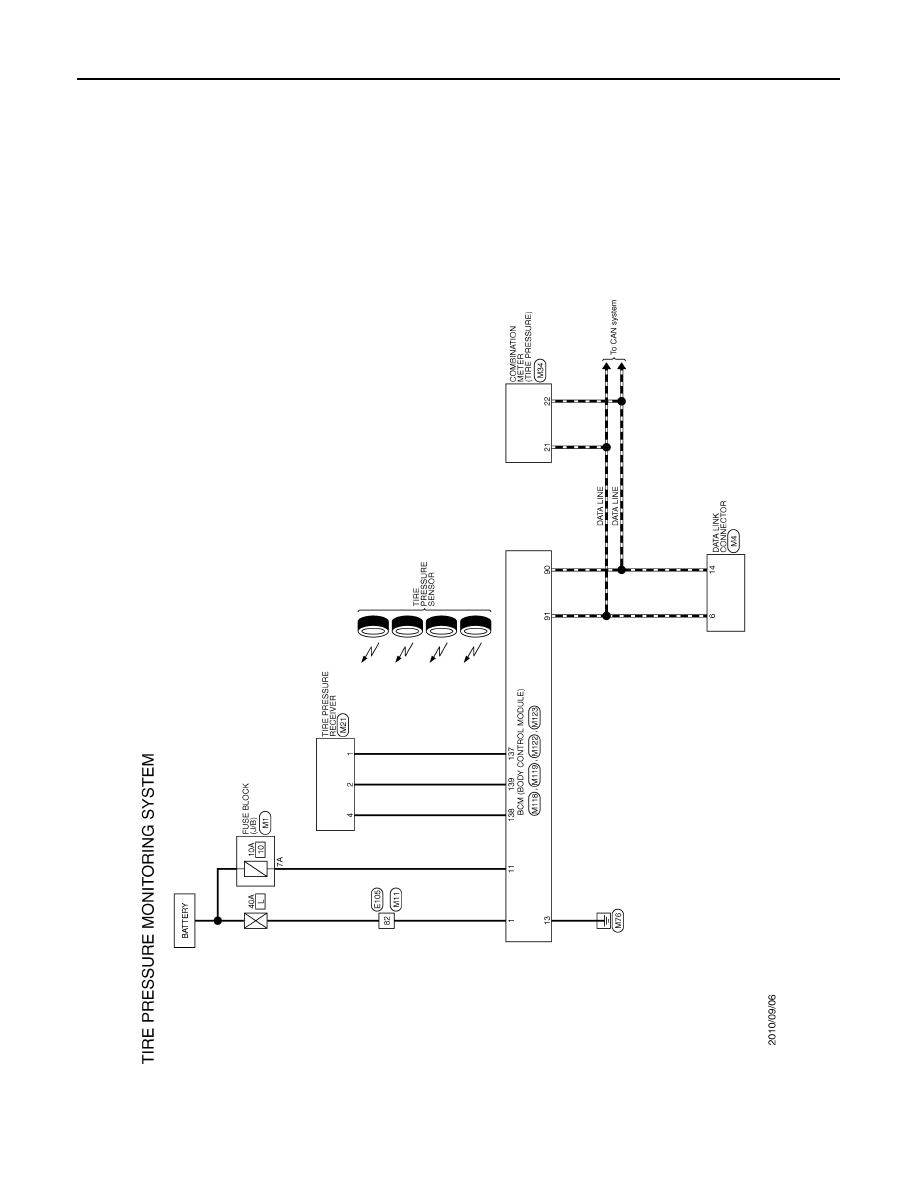

Wiring Diagram

INFOID:0000000009722250

JCEWM0254GB

TIRE PRESSURE MONITORING SYSTEM

WT-15

< WIRING DIAGRAM >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

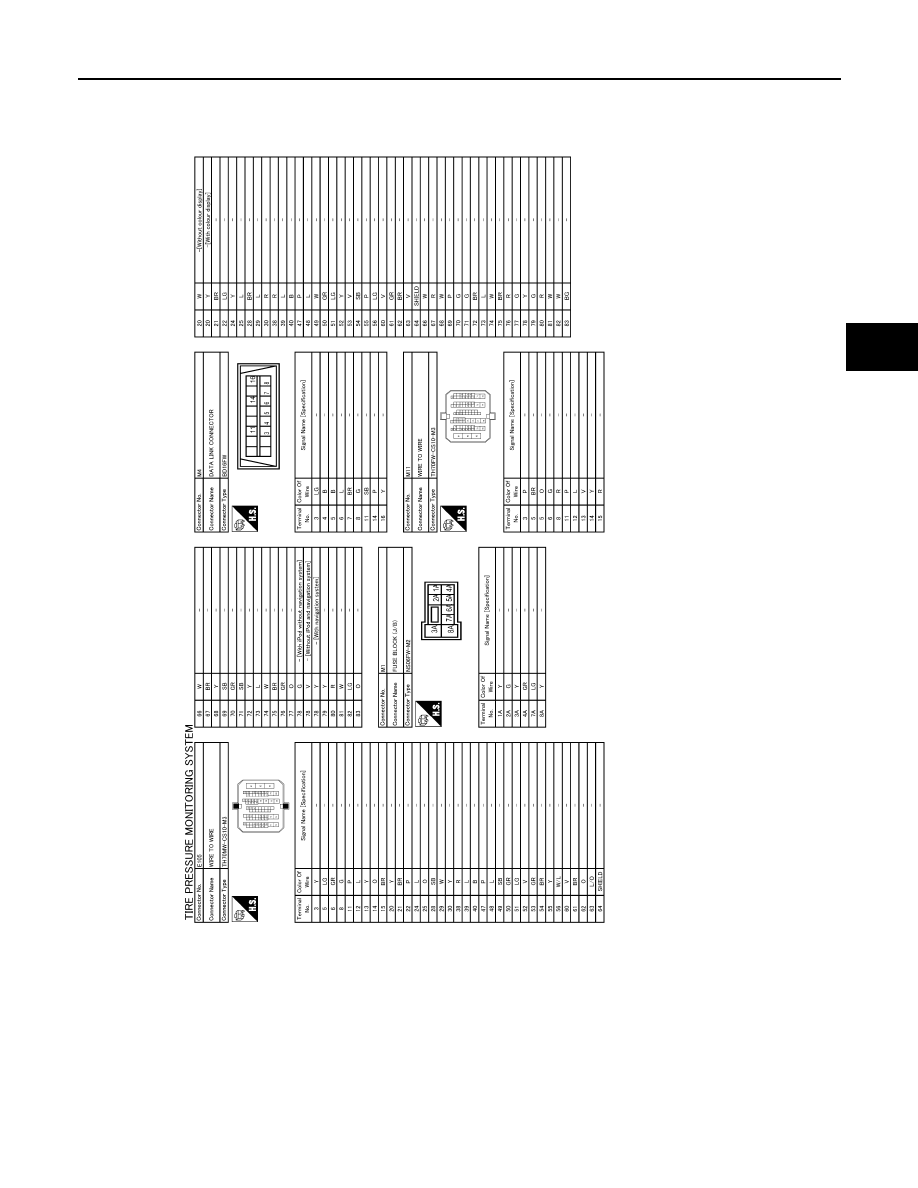

JREWC0532GB
