VTL-20

< PREPARATION >

[WITHOUT 7 INCH DISPLAY]

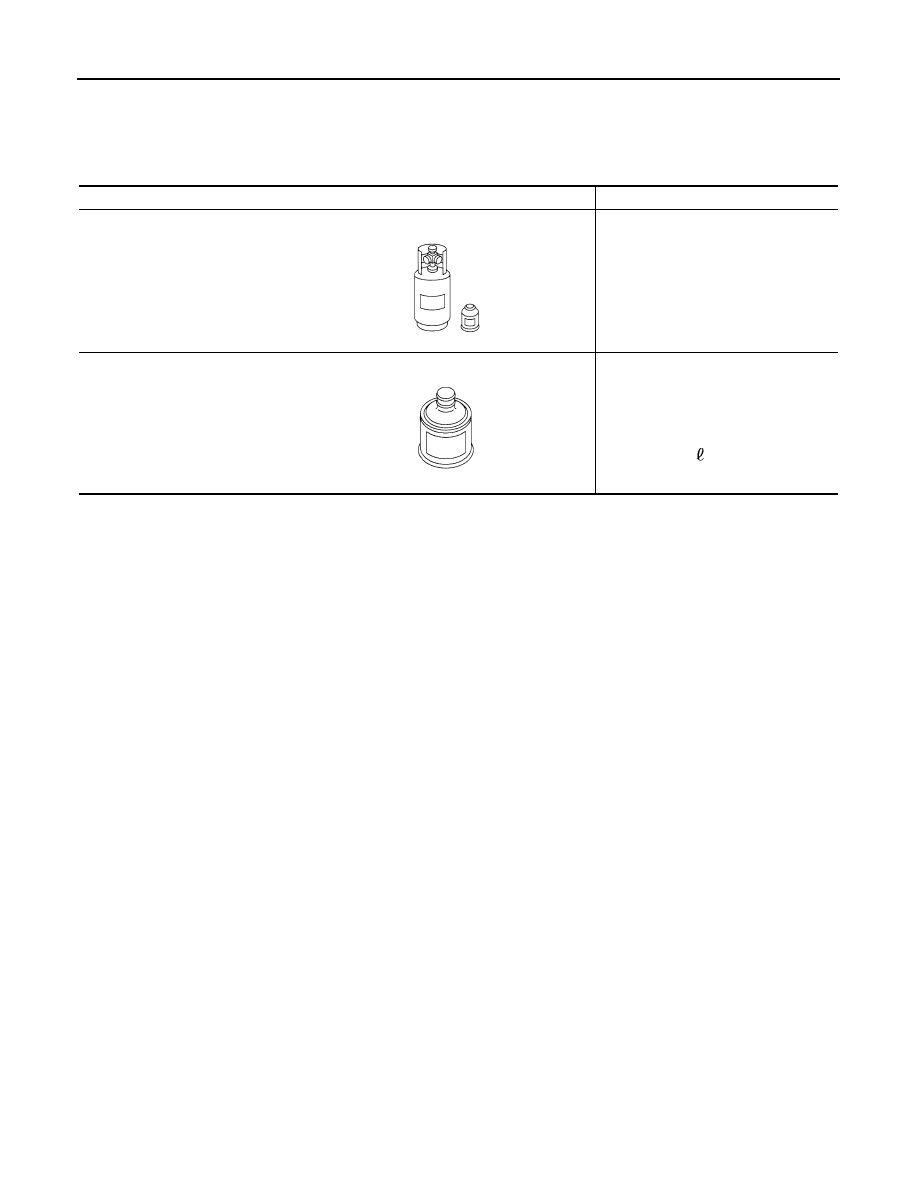

PREPARATION

• Refrigerant container fittings, service hose fittings and service equipment fittings (equipment that handles

refrigerant and/or lubricant) are different between CFC-12 (R-12) and HFC-134a (R-134a). This is to avoid
mixed use of the refrigerants/lubricant.

• Never use adapters that convert one size fitting to another. Refrigerant/lubricant contamination occurs and

compressor malfunction may result.

Tool name

Description

HFC-134a (R-134a) refrigerant

Container color: Light blue
Container marking: HFC-134a (R-
134a)
Fitting size: Thread size

• Large container 1/2

″

-16 ACME

A/C System Oil Type S (DH-PS)

Type: Polyalkylene glycol oil (PAG),
type S (DH-PS)
Application:
HFC-134a (R-134a) swash plate com-
pressors

Capacity: 40 m

 (1.4 US fl oz, 1.4 Imp

fl oz)

S-NT196

JMIIA1759ZZ

IN-CABIN MICROFILTER

VTL-21

< PERIODIC MAINTENANCE >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

PERIODIC MAINTENANCE

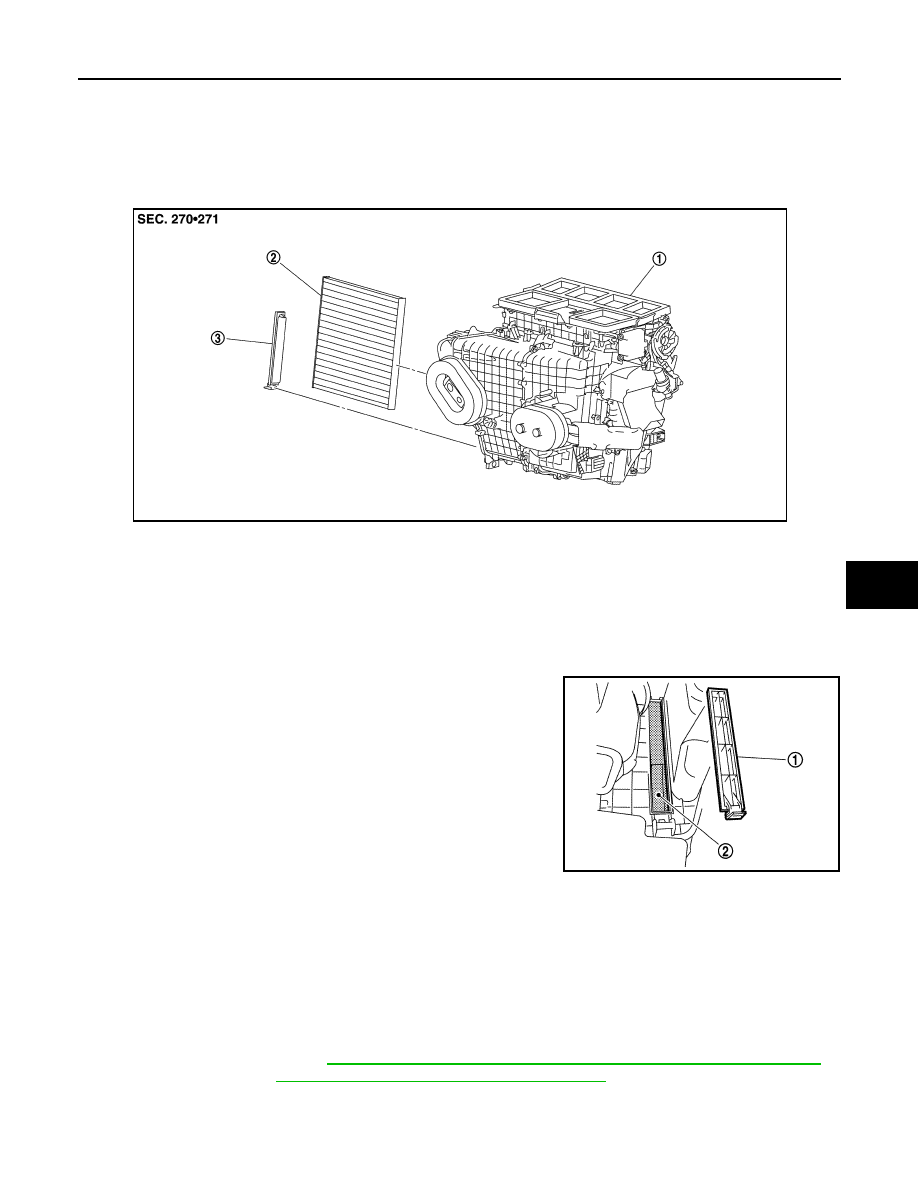

IN-CABIN MICROFILTER

Exploded View

INFOID:0000000009721075

*: Models for Mexico.

Removal and Installation

INFOID:0000000009721076

REMOVAL

1.

Remove filter cover (1), and then remove in-cabin microfilter or
air conditioner filter (2).

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• If the filter is deformed/damaged when removing, replace it with a new one. Deformed/damaged filter

may deteriorate the dust collecting performance.

• When installing, handle the filter with extreme care to avoid deforming/damaging.

Replacement

INFOID:0000000009721077

Replace in-cabin microfilter or air conditioner filter.
Models for North America: Refer to

MA-9, "FOR NORTH AMERICA : Introduction of Periodic Maintenance"

.

Models for Mexico: Refer to

MA-12, "FOR MEXICO : Periodic Maintenance"

.

Affix a caution label inside the glove box when replacing filter.

1.

Heater & cooling unit assembly

2.

In-cabin microfilter
(Air conditioner filter)*

3.

Filter cover

JPIIA0895ZZ

JPIIA0552ZZ

VTL-22

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

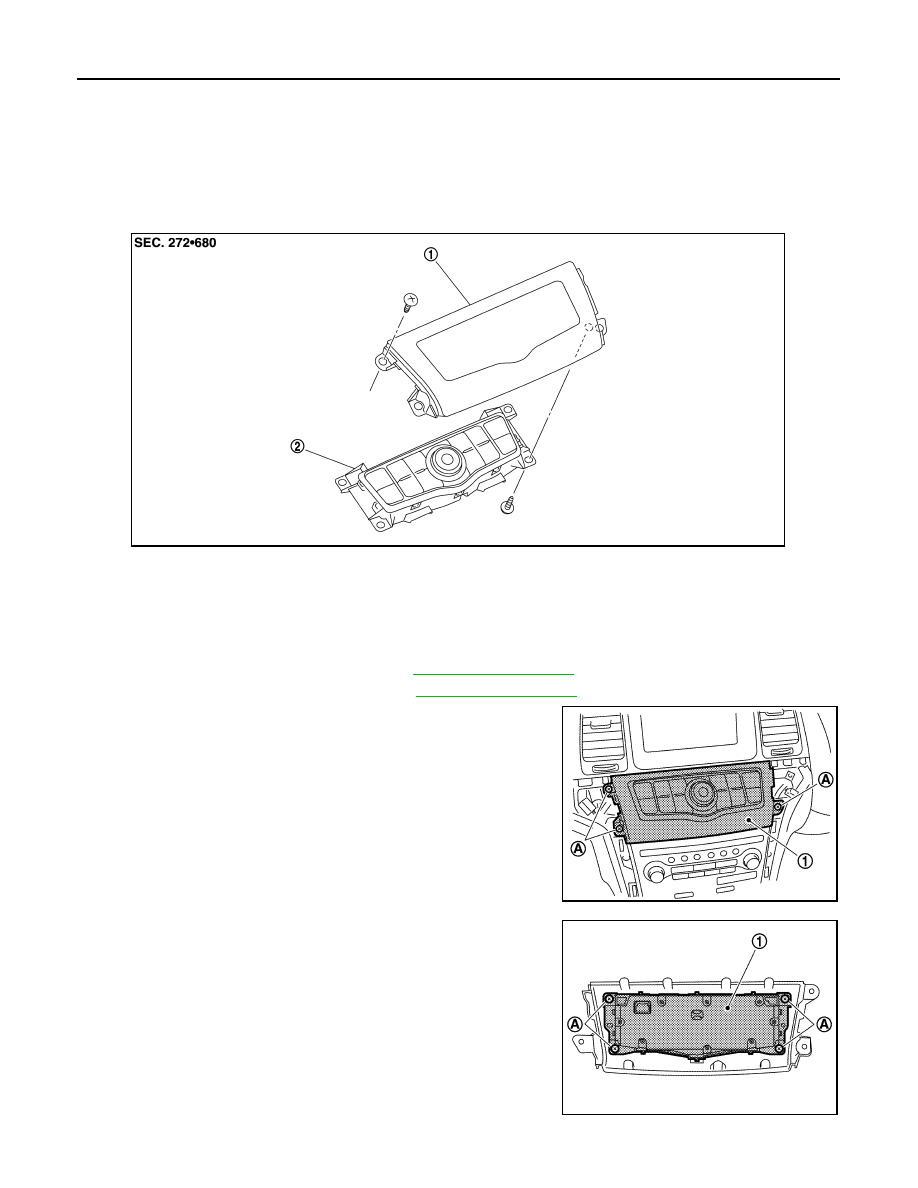

A/C CONTROL

REMOVAL AND INSTALLATION

A/C CONTROL

Exploded View

INFOID:0000000009721078

DISASSEMBLY

Removal and Installation

INFOID:0000000009721079

REMOVAL

1.

Remove instrument stay cover LH. Refer to

IP-14, "Exploded View"

.

2.

Remove instrument stay cover RH. Refer to

IP-14, "Exploded View"

.

3.

Remove fixing screws (A) and then remove cluster lid D (1).

4.

Remove fixing screws (A) and then remove A/C control (1).

INSTALLATION

1.

Cluster lid D

2.

A/C control

JPIIA0600ZZ

JPIIA0601ZZ

JPIIA0602ZZ

A/C CONTROL

VTL-23

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

Install in the reverse order of removal.
