CVT FLUID FILTER

CVT FLUID FILTER

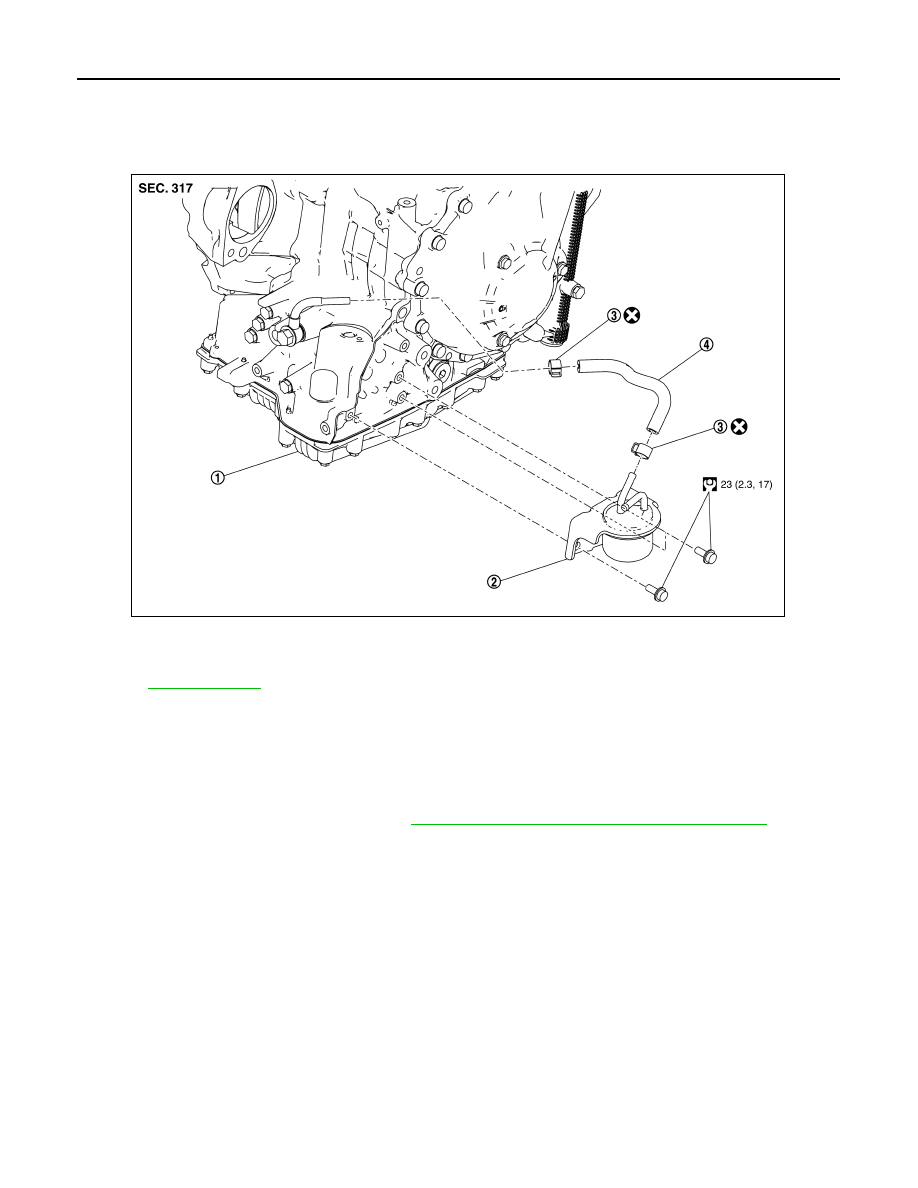

Exploded View

INFOID:0000000010106055

Removal and Installation

INFOID:0000000010106056

NOTE:
Cap or plug openings to prevent fluid from spilling.

REMOVAL

1.

Remove front fender protector LH. Refer to

EXT-26, "FENDER PROTECTOR : Exploded View"

.

2.

Pull out CVT fluid cooler hose from CVT fluid filter.

3.

Remove filter hose.

4.

Remove CVT fluid filter from transaxle assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

Never reuse hose clamp.

1.

Transaxle

2.

CVT fluid filter

3.

Hose clamp

4.

Filter hose

Refer to

GI-4, "Components"

 for symbols in the figure.

JSDIA4011GB

CVT FLUID FILTER

TM-179

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

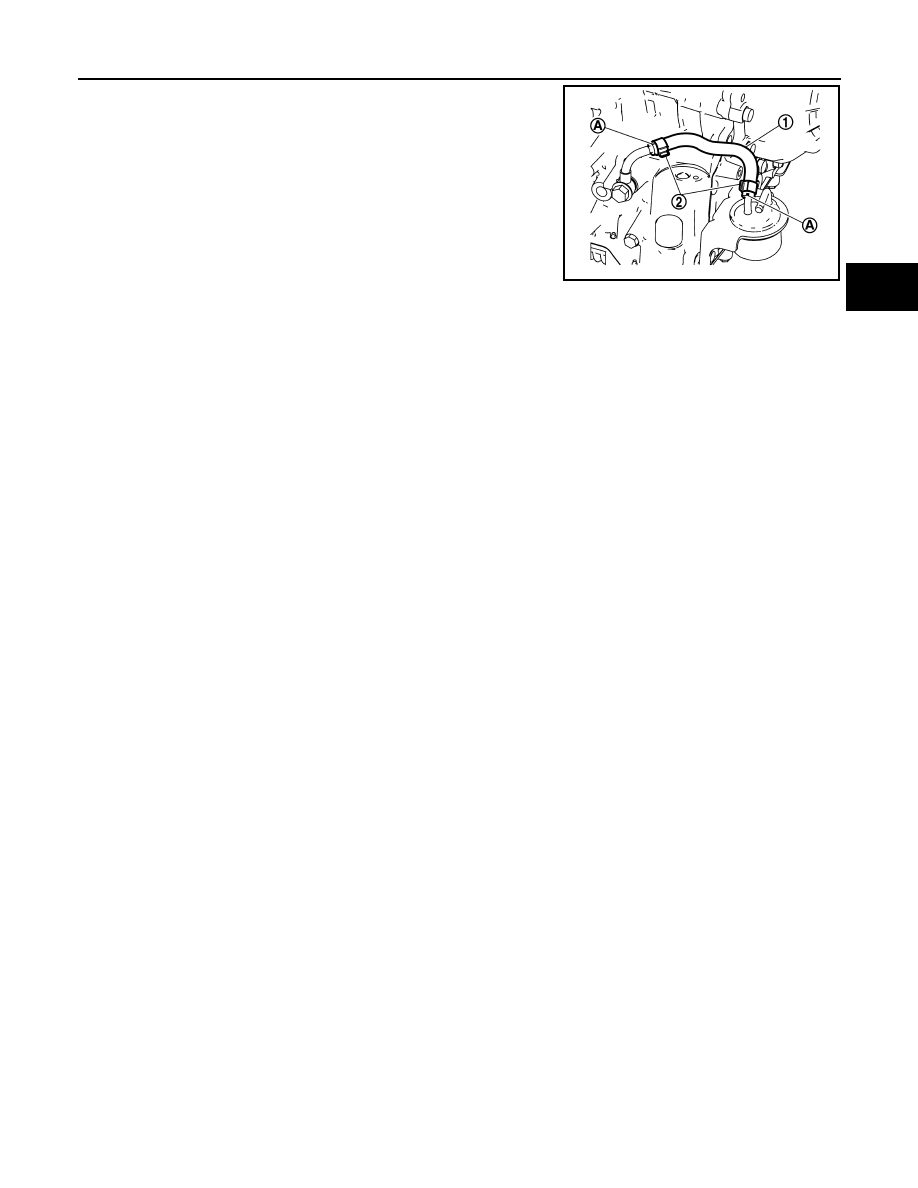

• Install filter hose (1) and hose clamps (2) as shown in the figure.

A

: Paint mark

JSDIA4012ZZ

TM-180

< UNIT REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

TRANSAXLE ASSEMBLY

UNIT REMOVAL AND INSTALLATION

TRANSAXLE ASSEMBLY

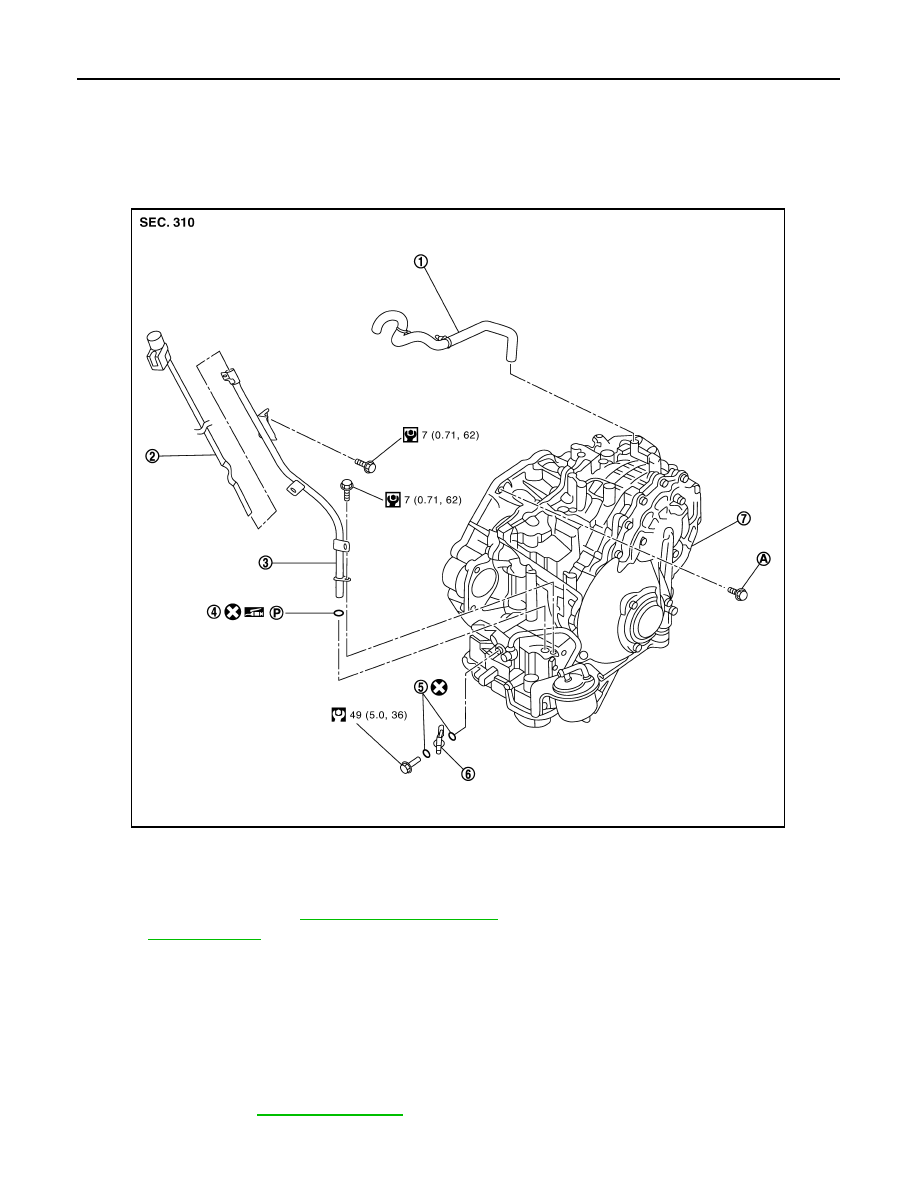

Exploded View

INFOID:0000000009719595

Removal and Installation

INFOID:0000000009719596

WARNING:

Never remove the reservoir tank cap when the engine is hot. Serious burns could occur from high-
pressure engine coolant escaping from the reservoir tank.

CAUTION:

• Perform this step engine is cold.
• When replacing TCM and transaxle assembly as a set, replace transaxle assembly first and then

replace TCM. Refer to

TM-8, "Description"

.

REMOVAL

1.

Air breather hose

2.

CVT fluid level gauge

3.

CVT fluid charging pipe

4.

O-ring

5.

Copper washer

6.

fluid cooler tube

7.

Transaxle assembly

A.

For tightening torque, refer to

TM-180, "Removal and Installation"

.

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIA0626GB

TRANSAXLE ASSEMBLY

TM-181

< UNIT REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

1.

Remove the engine, the transaxle, transfer (AWD models) assembly and front suspension member. Refer
to

EM-72, "2WD : Exploded View"

 (2WD),

EM-81, "AWD : Exploded View"

 (AWD).

2.

Lift with hoist and separate engine, transaxle and transfer (AWD models) assembly from front suspension
member. Refer to

EM-72, "2WD : Exploded View"

 (2WD),

EM-81, "AWD : Exploded View"

 (AWD).

3.

Remove air breather hose. Refer to

TM-177, "Exploded View"

.

4.

Disconnect secondary speed sensor connector. Refer to

TM-173, "Exploded View"

.

5.

Disconnect CVT unit connector.

6.

Disconnect air fuel ratio sensor 1 (bank 2). Refer to

EM-38, "Exploded View"

.

7.

Remove crankshaft position sensor (POS). Refer to

EM-43, "Exploded View"

.

8.

Remove CVT fluid charging pipe from transaxle assembly.

9.

Remove transaxle assembly fixing bolts with power tool.

10. Remove transaxle assembly from engine assembly with a hoist.
11. Remove CVT fluid cooler hose from transaxle assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Never reuse O-ring.
• Apply petroleum jelly to O-ring.

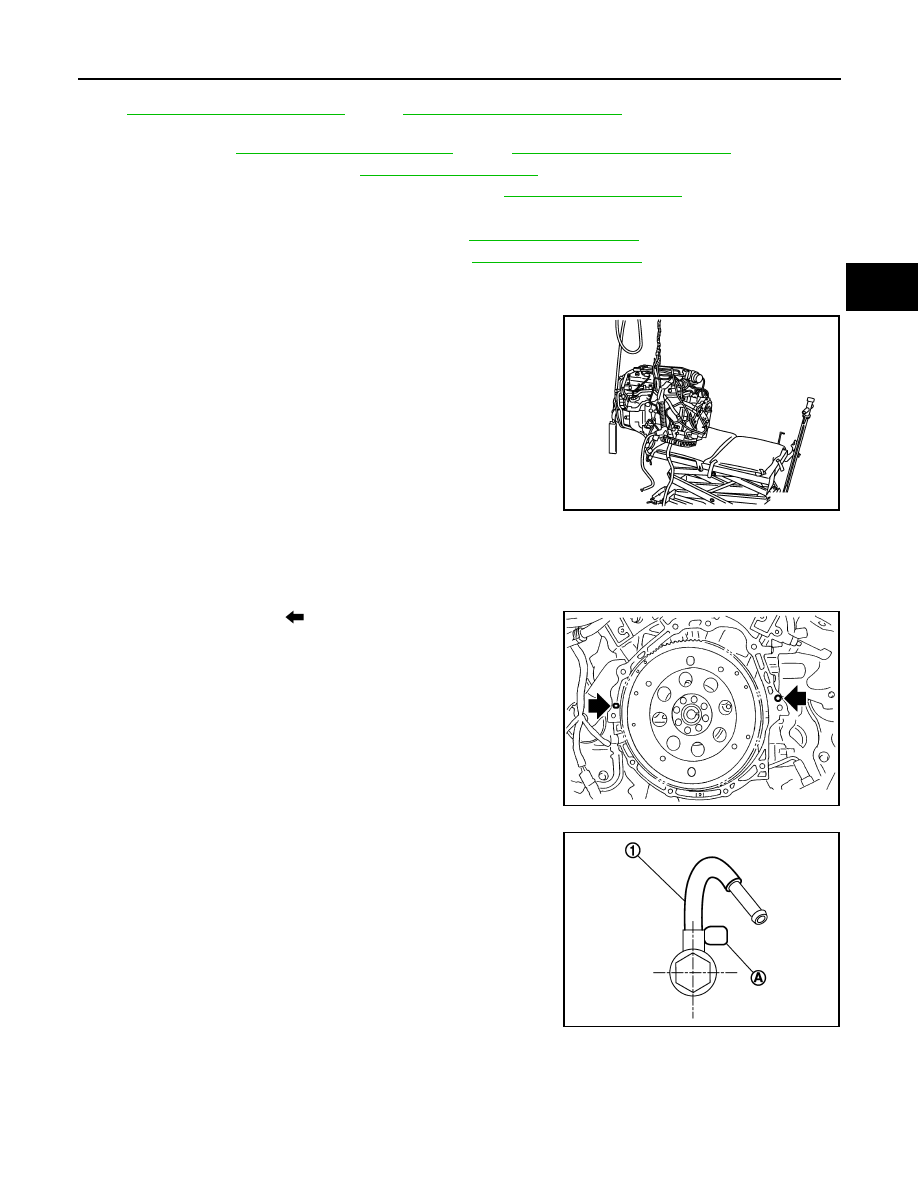

• Check fitting of dowel pins (

) when installing transaxle assembly

to engine assembly.

• When installing CVT fluid cooler tube (1) to transaxle assembly:
- Contact CVT fluid cooler tube a boss portion (A) of the transaxle

case.

- Tighten the bolt of CVT fluid cooler tube without moving the CVT

fluid cooler tube.

• When installing transaxle assembly to the engine assembly, attach the fixing bolts in accordance with the fol-

lowing.

1.

Rotate torque converter to align a torque converter stud bolt with the service hole.

2.

Rotate drive plate to align a torque converter stud bolt insertion hole of drive plate with service hole.

3.

Install transaxle to engine.

JPDIA0598ZZ

JPDIA0602ZZ

JPDIA0628ZZ
