POWER STEERING CONTROL UNIT

STC-13

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

H

I

J

K

L

M

A

B

STC

N

O

P

ECU DIAGNOSIS INFORMATION

POWER STEERING CONTROL UNIT

Reference Value

INFOID:0000000009722602

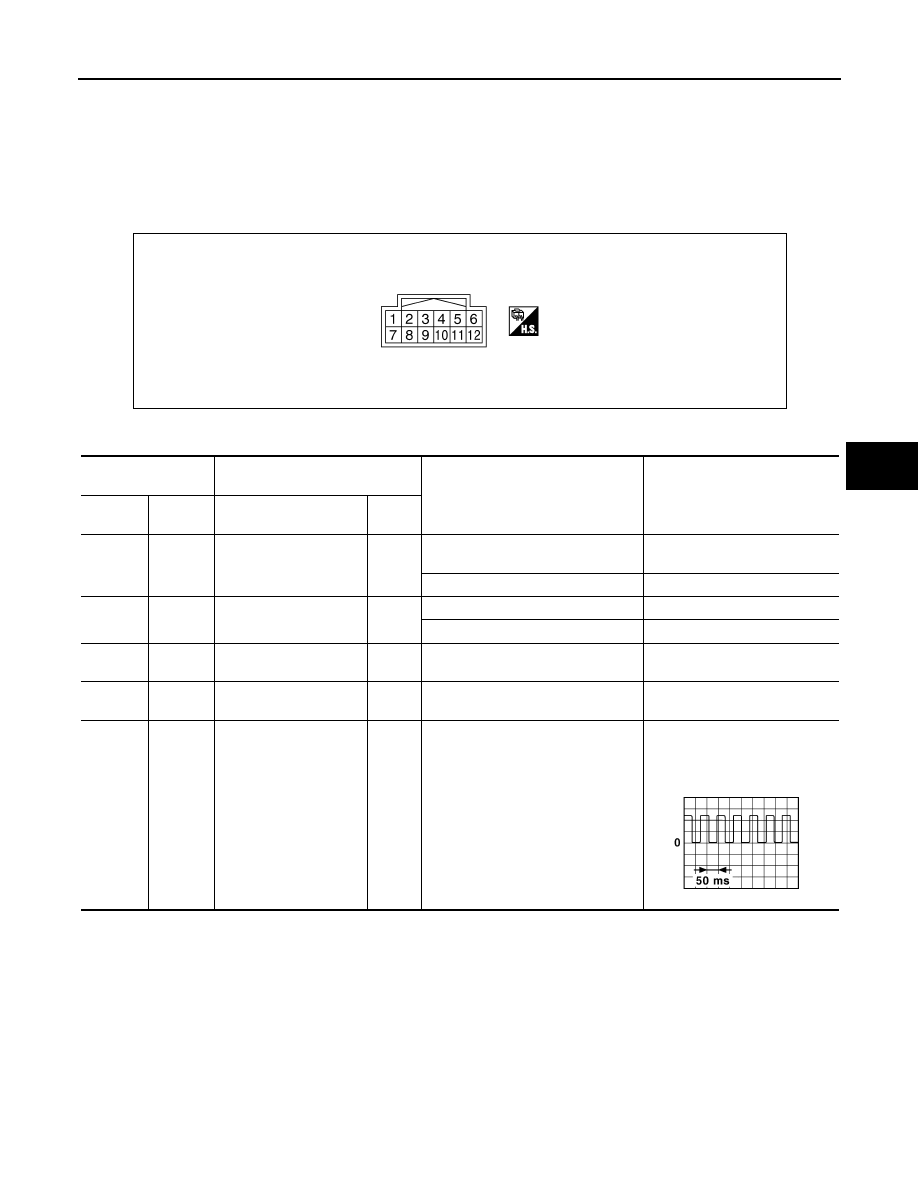

TERMINAL LAYOUT

PHYSICAL VALUES

JSGIA0023ZZ

Terminal No.

(Wire color)

Description

Condition

Value (Approx.)

+

-

Signal name

Input/

Output

1

(Y)

Ground

Power steering solenoid
valve voltage

Output

Vehicle speed: 0 km/h (0 MPH)
(Engine is running)

4.4 – 6.6 V

Vehicle speed: 100 km/h (62 MPH)

2.4 – 3.6 V

3

(G)

Ground

Ignition switch power
supply

Input

Ignition switch: ON

Battery voltage

Ignition switch: OFF

0 V

5

(LG)

Ground

Power steering solenoid
valve ground

—

Always

0  V

6

(B)

Ground

Ground

—

Always

0 V

8

(P)

Ground

Vehicle speed signal

Input

Vehicle speed: 40 km/h (25 MPH)

CAUTION:

Check air pressure of tire under
standard condition.

NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).

JSNIA0015GB

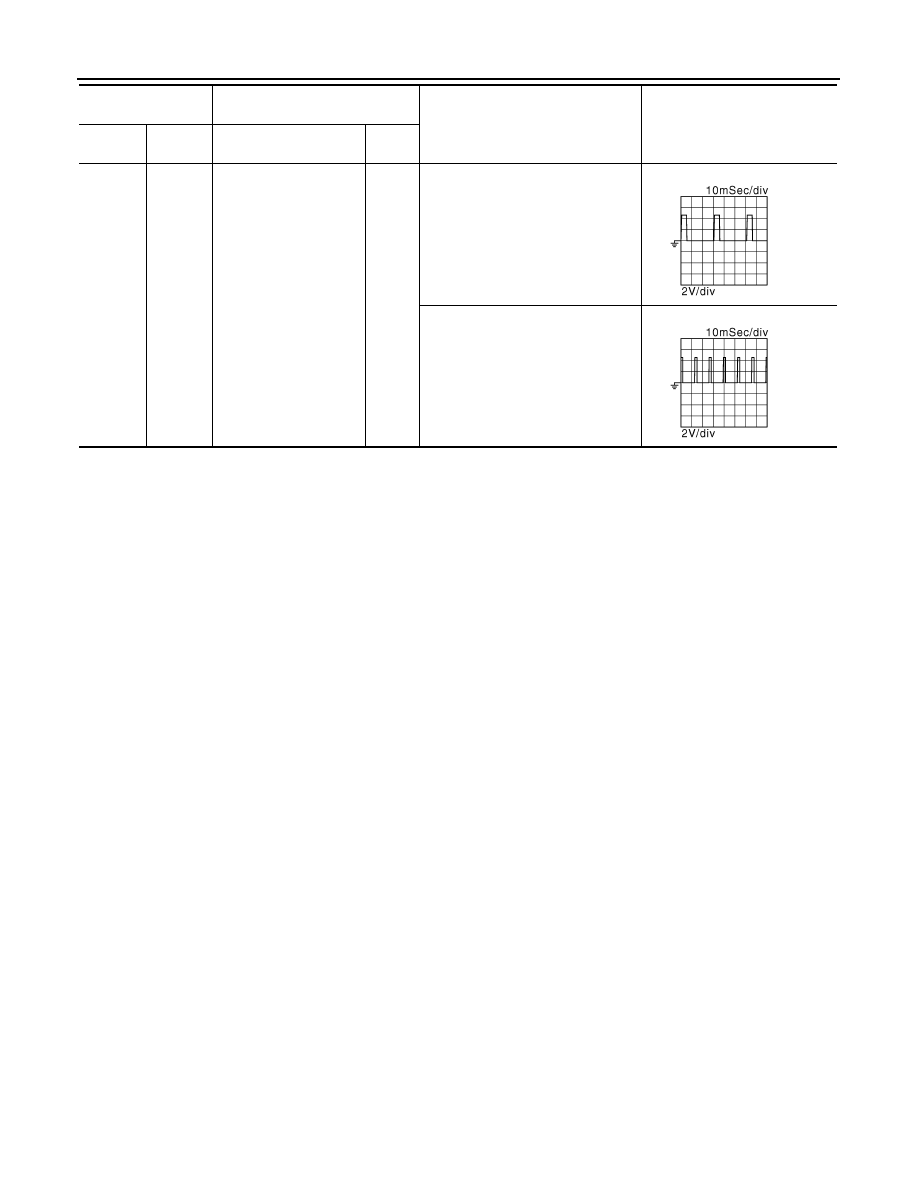

STC-14

< ECU DIAGNOSIS INFORMATION >

POWER STEERING CONTROL UNIT

CAUTION:

When using circuit tester or oscilloscope to measure voltage for inspection, be sure not to forcibly extend any connector ter-
minals.

10

(V)

Ground

Engine speed signal

Input

Engine is running
• Warm-up condition
• Idle speed

Engine is running
• Warm-up condition
• Engine speed: Approx. 2,000 rpm

Terminal No.

(Wire color)

Description

Condition

Value (Approx.)

+

-

Signal name

Input/

Output

JMBIA0076GB

JMBIA0077GB

POWER STEERING CONTROL UNIT

STC-15

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

H

I

J

K

L

M

A

B

STC

N

O

P

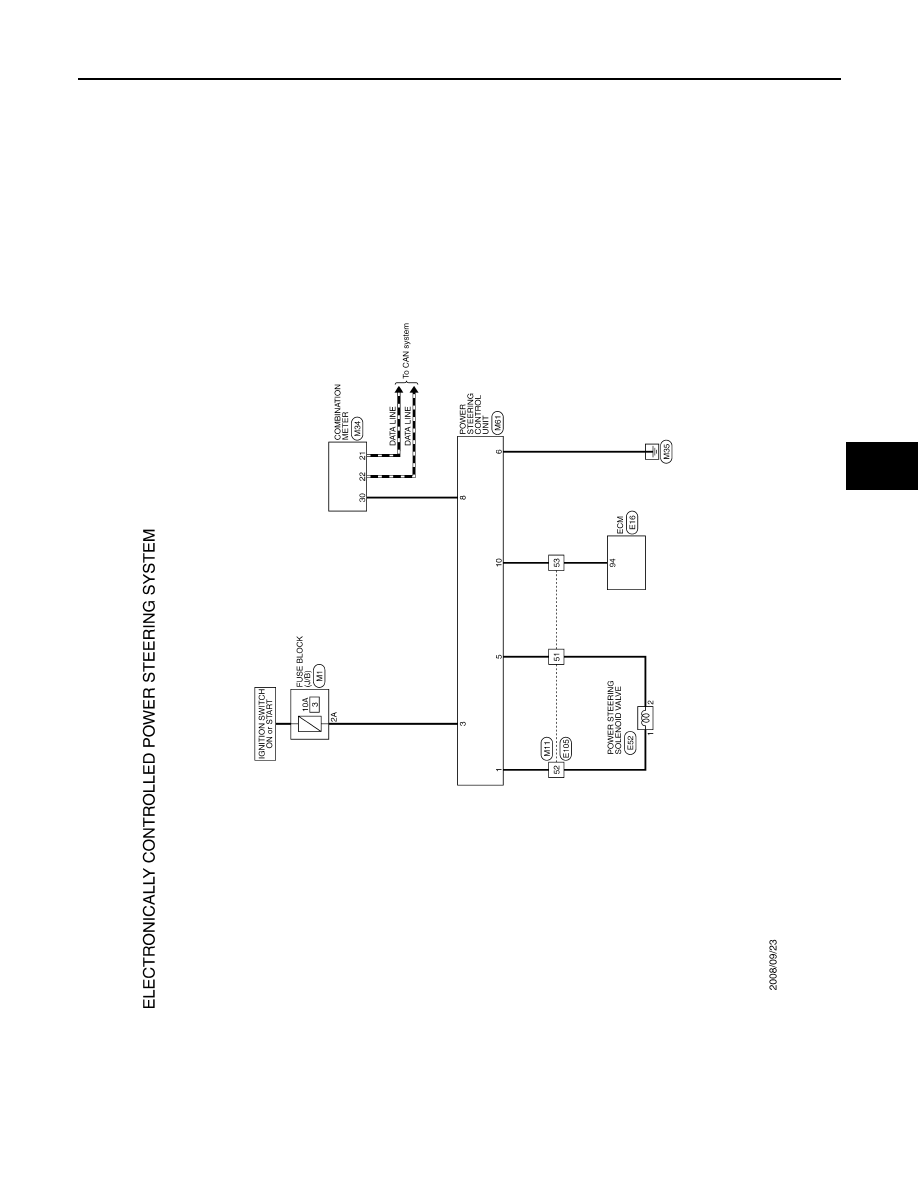

Wiring Diagram - ELECTRONICALLY CONTROLLED POWER STEERING SYSTEM -

INFOID:0000000009722603

JCGWM0180GB

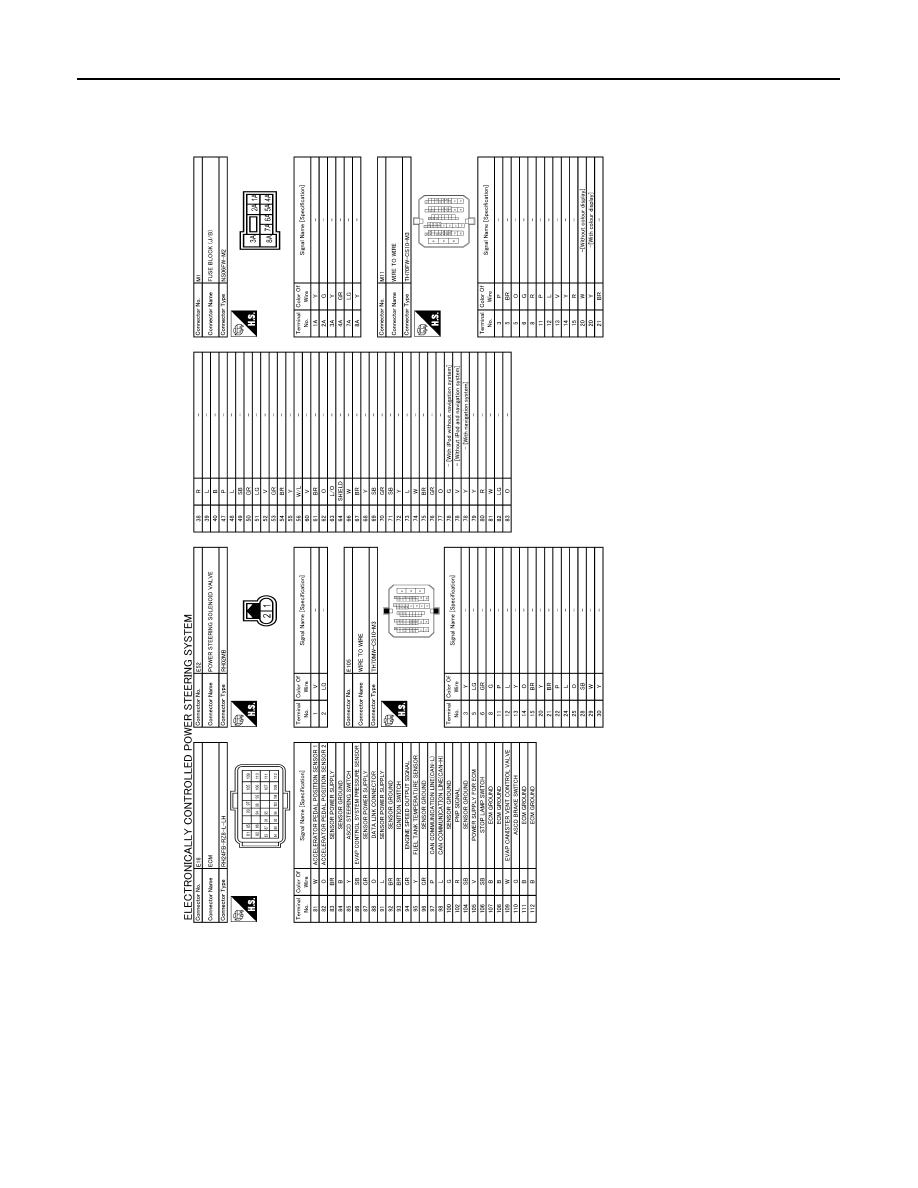

STC-16

< ECU DIAGNOSIS INFORMATION >

POWER STEERING CONTROL UNIT

JRGWC0751GB
