SIDE CURTAIN AIR BAG MODULE

SR-49

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

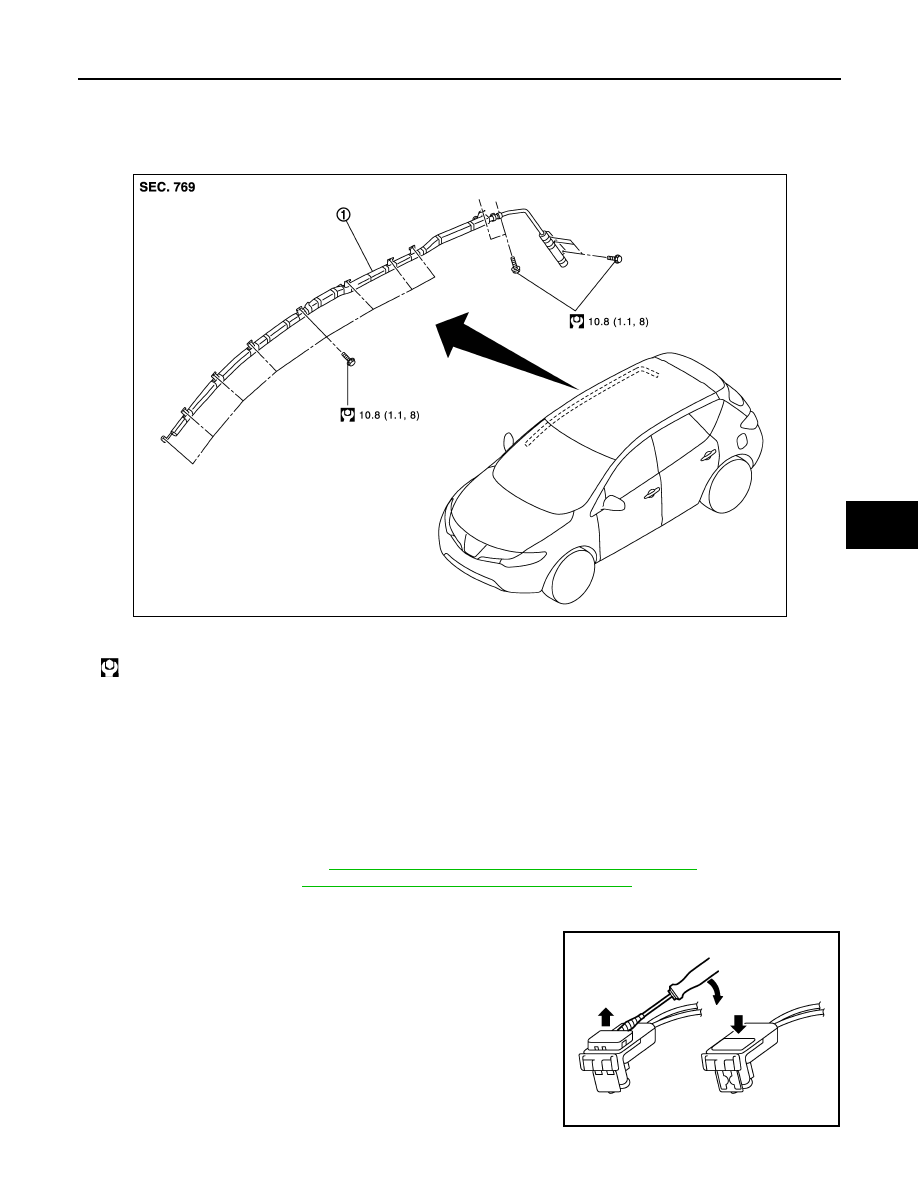

SIDE CURTAIN AIR BAG MODULE

Exploded View

INFOID:0000000009720419

Removal and Installation

INFOID:0000000009720420

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use air tools or electric tools for servicing.

REMOVAL

1.

Remove the headlining.
• Normal roof models: Refer to

INT-26, "NORMAL ROOF : Removal and Installation"

.

• Sunroof models: Refer to

INT-30, "SUNROOF : Removal and Installation"

.

2.

Disconnect the side curtain air bag harness connector.

CAUTION:

• For installing/removing the side curtain air bag harness

connector, insert thin screwdriver wrapped in tape into
notch, lift lock and remove the connector.

• Install the connector with lock raised, and push lock into

the connector.

• After installing the connector, check that the lock is

pushed securely into it.

1.

Side curtain air bag inflator

: N·m (kg-m, ft-lb)

JMHIA1684GB

PHIA0953J

SR-50

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

SIDE CURTAIN AIR BAG MODULE

3.

Remove the fixing bolts, and then remove the side curtain air bag module.

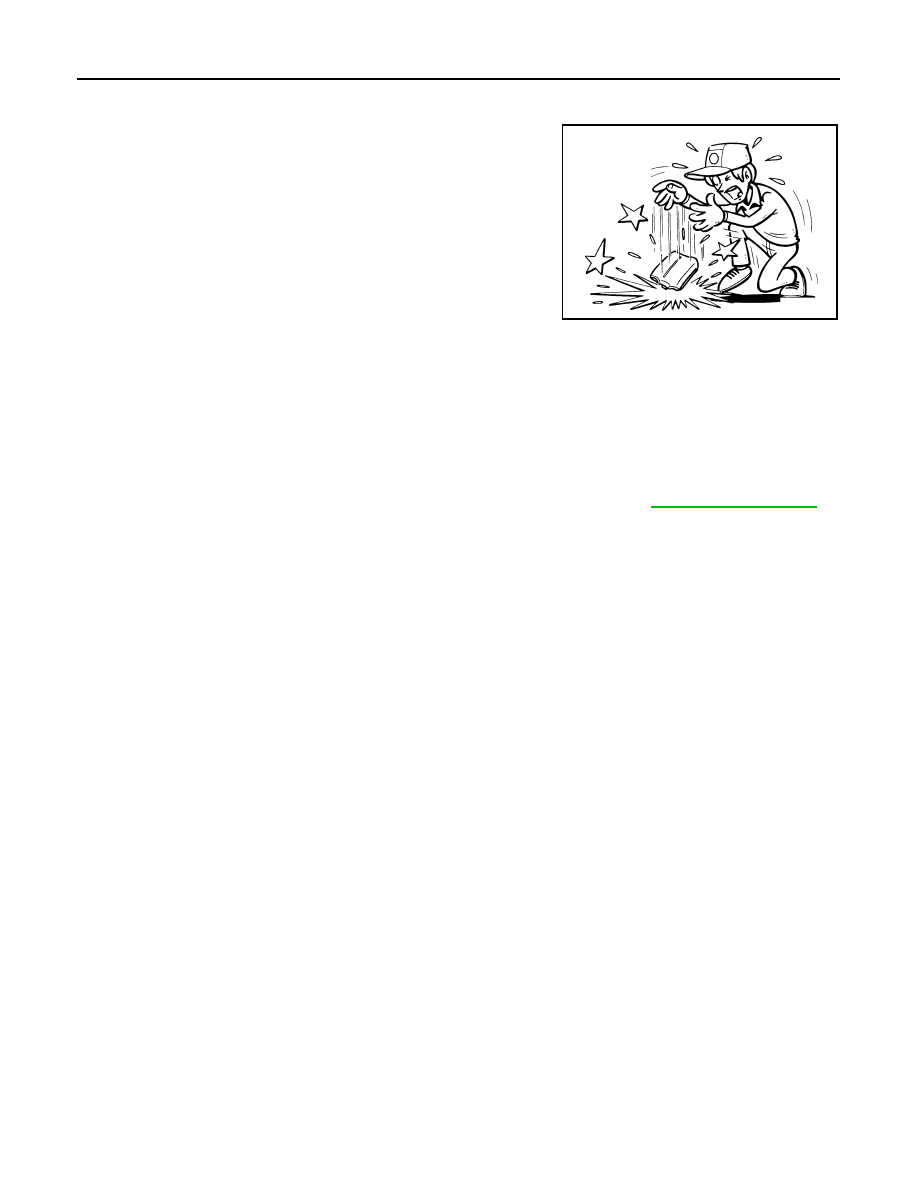

CAUTION:

• Never impact the side curtain air bag module.
• Replace the side curtain air bag module if it has been dropped

or sustained an impact.

• Never insert any foreign objects (screwdriver, etc.) into the side curtain air bag module.
• Never disassemble the side curtain air bag module.
• Never expose the side curtain air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent, or water to come in contact with the side curtain air bag module.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-91, "Description"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

JMHIA0009ZZ

CRASH ZONE SENSOR

SR-51

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

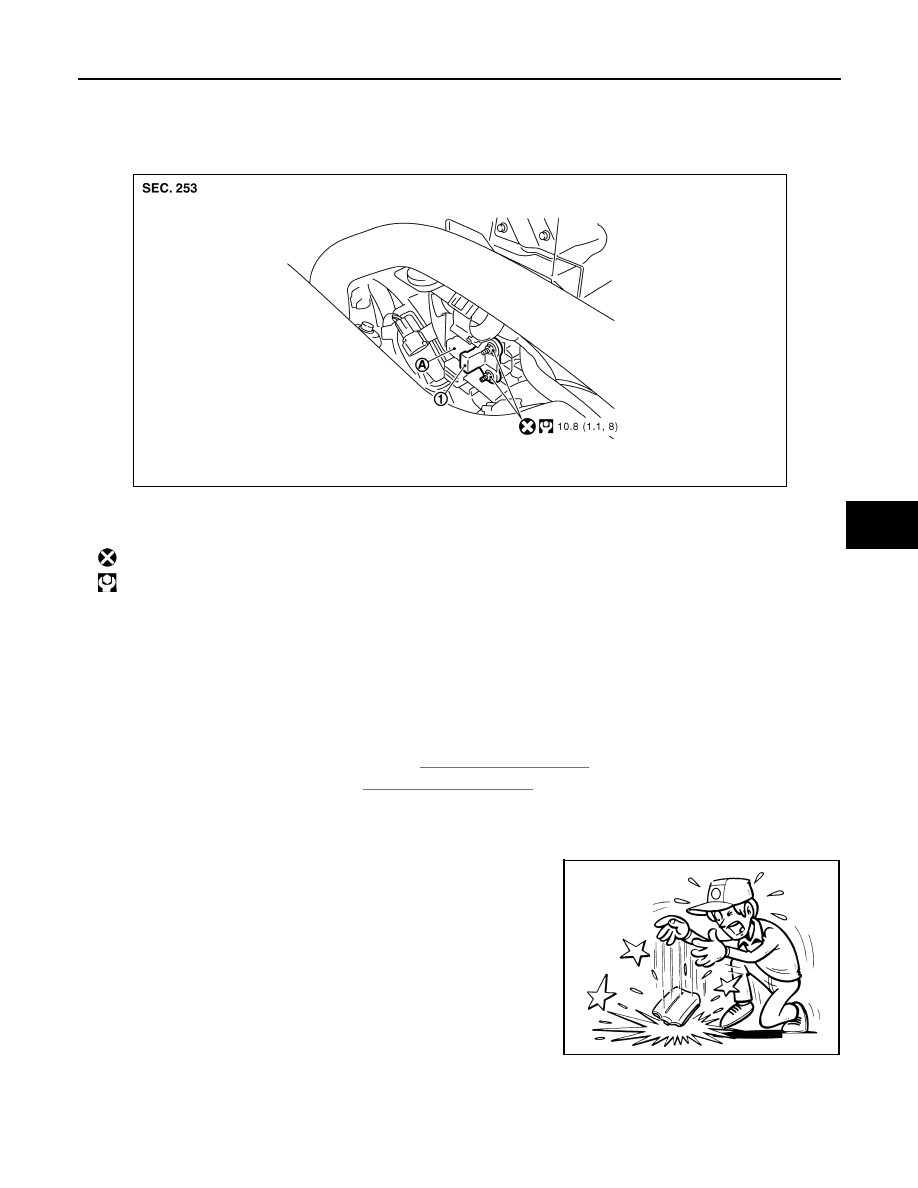

CRASH ZONE SENSOR

Exploded View

INFOID:0000000009720421

Removal and Installation

INFOID:0000000009720422

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use air tools or electric tools for servicing.

REMOVAL

1.

Remove the radiator cover grill RH. Refer to

EM-31, "Exploded View"

.

2.

Remove the air duct (inlet). Refer to

EM-31, "Exploded View"

.

3.

Remove the crash zone sensor fixing nuts.

4.

Disconnect the crash zone sensor harness connector, and then remove the crash zone sensor.

CAUTION:

• Never impact the crash zone sensor.
• Replace the crash zone sensor if it has been dropped or sus-

tained an impact.

• Replace the crash zone sensor of deployed SRS driver air bag and deployed SRS front passenger air

bag.

INSTALLATION

1.

Crash zone sensor

A.

Crash zone sensor harness connector

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JMHIA0515GB

JMHIA0009ZZ

SR-52

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

CRASH ZONE SENSOR

Install in the reverse order of removal.

CAUTION:

• Never use the old fixing nuts after removal, replace with the new nuts.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-91, "Description"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.
