SIDE CURTAIN AIR BAG MODULE

SR-21

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

3.

Remove the fixing bolts, and then remove the side curtain air bag module.

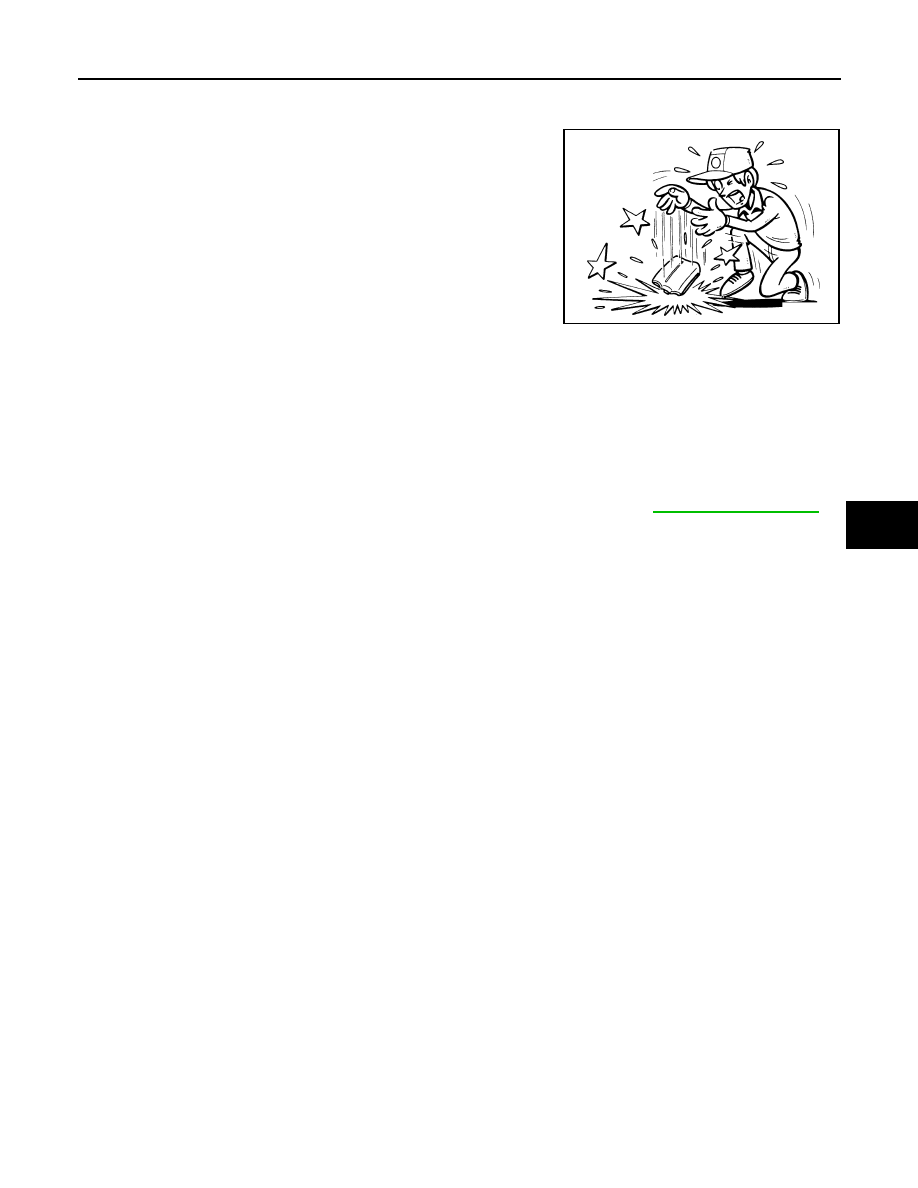

CAUTION:

• Never impact the side curtain air bag module.
• Replace the side curtain air bag module if it has been dropped

or sustained an impact.

• Never insert any foreign objects (screwdriver, etc.) into the side curtain air bag module.
• Never disassemble the side curtain air bag module.
• Never expose the side curtain air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent, or water to come in contact with the side curtain air bag module.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-15, "Description"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

JMHIA0009ZZ

SR-22

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

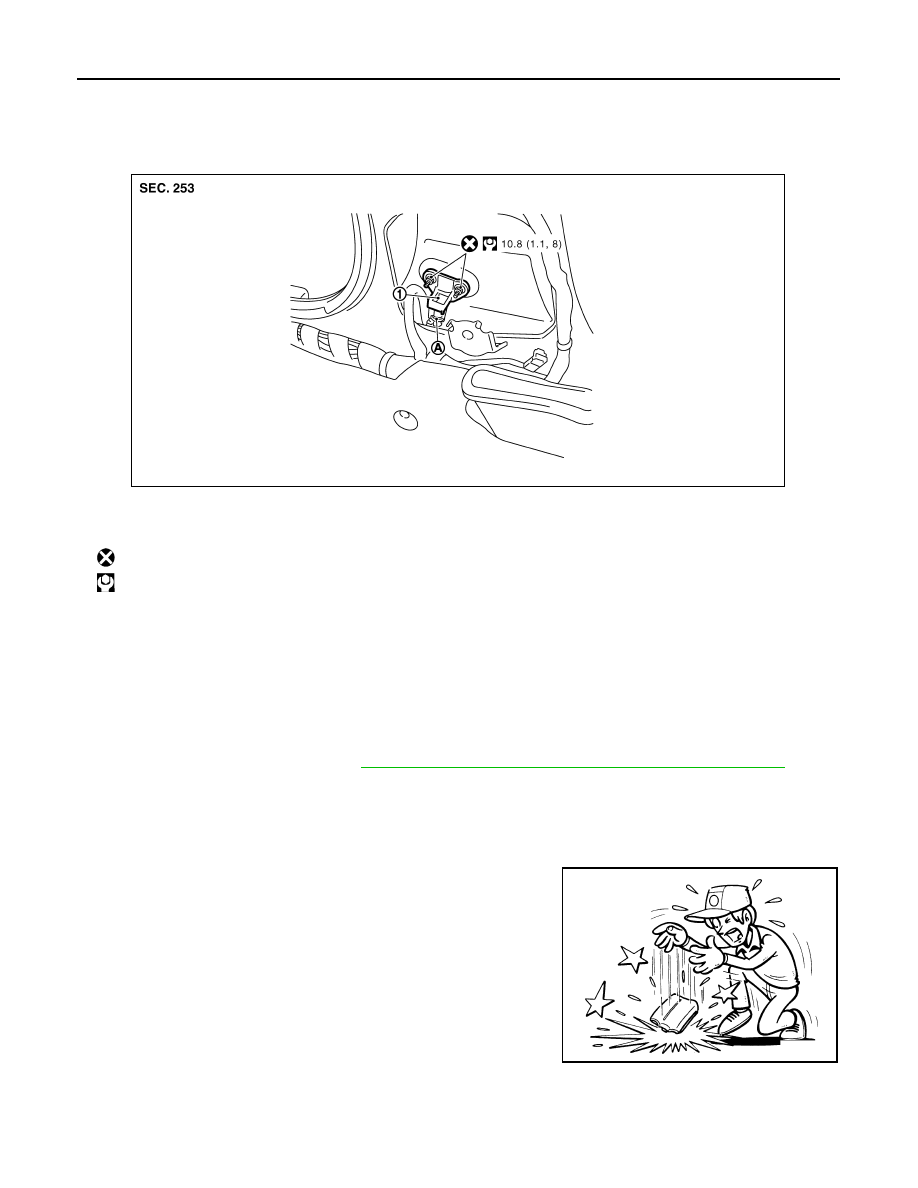

CRASH ZONE SENSOR

CRASH ZONE SENSOR

Exploded View

INFOID:0000000009720396

Removal and Installation

INFOID:0000000009720397

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use air tools or electric tools for servicing.

REMOVAL

1.

Remove the radiator cover grill RH. Refer to

EM-31, "Exploded View"

.

2.

Remove the air duct (inlet). Refer to

EM-31, "Exploded View"

.

3.

Remove the crash zone sensor fixing nuts.

4.

Disconnect the crash zone sensor harness connector, and then remove the crash zone sensor.

CAUTION:

• Never impact the crash zone sensor.
• Replace the crash zone sensor if it has been dropped or sus-

tained an impact.

• Replace the crash zone sensor of deployed SRS driver air bag and deployed SRS front passenger air

bag.

INSTALLATION

1.

Crash zone sensor

A

: Crash zone sensor harness connector

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JMHIA0515GB

JMHIA0009ZZ

CRASH ZONE SENSOR

SR-23

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

Install in the reverse order of removal.

CAUTION:

• Never use the old fixing nuts after removal, replace with the new nuts.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-15, "Description"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

SR-24

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

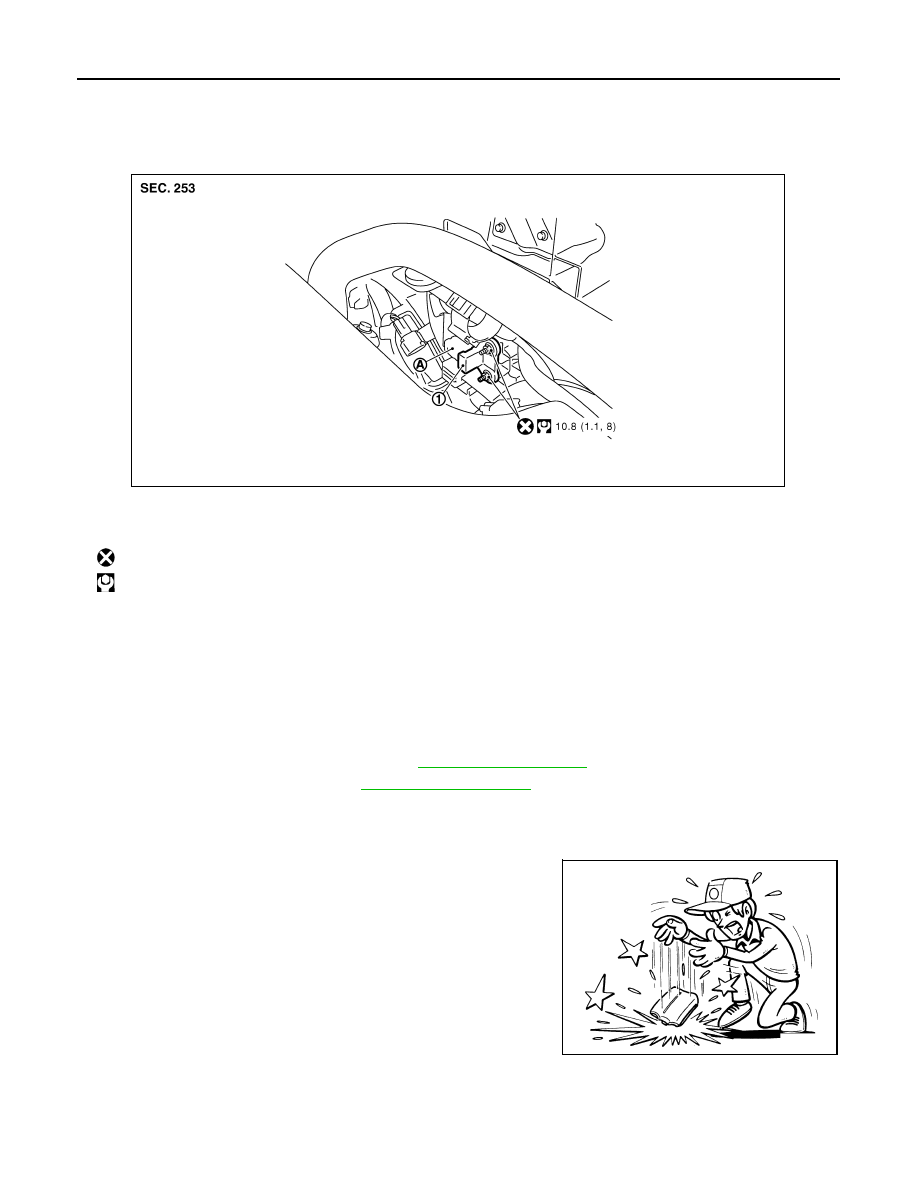

SIDE AIR BAG (SATELLITE) SENSOR

SIDE AIR BAG (SATELLITE) SENSOR

Exploded View

INFOID:0000000009720398

Removal and Installation

INFOID:0000000009720399

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the front seat belt. Refer to

SB-7, "SEAT BELT RETRACTOR : Removal and Installation"

.

2.

Remove the side air bag (satellite) sensor fixing nuts.

3.

Disconnect the side air bag (satellite) sensor harness connector, and then remove the side air bag (satel-
lite) sensor.

CAUTION:

• Never impact the side air bag (satellite) sensor.
• Replace the side air bag (satellite) sensor if it has been

dropped or sustained an impact.

• Replace the side air bag (satellite) sensor of deployed SRS front side air bag module and deployed

SRS side curtain air bag module.

1.

Side air bag (satellite) sensor

A

: Side air bag (satellite) sensor harness connector

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JMHIA0516GB

JMHIA0009ZZ
