PREPARATION

SR-5

< PREPARATION >

[FOR USA AND CANADA]

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

PREPARATION

PREPARATION

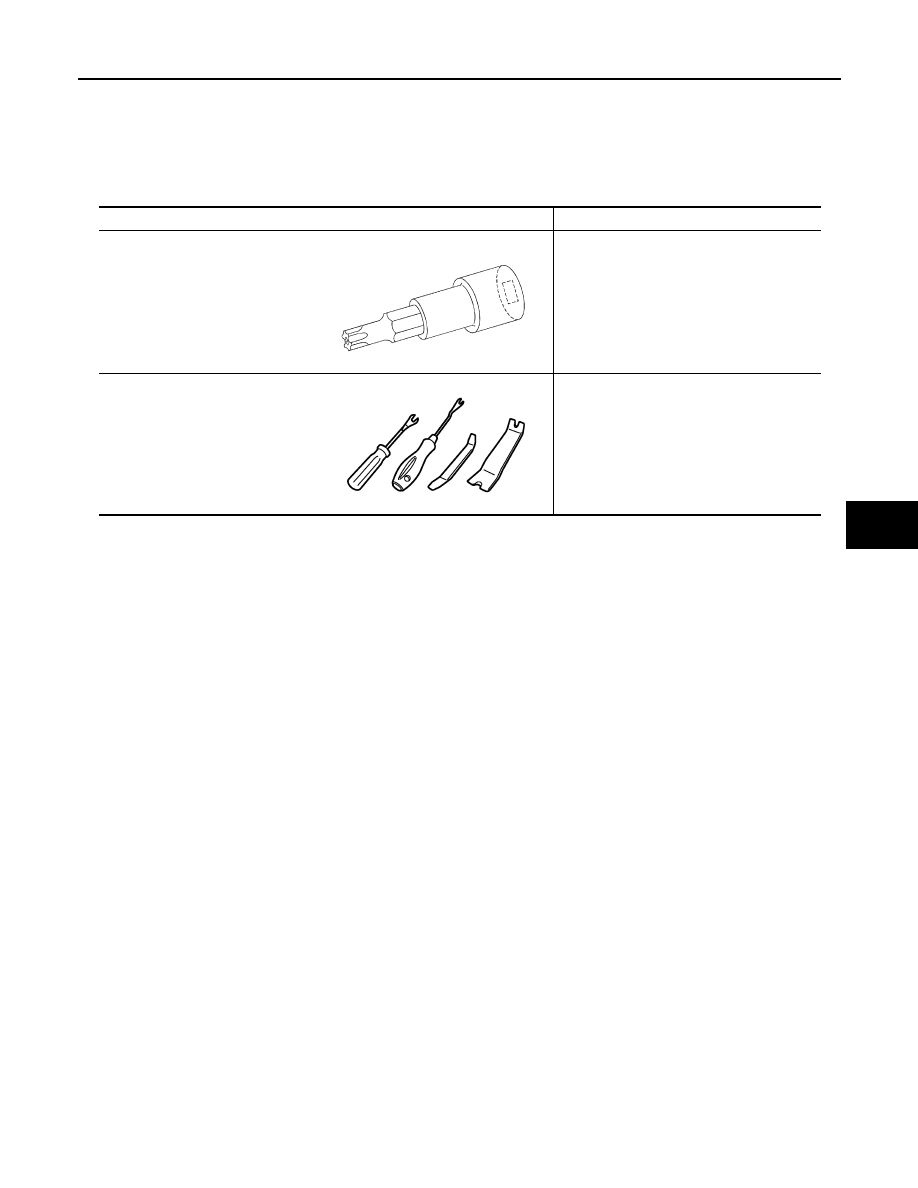

Commercial Service Tools

INFOID:0000000009720383

Tool name

Description

Tamper resistant TORX bit

Removes driver air bag module

Remover tool

Removes clips, pawls and metal clip

S-NT757

JMKIA3050ZZ

SR-6

< BASIC INSPECTION >

[FOR USA AND CANADA]

COLLISION DIAGNOSIS

BASIC INSPECTION

COLLISION DIAGNOSIS

FOR FRONTAL COLLISION

FOR FRONTAL COLLISION : When SRS is activated in a collision

INFOID:0000000009720384

CAUTION:

Due to varying models and option levels, not all parts listed in the chart below apply to all vehicles.

WORK PROCEDURE

1.

Before performing any of the following steps, ensure that all vehicle body and structural repairs have been
completed.

2.

Replace the diagnosis sensor unit.

3.

Remove the front air bag modules, crash zone sensor, bracket and seat belt pre-tensioner assemblies.

4.

Check the SRS components using the table below:
Replace any SRS components showing visible signs of damage. (dents, cracks and deformation, etc.)

5.

Install new front air bag modules, crash zone sensor assembly, bracket and seat belt pre-tensioner
assemblies.

6.

Perform self-diagnosis using CONSULT or air bag warning lamp. Refer to

SRC-15, "Description"

 for

details. Ensure entire SRS operates properly.

7.

After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to

SRC-15, "Description"

.

SRS INSPECTION (FOR FRONTAL COLLISION)

Part

Inspection

Driver air bag module

If the driver air bag has deployed:
REPLACE
Install with new fasteners.

Front passenger air bag module
(if equipped)

If the front passenger air bag has deployed:
REPLACE
Install with new fasteners.

Crash zone sensor

If any of the front air bags or seat belt pre-tensioners* have been activated:
REPLACE the crash zone sensor and bracket with new fasteners.
*: Confirm seat belt pre-tensioner activation using CONSULT only.

Seat belt pre-tensioner assem-
blies
(All applicable locations: buckle,
retractor, lap outer)

If either the driver or passenger seat belt pre-tensioner* has been activated:
REPLACE all seat belt pre-tensioner assemblies with new fasteners.
*: Confirm seat belt pre-tensioner activation using CONSULT only.

Diagnosis sensor unit

If any of the SRS components have been activated:
REPLACE the diagnosis sensor unit.
Install with new fasteners.

Steering wheel

1.

Visually check steering wheel for deformities.

2.

Check harness (built into steering wheel) and connectors for damage, and terminals for defor-
mities.

3.

Install driver air bag module into the steering wheel to check fit and alignment with the wheel.

4.

Check steering wheel for excessive free play.

5.

If no damage is found, reinstall.

6.

If damaged

−

 REPLACE.

Spiral cable

If the driver front air bag has deployed:
REPLACE the spiral cable.

Occupant classification system
(Passenger seat)

1.

Remove passenger seat assembly.

2.

Check control unit case for dents, cracks of deformities.

3.

Check connectors and pressure sensor tube for damage, and terminals for deformities.

4.

Check seat frame and cushion pan for dents or deformities.

5.

If no damage is found, reinstall seat with new fasteners.

6.

If damaged

−

 REPLACE seat cushion assembly with new fasteners.

COLLISION DIAGNOSIS

SR-7

< BASIC INSPECTION >

[FOR USA AND CANADA]

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

FOR FRONTAL COLLISION : When SRS is not activated in a collision

INFOID:0000000009720385

CAUTION:

Due to varying models and option levels, not all parts listed in the chart below apply to all vehicles.

WORK PROCEDURE

1.

Before performing any of the following steps, ensure that all vehicle body and structural repairs have been
completed.

2.

Check the SRS components using the table below:
Replace any SRS components showing visible signs of damage. (dents, cracks and deformation, etc.)

3.

Perform self-diagnosis using CONSULT or air bag warning lamp. Refer to

SRC-15, "Description"

 for

details. Ensure entire SRS operates properly.

4.

After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to

SRC-15, "Description"

.

SRS INSPECTION (FOR FRONTAL COLLISION)

Harness and connectors

1.

Check connectors for poor connection, damage, and terminals for deformities.

2.

Check harness for binding, chafing, cuts, or deformities.

3.

If no damage is found, reinstall the harness and connectors.

4.

If damaged

−

 REPLACE the damaged harness. Do not attempt to repair, splice or modify any

SRS harness.

Instrument panel assembly

If the front passenger air bag has deployed:
REPLACE the instrument panel assembly. (integrated type)

Part

Inspection

Part

Inspection

Driver air bag module

If the driver air bag has NOT been deployed:
1.

Remove driver air bag module. Check harness cover and connectors for damage, terminals for
deformities, and harness for binding.

2.

Install driver air bag module into the steering wheel to check fit and alignment with the wheel.

3.

If no damage is found, reinstall with new fasteners.

4.

If damaged

−

 REPLACE. Install driver air bag module with new fasteners.

Front passenger air bag module
(if equipped)

If the front passenger air bag has NOT been deployed:
1.

Remove front passenger air bag module. Check harness cover and connectors for damage, ter-
minals for deformities, and harness for binding.

2.

Install front passenger air bag module into the instrument panel to check fit with the instrument
panel.

3.

If no damage is found, reinstall with new fasteners.

4.

If damaged

−

 REPLACE. Install front passenger air bag modules with new fasteners.

Crash zone sensor

If the front air bags or seat belt pre-tensioners have NOT been activated:
1.

Remove the crash zone sensor. Check harness connectors for damage, terminals for deformi-
ties, and harness for binding.

2.

Check for visible signs of damage (dents, cracks, deformation, etc.) of the crash zone sensor
and bracket.

3.

Install the crash zone sensor to check fit.

4.

If no damage is found, reinstall with new fasteners.

5.

If damaged

−

 REPLACE the crash zone sensor and bracket with new fasteners.

Seat belt pre-tensioner assem-
blies
(All applicable locations: buckle,
retractor, lap outer)

If the pre-tensioners have NOT been activated:
1.

Remove seat belt pre-tensioners.
Check harness cover and connectors for damage, terminals for deformities, and harness for
binding.

2.

Check belts for damage and anchors for loose mounting.

3.

Check retractor for smooth operation.

4.

Check seat belt adjuster for damage.

5.

Check for deformities of the center pillar inner.

6.

If the center pillar inner has no damage, REPLACE the seat belt pre-tensioner assembly.

7.

If no damage is found, reinstall seat belt pre-tensioner assembly.

8.

If damaged

−

 REPLACE. Install the seat belt pre-tensioners with new fasteners.

SR-8

< BASIC INSPECTION >

[FOR USA AND CANADA]

COLLISION DIAGNOSIS

FOR SIDE AND ROLLOVER COLLISION

FOR SIDE AND ROLLOVER COLLISION : When SRS is activated in a collision

INFOID:0000000009720386

CAUTION:

Due to varying models and option levels, not all parts listed in the chart below apply to all vehicles.

WORK PROCEDURE

1.

Before performing any of the following steps, ensure that all vehicle body and structural repairs have been
completed.

2.

Replace the following components:
• Front seat back assembly (on the side on which side air bag is activated)
• Door finisher (on the side on which door-mounted curtain air bag is activated)
• Pop-up roll bar assemblies and pop-up roll bar covers
• Side air bag (satellite) sensor LH/RH (on the side on which side air bag is activated)
• Diagnosis sensor unit
• Seat belt pre-tensioner assemblies

3.

Check the SRS components and the related parts using the following table.
Replace any SRS components and the related parts showing visible signs of damage. (dents, cracks,
deformation, etc.)

4.

Perform self-diagnosis using CONSULT and “AIR BAG” warning lamp. Refer to

SRC-15, "Description"

 for

details. Make sure entire SRS operates properly.

5.

After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to

SRC-15, "Description"

.

Diagnosis sensor unit

If none of the SRS components have been activated:
1.

Check case for dents, cracks or deformities.

2.

Check connectors for damage, and terminals for deformities.

3.

If no damage is found, reinstall with new fasteners.

4.

If damaged

−

 REPLACE. Install diagnosis sensor unit with new fasteners.

Steering wheel

1.

Visually check steering wheel for deformities.

2.

Check harness (built into steering wheel) and connectors for damage, and terminals for defor-
mities.

3.

Install driver air bag module into the steering wheel to check fit and alignment with the wheel.

4.

Check steering wheel for excessive free play.

5.

If no damage is found, reinstall.

6.

If damaged

−

 REPLACE.

Spiral cable

If the driver front air bag has not deployed:
1.

Visually check spiral cable and combination switch for damage.

2.

Check connectors and protective tape for damage.

3.

Check steering wheel for noise, binding or heavy operation.

4.

If no damage is found, reinstall.

5.

If damaged

−

 REPLACE.

Occupant classification system
(Passenger seat)

1.

Remove passenger seat assembly.

2.

Check control unit case for dents, cracks of deformities.

3.

Check connectors and pressure sensor tube for damage, and terminals for deformities.

4.

Check seat frame and cushion pan for dents or deformities.

5.

If no damage is found, reinstall seat with new fasteners.

6.

If damaged

−

 REPLACE seat cushion assembly with new fasteners.

Harness and connectors

1.

Check connectors for poor connection, damage, and terminals for deformities.

2.

Check harness for binding, chafing, cuts, or deformities.

3.

If no damage is found, reinstall the harness and connectors.

4.

If damaged

−

 REPLACE the damaged harness. Do not attempt to repair, splice or modify any

SRS harness.

Instrument panel assembly

If the front passenger air bag has NOT deployed:
1.

Visually check instrument panel assembly for damage.

2.

If no damage is found, reinstall the instrument panel assembly.

3.

If damaged

−

 REPLACE the instrument panel assembly.

Part

Inspection
