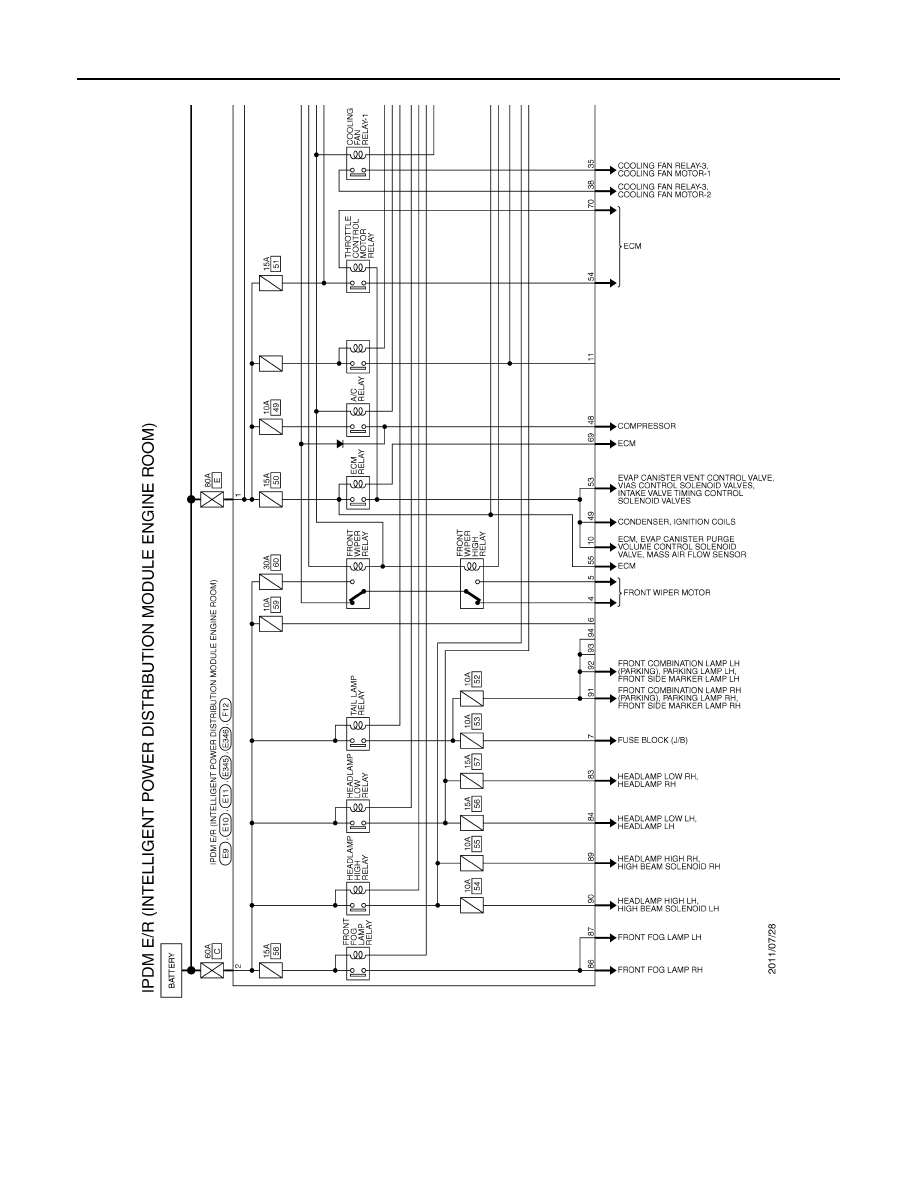

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
SEC-173
< ECU DIAGNOSIS INFORMATION >
[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
M
A
B
SEC
N
O
P
*1
: AWD models only
89
(L)
Ground
Headlamp HI (RH)
Output
Ignition
switch ON
Lighting switch OFF
0 V
• Lighting switch HI
• Lighting switch PASS
Battery voltage
90
(G)
Ground
Headlamp HI (LH)
Output
Ignition
switch ON
Lighting switch OFF
0 V
• Lighting switch HI
• Lighting switch PASS
Battery voltage
91
(R)
Ground
Parking lamp (RH)
Output
Ignition
switch ON
Lighting switch OFF
0 V
Lighting switch 1ST
Battery voltage
92
(LG)
Ground
Parking lamp (LH)
Output
Ignition
switch ON
Lighting switch OFF
0 V
Lighting switch 1ST
Battery voltage
99
(BR)
Ground
Ambient sensor ground
Input
Ignition switch ON
0 V
100
(SB)
Ground
Ambient sensor
Output
Ignition switch ON
NOTE:
Changes depending to ambient tem-
perature
101
(L)
Ground
Refrigerant pressure sen-
sor ground
Input
Engine
running
• Warm-up condition
• Idle speed
0 V
102
(B)
Ground
Refrigerant pressure sen-
sor
Input
Engine
running
• Warm-up condition
• Both A/C switch and
blower fan motor switch
ON
(Compressor operates)
1.0 - 4.0 V
103
(P)
Ground
Refrigerant pressure sen-
sor power supply
Output
Ignition switch OFF
0 V
Ignition switch ON
5.0 V
Terminal No.
(Wire color)
Description
Condition
Value
(Approx.)
Signal name
Input/
Output
+
−
JSNIA0014GB
