KEY WARNING LAMP

SEC-93

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

KEY WARNING LAMP

Description

INFOID:0000000009722824

Performs operation method guide and warning together with buzzer.

Component Function Check

INFOID:0000000009722825

1.

CHECK FUNCTION

Check the operation with “INDICATOR” in “Active Test” mode with CONSULT.

Is the inspection result normal?

YES

>> Key warning lamp in combination meter is OK.

NO

>> Refer to

SEC-93, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009722826

1.

CHECK KEY WARNING LAMP

Refer to

MWI-4, "Work flow"

.

Is the inspection result normal?

Yes

>> GO TO 2.

No

>> Repair or replace key warning lamp circuit.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

Test item

Condition

INDICATOR

KEY ON

Key warning lamp illuminates

KEY IND

Key warning lamp flashes

SEC-94

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

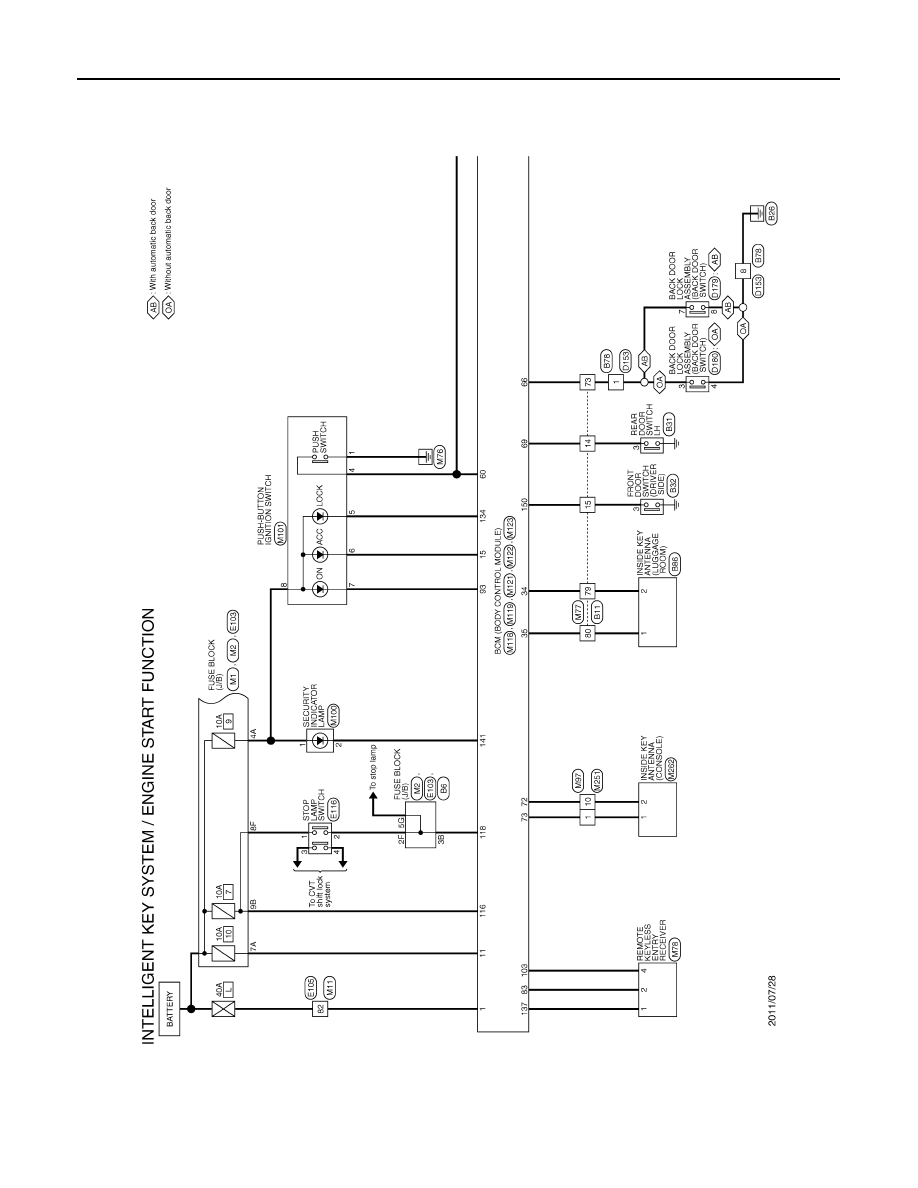

Wiring Diagram - INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION -

INFOID:0000000009722827

JRKWC0967GB

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

SEC-95

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

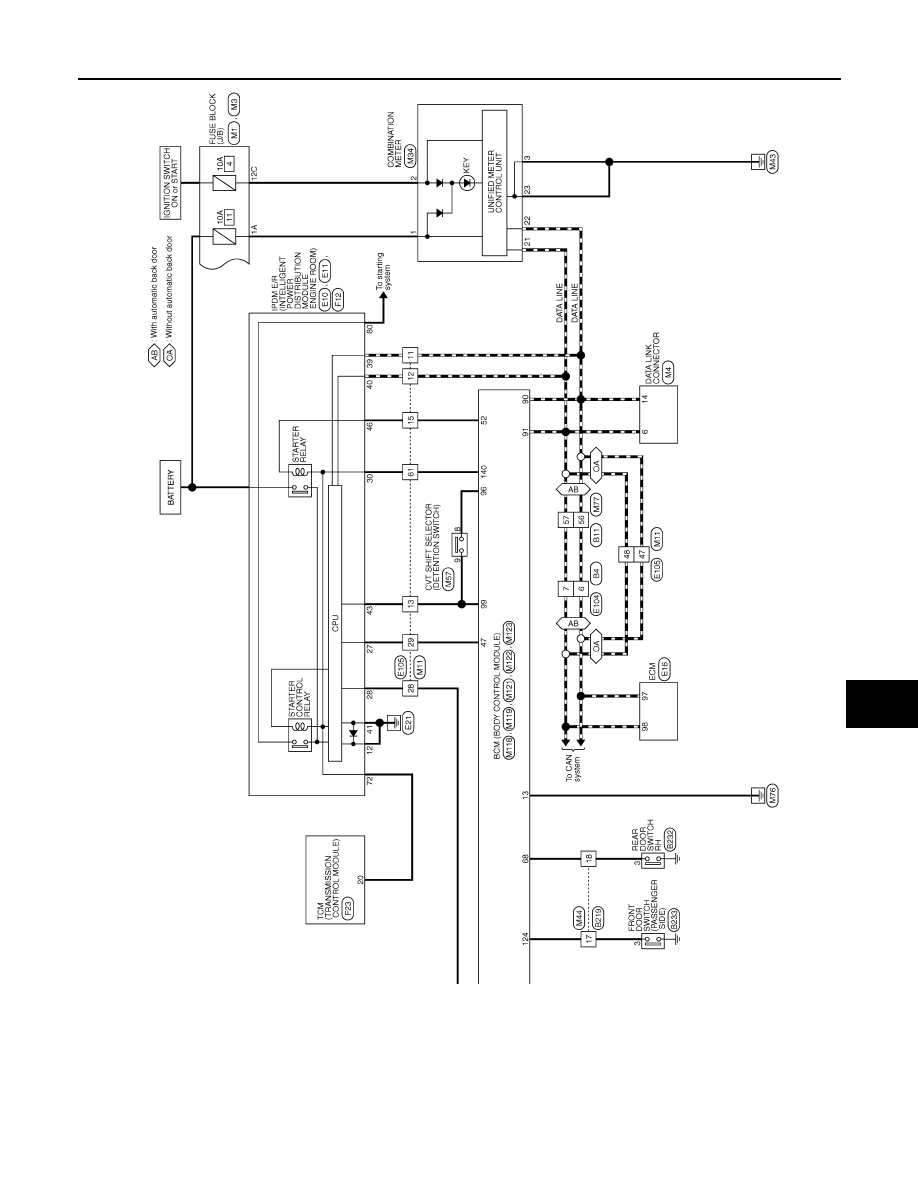

JRKWC0968GB

SEC-96

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

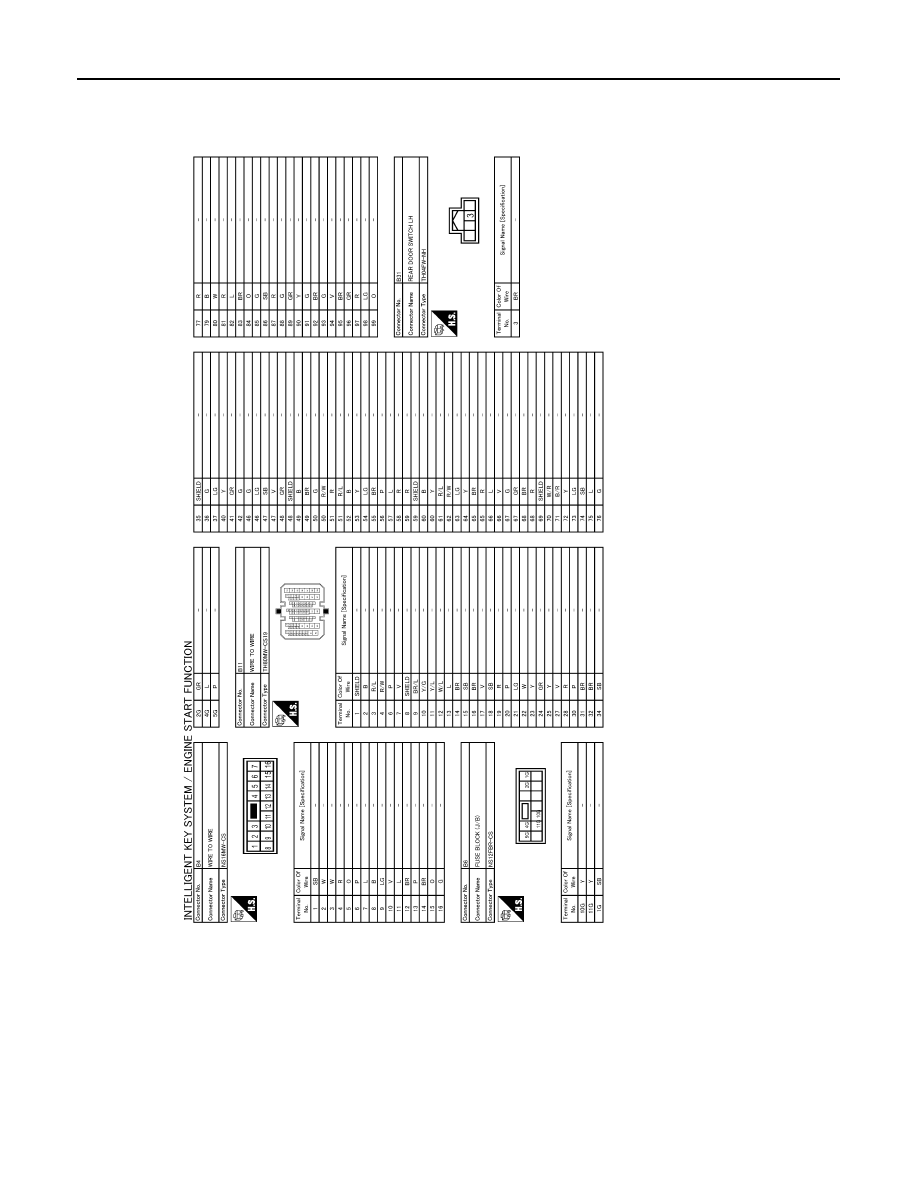

JRKWC8111GB
