9.

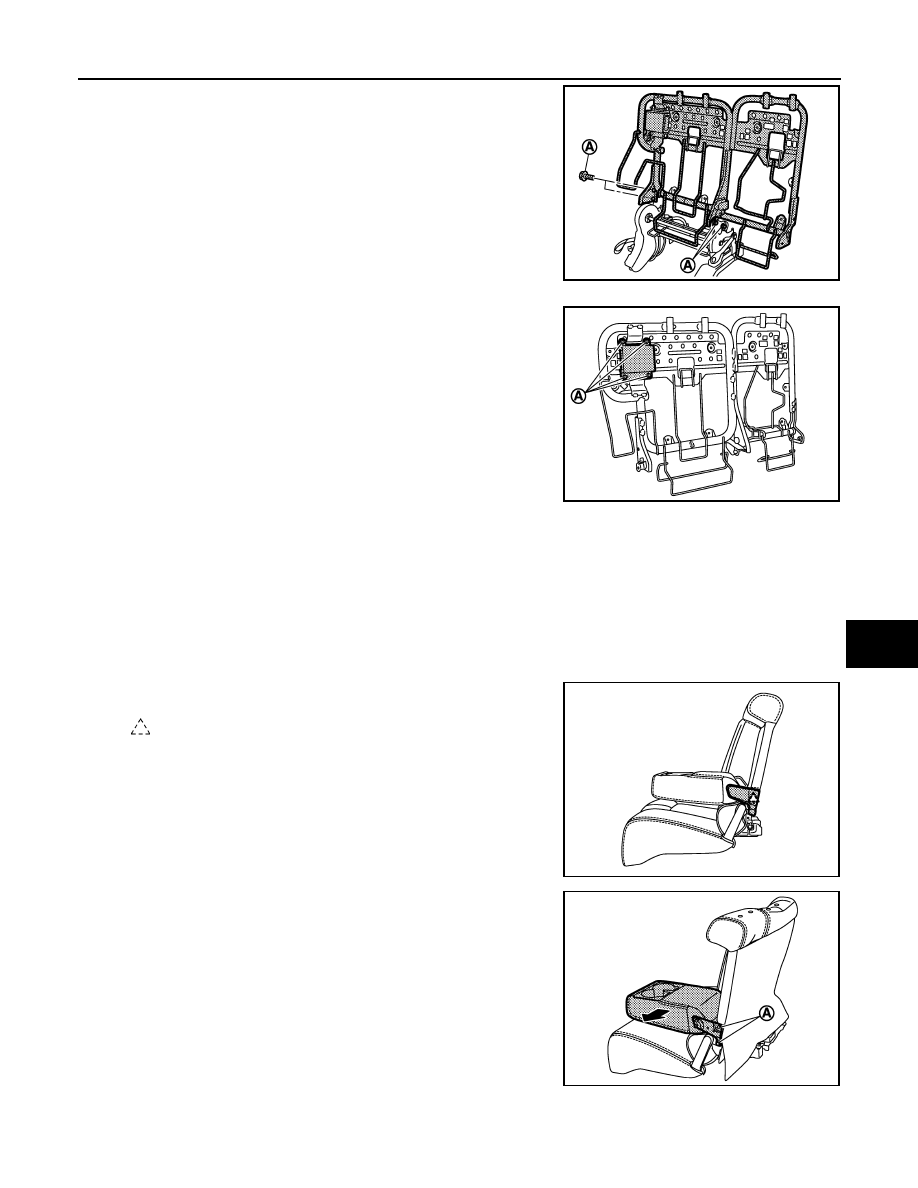

Remove the mounting bolts (A), and then remove the seatback
frame from reclining device assembly.

10. Remove the mounting nuts (A), and then remove the dynamic

dumper. (With top road sunroof model only)

Assembly

Note the following item, and assemble in the reverse order of disassembly.

CAUTION:

Install the hog rings of seatback trim in position, and then securely connect the trim or trim cord with
the seatback frame.

SEAT CUSHION

Disassembly

1.

Remove the armrest. (RH seat only)

a.

Remove the pawl, and then pull out armrest outer cover.

b.

Remove the mounting bolts (A), and then slide the armrest to
outside.

2.

Separate the seatback assembly and seat cushion assembly.

JMJIA1446ZZ

JMJIA1447ZZ

: Pawl

JMJIA1470ZZ

JMJIA1471ZZ

SE-116

< REMOVAL AND INSTALLATION >

REAR SEAT

a.

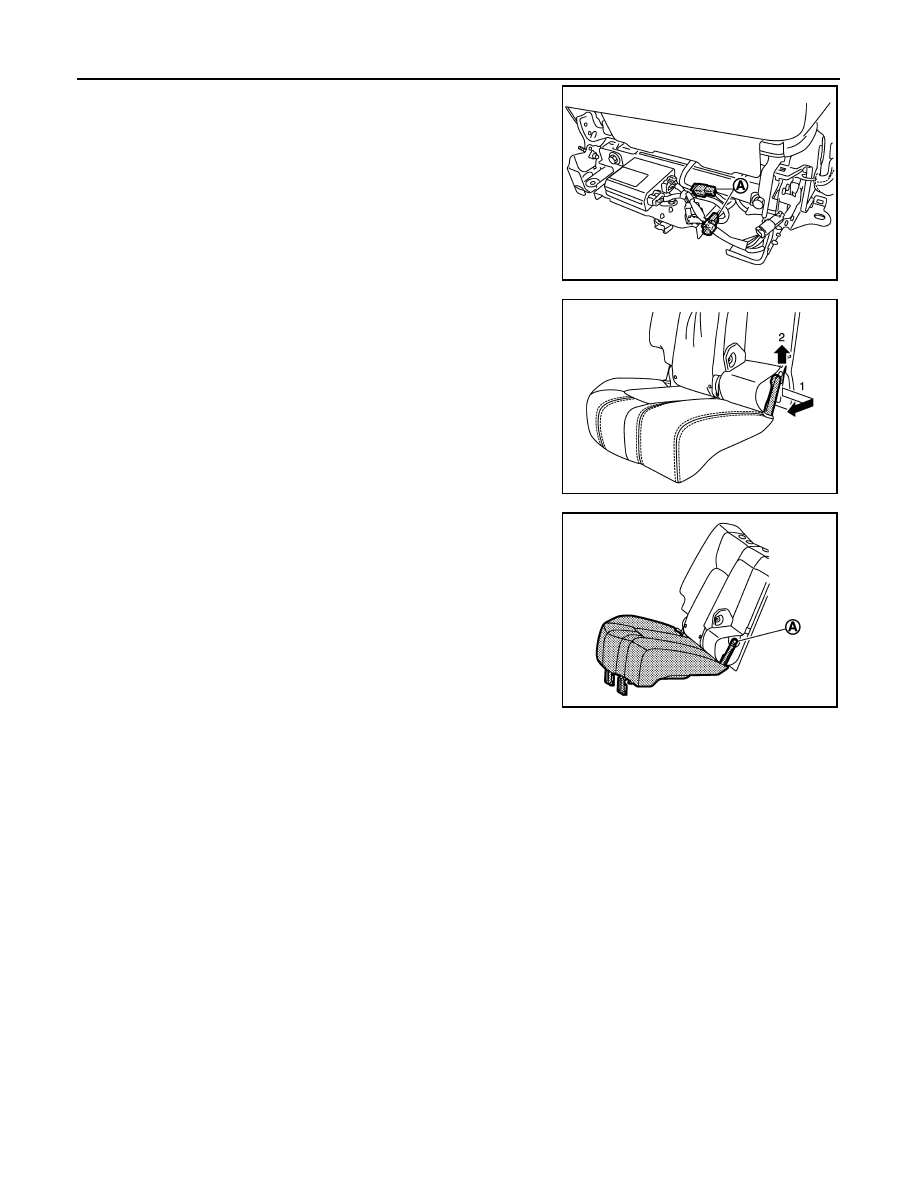

Disconnect the seat cushion heater unit harness connectors (A)
and remove the harness clamps. (with heater seat model only)

b.

Remove the seat cushion link cover.

c.

Remove the mounting bolt (A), and then separate the seatback
assembly and seat cushion assembly.

3.

Remove the seat cushion trim.
Remove the seat cushion trim fixing retainers and hog rings, and then remove the seat cushion trim from
seat cushion pad and frame.

Assembly

Note the following, and assemble in the reverse order of disassembly.

CAUTION:

Install the hog rings of seat cushion trim in position, and then securely connect the trim or trim cord
with the seat cushion pad wire.

JMJIA1438ZZ

JMJIA1439ZZ

JMJIA1440ZZ

SEATBACK CONTROL CABLE

SE-117

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

SEATBACK CONTROL CABLE

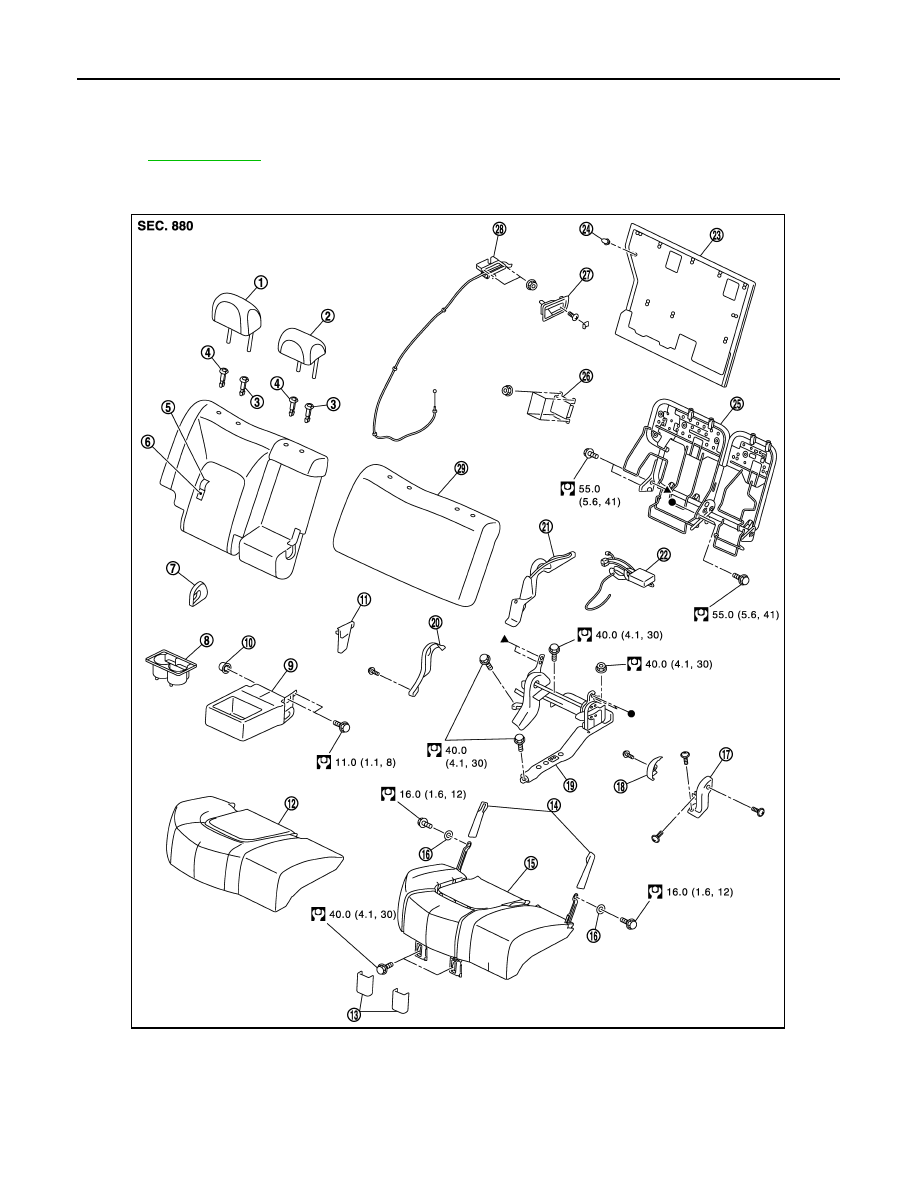

Exploded View

INFOID:0000000009718775

REAR SEAT (LH SIDE)

1.

Headrest (LH)

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seatback trim

5.

Seatback pad

6.

Reclining device inner cover (out-
side)

7.

Reclining device inner cover (inside) 8.

Seat cushion trim

9.

Seat cushion hinge cover

10. Seat cushion link cover

11.

Seat cushion pad and frame

12. Seat cushion link bush

13. Reclining device outer cover

14. Reclining cover

15. Rear seat harness (LH)

JMJIA1466GB

SE-118

< REMOVAL AND INSTALLATION >

SEATBACK CONTROL CABLE

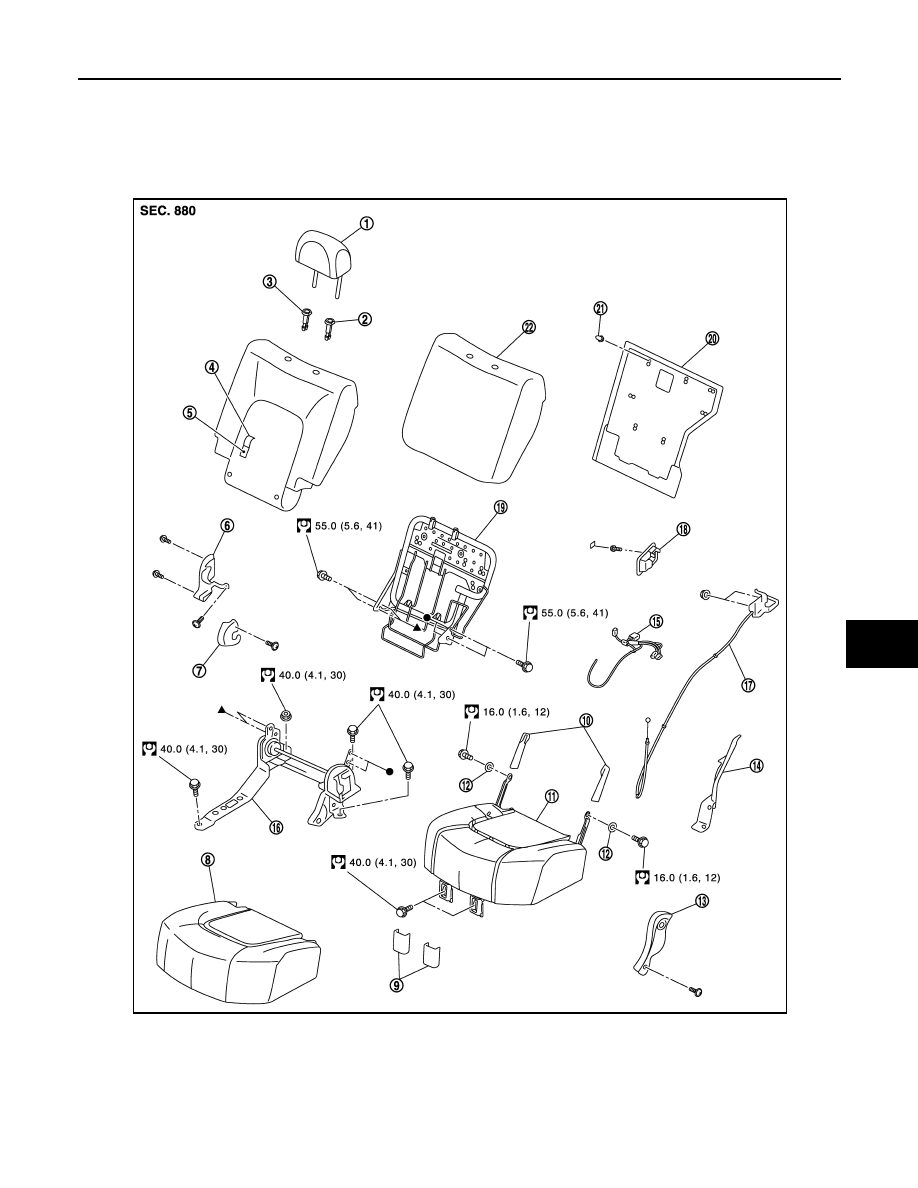

REAR SEAT (RH SIDE)

16. Reclining device assembly

17. Seatback control cable

18. Seatback control lever escutcheon

19. Seatback frame

20. Seatback board

21. Seatback board clip

22. Seatback silencer

Refer to

GI-4, "Components"

for symbols in the figure.

1.

Headrest (RH)

2.

Headrest (center)

3.

Headrest holder (locked)

4.

Headrest holder (free)

5.

Seatback trim

6.

Seatback pad

7.

Armrest inner cover

8.

Cup holder

9.

Armrest

10. Armrest bush

11.

Armrest outer cover

12. Seat cushion trim

13. Seat cushion hinge cover

14. Seat cushion link cover

15. Seat cushion pad and frame

JMJIA1465GB
