PRECAUTIONS

FOR MEXICO : Precaution for Procedure without Cowl Top Cover

INFOID:0000000009719686

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

FOR MEXICO : Precautions For Xenon Headlamp Service

INFOID:0000000010108358

WARNING:

Comply with the following warnings to prevent any serious accident.
• Disconnect the battery cable (negative terminal) or the power supply fuse before installing, remov-

ing, or touching the xenon headlamp (bulb included). The xenon headlamp contains high-voltage
generated parts.

• Never work with wet hands.
• Check the xenon headlamp ON-OFF status after assembling it to the vehicle. Never turn the xenon

headlamp ON in other conditions. Connect the power supply to the vehicle-side connector.
(Turning it ON outside the lamp case may cause fire or visual impairments.)

• Never touch the bulb glass immediately after turning it OFF. It is extremely hot.

CAUTION:

Comply with the following cautions to prevent any error and malfunction.
• Install the xenon bulb securely. (Insufficient bulb socket installation may melt the bulb, the connec-

tor, the housing, etc. by high-voltage leakage or corona discharge.)

• Never perform HID circuit inspection with a tester.
• Never touch the xenon bulb glass with hands. Never put oil and grease on it.
• Dispose of the used xenon bulb after packing it in thick vinyl without breaking it.
• Never wipe out dirt and contamination with organic solvent (thinner, gasoline, etc.).

FOR MEXICO : Precautions for Removing of Battery Terminal

INFOID:0000000010108357

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

PIIB3706J

SEF289H

PREPARATION

RF-93

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

PREPARATION

PREPARATION

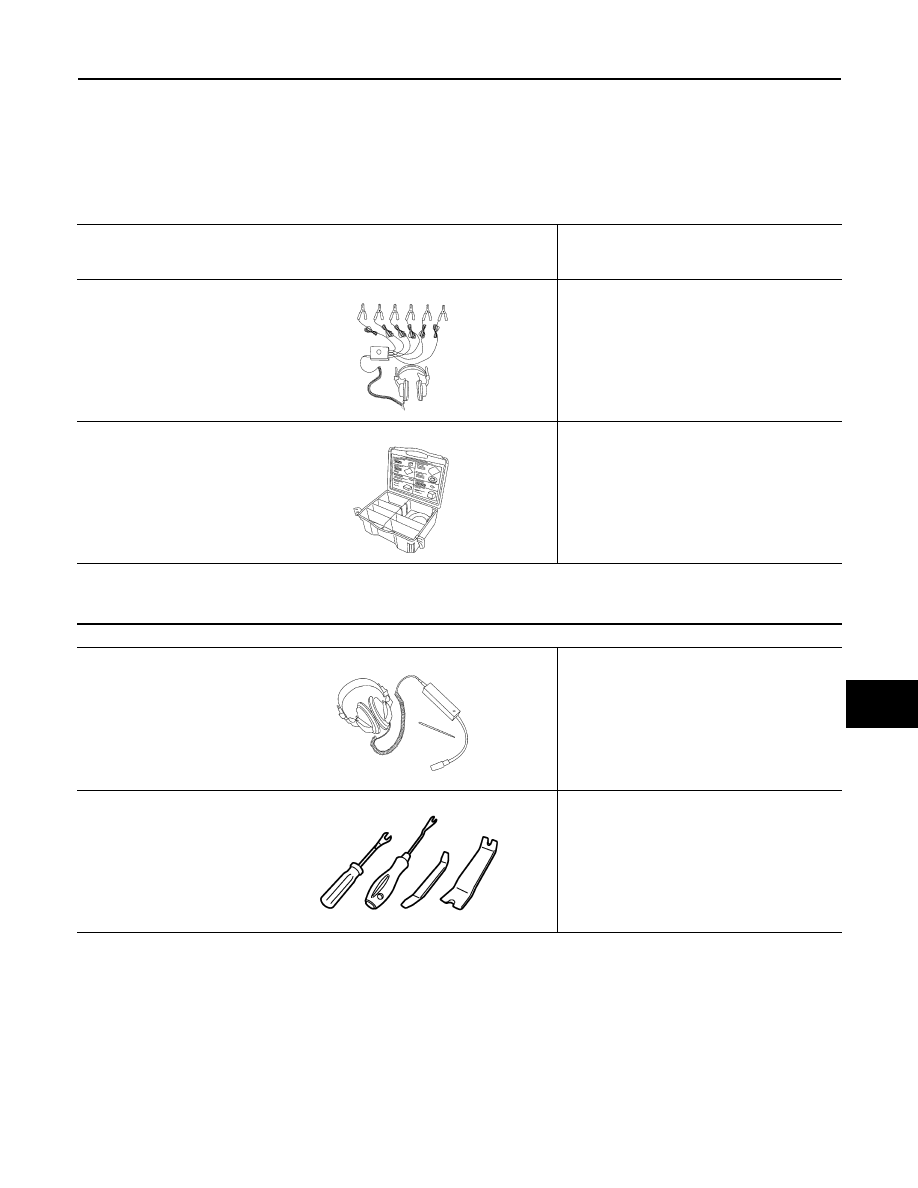

Special Service Tool

INFOID:0000000009719687

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000009719688

Tool number

(Kent-Moore No.)

Tool name

Description

(J39570)
Chassis ear

Locates the noise

(J50397)
NISSAN Squeak and Rattle
Kit

Repairs the cause of noise

SIIA0993E

SIIA0994E

Tool name

Description

Engine ear

Locates the noise

Remover tool

Removes the clips, pawls and metal clips

SIIA0995E

JMKIA3050ZZ

RF-94

< REMOVAL AND INSTALLATION >

GLASS LID

REMOVAL AND INSTALLATION

GLASS LID

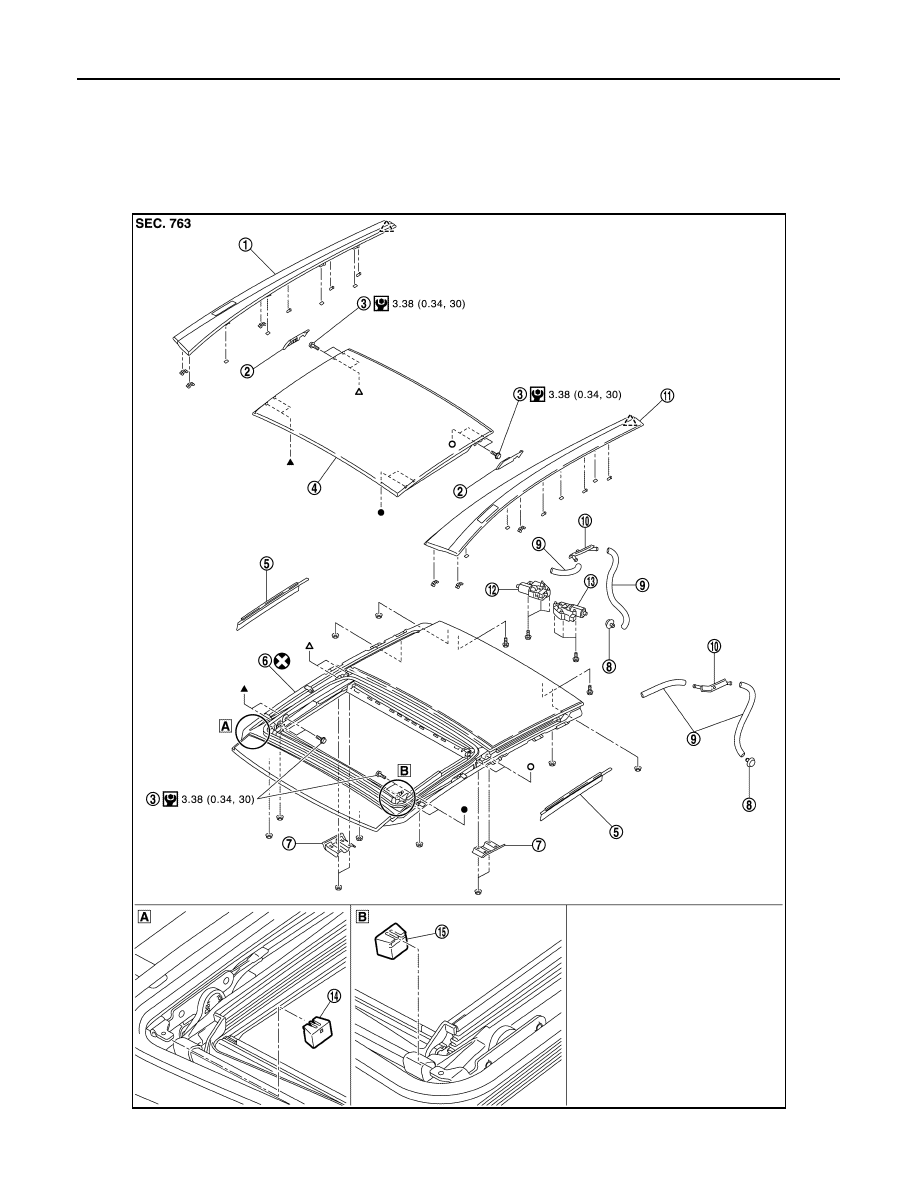

Exploded View

INFOID:0000000009719689

FOR STANDARD SPECIFICATION

JMKIA6375GB

GLASS LID

RF-95

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

1.

Roof side finisher RH

2.

Rear link cover

3.

TORX bolt

4.

Glass lid

5.

Inner blind

6.

Sunroof unit assembly

7.

Sunroof bracket

8.

Drain plug

9.

Drain hose

10. Drain connector

11.

Roof side finisher LH

12. Sunroof motor assembly

13. Sunshade motor assembly

14. Deflector knock RH

15. Deflector knock LH

: Pawl

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

,

,

,

 : Indicates that the part is connected at points with same symbol in actual vehicle.
