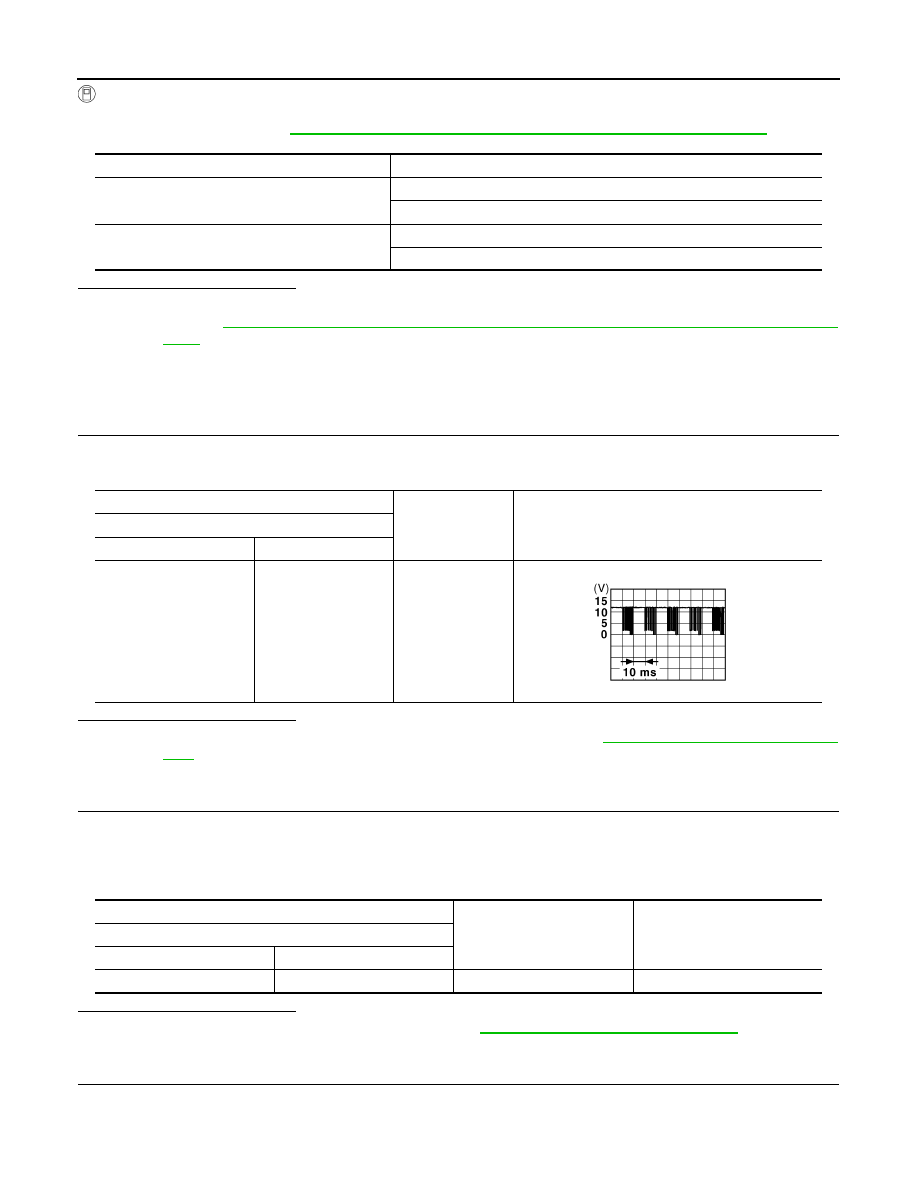

PWC-34

< DTC/CIRCUIT DIAGNOSIS >

POWER WINDOW SERIAL LINK

 With CONSULT

Check (“CDL LOCK SW ”, “CDL UNLOCK SW”) in “DATA MONITOR” mode for “POWER DOOR LOCK SYS-
TEM” with CONSULT. Refer to

DLK-55, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)"

.

Is the inspection result normal?

YES

>> Power window serial link is OK.

NO

>> Refer to

PWC-34, "FRONT POWER WINDOW SWITCH (PASSENGER SIDE) : Diagnosis Proce-

dure"

.

FRONT POWER WINDOW SWITCH (PASSENGER SIDE) : Diagnosis Procedure

INFOID:0000000009723160

1.

CHECK POWER WINDOW SWITCH OUTPUT SIGNAL

1.

Turn ignition switch ON.

2.

Check signal between front power window switch (passenger side) harness connector and ground.

Is the inspection result normal?

YES

>> Replace front power window switch (passenger side). Refer to

PWC-118, "Removal and Installa-

tion"

.

NO

>> GO TO 2.

2.

CHECK POWER WINDOW SERIAL LINK SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect front power window switch (passenger side) connector.

3.

Turn ignition switch ON.

4.

Check voltage between front power window switch (passenger side) harness connector and ground.

Is the inspection result normal?

YES

>> Replace power window main switch. Refer to

PWC-118, "Removal and Installation"

.

NO

>> GO TO 3.

3.

CHECK POWER WINDOW SERIAL LINK CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector.

3.

Check continuity between BCM connector and front power window switch (passenger side) connector.

Monitor item

Condition

CDL LOCK SW

LOCK

: ON

UNLOCK

: OFF

CDL UNLOCK SW

LOCK

: OFF

UNLOCK

: ON

(+)

(

−

)

Signal

(Reference value)

Front power window switch (passenger side)

Connector

Terminal

D45

16

Ground

JPMIA0013GB

(+)

(–)

Voltage (V)

(Approx.)

Front power window switch (passenger side)

Connector

Terminal

D45

16

Ground

Battery voltage

POWER WINDOW SERIAL LINK

PWC-35

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

4.

Check continuity between BCM connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-98, "Exploded View"

.

NO

>> Repair or replace harness.

BCM

Front power window switch (passenger side)

Continuity

Connector

Terminal

Connector

Terminal

M123

132

D45

16

Existed

BCM

Ground

Continuity

Connector

Terminal

M123

132

Not existed

PWC-36

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000010064950

VALUES ON THE DIAGNOSIS TOOL

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

CONSULT MONITOR ITEM

Monitor Item

Condition

Value/Status

FR WIPER HI

Other than front wiper switch HI

Off

Front wiper switch HI

On

FR WIPER LOW

Other than front wiper switch LO

Off

Front wiper switch LO

On

FR WASHER SW

Front washer switch OFF

Off

Front washer switch ON

On

FR WIPER INT

Other than front wiper switch INT/AUTO

Off

Front wiper switch INT/AUTO

On

FR WIPER STOP

Front wiper is not in STOP position

Off

Front wiper is in STOP position

On

INT VOLUME

Wiper intermittent dial is in a dial position 1 - 7

Wiper intermittent dial

position

RR WIPER ON

Other than rear wiper switch ON

Off

Rear wiper switch ON

On

RR WIPER INT

Other than rear wiper switch INT

Off

Rear wiper switch INT

On

RR WASHER SW

Rear washer switch OFF

Off

Rear washer switch ON

On

RR WIPER STOP

Rear wiper is in STOP position

Off

Rear wiper is not in STOP position

On

TURN SIGNAL R

Other than turn signal switch RH

Off

Turn signal switch RH

On

TURN SIGNAL L

Other than turn signal switch LH

Off

Turn signal switch LH

On

TAIL LAMP SW

Other than lighting switch 1ST and 2ND

Off

Lighting switch 1ST or 2ND

On

HI BEAM SW

Other than lighting switch HI

Off

Lighting switch HI

On

HEAD LAMP SW 1

Other than lighting switch 2ND

Off

Lighting switch 2ND

On

HEAD LAMP SW 2

Other than lighting switch 2ND

Off

Lighting switch 2ND

On

PASSING SW

Other than lighting switch PASS

Off

Lighting switch PASS

On

AUTO LIGHT SW

Other than lighting switch AUTO

Off

Lighting switch AUTO

On

BCM (BODY CONTROL MODULE)

PWC-37

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

FR FOG SW

Front fog lamp switch OFF

Off

Front fog lamp switch ON

On

RR FOG SW

NOTE:
The item is indicated, but not monitored.

Off

DOOR SW-DR

Driver door closed

Off

Driver door opened

On

DOOR SW-AS

Passenger door closed

Off

Passenger door opened

On

DOOR SW-RR

Rear RH door closed

Off

Rear RH door opened

On

DOOR SW-RL

Rear LH door closed

Off

Rear LH door opened

On

DOOR SW-BK

Back door closed

Off

Back door opened

On

CDL LOCK SW

Other than power door lock switch LOCK

Off

Power door lock switch LOCK

On

CDL UNLOCK SW

Other than power door lock switch UNLOCK

Off

Power door lock switch UNLOCK

On

KEY CYL LK-SW

Other than driver door key cylinder LOCK position

Off

Driver door key cylinder LOCK position

On

KEY CYL UN-SW

Other than driver door key cylinder UNLOCK position

Off

Driver door key cylinder UNLOCK position

On

KEY CYL SW-TR

NOTE:
The item is indicated, but not monitored.

Off

HAZARD SW

Hazard switch is OFF

Off

Hazard switch is ON

On

REAR DEF SW
NOTE:
For models with BOSE audio system
this item is not monitored.

Rear window defogger switch OFF

Off

Rear window defogger switch ON

On

TR CANCEL SW

NOTE:
The item is indicated, but not monitored.

Off

TR/BD OPEN SW

Back door opener switch OFF

Off

While the back door opener switch is turned ON

On

TRNK/HAT MNTR

NOTE:
The item is indicated, but not monitored.

Off

RKE-LOCK

LOCK button of Intelligent Key is not pressed

Off

LOCK button of Intelligent Key is pressed

On

RKE-UNLOCK

UNLOCK button of Intelligent Key is not pressed

Off

UNLOCK button of Intelligent Key is pressed

On

RKE-TR/BD

BACK DOOR OPEN button of Intelligent Key is not pressed

Off

BACK DOOR OPEN button of Intelligent Key is pressed

On

RKE-PANIC

PANIC button of Intelligent Key is not pressed

Off

PANIC button of Intelligent Key is pressed

On

RKE-P/W OPEN

UNLOCK button of Intelligent Key is not pressed

Off

UNLOCK button of Intelligent Key is pressed and held

On

Monitor Item

Condition

Value/Status
