PG-90

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

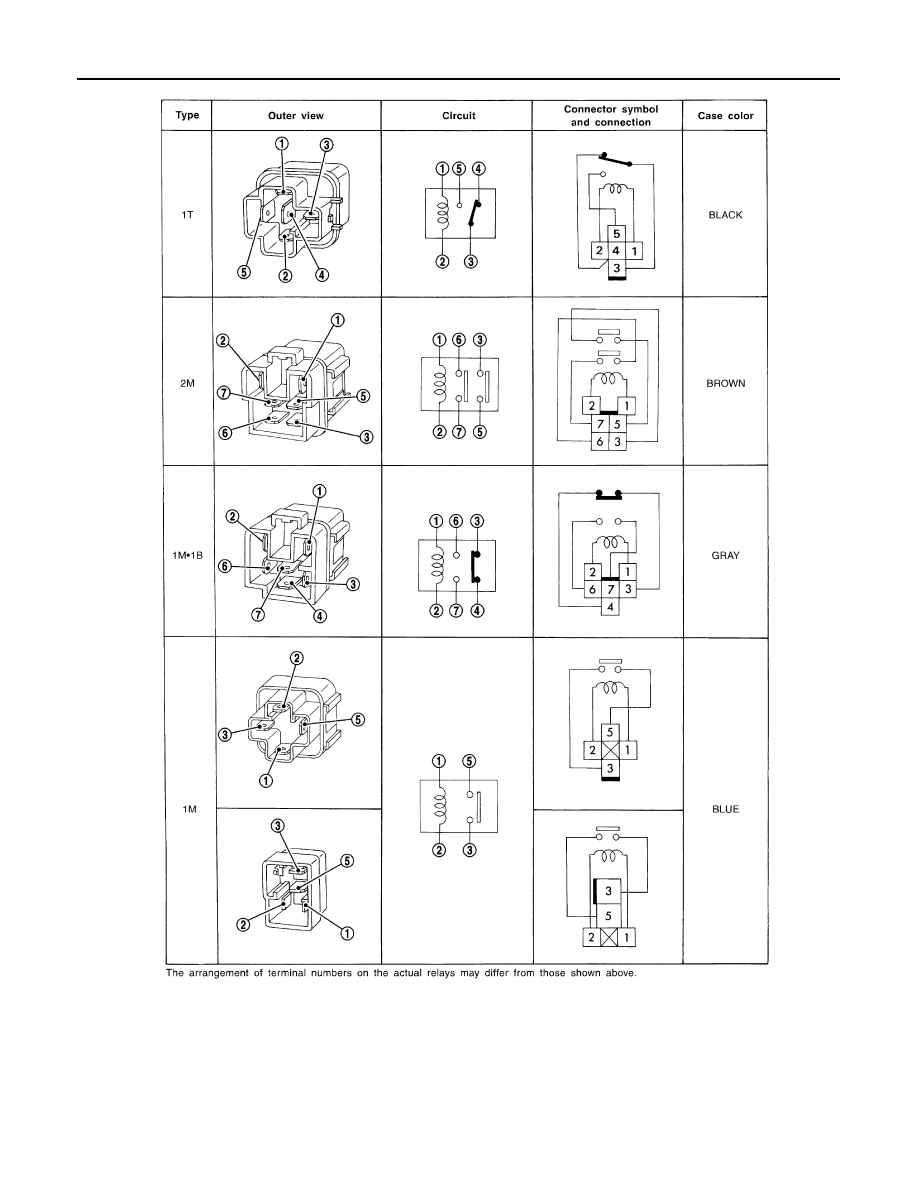

STANDARDIZED RELAY

SEL188W

PG

FUSE BLOCK - JUNCTION BOX (J/B)

PG-91

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

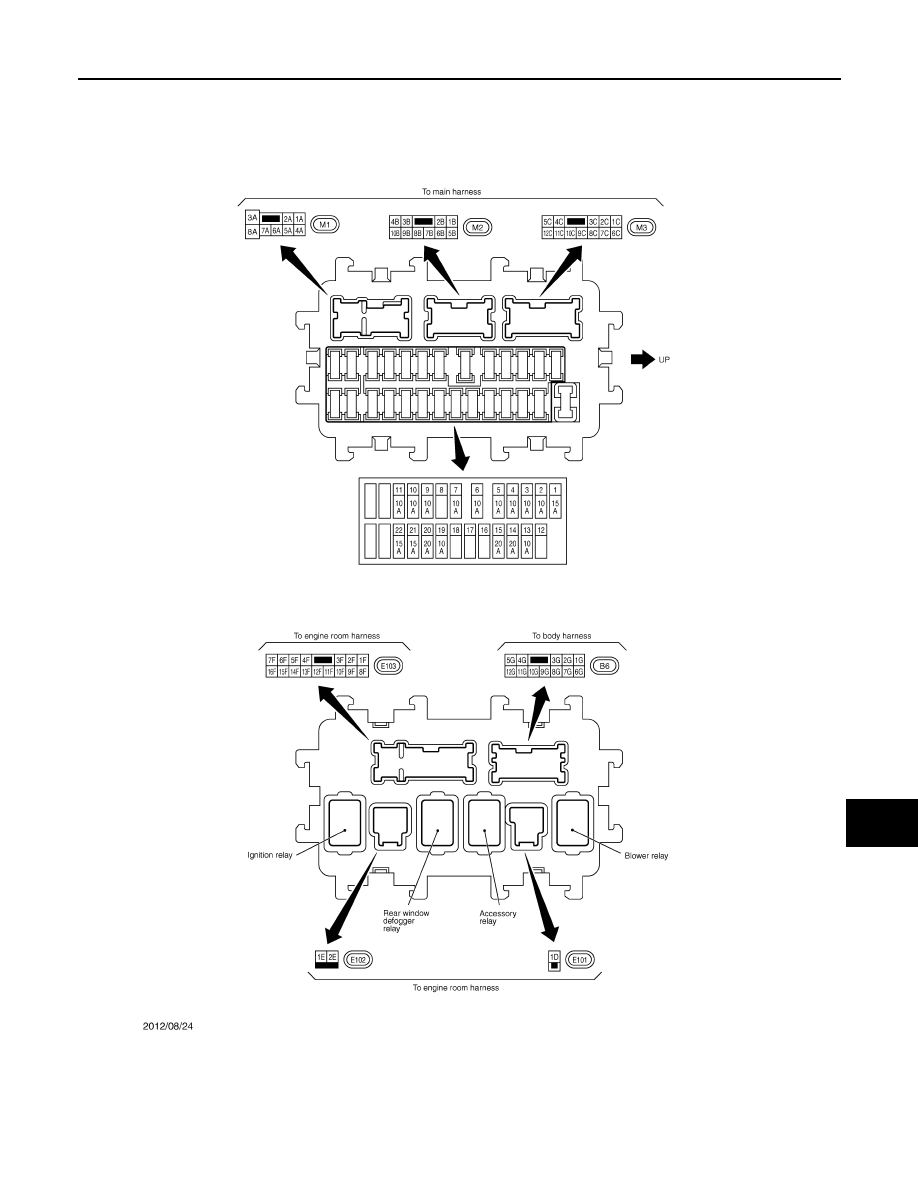

FUSE BLOCK - JUNCTION BOX (J/B)

Fuse, Connector and Terminal Arrangement

INFOID:0000000009720311

JRMWD4448GB

PG-92

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

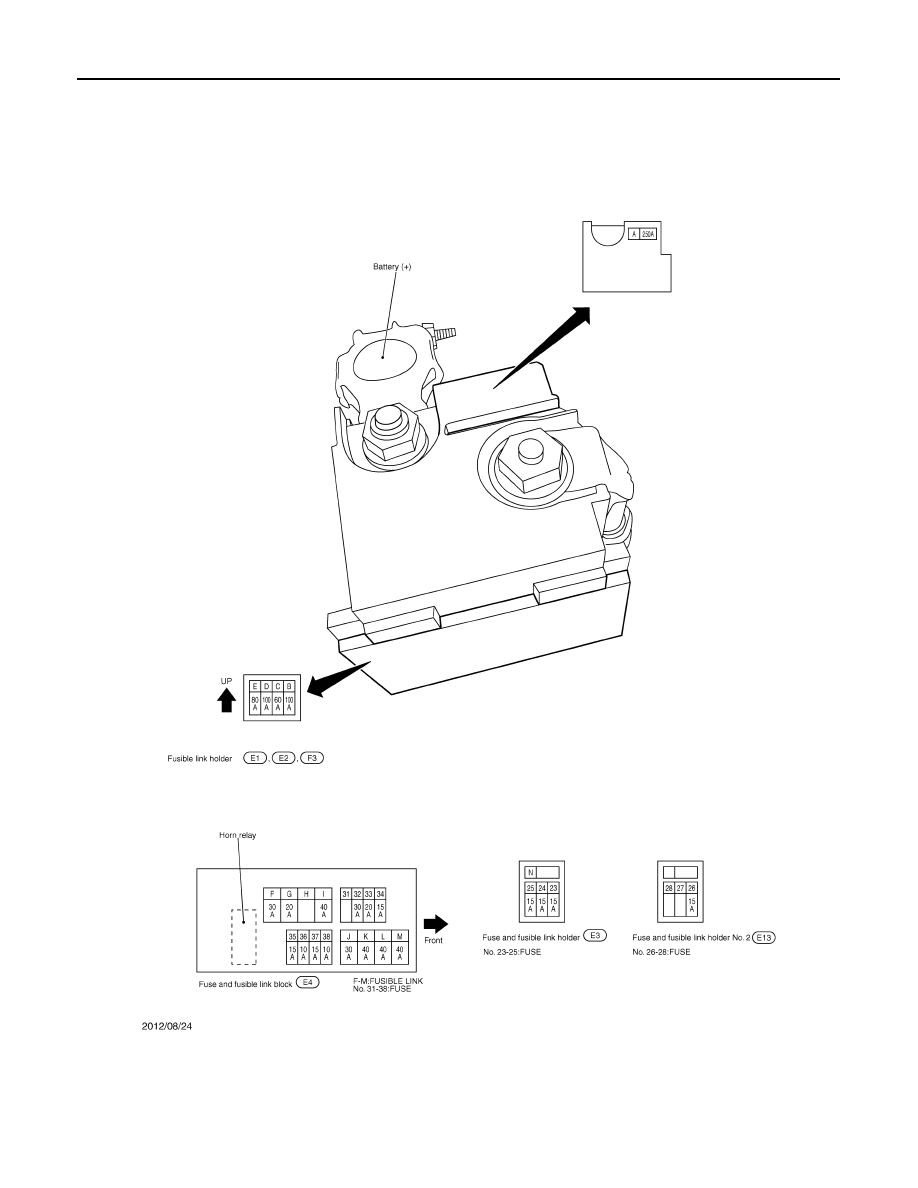

FUSE, FUSIBLE LINK AND RELAY BOX

FUSE, FUSIBLE LINK AND RELAY BOX

Fuse and Fusible Link Arrangement

INFOID:0000000009720312

JRMWD4449GB

PG

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PG-93

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

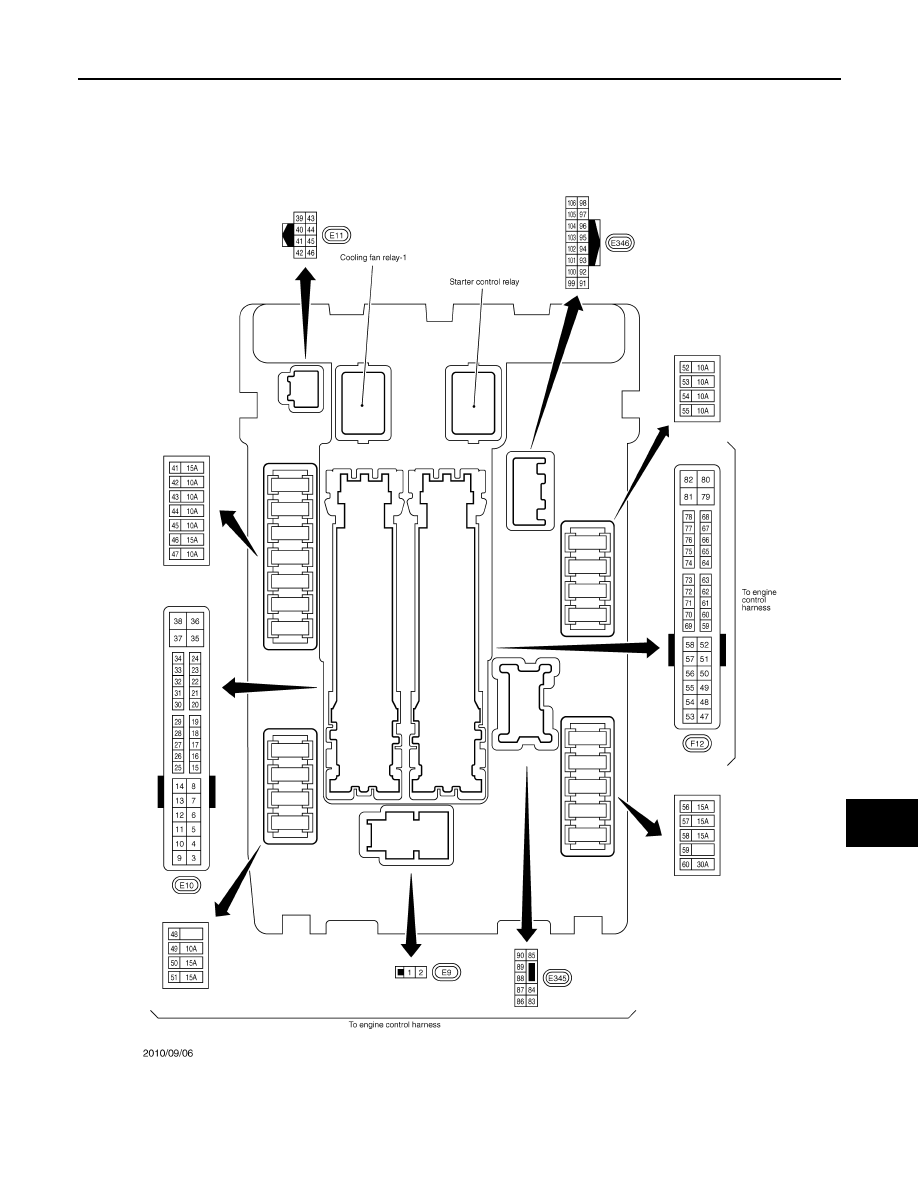

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

Fuse, Connector and Terminal Arrangement

INFOID:0000000009720313

JCMWN0117GB
