POWER SUPPLY ROUTING CIRCUIT

DTC/CIRCUIT DIAGNOSIS

POWER SUPPLY ROUTING CIRCUIT

Wiring Diagram - BATTERY POWER SUPPLY -

INFOID:0000000009720273

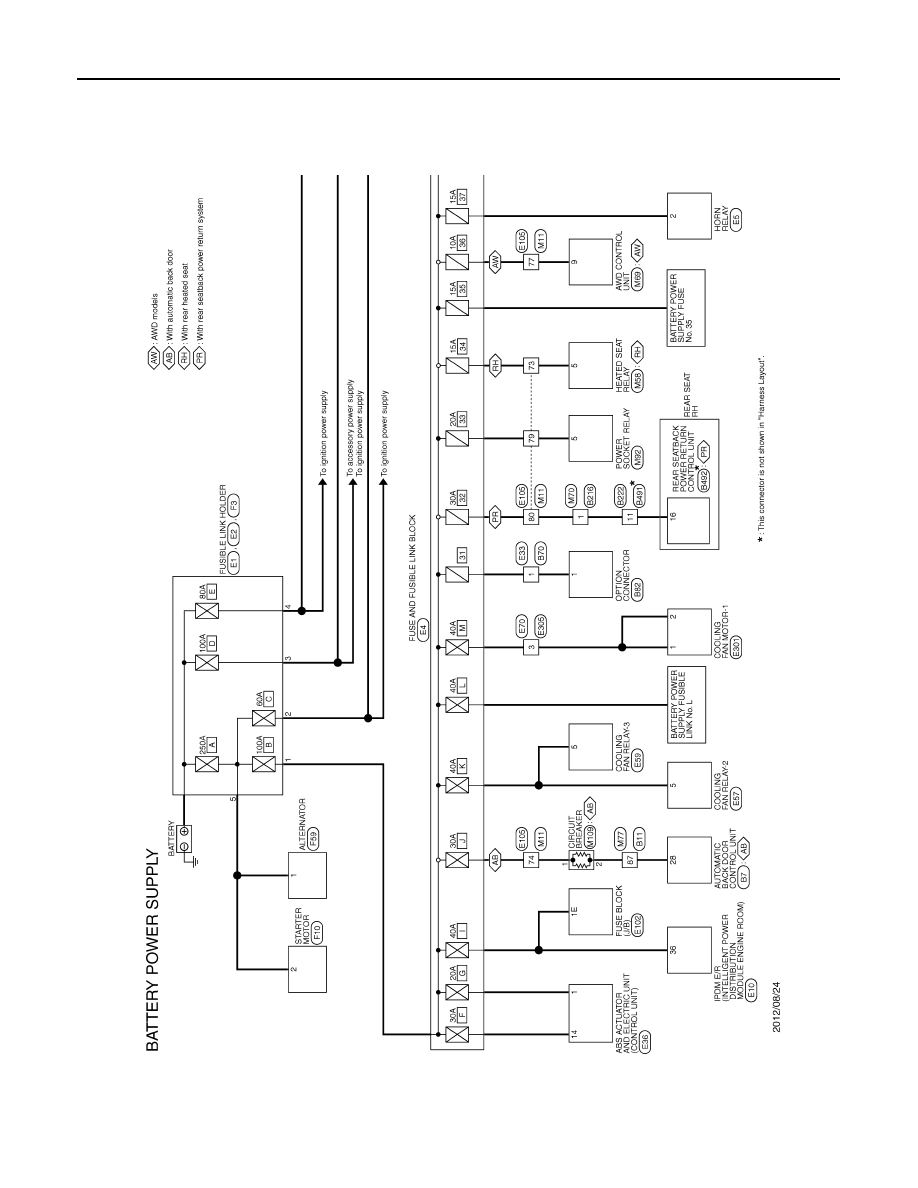

JRMWD4434GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-7

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

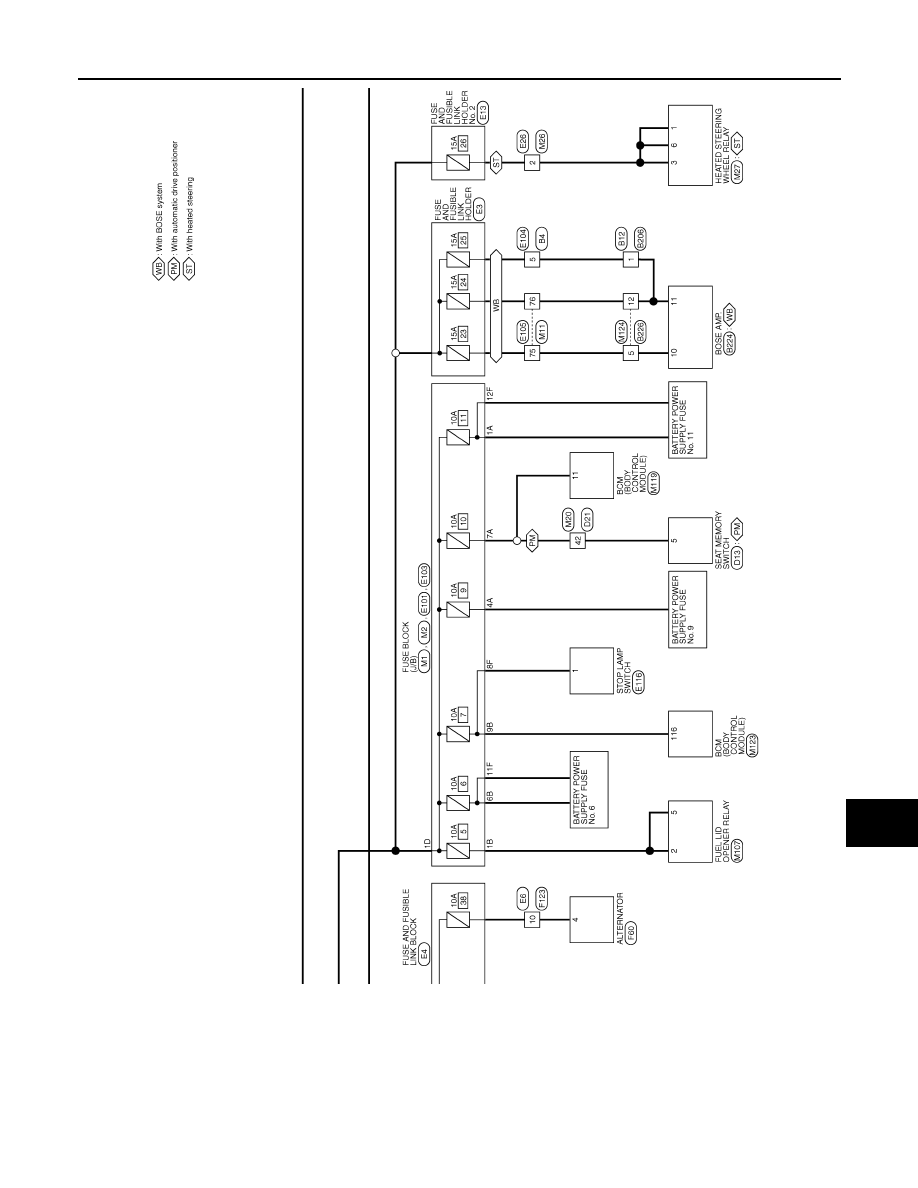

JRMWD4435GB

PG-8

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

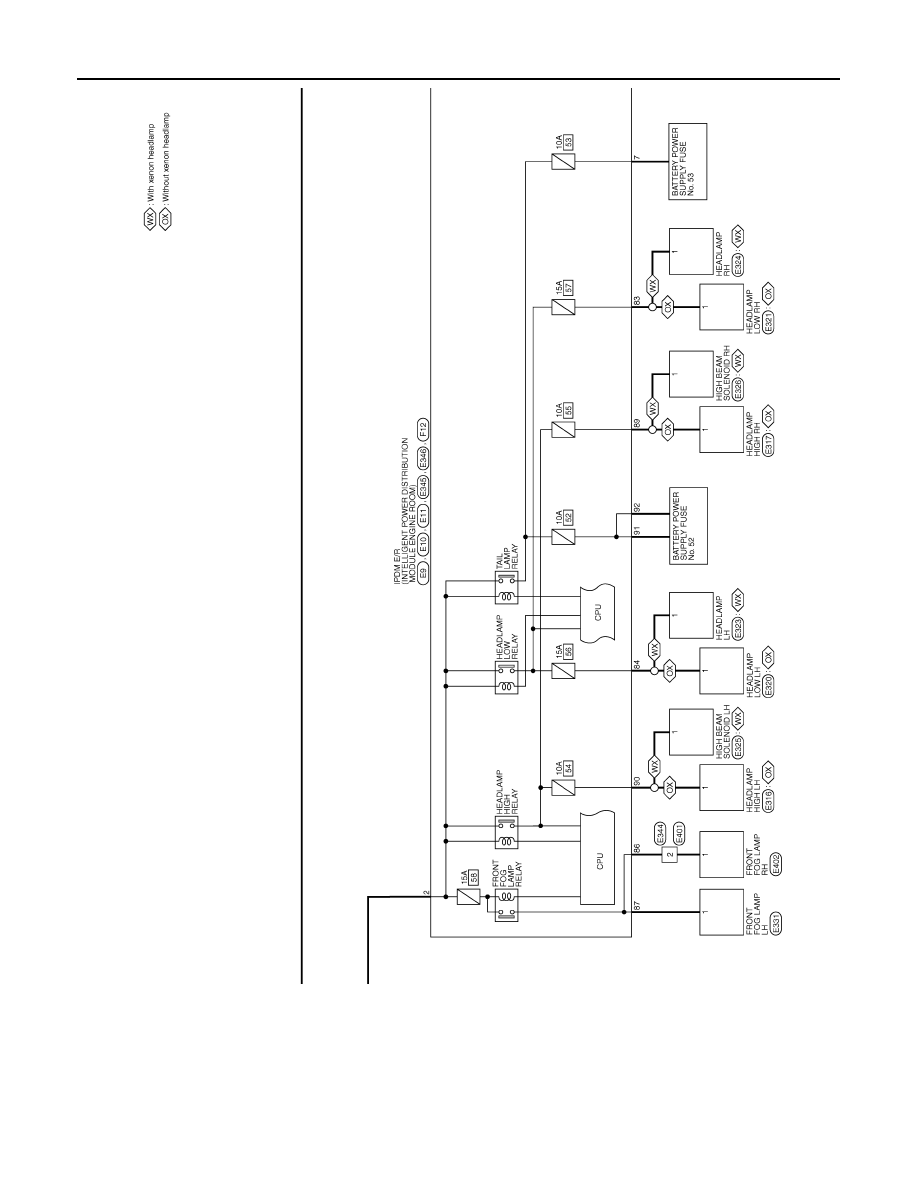

JRMWD4436GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-9

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

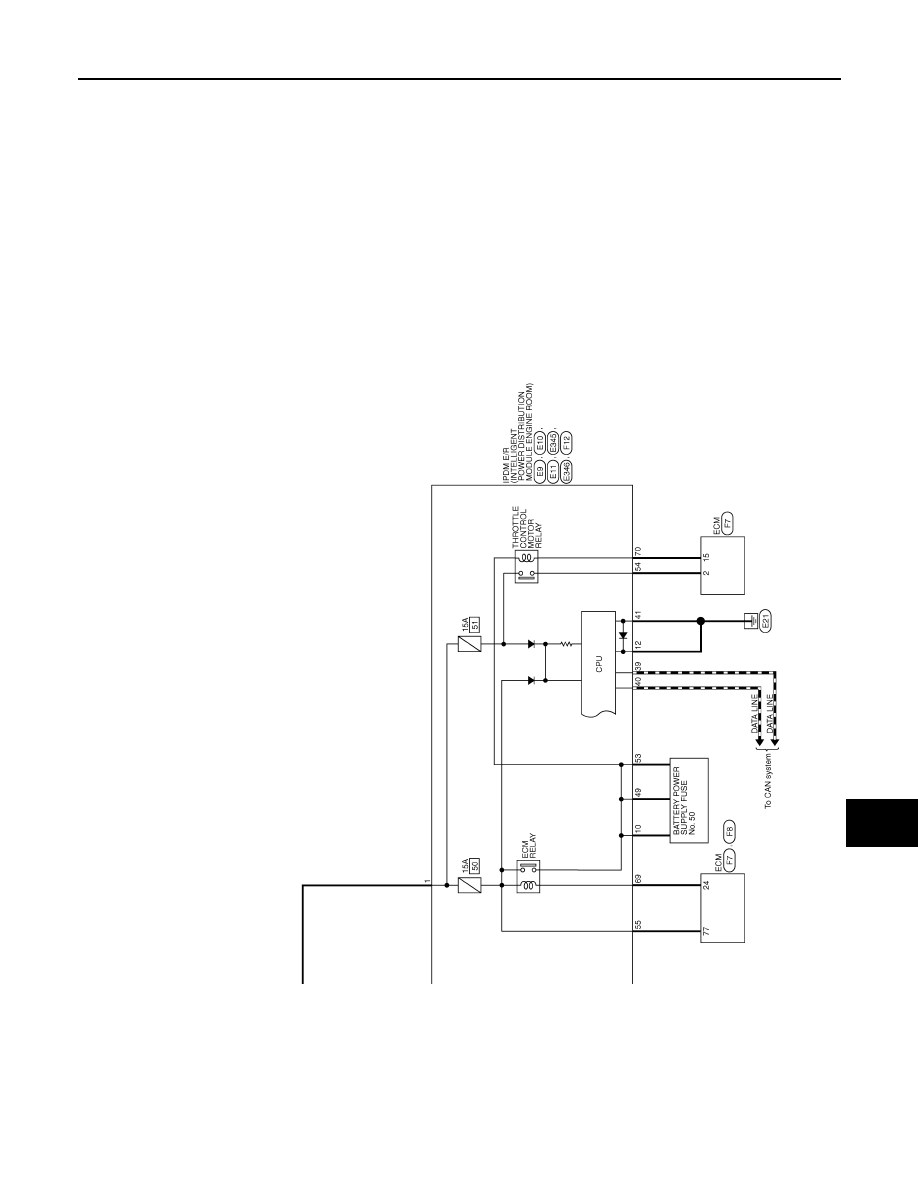

JRMWD4437GB
