Nissan Murano. Manual - part 108

AV-210

< WIRING DIAGRAM >

[BOSE AUDIO WITHOUT NAVIGATION]

BOSE AUDIO WITHOUT NAVIGATION

WIRING DIAGRAM

BOSE AUDIO WITHOUT NAVIGATION

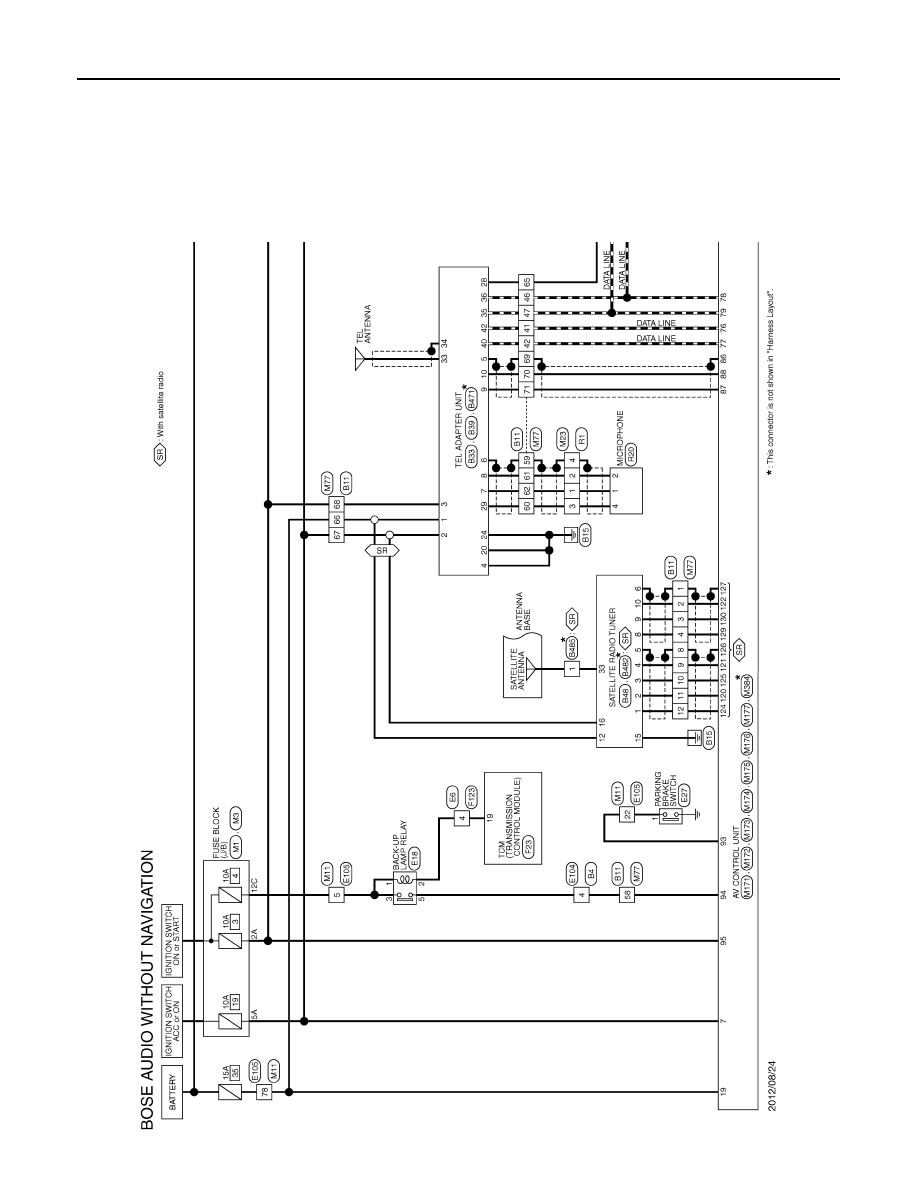

Wiring Diagram

INFOID:0000000009721730

NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.

JRNWC2808GB

AV

BOSE AUDIO WITHOUT NAVIGATION

AV-211

< WIRING DIAGRAM >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

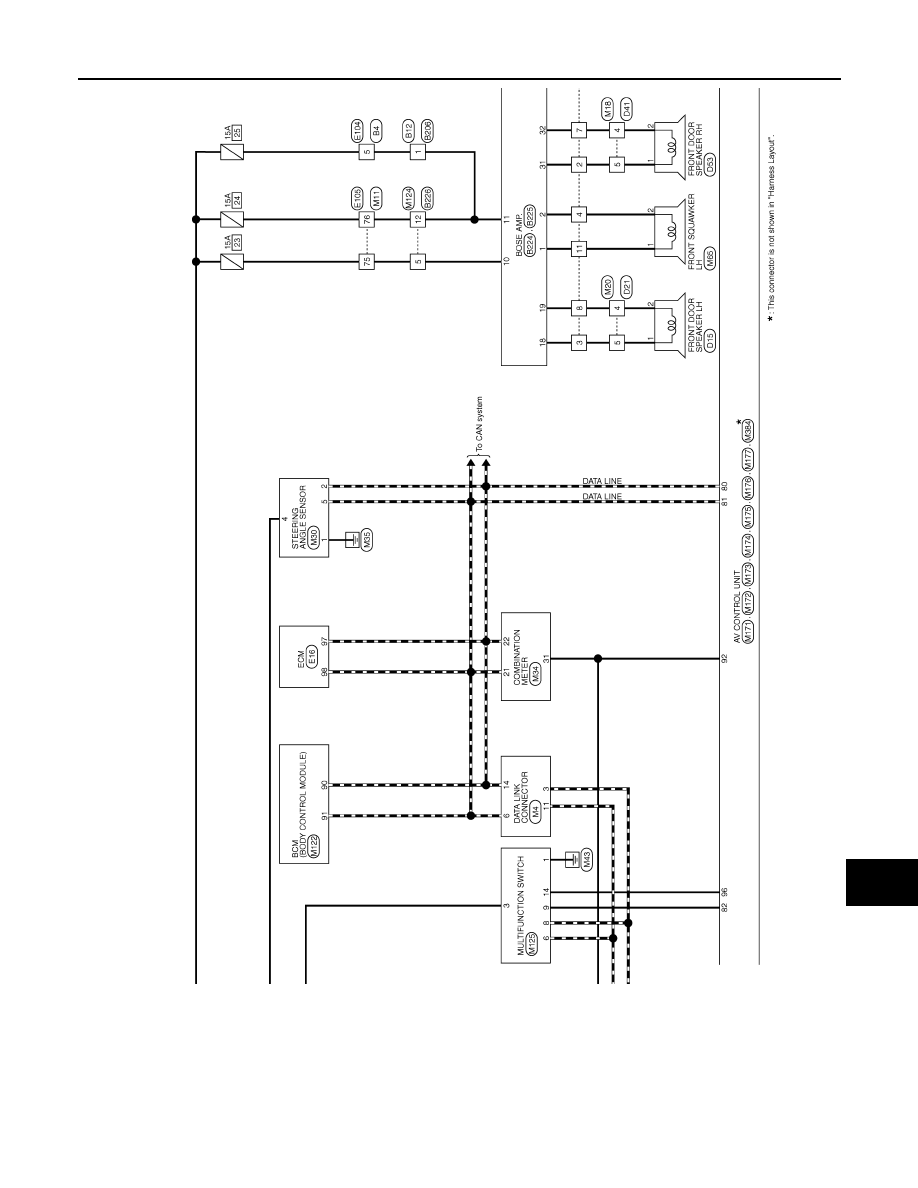

JRNWC2809GB

AV-212

< WIRING DIAGRAM >

[BOSE AUDIO WITHOUT NAVIGATION]

BOSE AUDIO WITHOUT NAVIGATION

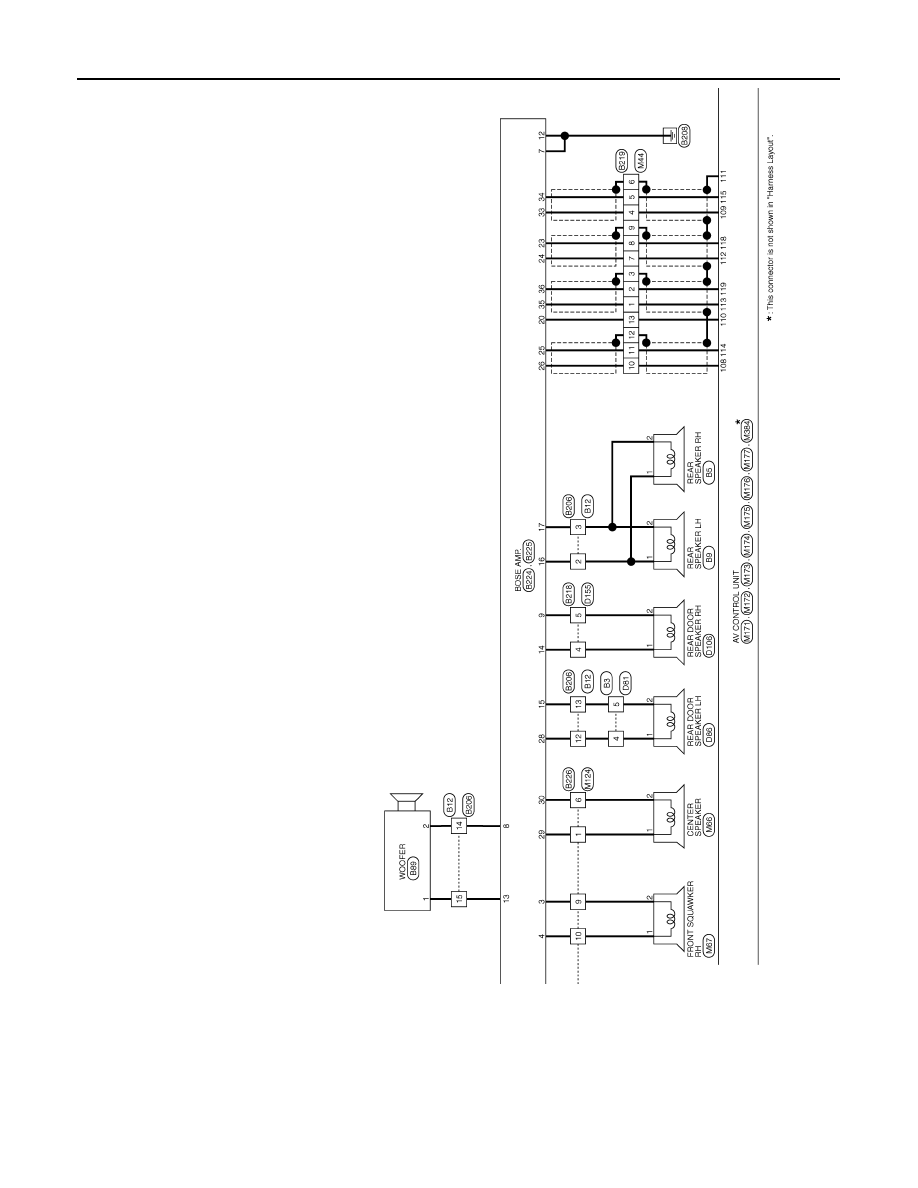

JRNWC2810GB

AV

BOSE AUDIO WITHOUT NAVIGATION

AV-213

< WIRING DIAGRAM >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

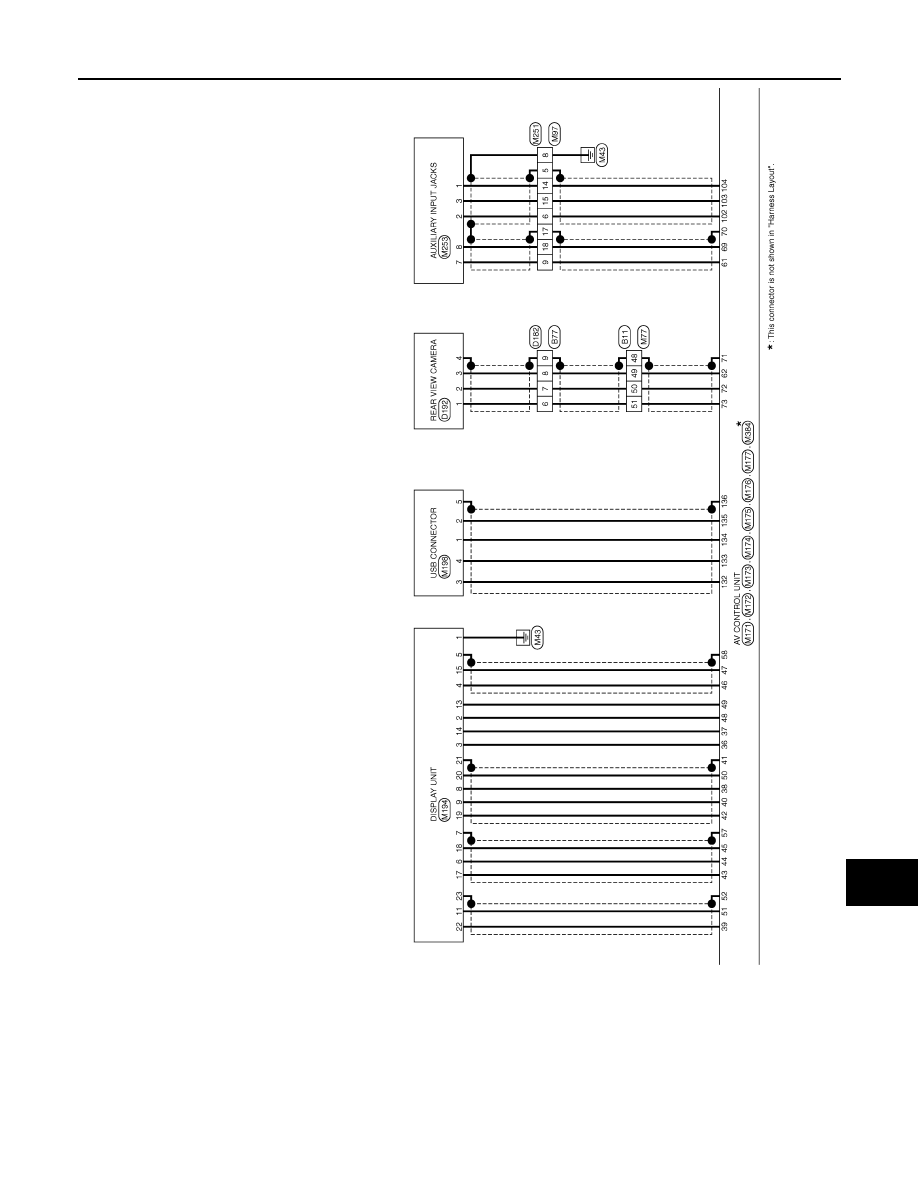

JRNWC2811GB
