PCS-54

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

B2614 ACC RELAY

B2614 ACC RELAY

Description

INFOID:0000000009722653

BCM controls the various electrical components and simultaneously supplies power according to the power
supply position.
BCM checks the power supply position internally.

DTC Logic

INFOID:0000000009722654

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn the power supply position to ACC under the following conditions, and wait for at least 1 second.

-

Selector lever is in the P or N position.

-

Do not depress brake pedal.

2.

Check “Self diagnostic result” with CONSULT.

Is DTC detected?

YES

>> Go to

PCS-54, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009722655

1.

CHECK ACCESSORY RELAY POWER SUPPLY-1

1.

Turn ignition switch OFF.

2.

Disconnect accessory relay.

3.

Check voltage between accessory relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK ACCESSORY RELAY POWER SUPPLY-2

1.

Disconnect fuse block (J/B) connector.

2.

Check voltage between fuse block (J/B) harness connector and ground.

Is the inspection result normal?

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2614

BCM

An immediate operation of ACC relay is requested
by BCM, but there is no response for more than 1
second.

• Harness or connectors

(ACC relay circuit is open or short-
ed)

• ACC relay

(+)

(–)

Condition

Voltage (V)

(Approx.)

Accessory relay

Terminal

1

Ground

Ignition switch

OFF

0

ACC

Battery voltage

(+)

(–)

Condition

Voltage (V)

(Approx.)

Fuse block (J/B)

Connector

Terminal

M2

5B

Ground

Ignition switch

OFF

0

ACC

Battery voltage

PCS

B2614 ACC RELAY

PCS-55

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

YES

>> Replace fuse block (J/B).

NO

>> GO TO 3.

3.

CHECK ACCESSORY RELAY POWER SUPPLY CIRCUIT-1

1.

Disconnect BCM connector.

2.

Check continuity between fuse block (J/B) harness connector and BCM harness connector.

3.

Check continuity between fuse block (J/B) harness connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-98, "Removal and Installation"

.

NO

>> Repair or replace harness.

4.

CHECK ACCESSORY RELAY GROUND CIRCUIT

Check continuity between accessory relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair accessory relay ground circuit.

5.

CHECK ACCESSORY RELAY POWER SUPPLY CIRCUIT-2

1.

Connect accessory relay.

2.

Turn ignition switch ACC.

3.

Check voltage between accessory relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 6.

6.

CHECK ACCESSORY RELAY

Refer to

PCS-56, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace fuse block (J/B).

NO

>> Replace accessory relay. Refer to

PG-91, "Fuse, Connector and Terminal Arrangement"

.

7.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

Fuse block (J/B)

BCM

Continuity

Connector

Terminal

Connector

Terminal

M2

5B

M122

95

Existed

Fuse block (J/B)

Ground

Continuity

Connector

Terminal

M2

5B

Not existed

Accessory relay

Ground

Continuity

Terminal

2

Existed

(+)

(–)

Voltage (V)

(Approx.)

Accessory relay

Terminal

5

Ground

Battery voltage

PCS-56

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

B2614 ACC RELAY

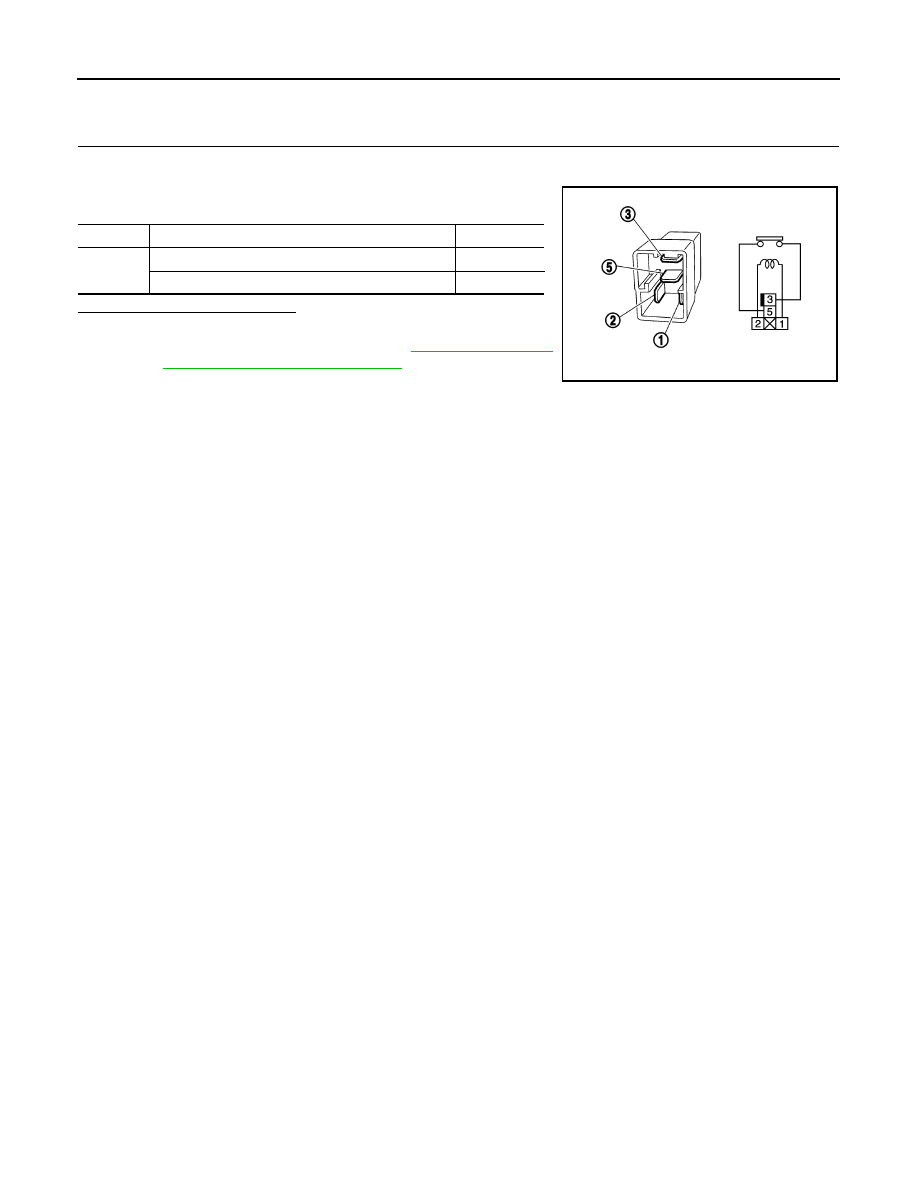

Component Inspection

INFOID:0000000009722656

1.

CHECK ACCESSORY RELAY

1.

Turn ignition switch OFF.

2.

Remove accessory relay.

3.

Check the continuity between accessory relay terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace accessory relay. Refer to

PG-91, "Fuse, Con-

nector and Terminal Arrangement"

.

Terminals

Condition

Continuity

3 and 5

12 V direct current supply between terminals 1 and 2

Existed

No current supply

Not existed

PBIB0098E

PCS

B2615 BLOWER RELAY CIRCUIT

PCS-57

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B2615 BLOWER RELAY CIRCUIT

Description

INFOID:0000000009722657

BCM controls the various electrical components and simultaneously supplies power according to the power
supply position.
BCM checks the power supply position internally.

DTC Logic

INFOID:0000000009722658

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON under the following conditions, and wait for at least 1 second.

-

Selector lever is in the P or N position

-

Do not depress brake pedal

2.

Check “Self diagnostic result” with CONSULT.

Is DTC detected?

YES

>> Go to

PCS-57, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009722659

1.

CHECK BLOWER RELAY POWER SUPPLY-1

1.

Turn ignition switch OFF.

2.

Disconnect blower relay.

3.

Check voltage between blower relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK BLOWER RELAY POWER SUPPLY-2

1.

Disconnect fuse block (J/B) connector.

2.

Check voltage between fuse block (J/B) harness connector and ground.

Is the inspection result normal?

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2615

BCM

BCM detects a difference of signal for 1 second or
more between the following information.
• Blower relay ON/OFF request
• Blower relay feedback

• Harness or connectors

(Blower relay circuit is open or
shorted)

• Blower relay

(+)

(–)

Condition

Voltage (V)

(Approx.)

Blower relay

Terminal

1

Ground

Ignition switch

OFF or ACC

0

ON

Battery voltage

(+)

(–)

Condition

Voltage (V)

(Approx.)

Fuse block (J/B)

Connector

Terminal

E103

6F

Ground

Ignition switch

OFF or ACC

0

ON

Battery voltage
