Nissan Murano. Manual - part 1056

MWI-104

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000009721330

Tool name

Description

Power tool

Loosening screws

PBIC0191E

MWI

COMBINATION METER

MWI-105

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REMOVAL AND INSTALLATION

COMBINATION METER

Exploded View

INFOID:0000000009721331

Refer to

IP-14, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000009721332

REMOVAL

Removal

1.

Remove the cluster lid A. Refer to

IP-15, "Removal and Installation"

.

2.

Remove screws (A) and connector, and remove combination
meter (1).

INSTALLATION

Install in the reverse order of removal.

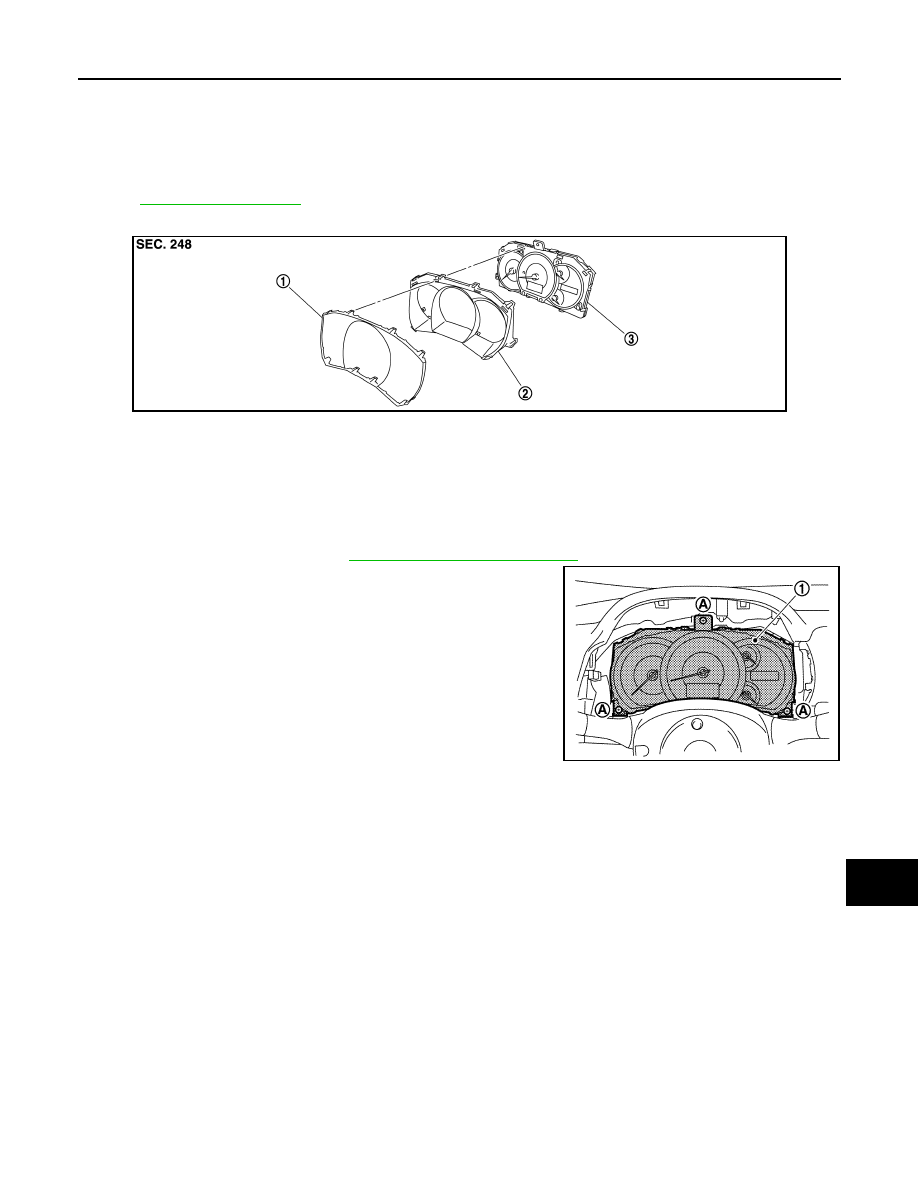

Disassembly and Assembly

INFOID:0000000009721333

DISASSEMBLY

1.

Disengage the tabs to separate upper housing.

2.

Disengage the tabs to separate front cover.

ASSEMBLY

Assemble in the reverse order of disassembly.

JPNIA0811ZZ

1.

Front cover

2.

Upper housing

3.

Unified meter control unit

JPNIA0810ZZ

MWI-106

< REMOVAL AND INSTALLATION >

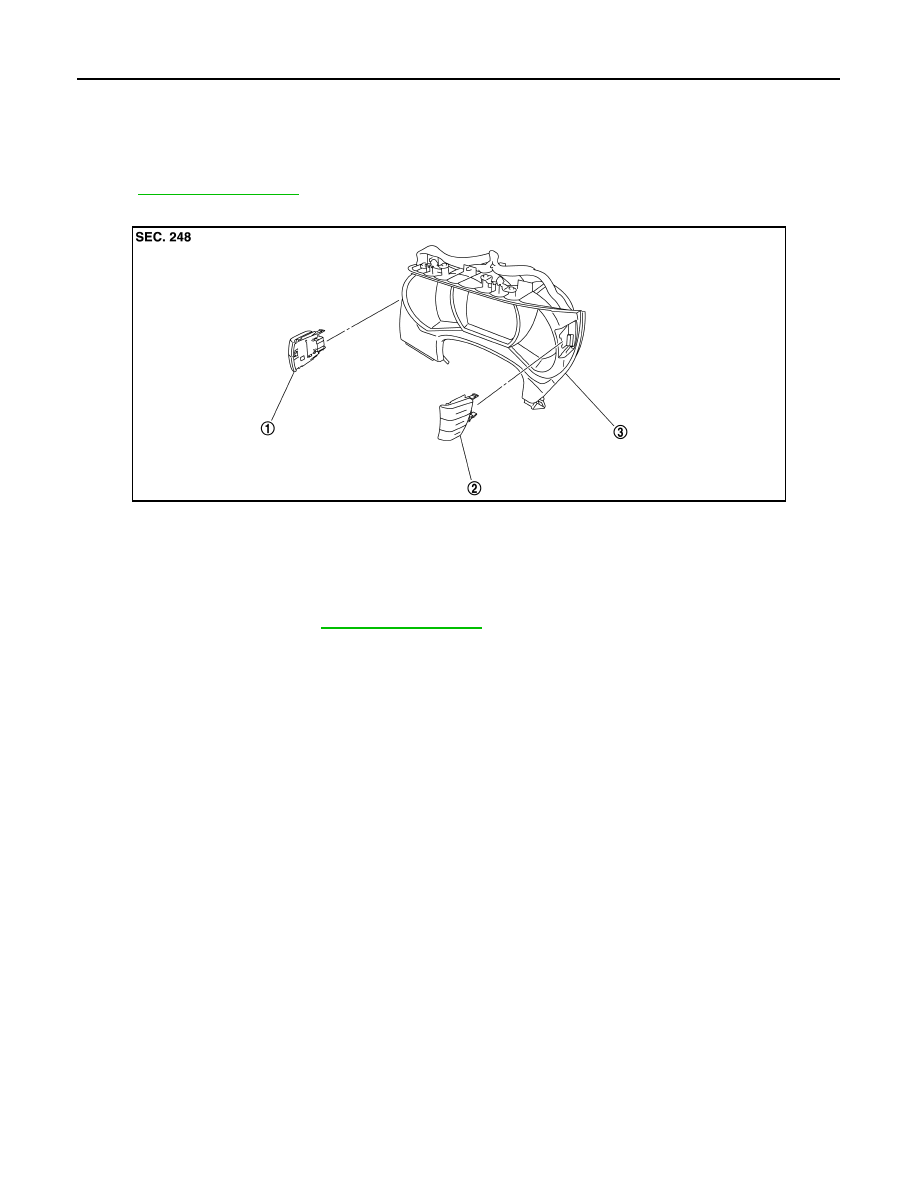

METER CONTROL SWITCH

METER CONTROL SWITCH

Exploded View

INFOID:0000000009721334

REMOVAL

Refer to

IP-14, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000009721335

REMOVAL

1.

Remove cluster lid A. Refer to

IP-14, "Exploded View"

.

2.

Remove meter control switch connectors and remove meter control switches.

INSTALLATION

Install in the reverse order of removal.

JPNIA0812ZZ

1.

Meter control switch (LH)

2.

Meter control switch (RH)

3.

Cluster lid A

MWI

COMPASS

MWI-107

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

COMPASS

Exploded View

INFOID:0000000009721336

Refer to

MIR-70, "Exploded View"

 (with ADP) or

MIR-93, "Exploded View"

 (without ADP).

Removal and Installation

INFOID:0000000009721337

Refer to

MIR-70, "Removal and Installation"

 (with ADP) or

MIR-93, "Removal and Installation"

 (without ADP).
