Nissan Murano. Manual - part 1034

MWI-16

< SYSTEM DESCRIPTION >

METER SYSTEM

ENGINE COOLANT TEMPERATURE GAUGE : Component Description

INFOID:0000000009721235

FUEL GAUGE

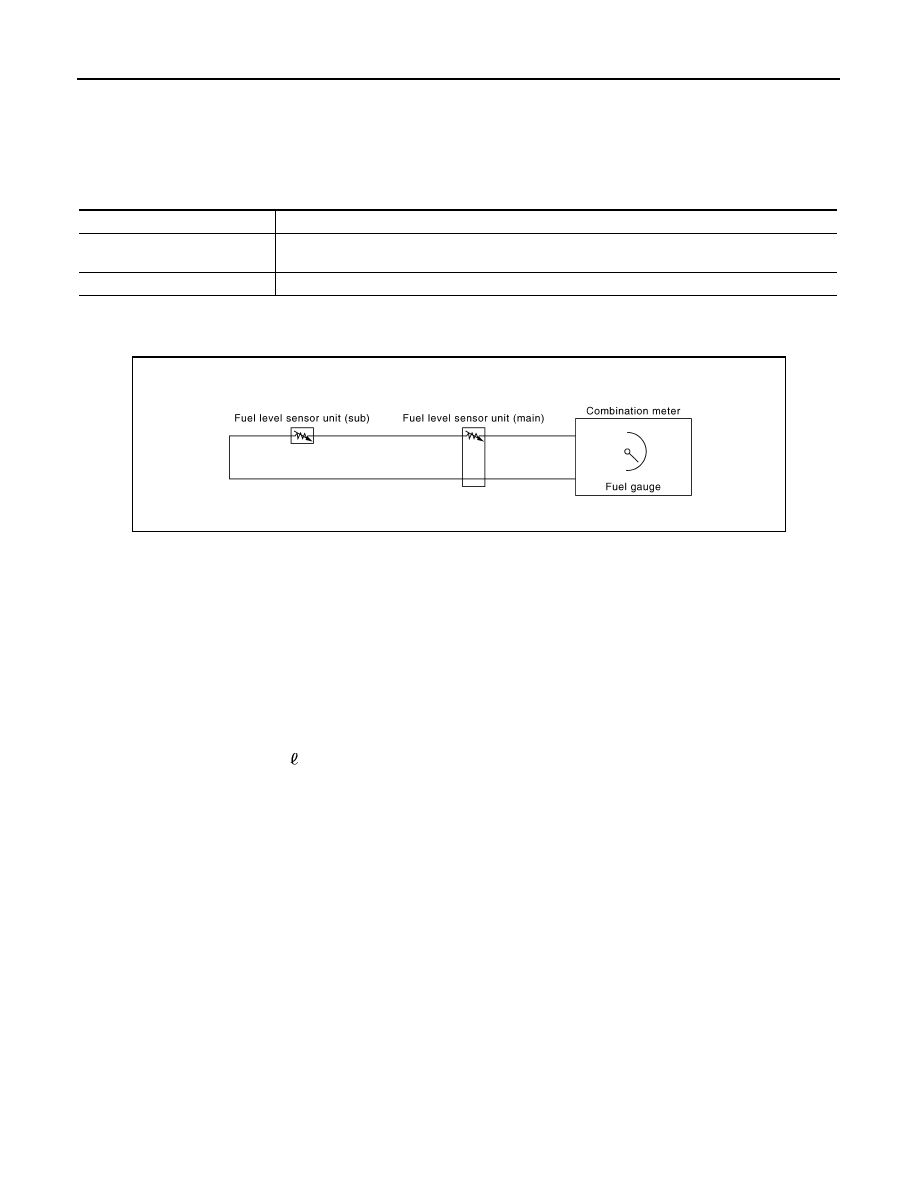

FUEL GAUGE : System Diagram

INFOID:0000000009721236

FUEL GAUGE : System Description

INFOID:0000000009721237

CONTROL OUTLINE

The combination meter reads the fuel level sensor signal from the fuel level sensor unit and indicates the fuel
level to the fuel gauge.

REFUEL CONTROL

The combination meter accelerates the fuel gauge segment if the all conditions listed below are met, or the
ignition switch is ON from OFF.
• Ignition switch is ON position.
• The vehicle is not moving.
• The fuel level change by 15   (4 US gal, 3-1/4 lmp gal) or more.

A.

Lower right side of rear seat

B.

Engine room (RH)

C.

Engine front side

D.

Engine room (LH)

E.

Front bumper (left back)

F.

Engine room (LH)

G.

Engine room (LH)

H.

Behind the combination meter

I.

Lower left side of rear seat

Unit

Description

Combination meter

Indicates the engine coolant temperature to the engine coolant temperature gauge according to the
engine coolant temperature signal received from ECM via CAN communication.

ECM

Transmits the engine coolant temperature signal to the combination meter via CAN communication.

JSNIA0511GB

MWI

METER SYSTEM

MWI-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

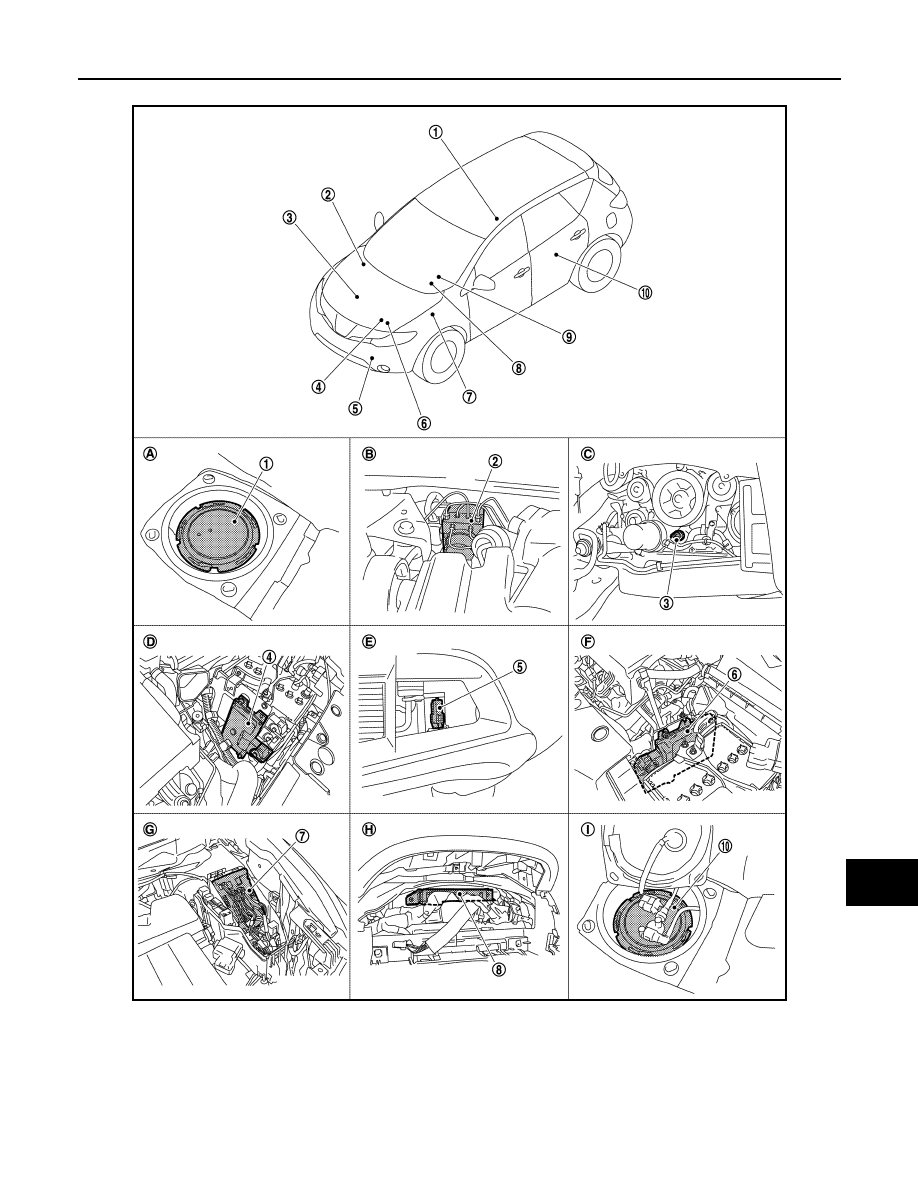

FUEL GAUGE : Component Parts Location

INFOID:0000000009721238

JPNIA0813ZZ

1.

Fuel level sensor unit (sub)

2.

ABS actuator and electric unit (con-
trol unit)

3.

Oil pressure switch

4.

TCM

5.

Ambient sensor

6.

ECM

7.

IPDM E/R

8.

BCM

9.

Combination meter

10.

Fuel level sensor unit and fuel pump
(main)

MWI-18

< SYSTEM DESCRIPTION >

METER SYSTEM

FUEL GAUGE : Component Description

INFOID:0000000009721239

ODO/TRIP METER

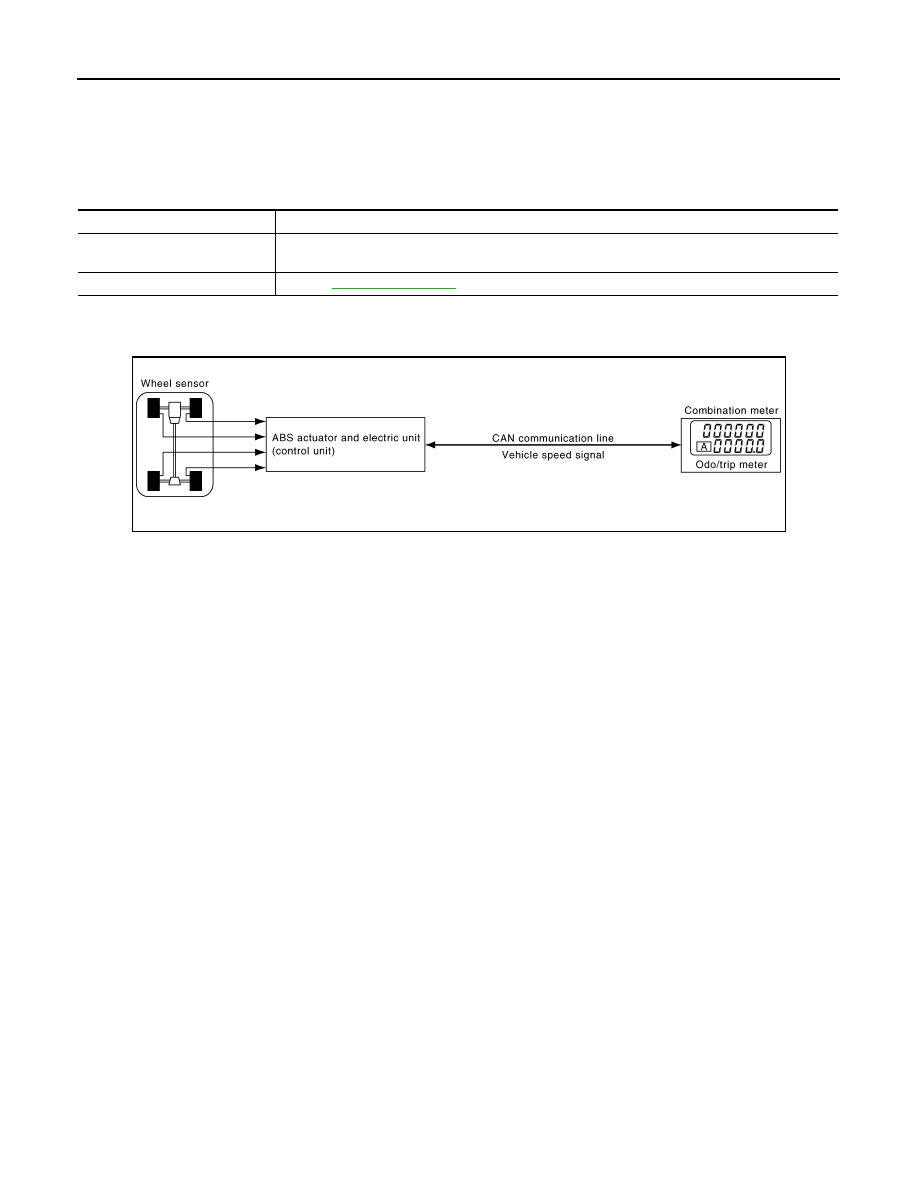

ODO/TRIP METER : System Diagram

INFOID:0000000009721240

ODO/TRIP METER : System Description

INFOID:0000000009721241

• The ABS actuator and electric unit (control unit) reads the rectangular wave signal provided by the wheel

sensor and transmits the vehicle speed signal to the combination meter via CAN communication.

• The combination meter converts the vehicle speed signal received via CAN communication to mileage, and

it displays the accumulated mileage to the odo/trip meter.

A.

Lower right side of rear seat

B.

Engine room (RH)

C.

Engine front side

D.

Engine room (LH)

E.

Front bumper (left back)

F.

Engine room (LH)

G.

Engine room (LH)

H.

Behind the combination meter

I.

Lower left side of rear seat

Unit

Description

Combination meter

Indicates the fuel gauge according to the fuel level sensor signal received from the fuel level sensor
unit.

Fuel level sensor unit

Refer to

MWI-46, "Description"

.

JSNIA0293GB

MWI

METER SYSTEM

MWI-19

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ODO/TRIP METER : Component Parts Location

INFOID:0000000009721242

JPNIA0813ZZ

1.

Fuel level sensor unit (sub)

2.

ABS actuator and electric unit (con-
trol unit)

3.

Oil pressure switch

4.

TCM

5.

Ambient sensor

6.

ECM

7.

IPDM E/R

8.

BCM

9.

Combination meter

10.

Fuel level sensor unit and fuel pump
(main)
