DOOR MIRROR REMOTE CONTROL SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect automatic drive positioner control unit connector.

3.

Check continuity between automatic drive positioner control unit harness connector and door mirror
remote control switch harness connector.

4.

Check continuity between automatic drive positioner control unit harness connector and ground.

Is the inspection result normal?

YES

>> Replace automatic drive positioner control unit. Refer to

ADP-211, "Removal and Installation"

 .

NO

>> Repair or replace harness.

3.

CHECK DOOR MIRROR REMOTE CONTROL SWITCH GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Check continuity between door mirror remote control switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK CHANGEOVER SWITCH

Check door mirror remote control switch (changeover switch).
Refer to

MIR-14, "CHANGEOVER SWITCH : Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace door mirror remote control switch (changeover switch). Refer to

MIR-75, "Removal and

Installation"

.

5.

CHECK INTERMITTENT INCIDENT

Check intermittent incident.
Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

CHANGEOVER SWITCH : Component Inspection

INFOID:0000000009719329

1.

CHECK CHANGEOVER SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect door mirror remote control switch connector.

3.

Check continuity between door mirror remote control switch terminals.

Automatic drive positioner control unit Door

mirror

remote control switch

Continuity

Connector

Terminal

Connector

Terminal

M75

2

D14

11

Existed

14

10

Automatic drive positioner control unit

Ground

Continuity

Connector

Terminal

M75

2

Not existed

14

Door mirror remote control switch

Ground

Continuity

Connector

Terminal

D14

7

Existed

DOOR MIRROR REMOTE CONTROL SWITCH

MIR-15

< DTC/CIRCUIT DIAGNOSIS >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace door mirror remote control switch. Refer to

MIR-75, "Removal and Installation"

.

Door mirror remote control switch

Condition

Continuity

Connector

Terminal

D14

10

7

Changeover switch

LEFT

Existed

Other than above

Not existed

11

RIGHT

Existed

Other than above

Not existed

MIR-16

< DTC/CIRCUIT DIAGNOSIS >

[WITH ADP]

DOOR MIRROR

DOOR MIRROR

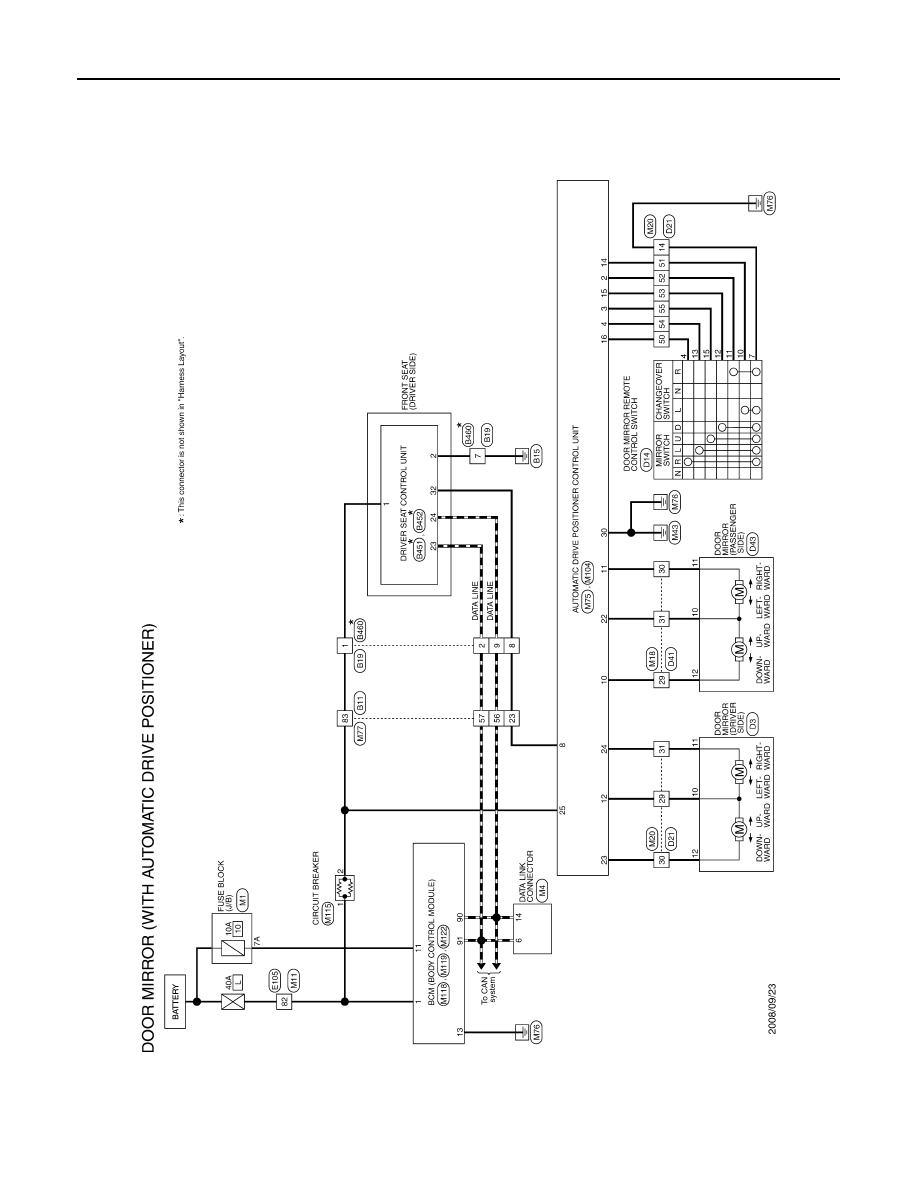

Wiring Diagram - DOOR MIRROR SYSTEM (WITH AUTOMATIC DRIVE POSITION-
ER) -

INFOID:0000000009719330

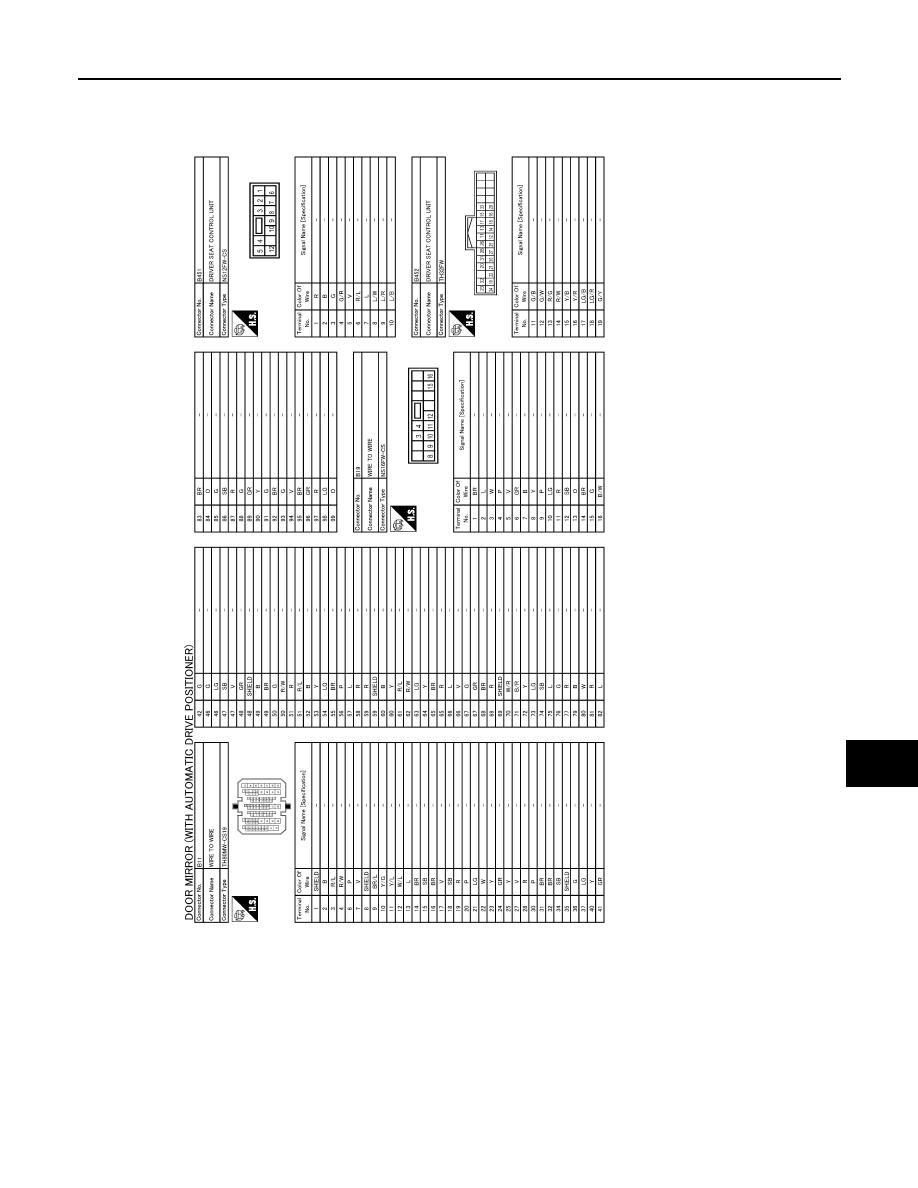

JCLWM2736GB

DOOR MIRROR

MIR-17

< DTC/CIRCUIT DIAGNOSIS >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

JRLWC9403GB
