Nissan Murano. Manual - part 77

AV-86

< WIRING DIAGRAM >

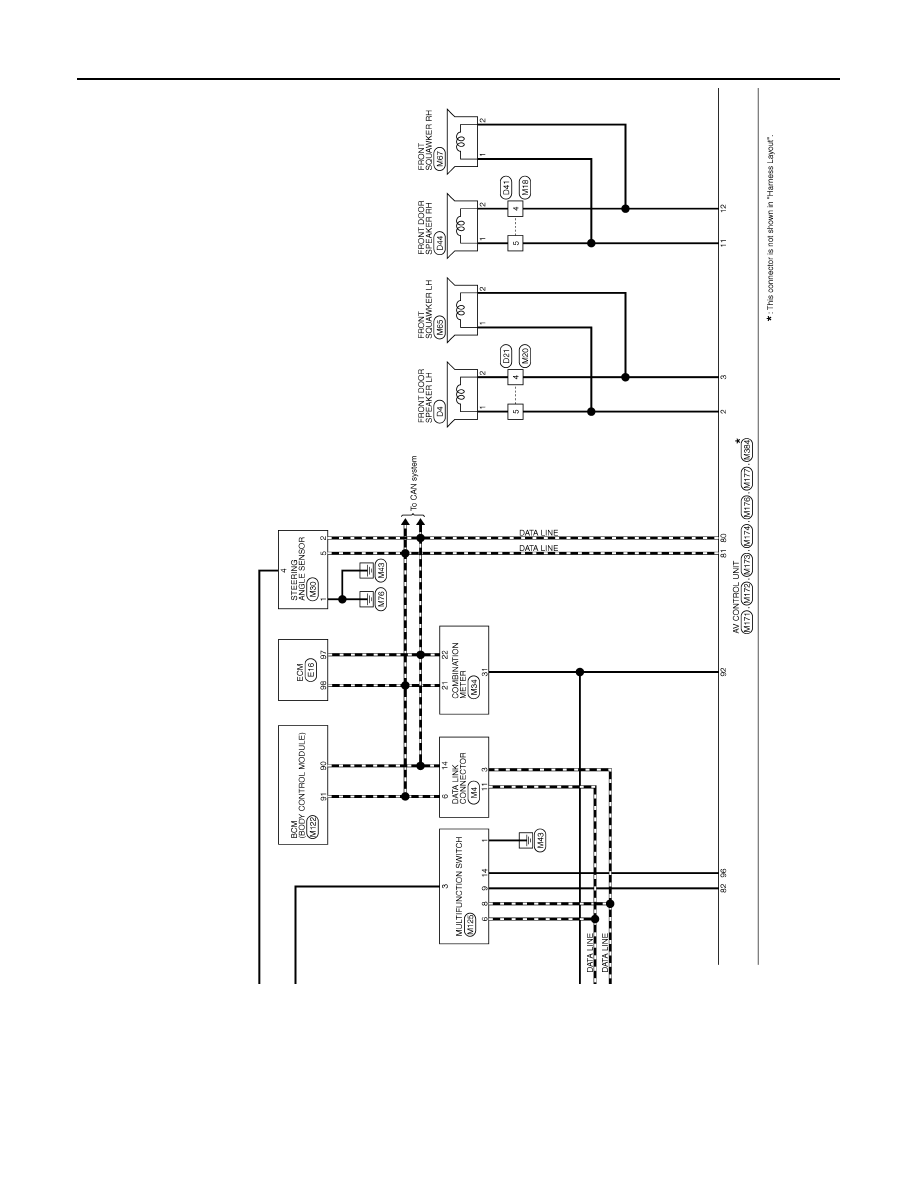

[BASE AUDIO WITH COLOR DISPLAY]

BASE AUDIO WITH COLOR DISPLAY

JRNWC2804GB

AV

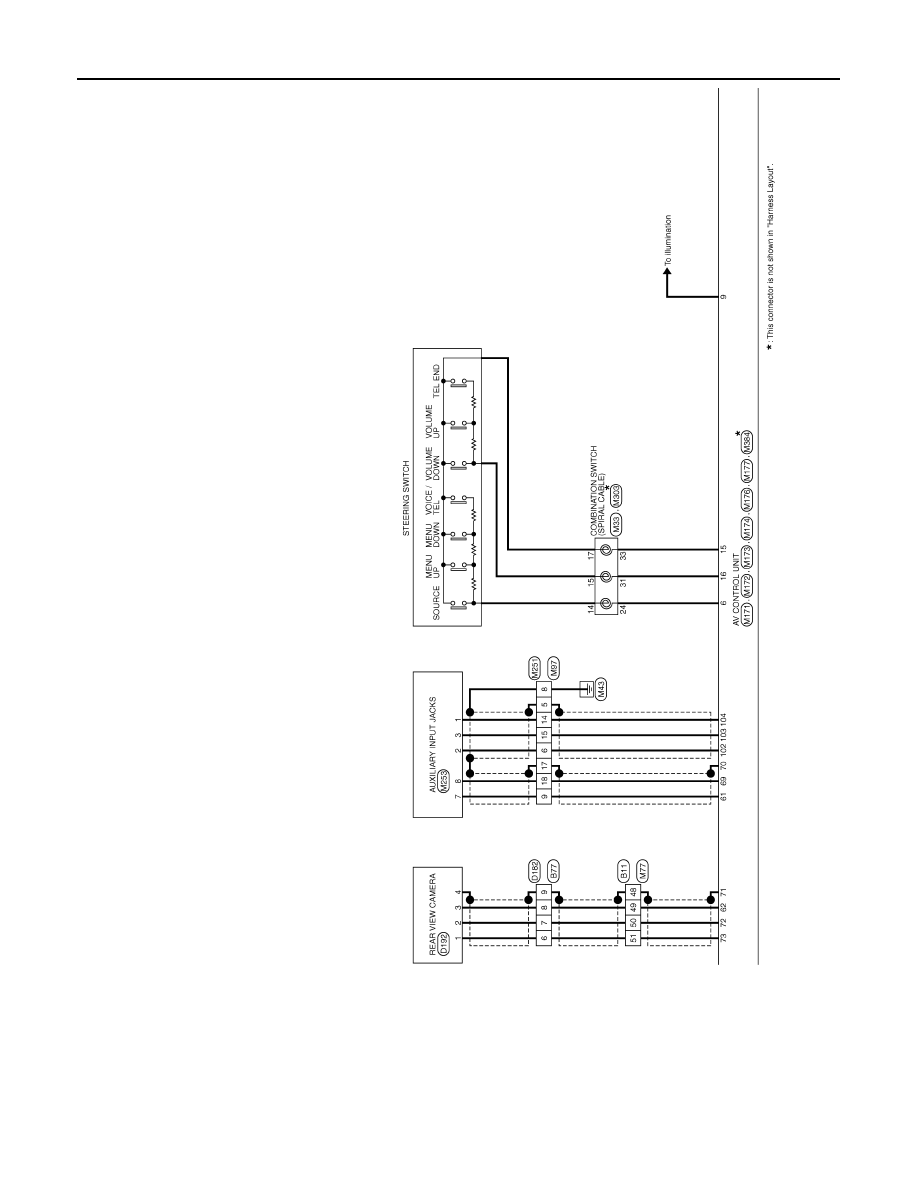

BASE AUDIO WITH COLOR DISPLAY

AV-87

< WIRING DIAGRAM >

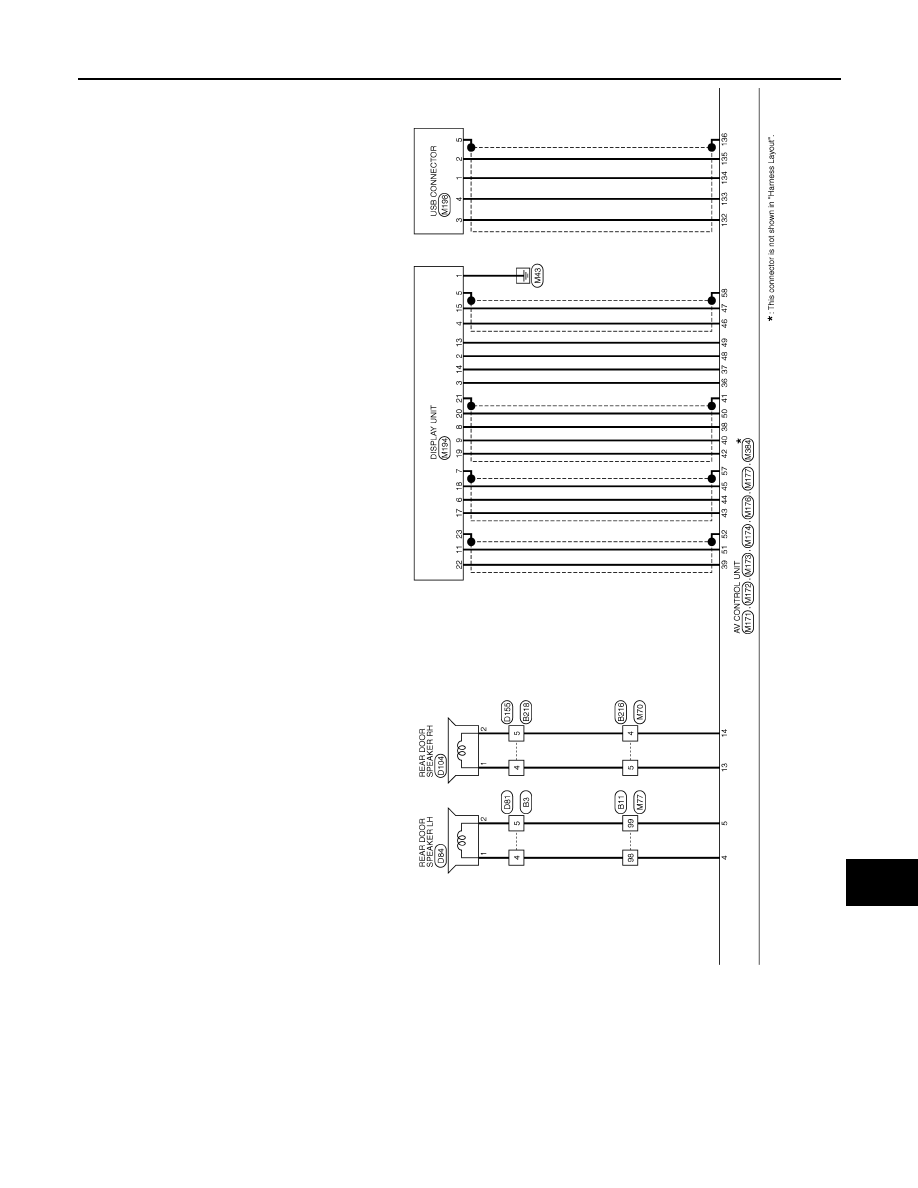

[BASE AUDIO WITH COLOR DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWC2805GB

AV-88

< WIRING DIAGRAM >

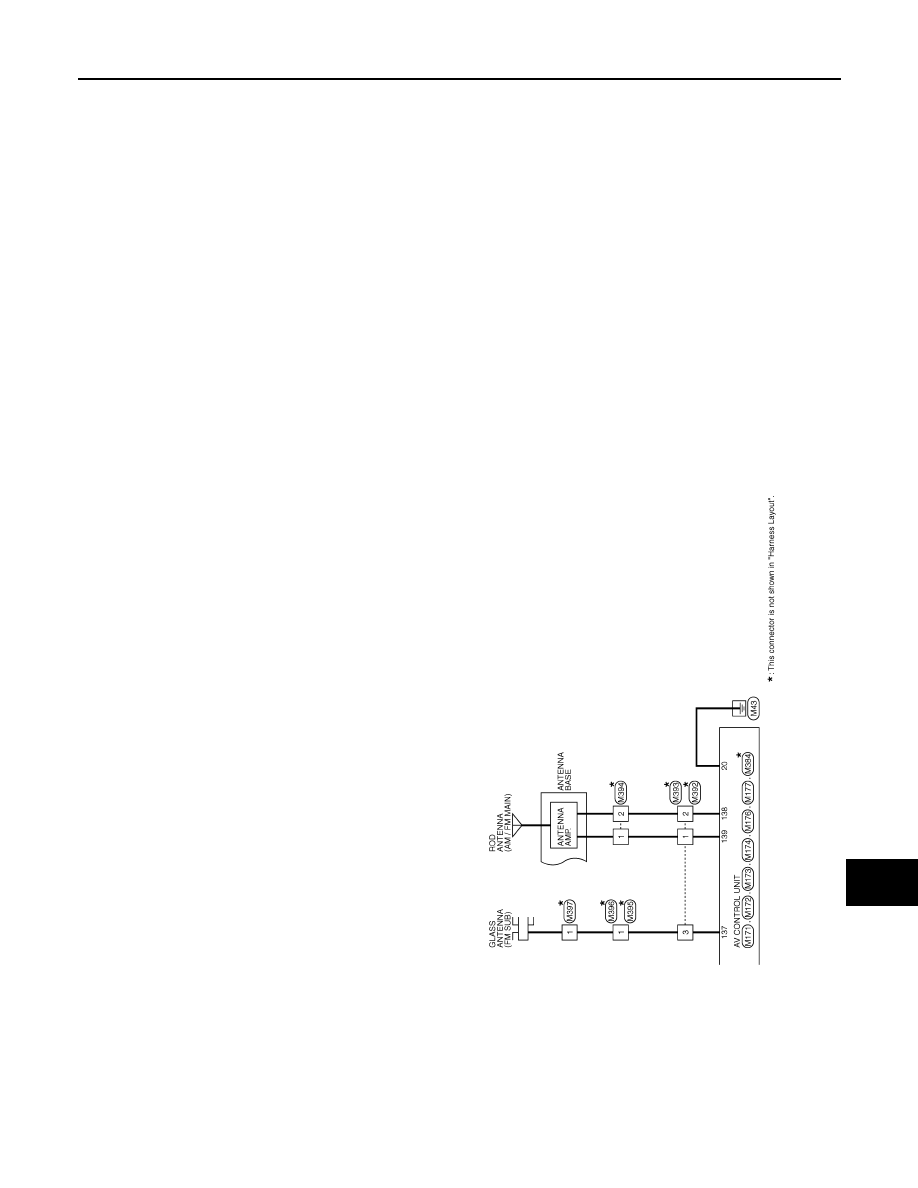

[BASE AUDIO WITH COLOR DISPLAY]

BASE AUDIO WITH COLOR DISPLAY

JRNWC2806GB

AV

BASE AUDIO WITH COLOR DISPLAY

AV-89

< WIRING DIAGRAM >

[BASE AUDIO WITH COLOR DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWC2807GB
