AV-62

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH COLOR DISPLAY]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

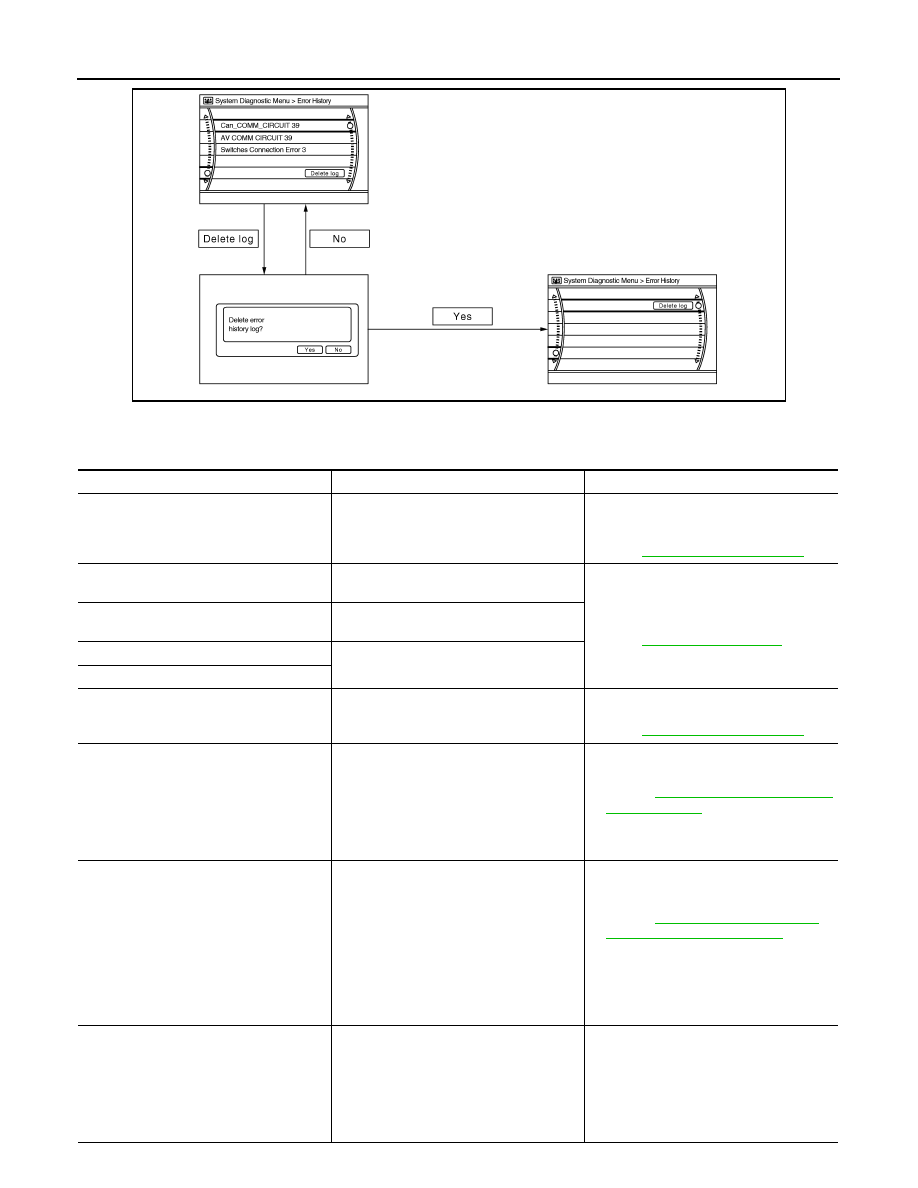

Error item
Some error items may be displayed simultaneously according to the cause. If some error items are displayed
simultaneously, the detection of the cause can be performed by the combination of display items

JSNIA0151GB

Error item

Description

Possible malfunction factor/Action to take

CAN COMM CIRCUIT

CAN communication malfunction is detect-
ed.

Perform diagnosis with CONSULT, and
then repair the malfunctioning parts accord-
ing to the diagnosis results.
Refer to

AV-65, "CONSULT Function"

.

CONTROL UNIT (CAN)

CAN initial diagnosis malfunction is detect-
ed.

Replace the AV control unit if the malfunc-
tion occurs constantly.
Refer to

AV-149, "Exploded View"

.

CONTROL UNIT (AV)

AV communication circuit initial diagnosis
malfunction is detected.

FLASH-ROM Error Of Control Unit

AV control unit malfunction is detected.

CAN Controller Memory Error

Steer. Angle Sensor Calibration

Predictive course line center position ad-
justment of the steering angle sensor is in-
complete.

Adjust the predictive course line center po-
sition of the steering angle sensor.
Refer to

AV-65, "CONSULT Function"

.

Front Display Connection Error

When either one of the following items are
detected:
• display unit power supply and ground cir-

cuits are malfunctioning.

• serial communication circuits between

AV control unit and display unit are mal-
functioning.

• Display unit power supply and ground

circuits.
Refer to

AV-118, "DISPLAY UNIT : Diag-

nosis Procedure"

.

• Serial communication circuits between

AV control unit and display unit.

XM Connection Error

When either one of the following items is
detected:
• satellite radio tuner power supply and

ground circuits are malfunctioning.

• communication circuits between AV con-

trol unit and satellite radio tuner are mal-
functioning.

• request signal circuit between AV control

unit and satellite radio tuner are malfunc-
tioning.

• Satellite radio tuner power supply and

ground circuits.
Refer to

AV-119, "SATELLITE RADIO

TUNER : Diagnosis Procedure"

.

• Communication circuits between AV con-

trol unit and satellite radio tuner.

• Request signal circuit between AV con-

trol unit and satellite radio tuner.

• AV COMM CIRCUIT
• Switches Connection Error

When either one of the following items are
detected:
• multifunction switch power supply and

ground circuits are malfunctioning.

• AV communication circuits between AV

control unit and multifunction switch are
malfunctioning.

• Multifunction switch power supply and

ground circuits.

• AV communication circuits between AV

control unit and multifunction switch.

AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-63

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH COLOR DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

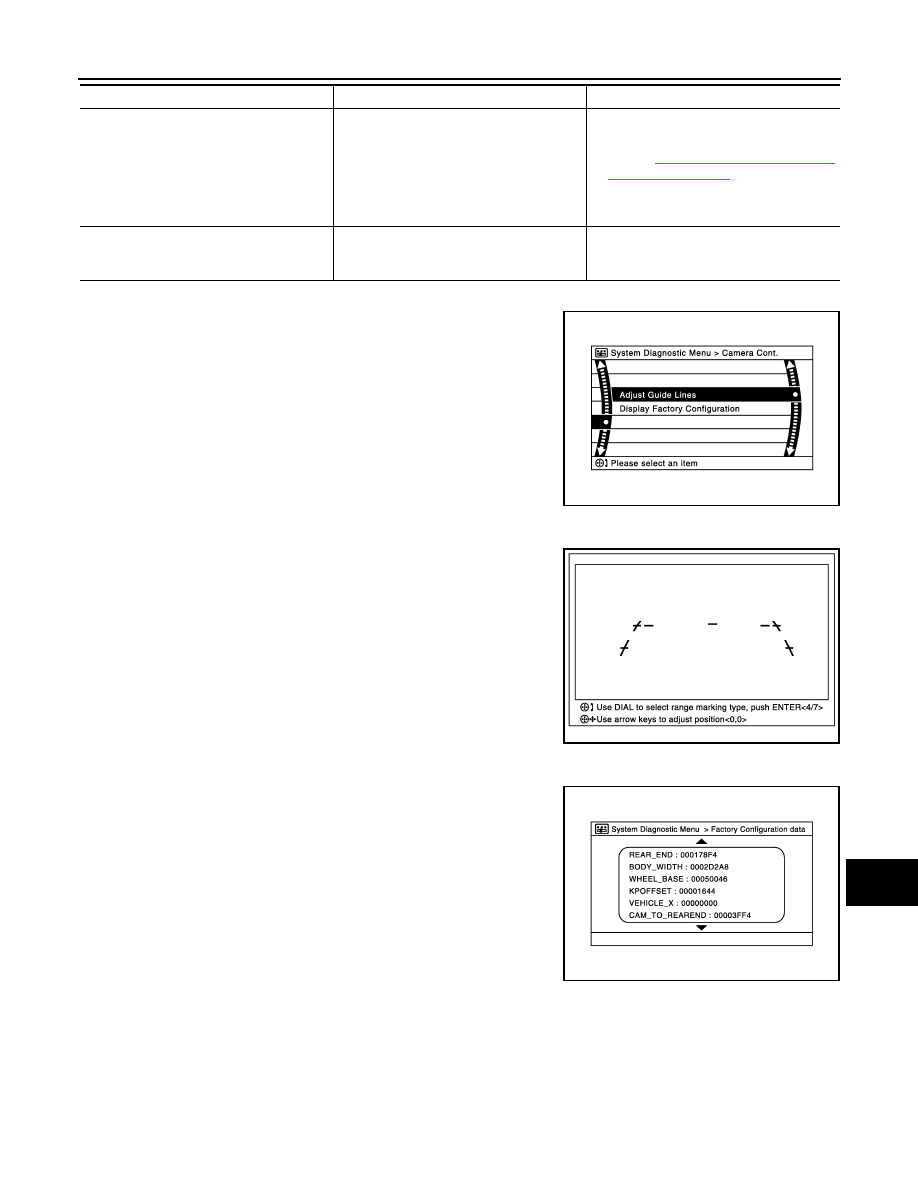

Camera Cont.

The two functions of “Adjust Guide Lines”, “Display Factory configu-
ration” are available.

Adjust Guide Lines

• Use this mode to adjust the guide line display position of the rear

view monitor if necessary after removing the rear view monitor
camera.

Display Factory configuration

• Configuration stored in the AV control unit can be checked.

Vehicle CAN Diagnosis

• AV COMM CIRCUIT
• H/F Unit Connection Error

When either one of the following items are
detected:
• TEL adapter unit power supply and

ground circuits are malfunctioning.

• AV communication circuits between AV

control unit and TEL adapter unit are
malfunctioning.

• TEL adapter unit power supply and

ground circuits.
Refer to

AV-120, "TEL ADAPTER UNIT :

Diagnosis Procedure"

.

• AV communication circuits between AV

control unit and TEL adapter unit.

• AV COMM CIRCUIT
• Switches Connection Error
• H/F Unit Connection Error

AV communication circuits between AV
control unit and multifunction switch are
malfunctioning.

AV communication circuits between AV
control unit and multifunction switch.

Error item

Description

Possible malfunction factor/Action to take

JSNIA2230ZZ

JSNIA2231ZZ

JSNIA2234ZZ

AV-64

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH COLOR DISPLAY]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

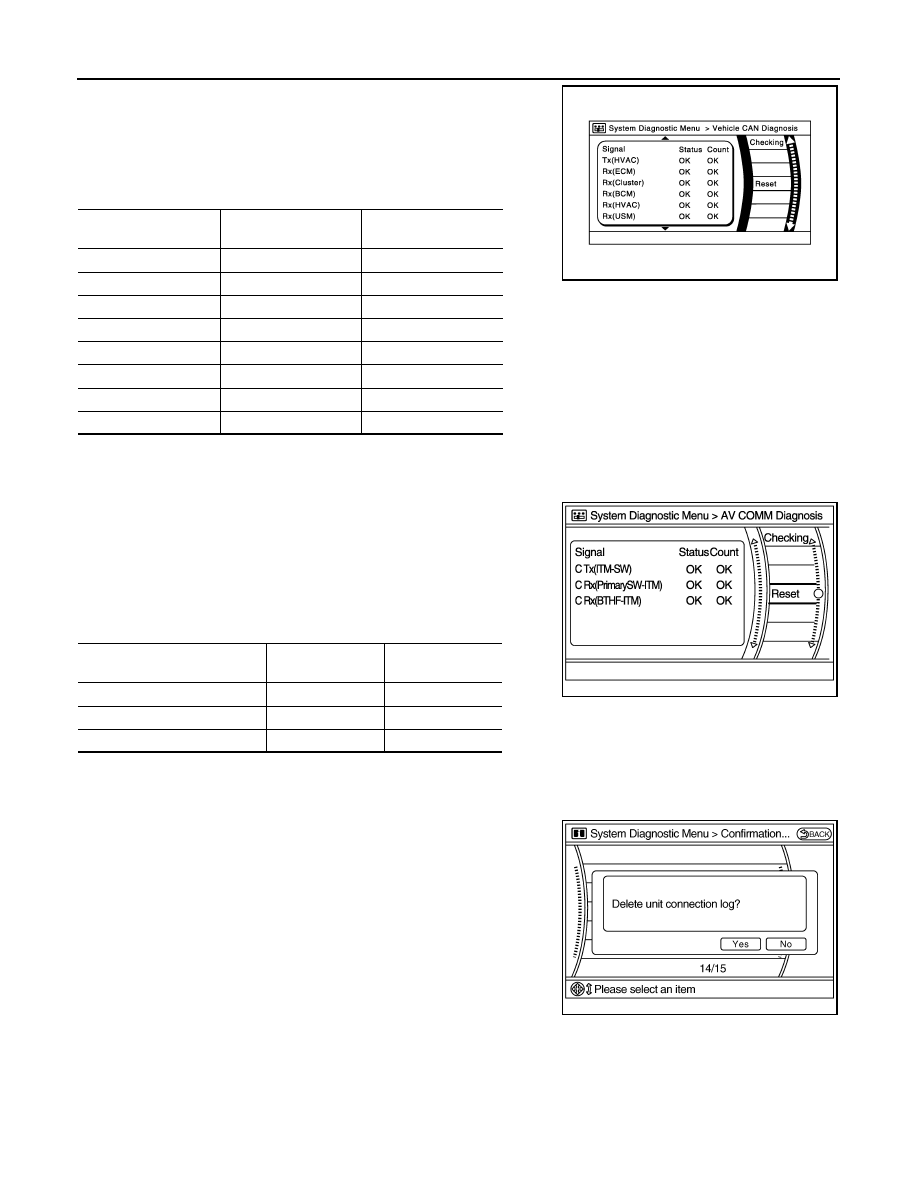

• CAN communication status and error counter is displayed.
• The error counter displays “OK” if any malfunction was not

detected in the past and displays “0” if a malfunction is detected. It
increases by 1 if the condition is normal at the next ignition switch
ON cycle. The upper limit of the counter is 39.

• The error counter is erased if “Reset” is pressed.

NOTE:
“???” indicates UNKWN.

AV COMM Diagnosis

• Displays the communication status between AV control unit (mas-

ter unit) and each unit.

• The error counter displays “OK” if any malfunction was not

detected in the past and displays “0” if a malfunction is detected. It
increases by 1 if the condition is normal at the next ignition switch
ON cycle. The upper limit of the counter is 39.

• The error counter is erased if “Reset” is pressed.

NOTE:
“???” indicates UNKWN.

Delete Unit Connection Log

Deletes any unit connection records and error records from the AV
control unit memory. (Clear the records of the unit that has been
removed.)

Initialize Settings

Items

Display (Current)

Malfunction counter

(Past)

Tx(HVAC)

OK / ???

OK / 0 – 39

Rx(ECM)

OK / ???

OK / 0 – 39

Rx(Cluster)

OK / ???

OK / 0 – 39

Rx(BCM)

OK / ???

OK / 0 – 39

Rx(HVAC)

OK / ???

OK / 0 – 39

Rx(USM)

OK / ???

OK / 0 – 39

Rx(VDC)

OK / ???

OK / 0 – 39

Rx(STRG)

OK / ???

OK / 0 – 39

JSNIA2235ZZ

Items

Status

(Current)

Counter

(Past)

C Tx(ITM-PrimarySW)

OK / ???

OK / 0 – 39

C Rx(PrimarySW-ITM)

OK / ???

OK / 0 – 39

C Rx(BTHF-ITM)

OK / ???

OK / 0 – 39

JSNIA2505ZZ

JSNIA0088GB

AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-65

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH COLOR DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

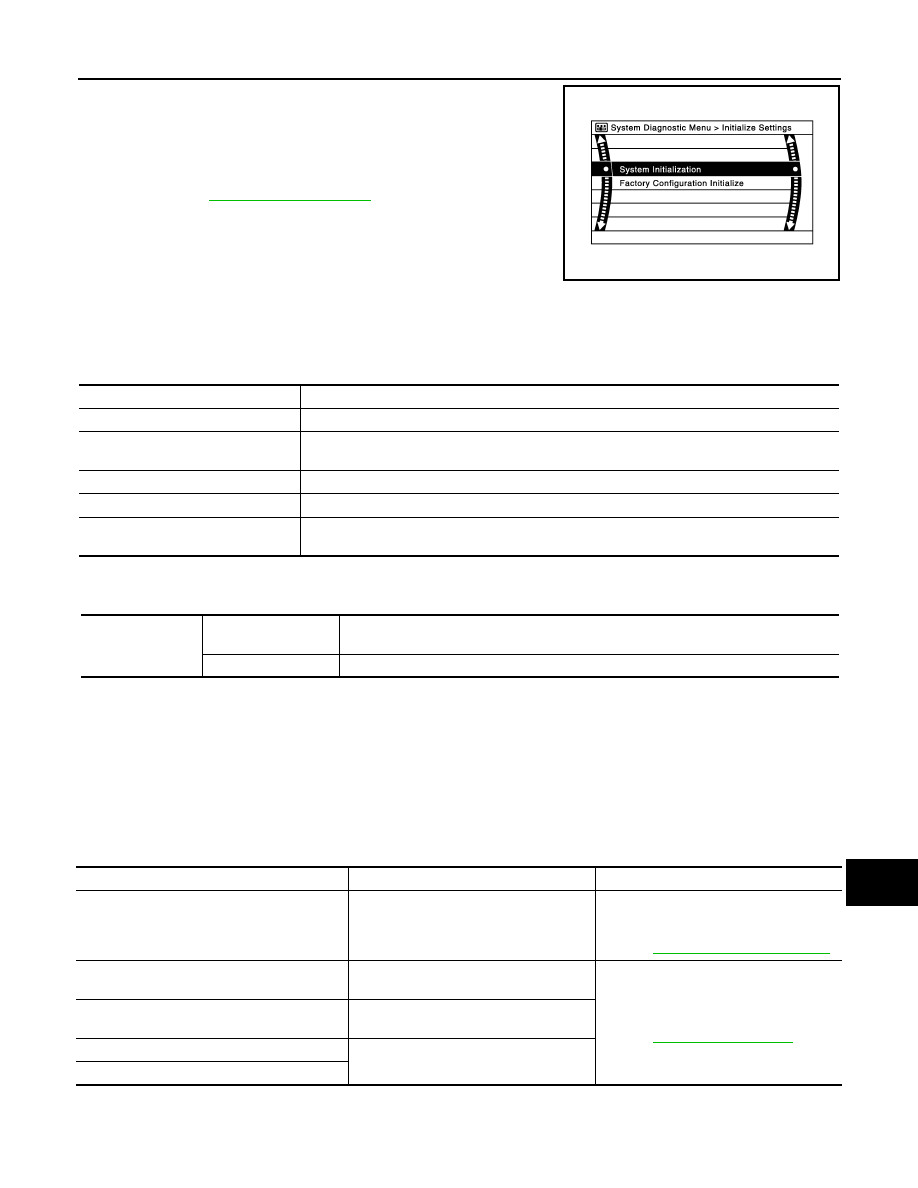

“User Data Initialization” and “Accessory Number Initialization” are
possible.

CAUTION:

• Never perform Accessory Number Initialization except when

configuration is unsuccessful.

• Accessory Number Initialization requires configuration. For

details, refer to

AV-105, "Description"

.

CONSULT Function

INFOID:0000000009721603

CONSULT FUNCTIONS

CONSULT performs the following functions via the communication with the AV control unit.

AV Communication

When “AV communication” of “CAN Diag Support Monitor” is selected, the following function will be performed.

ECU IDENTIFICATION

The part number of AV control unit is displayed.

SELF DIAGNOSIS RESULT

• In CONSULT self-diagnosis, self-diagnosis results and error history are displayed collectively.
• The current malfunction indicates “CRNT”. The past malfunction indicates “PAST”.
• The timing is displayed as “0” if any of the error codes [U1000], [U1010], [U1300] and [U1310] is detected.

The counter increases by 1 if the condition is normal at the next ignition switch ON cycle.

Self-diagnosis Results Display Item

JSNIA2237ZZ

Diagnosis mode

Description

Ecu Identification

The part number of AV control unit can be checked.

Self Diagnostic Result

Performs a diagnosis on the AV control unit and a connection diagnosis for the communication
circuit of the Multi AV system, and displays the current and past malfunctions collectively.

Data Monitor

The diagnosis of vehicle signal that is input to the AV control unit can be performed.

Work Support

Steering angle sensor can be adjusted.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing AV control unit.

AV communication

AV&NAVI C/U

Displays the communication status from AV control unit to each unit as well as the error
counter.

AUDIO

Displays the AV control unit communication status and the error counter.

Error item

Description

Possible malfunction factor/Action to take

CAN COMM CIRCUIT [U1000]

CAN communication malfunction is de-
tected.

Perform diagnosis with CONSULT, and
then repair the malfunctioning parts ac-
cording to the diagnosis results.
Refer to

AV-107, "Diagnosis Procedure"

.

CONTROL UNIT (CAN) [U1010]

CAN initial diagnosis malfunction is de-
tected.

Replace the AV control unit if the malfunc-
tion occurs constantly.
Refer to

AV-149, "Exploded View"

.

CONTROL UNIT (AV) [U1310]

AV communication circuit initial diagnosis
malfunction is detected.

Cont Unit [U1200]

AV control unit malfunction is detected.

CAN CONT [U1216]
