Nissan Murano. Manual - part 65

AV-38

< PREPARATION >

[BASE AUDIO WITHOUT COLOR DISPLAY]

PREPARATION

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000009721574

Tool

Description

Power tool

Loosening screws

PBIC0191E

AV

AUDIO UNIT

AV-39

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITHOUT COLOR DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REMOVAL AND INSTALLATION

AUDIO UNIT

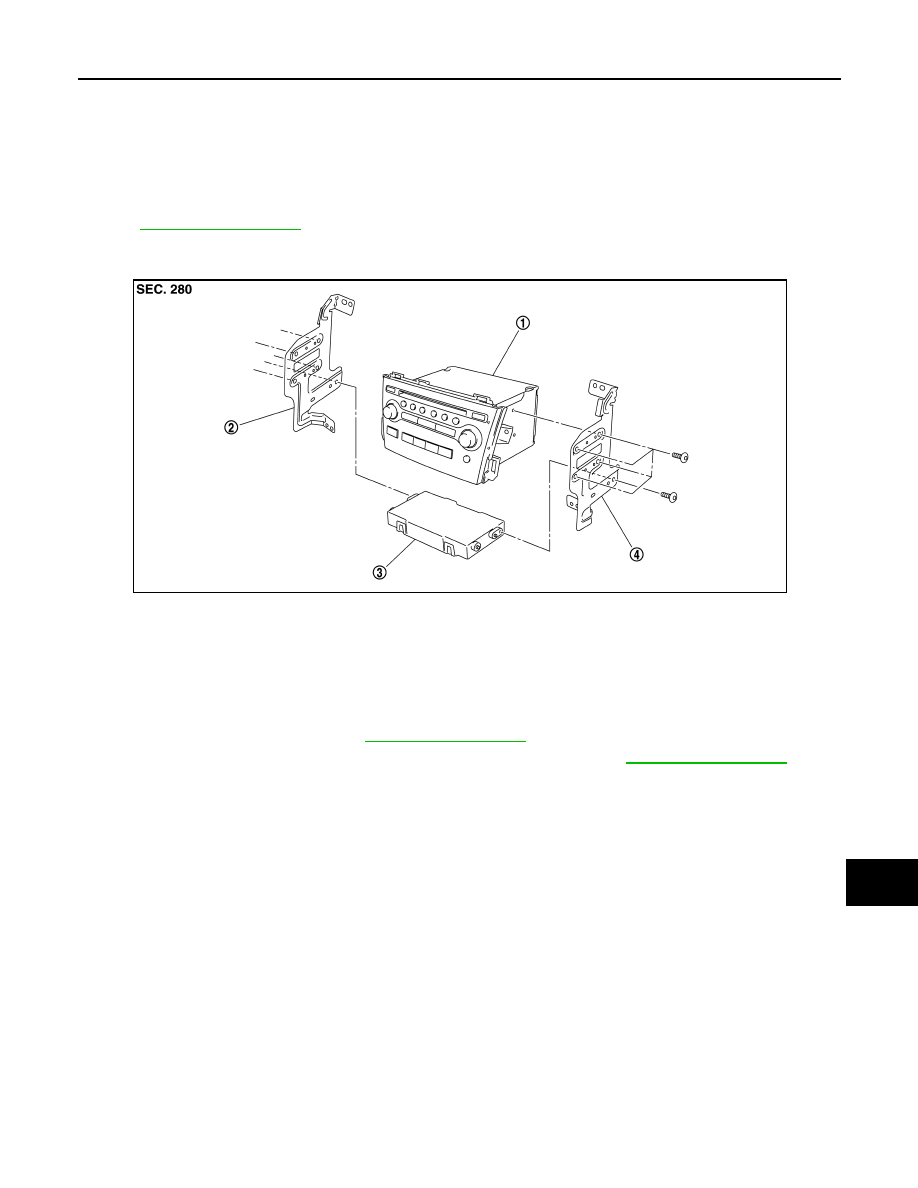

Exploded View

INFOID:0000000009721575

REMOVAL

Refer to

IP-14, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000009721576

REMOVAL

1.

Remove cluster lid C lower. Refer to

IP-14, "Exploded View"

.

2.

Remove instrument stay cover LH and instrument stay cover RH. Refer to

IP-14, "Exploded View"

.

3.

Remove audio unit with an A/C auto amp. as a single unit from the body.

4.

Remove bracket screws, and then remove audio unit.

INSTALLATION

Install in the reverse order of removal.

1.

Audio unit

2.

Bracket LH

3.

A/C auto amp.

4.

Bracket RH

JPNIA0770ZZ

AV-40

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITHOUT COLOR DISPLAY]

AUDIO DISPLAY UNIT

AUDIO DISPLAY UNIT

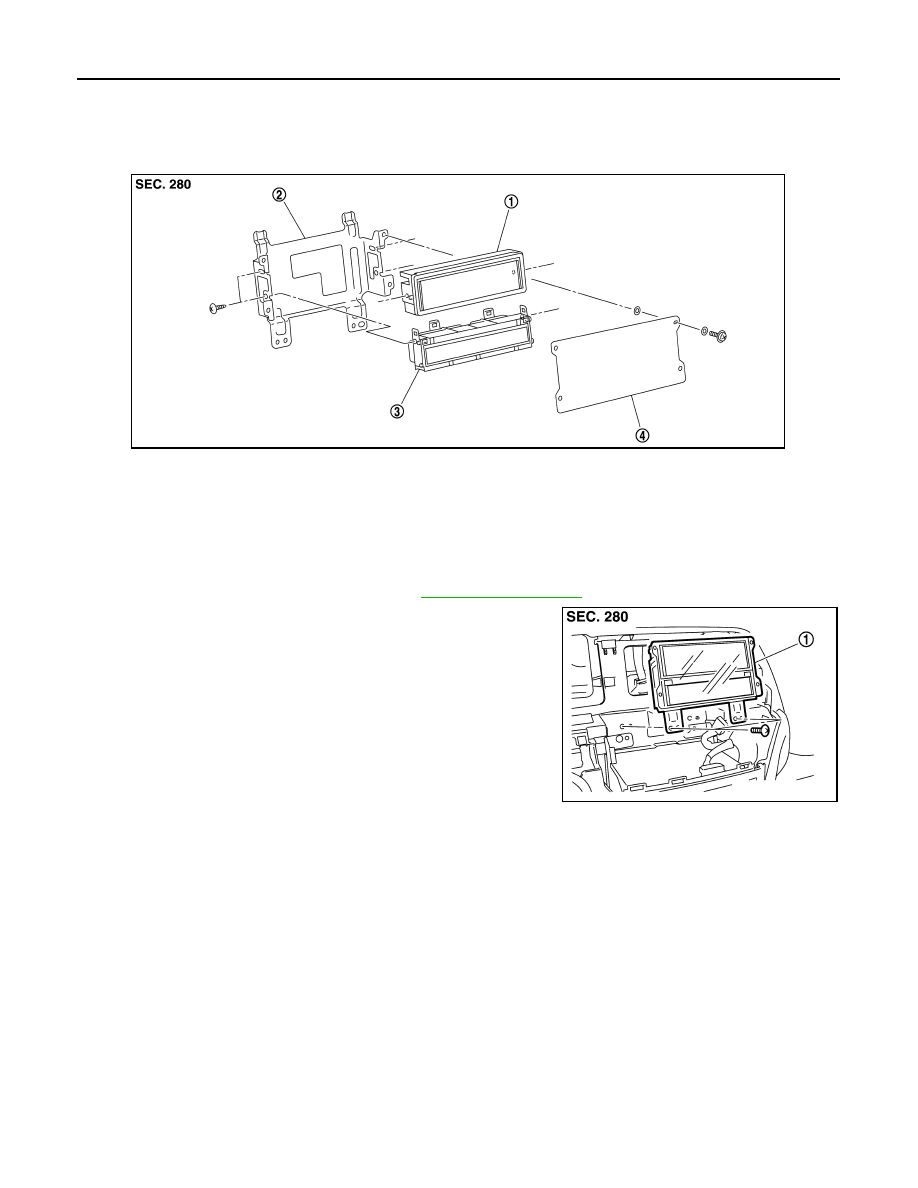

Exploded View

INFOID:0000000009721577

Removal and Installation

INFOID:0000000009721578

REMOVAL

1.

Remove center ventilator assembly. Refer to

IP-14, "Exploded View"

.

2.

Remove audio display unit and A/C display with bracket as a
single unit (1).

3.

Remove bracket screws, and then remove audio display unit.

INSTALLATION

Install in the reverse order of removal.

1.

Audio display unit

2.

Bracket

3.

A/C display

4.

Front cover

JPNIA0771ZZ

JPNIA0772ZZ

AV

FRONT DOOR SPEAKER

AV-41

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITHOUT COLOR DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT DOOR SPEAKER

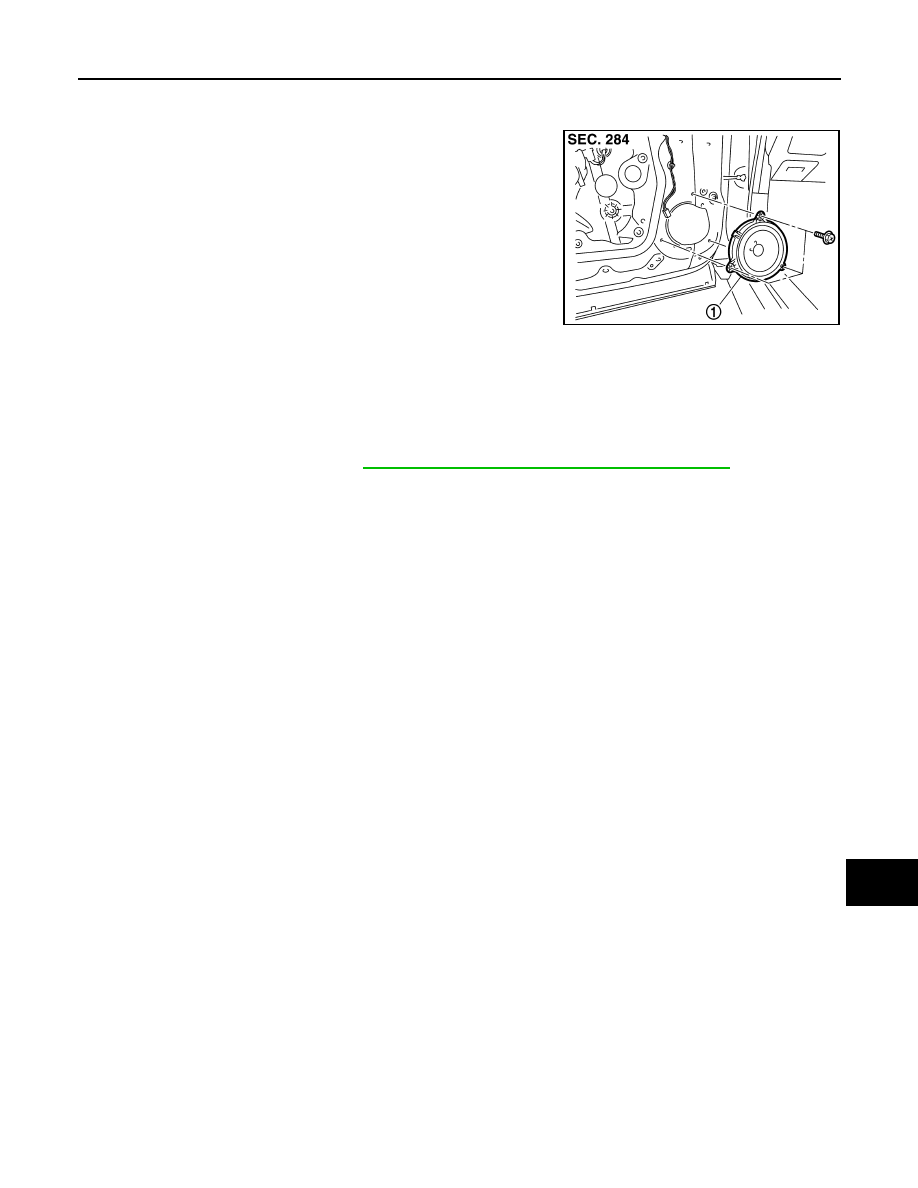

Exploded View

INFOID:0000000009721579

Removal and Installation

INFOID:0000000009721580

REMOVAL

1.

Remove front door finisher. Refer to

INT-13, "FRONT DOOR FINISHER : Exploded View"

.

2.

Remove front door speaker screws, then disconnect front door speaker connector and remove front door
speaker.

INSTALLATION

Install in the reverse order of removal.

JPNIA0773ZZ

1.

Front door speaker
