P0217 ENGINE OVER TEMPERATURE

EC-1021

< DTC/CIRCUIT DIAGNOSIS >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0217 ENGINE OVER TEMPERATURE

DTC Description

INFOID:0000000010935695

DTC DETECTION LOGIC

If the cooling fan or other component in the cooling system malfunctions, engine coolant temperature will rise.
When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is
indicated.

CAUTION:

When a malfunction is indicated, be sure to replace the coolant. Also, replace the engine oil.
1.

Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to
use coolant with the proper mixture ratio.

2.

After refilling coolant, run engine to ensure that no water-flow noise is emitted.

POSSIBLE CAUSE

• Cooling fan
• Radiator hose
• Radiator
• Radiator cap
• Water pump
• Thermostat
• Engine coolant bypass valve control solenoid valve
• Engine coolant temperature sensor

FAIL-SAFE

• Cooling FAN Activated
• Controlled shutters opening (if present)
• Warning overheating lamp activated
• Opening of the engine coolant thermostat (request of ineffective opening in that case) (if present)
• Prohibit stop/start system
• EGR control cut off (if present)
• A/C compressor cut-off (if present)

DTC CONFIRMATION PROCEDURE

1.

PERFORM COMPONENT FUNCTION CHECK-1

WARNING:

Never remove the reservoir tank cap when the engine is hot. Serious burns could be caused by high
pressure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.

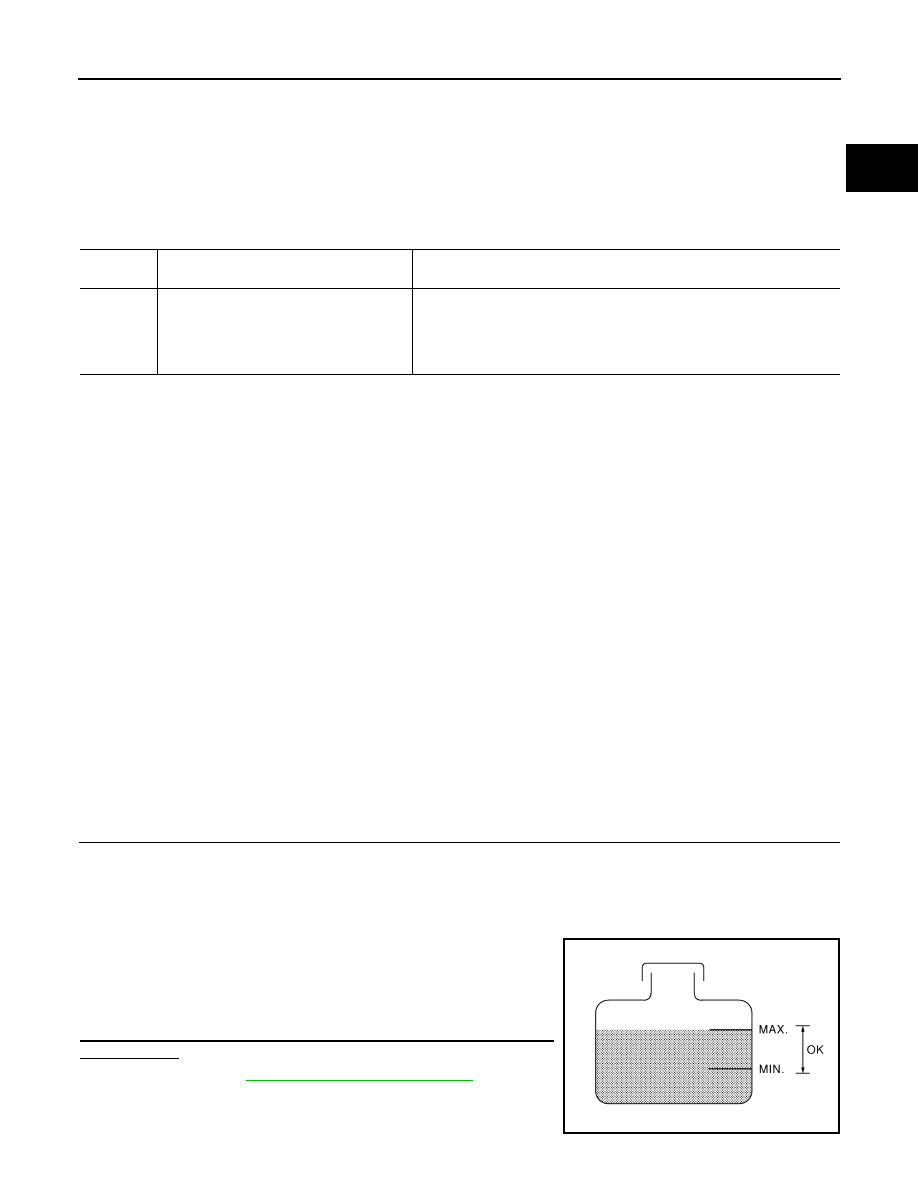

Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
NOTE:
Use component function check to check the overall function of the
cooling fan. During this check, a DTC might not be confirmed.
Is the coolant level in the reservoir tank and/or radiator below the
proper range?

YES

>> Proceed to

EC-1022, "Diagnosis Procedure"

.

NO

>> GO TO 2.

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

P0217

ENGINE OVERHEATING
(Engine coolant over temperature condi-
tion)
• 1.DEF: OPERATION TEMPERATURE

TOO HIGH

When engine coolant temperature is 110

°

C or more.

SEF621W

EC-1022

< DTC/CIRCUIT DIAGNOSIS >

[R9M]

P0217 ENGINE OVER TEMPERATURE

2.

PERFORM COMPONENT FUNCTION CHECK-2

Confirm whether customer filled the coolant or not.
Did customer fill the coolant?

YES

>> Proceed to

EC-1022, "Diagnosis Procedure"

.

NO

>> GO TO 3.

3.

PERFORM COMPONENT FUNCTION CHECK-3

1.

Start engine and let it idle.

2.

Turn air conditioner switch and blower fan switch ON.

3.

Make sure that cooling fan operates at low speed.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Proceed to

EC-1022, "Diagnosis Procedure"

.

4.

PERFORM COMPONENT FUNCTION CHECK-4

1.

Turn ignition switch OFF.

2.

Turn air conditioner switch and blower fan switch OFF.

3.

Disconnect engine coolant temperature sensor harness connector.

4.

Connect 150

Ω

 resistor to engine coolant temperature sensor harness connector.

5.

Restart engine and make sure that cooling fan operates at higher speed than low speed.

Is the inspection result normal?

YES-1 >> To check malfunction symptom before repair: Refer to

GI-44, "Intermittent Incident"

.

YES-2 >> Confirmation after repair: INSPECTION END
NO

>> Proceed to

EC-1022, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010935697

1.

CHECK COOLING FAN OPERATION

Check cooling fan operation.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace malfunctioning part.

2.

CHECK COOLING SYSTEM FOR LEAK-1

Check cooling system for leak.

Is leakage detected?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

CHECK COOLING SYSTEM FOR LEAK-2

Check the following for leak.
• Hose
• Radiator
• Radiator cap
• Water pump
• Reservoir tank

>> Repair or replace malfunctioning part.

4.

CHECK RADIATOR CAP

Check radiator cap.
Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace radiator cap.

5.

CHECK ENGINE COOLANT BYPASS VALVE

P0217 ENGINE OVER TEMPERATURE

EC-1023

< DTC/CIRCUIT DIAGNOSIS >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Check engine coolant bypass valve system. Refer to

EC-1200, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace error-detected parts.

6.

CHECK THERMOSTAT

Check thermostat.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Replace thermostat.

7.

CHECK ENGINE COOLANT TEMPERATURE SENSOR

Check engine coolant temperature sensor routing circuit. Refer to

EC-1008, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Perform overheating cause analysis. Refer to

CO-62, "Troubleshooting Chart"

.

NO

>> Replace engine coolant temperature sensor.

EC-1024

< DTC/CIRCUIT DIAGNOSIS >

[R9M]

P0225 APP SENSOR

P0225 APP SENSOR

DTC Description

INFOID:0000000010935698

DTC DETECTION LOGIC

POSSIBLE CAUSE

• Harness or connectors (Accelerator pedal position sensor circuit is open or shorted.)
• Accelerator pedal position sensor (APP sensor 1)

FAIL-SAFE

• Torque limitation
• After sales and factory routines inhibited
• Freeshift inhibited
• CCSL deactivation (considered as abnormal with dashboard message)

DTC CONFIRMATION PROCEDURE

1.

CHECK DTC PRIORITY

If DTC P0225 is displayed with DTC P0641, first perform the trouble diagnosis for DTC P0641.

Is applicable DTC detected?

YES

>> Perform diagnosis of applicable. Refer to

EC-908, "DTC Index"

.

NO

>> GO TO 2.

2.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 1 minute before conducting the next test.

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON and wait at least 1 second.

2.

Check DTC.

Is DTC detected?

YES

>> Proceed to

EC-1024, "Diagnosis Procedure"

.

NO-1

>> To check malfunction symptom before repair: Refer to

GI-44, "Intermittent Incident"

.

NO-2

>> Confirmation after repair: INSPECTION END

Diagnosis Procedure

INFOID:0000000010935699

1.

CHECK DTC PRIORITY

If DTC P0225 is displayed with DTC P0641, first perform the trouble diagnosis for DTC P0641.

Is applicable DTC detected?

YES

>> Perform diagnosis of applicable. Refer to

EC-908, "DTC Index"

.

NO

>> GO TO 2.

2.

CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT

Check the power supply of the accelerator pedal position sensor 1.

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

P0225

PEDAL POTENTIOMETER CIRCUIT
TRACK 1
(Throttle/pedal position sensor/switch “C”
circuit)
• 1.DEF: VOLTAGE TOO HIGH
• 2.DEF: VOLTAGE TOO LOW

• An excessively low voltage from the sensor is sent to ECM.
• An excessively high voltage from the sensor is sent to ECM.
