COMPONENT PARTS

EC-441

< SYSTEM DESCRIPTION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

*: Not applicable

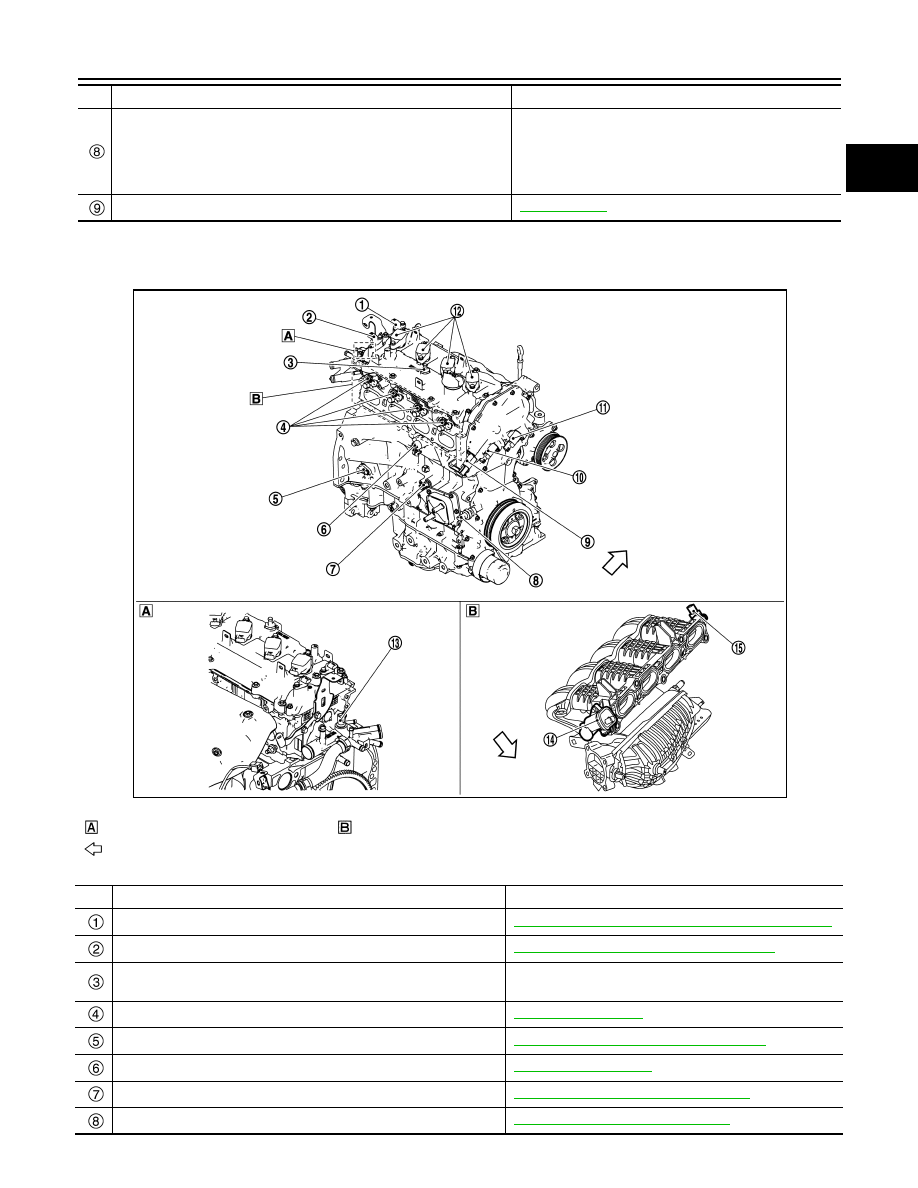

ENGINE COMPARTMENT

Transmission range switch

• The transmission range switch is installed to upper part

of transaxle case.

• ECM detects the selector lever position because the

continuity of the transmission range switch line (the
ON) exists.

ECM

EC-444, "ECM"

No.

Component

Function

JSBIA4548ZZ

Engine rear side

Intake side

: Vehicle front

No.

Component

Function

Exhaust valve timing control position sensor

EC-449, "Exhaust Valve Timing Control Position Sensor"

Camshaft position sensor (PHASE)

EC-448, "Camshaft Position Sensor (PHASE)"

PCV valve

The positive crankcase ventilation (PCV) valve is provided
to conduct crankcase blow-by gas to the intake manifold.

Fuel injector

EC-445, "Fuel Injector"

Crankshaft position sensor (POS)

EC-447, "Crankshaft Position Sensor (POS)"

Knock sensor

EC-451, "Knock Sensor"

Engine oil temperature sensor

EC-451, "Engine Oil Temperature Sensor"

Engine oil pressure sensor

EC-451, "Engine Oil Pressure Sensor"

EC-442

< SYSTEM DESCRIPTION >

[QR25DE]

COMPONENT PARTS

EXHAUST COMPARTMENT

BODY COMPARTMENT

Intake valve timing intermediate lock control solenoid valve

EC-448, "Intake Valve Timing Intermediate Lock Control
Solenoid Valve"

Intake valve timing control solenoid valve

EC-448, "Intake Valve Timing Control Solenoid Valve"

Exhaust valve timing control solenoid valve

EC-449, "Exhaust Valve Timing Control Solenoid Valve"

Ignition coil (with power transistor)

EC-445, "Ignition Coil With Power Transistor"

Engine coolant temperature sensor

EC-447, "Engine Coolant Temperature Sensor"

Intake manifold runner control valve actuator

EC-449, "Intake Manifold Runner Control Valve"

Intake manifold runner control valve position sensor

No.

Component

Function

To engine assembly

JPBIA5841ZZ

No.

Component

Function

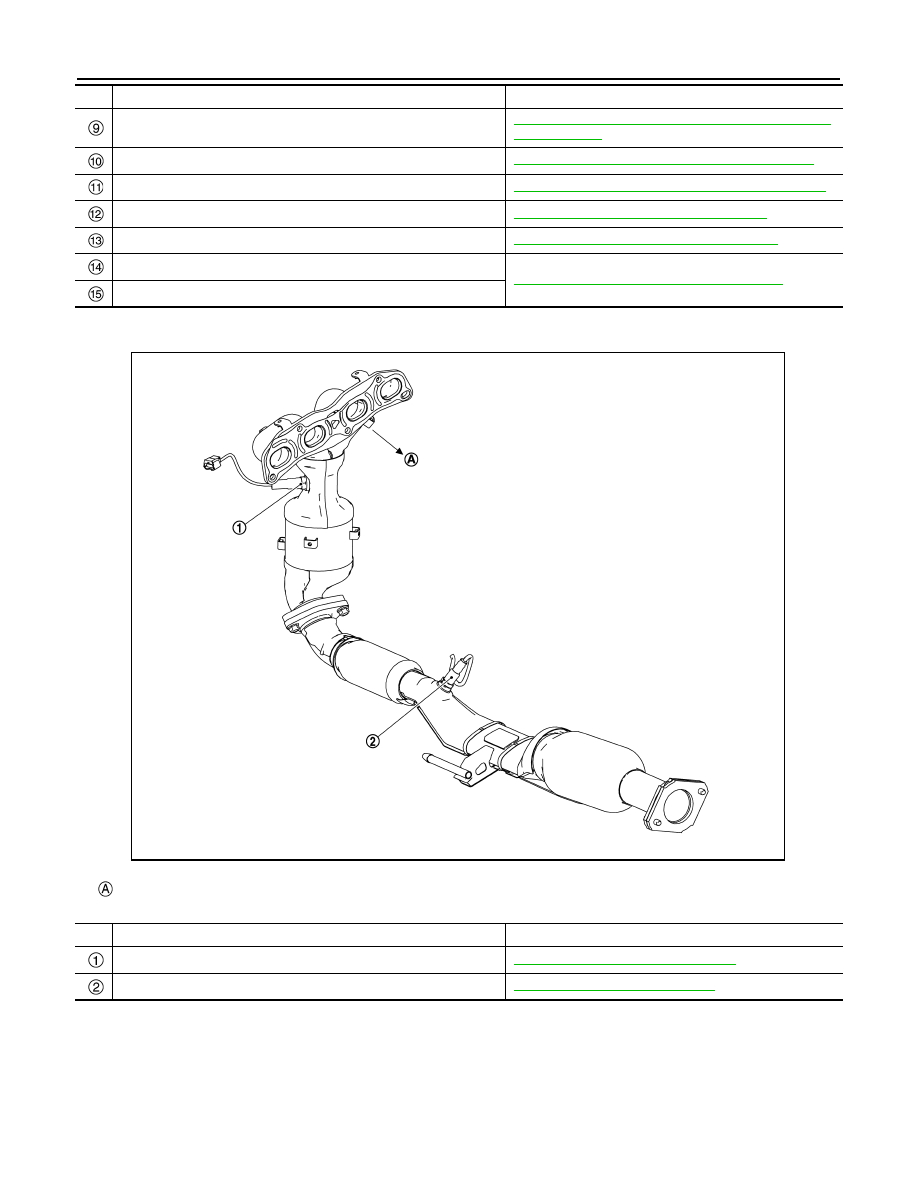

Air fuel ratio (A/F) sensor 1

EC-450, "Air Fuel Ratio (A/F) Sensor 1"

Heated oxygen sensor 2

EC-450, "Heated Oxygen Sensor 2"

COMPONENT PARTS

EC-443

< SYSTEM DESCRIPTION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

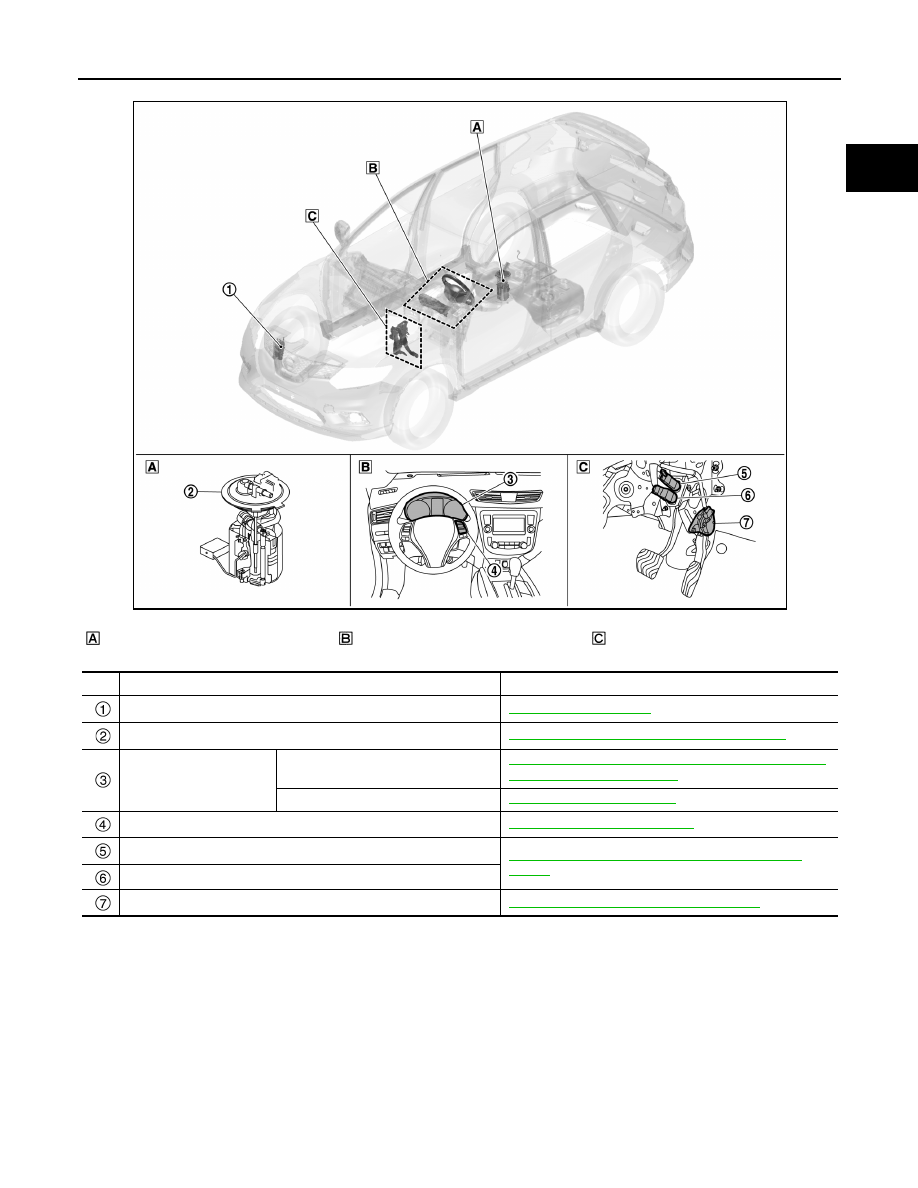

Inside fuel tank area

Instrument panel area

Periphery of pedals

No.

Component

Function

EVAP canister

EC-452, "EVAP Canister"

Fuel level sensor unit and fuel pump

EC-445, "Fuel Level Sensor Unit and Fuel Pump"

Combination meter

Malfunction indicator lamp (MIL)

MWI-50, "WARNING LAMPS/INDICATOR LAMPS : Mal-
function Indicator Lamp (MIL)"

Information display

EC-453, "Information Display"

ASCD steering switch

EC-453, "ASCD Steering Switch"

Stop lamp switch

EC-453, "Stop Lamp Switch & Brake Pedal Position
Switch"

Brake pedal position switch

Accelerator pedal position sensor

EC-444, "Accelerator Pedal Position Sensor"

JSBIA4971ZZ

EC-444

< SYSTEM DESCRIPTION >

[QR25DE]

COMPONENT PARTS

ECM

INFOID:0000000010986201

The ECM consists of a microcomputer and connectors for signal
input and output and for power supply. The ECM controls the engine.

Accelerator Pedal Position Sensor

INFOID:0000000010986202

The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.

Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The
ECM uses this signal for the engine operation such as fuel cut.

Electric Throttle Control Actuator

INFOID:0000000010986203

Electric throttle control actuator consists of throttle body, throttle valve, throttle control motor and throttle posi-
tion sensor.

JPBIA5843ZZ

JPBIA5844ZZ

PBIB1741E

JSBIA0270GB
