REAR DIFFERENTIAL GEAR OIL

DLN-227

< PERIODIC MAINTENANCE >

[REAR FINAL DRIVE: R145]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

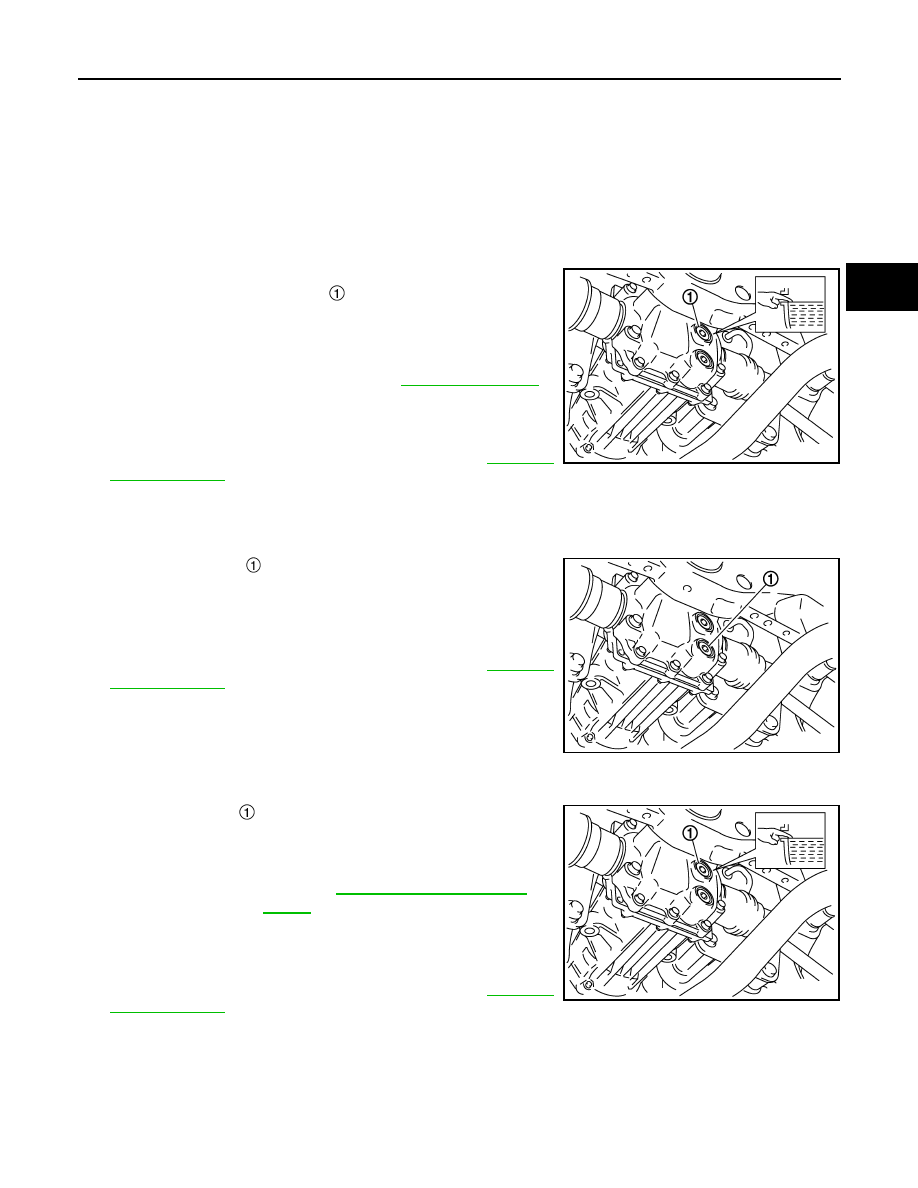

PERIODIC MAINTENANCE

REAR DIFFERENTIAL GEAR OIL

Inspection

INFOID:0000000011008670

OIL LEAKAGE

Make sure that oil is not leaking from final drive assembly or around it.

OIL LEVEL

1.

Check oil level from filler plug mounting hole as shown in the fig-
ure after removing filler plug

 and gasket from final drive

assembly.

CAUTION:

Turn the ignition switch OFF while checking oil level.
• Oil level should be level with bottom of filler plug mounting

hole. Add gear oil if necessary. Refer to

DLN-227, "Refilling"

.

2.

Set a gasket on filler plug and install it on final drive assembly.

CAUTION:

Never reuse gasket.

3.

Tighten filler plug to the specified torque. Refer to

DLN-246,

"Exploded View"

.

Draining

INFOID:0000000011008671

1.

Turn the ignition switch OFF.

2.

Remove drain plug

 and gasket.

3.

Drain gear oil.

4.

Set a gasket on drain plug and install it to final drive assembly.

CAUTION:

Never reuse gasket.

5.

Tighten drain plug to the specified torque. Refer to

DLN-246,

"Exploded View"

.

Refilling

INFOID:0000000011008672

1.

Remove filler plug

 and gasket. Then fill with new gear oil until

oil level reaches the specified level near filler plug mounting
hole.

2.

Set a gasket on filler plug, and install it to final drive assembly.

CAUTION:

Never reuse gasket.

3.

Tighten filler plug to the specified torque. Refer to

DLN-246,

"Exploded View"

.

JPDID0164ZZ

JPDID0163ZZ

Recommended
oil and capacity

: Refer to

MA-23, "Fluids and Lubri-

cants"

.

JPDID0164ZZ

DLN-228

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: R145]

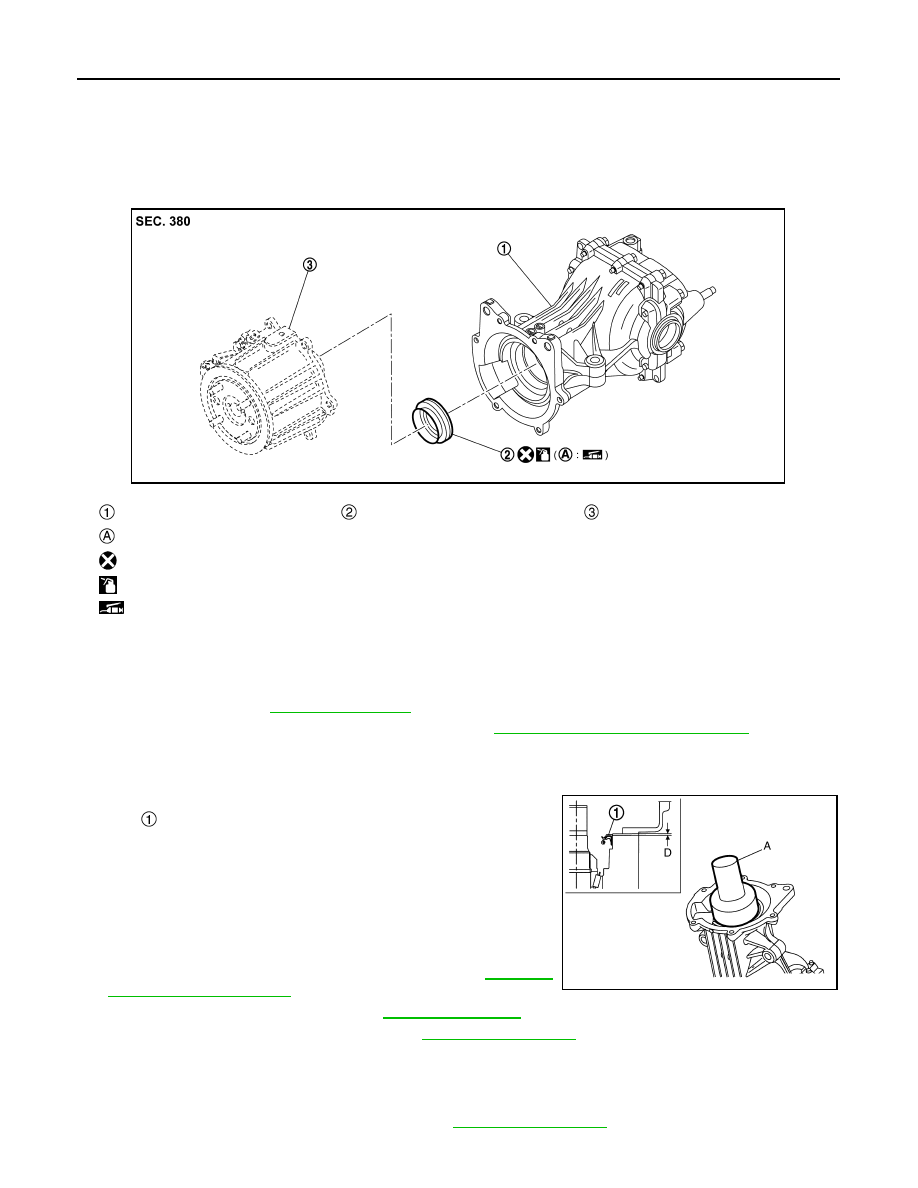

DRIVE PINION OIL SEAL

REMOVAL AND INSTALLATION

DRIVE PINION OIL SEAL

Exploded View

INFOID:0000000011008611

Removal and Installation

INFOID:0000000011008612

REMOVAL

1.

Drain gear oil. Refer to

DLN-227, "Draining"

.

2.

Remove electric controlled coupling assembly. Refer to

DLN-231, "Removal and Installation"

.

3.

Remove drive pinion oil seal using oil seal remover (commercial service tool).

INSTALLATION

1.

Using the drift (A) (SST: ST35271000), install drive pinion oil
seal

 within the dimension (D) shown as follows.

CAUTION:

• Never reuse oil seal.
• When installing, never incline oil seal.
• Apply multi-purpose grease onto oil seal lips, and gear oil

onto the circumference of oil seal.

2.

Install electric controlled coupling assembly. Refer to

DLN-231,

"Removal and Installation"

.

3.

Refill gear oil to the final drive. Refer to

DLN-227, "Refilling"

.

4.

Perform inspection after installation. Refer to

DLN-228, "Inspection"

.

Inspection

INFOID:0000000011008613

INSPECTION AFTER INSTALLATION

Check oil level and final drive for oil leakage. Refer to

DLN-227, "Inspection"

.

Rear final drive assembly

Drive pinion oil seal

Electric controlled coupling assembly

Oil seal lip

: Always replace after every disassembly.

: Apply gear oil.

: Apply multi-purpose grease.

JSDIA6475ZZ

D

: 0.8 – 1.2 mm (0.031 – 0.047 in)

JSDIA5262ZZ

SIDE OIL SEAL

DLN-229

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: R145]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

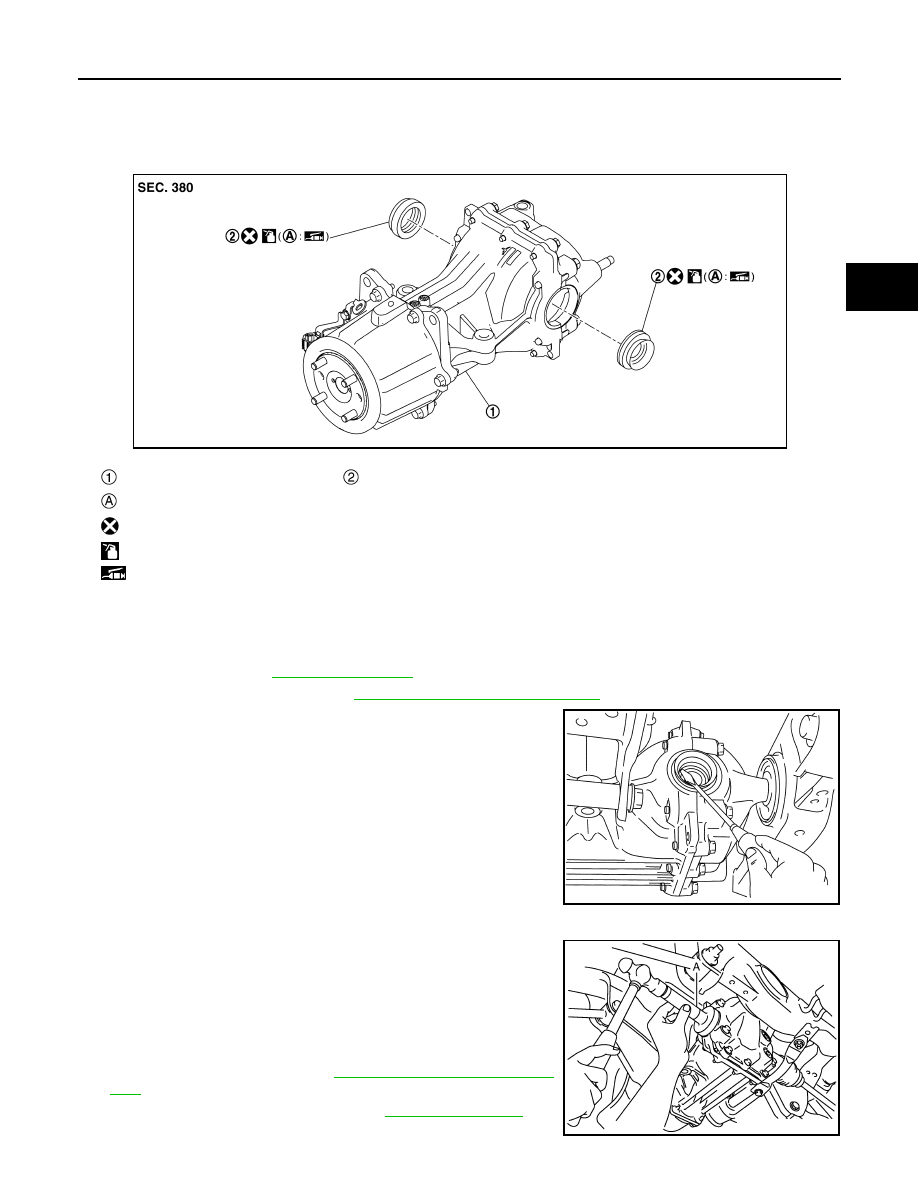

SIDE OIL SEAL

Exploded View

INFOID:0000000011008614

Removal and Installation

INFOID:0000000011008615

REMOVAL

1.

Drain gear oil. Refer to

DLN-227, "Draining"

.

2.

Remove rear drive shafts. Refer to

RAX-22, "Removal and Installation"

.

3.

Remove side oil seal, using oil seal remover (commercial ser-
vice tool).

CAUTION:

Never damage gear carrier and rear cover.

INSTALLATION

1.

Using the drift (A) (SST: KV38100200), drive side oil seal until it
becomes flush with the gear carrier end.

CAUTION:

• Never reuse oil seal.
• When installing, never incline oil seal.
• Apply multi-purpose grease onto oil seal lip, and gear oil

onto the circumference of oil seal.

2.

Install rear drive shafts. Refer to

RAX-22, "Removal and Installa-

tion"

.

3.

Refill gear oil to the final drive. Refer to

DLN-227, "Refilling"

.

Rear final drive assembly

Side oil seal

Oil seal lip

: Always replace after every disassembly.

: Apply gear oil.

: Apply multi-purpose grease.

JSDIA5269ZZ

PDIA0431E

JSDIA0201ZZ

DLN-230

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: R145]

SIDE OIL SEAL

4.

Perform inspection after installation. Refer to

DLN-230, "Inspection"

.

Inspection

INFOID:0000000011008616

INSPECTION AFTER INSTALLATION

Check oil level and final drive for oil leakage. Refer to

DLN-227, "Inspection"

.
