4WD HIGH TEMP IS DISPLAYED ON INFORMATION DISPLAY

DLN-175

< SYMPTOM DIAGNOSIS >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

4WD HIGH TEMP IS DISPLAYED ON INFORMATION DISPLAY

Description

INFOID:0000000011004036

While driving, 4WD warning (4WD High Temp. Stop vehicle) is displayed on information display (combination
meter).
• This symptom protects drivetrain parts when a heavy load is applied to the electric controlled coupling and

multiple disc clutch temperature increases. Also, optional distribution of torque sometimes becomes rigid
before 4WD warning (4WD High Temp. Stop vehicle) is displayed. Both cases are not malfunction. Refer to

DLN-134, "Protection Function"

.

• When this symptom occurs, stop vehicle and allow it to idle for some times. Displays will stop and system

will be restored.

DLN-176

< SYMPTOM DIAGNOSIS >

[TRANSFER: TY30A]

TIRE SIZE INCORRECT IS DISPLAYED ON INFORMATION DISPLAY

TIRE SIZE INCORRECT IS DISPLAYED ON INFORMATION DISPLAY

Description

INFOID:0000000011004037

While driving, 4WD warning (Tire Size Incorrect: See Owner’s Manual) is displayed on information display
(combination meter).

Diagnosis Procedure

INFOID:0000000011004038

1.

CHECK TIRE

Check the following.
• Tire pressure
• Wear condition
• Front and rear tire size (There is no difference between front and rear tires.)
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace error-detected parts. And then, drive the vehicle at speed of 20 km/h (12 MPH)

or more for 5 seconds or more. Improper size information is initialized accordingly.

2.

CHECK INPUT SIGNAL OF TIRE DIAMETER

With CONSULT

1.

Start the engine.

2.

Drive at 20 km/h (12 MPH) or more for approximately 4 minutes continually.

3.

Check “DIS-TIRE MONI” of CONSULT “DATA MONITOR” for “ALL MODE AWD/4WD”.

Does the item on “DATA MONITOR” indicate “0 - 4 mm”?

YES

>> INSPECTION END

NO

>> GO TO 3.

3.

TERMINAL INSPECTION

Check 4WD control unit harness connector for disconnection.

Is the inspection result normal?

YES

>> Replace 4WD control unit. Refer to

DLN-179, "Removal and Installation"

.

NO

>> Repair or replace the error-detected parts.

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

DLN-177

< SYMPTOM DIAGNOSIS >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000011004039

Use the chart below to find the cause of the symptom. The numbers indicate the order of the inspection. If nec-
essary, repair or replace these parts.

Reference

DLN-178, "

In

sp

ecti

on

"

DLN-205, "

Ex

pl

od

ed

 V

iew

"

DLN-184, "

Ex

pl

od

ed

 V

iew

"

DLN-184, "

Ex

pl

od

ed

 V

iew

"

DLN-190, "

In

sp

ecti

on

"

,

DLN-204, "

In

sp

ec

ti

o

n

"

DLN-190, "

In

sp

ecti

on

"

,

DLN-204, "

In

sp

ec

ti

o

n

"

SUSPECTED PARTS
(Possible cause)

T

R

ANSFER OIL (Level

low)

T

R

ANSFER OIL (W

rong)

T

R

ANSFER OIL (Level

too high)

LIQUID GASKE

T (Damaged)

O-RING (W

o

rn o

r da

m

age

d)

OIL

 SEA

L (W

o

rn o

r da

m

age

d)

GEAR

 (W

orn

 o

r

da

ma

ge

d)

B

EARING (W

orn

 or

da

ma

ge

d)

Symptom

Noise

1

2

3

3

3

Transfer oil leakage

3

1

2

2

2

DLN-178

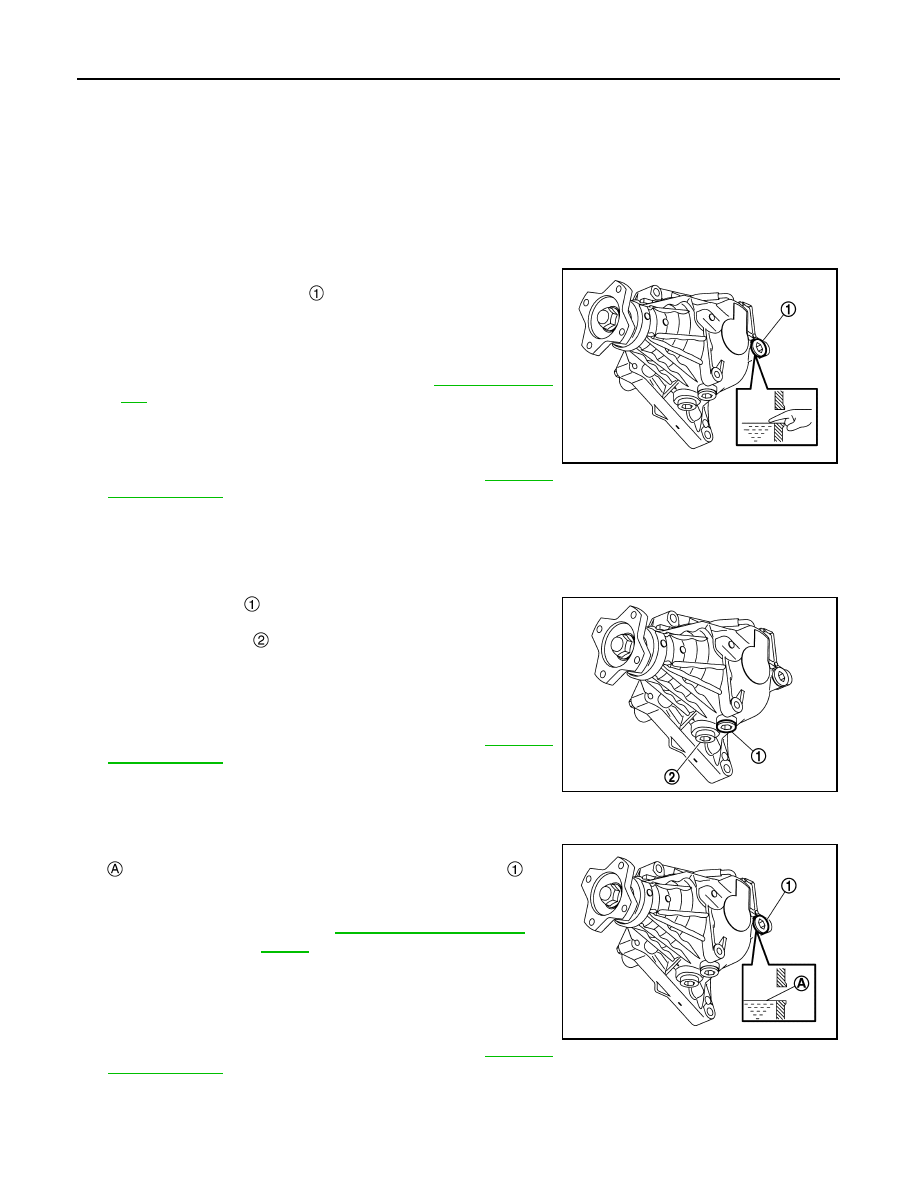

< PERIODIC MAINTENANCE >

[TRANSFER: TY30A]

TRANSFER OIL

PERIODIC MAINTENANCE

TRANSFER OIL

Inspection

INFOID:0000000011004040

OIL LEAKAGE

Check transfer surrounding area (oil seal, drain plug, and filler plug etc.) for oil leakage.

OIL LEVEL

1.

Check oil level from filler plug mounting hole as shown in the fig-
ure, after removing filler plug

 and gasket from transfer assem-

bly.

CAUTION:

Turn the ignition switch OFF while checking oil level.
• Oil level should be level with bottom of filler plug mounting

hole. Add transfer oil if necessary. Refer to

DLN-178, "Refill-

ing"

.

2.

Set a gasket on filler plug and install it on transfer assembly.

CAUTION:

Never reuse gasket.

3.

Tighten filler plug to the specified torque. Refer to

DLN-205,

"Exploded View"

.

Draining

INFOID:0000000011004041

1.

Run the vehicle to warm up the transfer unit sufficiently.

2.

Stop the vehicle and turn the ignition switch OFF.

3.

Remove drain plug

 and gasket.

CAUTION:

Never remove plug

 for tooth contact test.

4.

Drain transfer oil.

5.

Set a gasket on drain plug and install it to transfer assembly.

CAUTION:

Never reuse gasket.

6.

Tighten drain plug to the specified torque. Refer to

DLN-205,

"Exploded View"

.

Refilling

INFOID:0000000011004042

1.

Fill with new transfer oil until oil level reaches the specified level

 near filler plug mounting hole, after removing filler plug

 and

gasket from transfer assembly.

2.

Leave the vehicle for 3 minutes, and check the oil level again.

3.

Set a gasket on filler plug, and install it to transfer assembly.

CAUTION:

Never reuse gasket.

4.

Tighten filler plug to the specified torque. Refer to

DLN-205,

"Exploded View"

.

JSDIA6402ZZ

JSDIA6403ZZ

Recommended
oil and capacity

: Refer to

MA-23, "Fluids and Lubri-

cants"

.

JSDIA6429ZZ
