PREPARATION

DLN-115

< PREPARATION >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

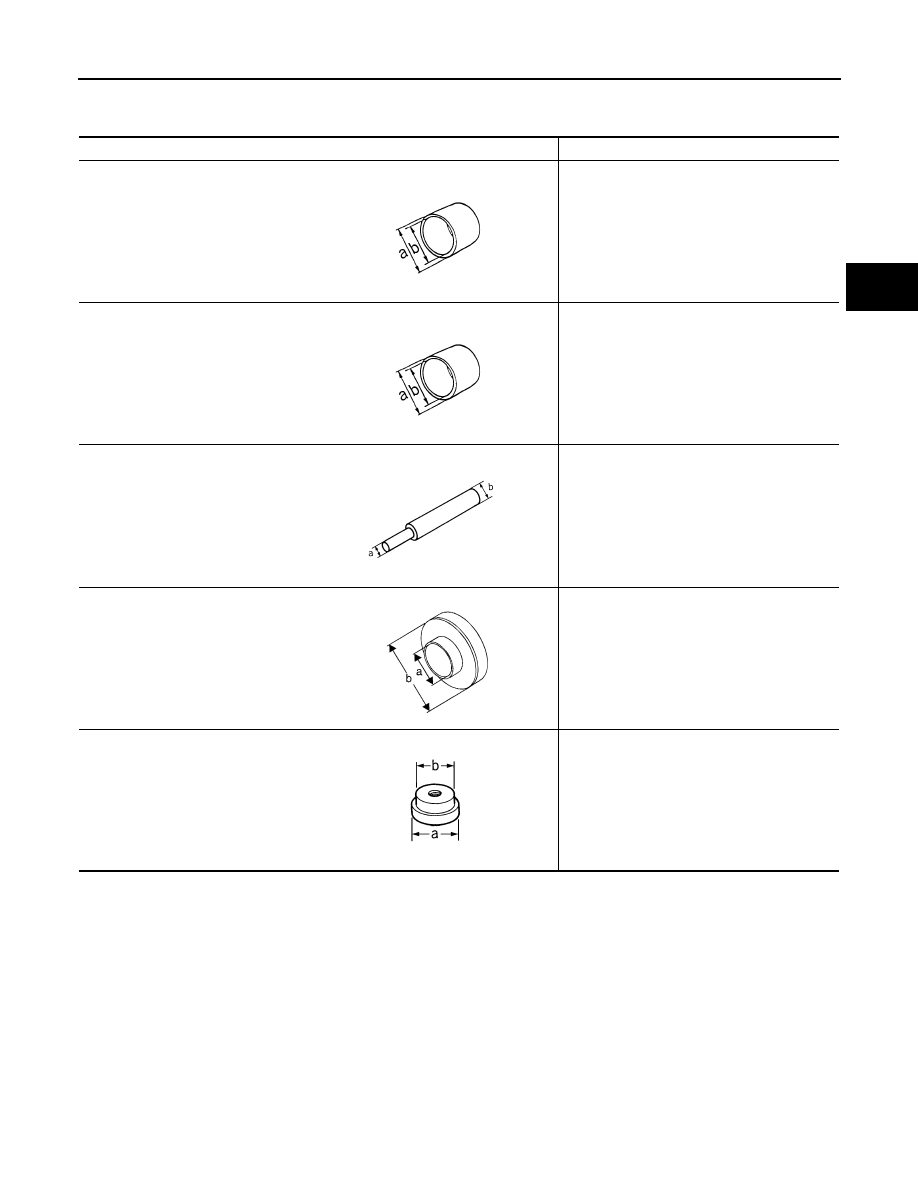

Commercial Service Tool

INFOID:0000000011003966

Tool name

Description

Drift
a: 63 mm (2.48 in) dia.
b: 58 mm (2.28 in) dia.

Installing adapter case oil seal (inner)

Drift
a: 90 mm (3.54 in) dia.
b: 88 mm (3.46 in) dia.

Installing adapter case oil seal (outer)

Drift
a: 12 mm (0.47 in) dia.
b: 18 mm (0.71 in) dia.

Removing inner race of ring gear shaft bear-
ing (transfer case side)

Drift
a: 49 mm (1.93 in) dia.
b: 67 mm (2.64 in) dia.

Removing inner race of ring gear shaft bear-
ing (adapter case side)

Drift
a: 80 mm (3.15 in) dia.
b: 50 mm (1.97 in) dia.

Installing outer race of ring gear shaft bearing
(adapter case side)

ZZA1003D

ZZA1003D

ZZA1178D

NT660

ZZA1000D

DLN-116

< PREPARATION >

[TRANSFER: TY30A]

PREPARATION

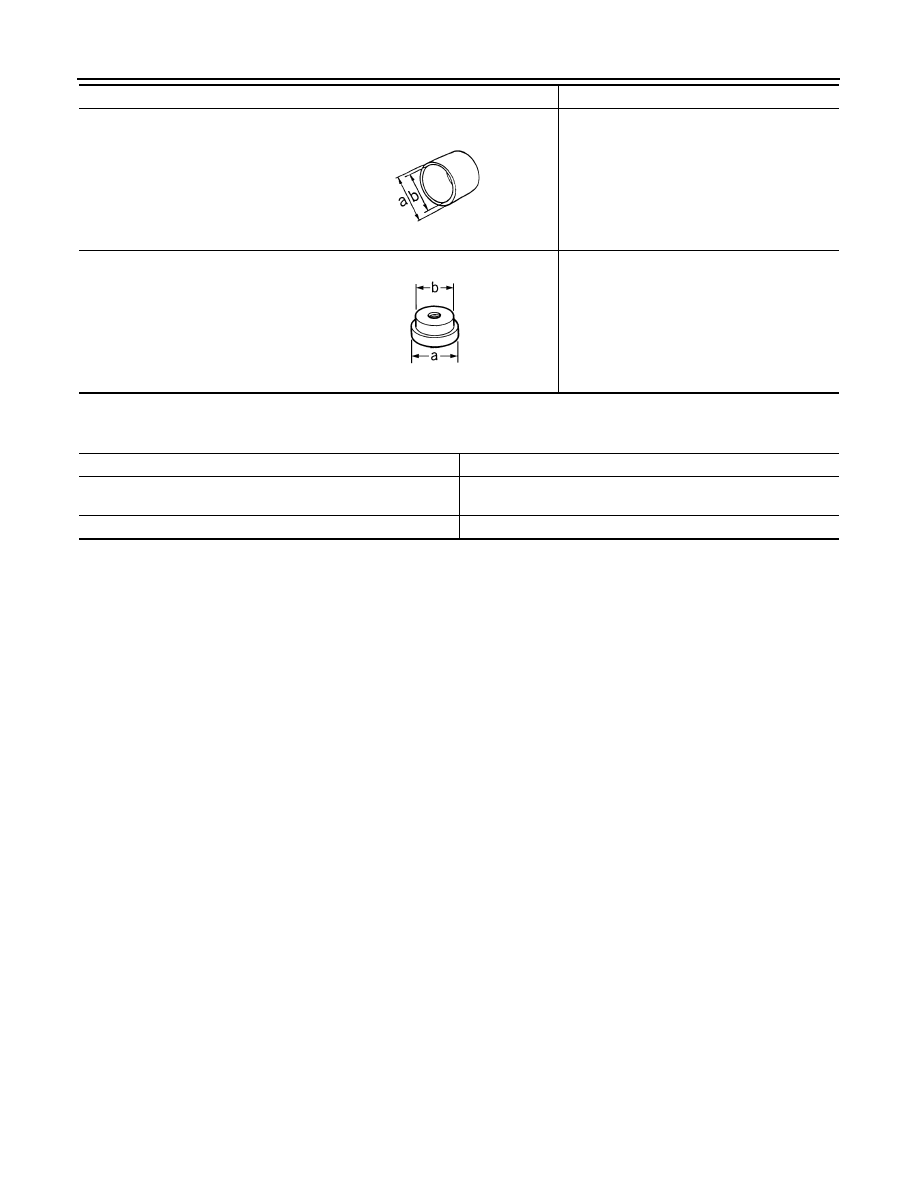

Lubricant or/and Sealant

INFOID:0000000011003967

Drift
a: 57 mm (2.24 in) dia.
b: 47 mm (1.85 in) dia.

Installing inner race of ring gear shaft bearing
(adapter case side)

Drift
a: 61 mm (2.40 in) dia.
b: 48 mm (1.89 in) dia.

Installing outer race of drive pinion bearing
(front side)

Tool name

Description

ZZA1003D

ZZA1000D

Item

Use

Genuine Liquid Gasket
(Three Bond 1217 or equivalent)

Application to threads of plug

Red lead or equivalent

Checking tooth contact

COMPONENT PARTS

DLN-117

< SYSTEM DESCRIPTION >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

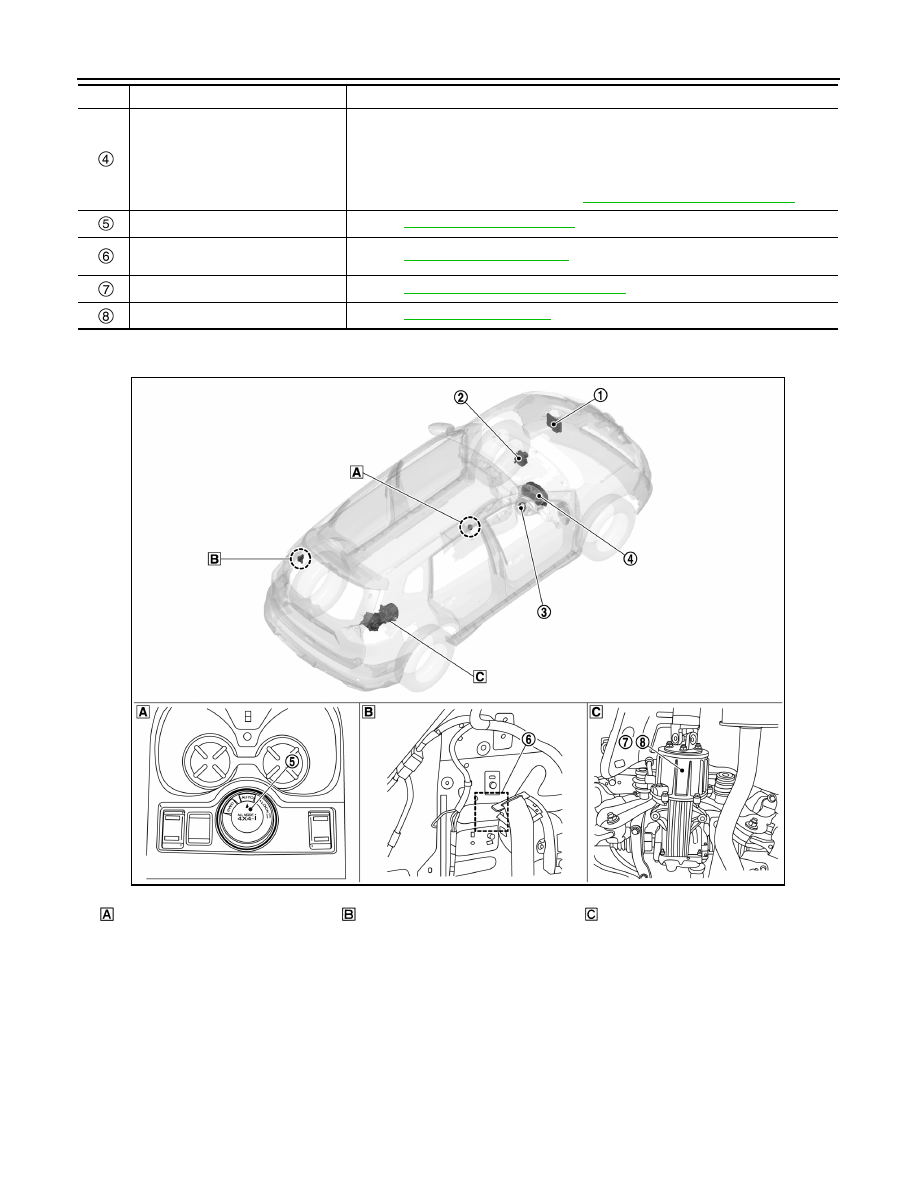

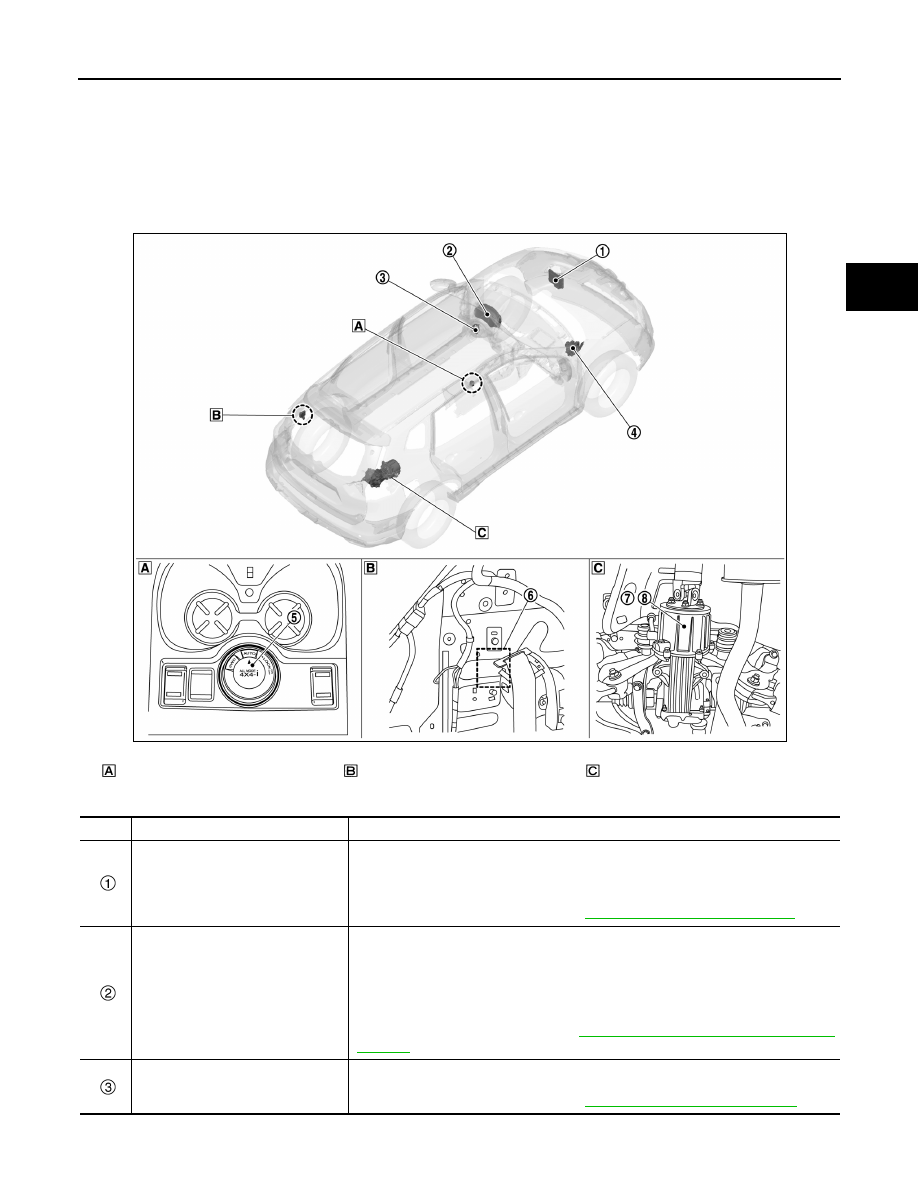

Component Parts Location

INFOID:0000000011003968

LHD MODELS

Console switch panel

Rear wheel house outer panel in lug-
gage room of left side

Rear final drive

No.

Component

Function

ECM

Mainly transmits the following signals to 4WD control unit via CAN communication.
• Accelerator pedal position signal
• Engine speed signal
• Engine status signal
For detailed installation location, refer to

EC-812, "Component Parts Location"

.

Combination meter

Mainly transmits the following signals to 4WD control unit via CAN communication.
• Parking brake switch signal
Mainly receives the following signals from 4WD control unit via CAN communication.
• 4WD warning lamp signal
• 4WD mode indicator lamp signal
• Torque distribution indicator signal
For detailed installation location, refer to

MWI-7, "METER SYSTEM : Component Parts

Location"

.

Steering angle sensor

Mainly transmits the following signals to 4WD control unit via CAN communication.
• Steering angle sensor signal
For detailed installation location, refer to

BRC-14, "Component Parts Location"

.

JSDIA6448ZZ

DLN-118

< SYSTEM DESCRIPTION >

[TRANSFER: TY30A]

COMPONENT PARTS

RHD MODELS

ABS actuator and electric unit (con-
trol unit)

Mainly transmits the following signals to 4WD control unit via CAN communication.
• Each wheel speed signal
• Decel G sensor signal
• Side G sensor signal
• Yaw rate sensor signal
For detailed installation location, refer to

BRC-14, "Component Parts Location"

.

4WD mode switch

Refer to

DLN-120, "4WD Mode Switch"

.

4WD control unit
• 4WD actuator relay

Refer to

DLN-119, "4WD Control Unit"

.

Electric controlled coupling

Refer to

DLN-119, "Electric Controlled Coupling"

.

4WD solenoid

Refer to

DLN-119, "4WD Solenoid"

.

No.

Component

Function

Console switch panel

Rear wheel house outer panel in lug-
gage room of left side

Rear final drive

JSDIA6451ZZ
