Nissan X-Trail 32. Manual - part 600

FRONT FENDER

DLK-741

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FRONT FENDER

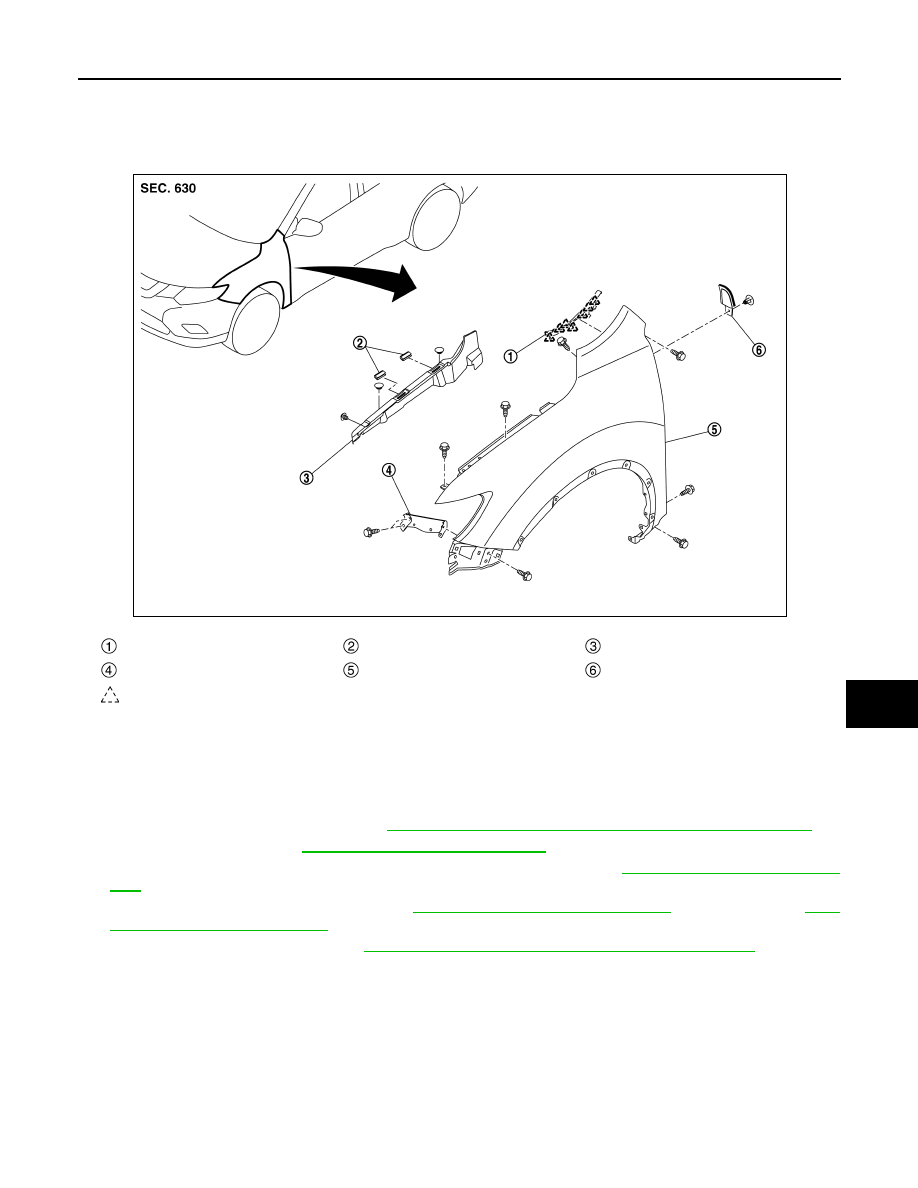

Exploded View

INFOID:0000000010728549

FRONT FENDER

FRONT FENDER : Removal and Installation

INFOID:0000000010728550

REMOVAL

1.

Remove front fender protector. Refer to

EXT-35, "FENDER PROTECTOR : Removal and Installation"

.

2.

Remove sill cover. Refer to

EXT-62, "Removal and Installation"

.

3.

Remove front bumper fascia assembly and bumper side bracket. Refer to

EXT-15, "Removal and Installa-

tion"

.

4.

Remove front combination lamp. Refer to

EXL-191, "Removal and Installation"

 (LED headlamp),

EXL-

376, "Removal and Installation"

 (halogen headlamp).

5.

Remove front fender cover. Refer to

DLK-742, "FENDER COVER : Removal and Installation"

.

Front fender cover

Front fender spacer

Front hood seal

Front fender bracket

Front fender assembly

Front fender seal

: Pawl

JMKIB3665ZZ

DLK-742

< REMOVAL AND INSTALLATION >

[TYPE 3]

FRONT FENDER

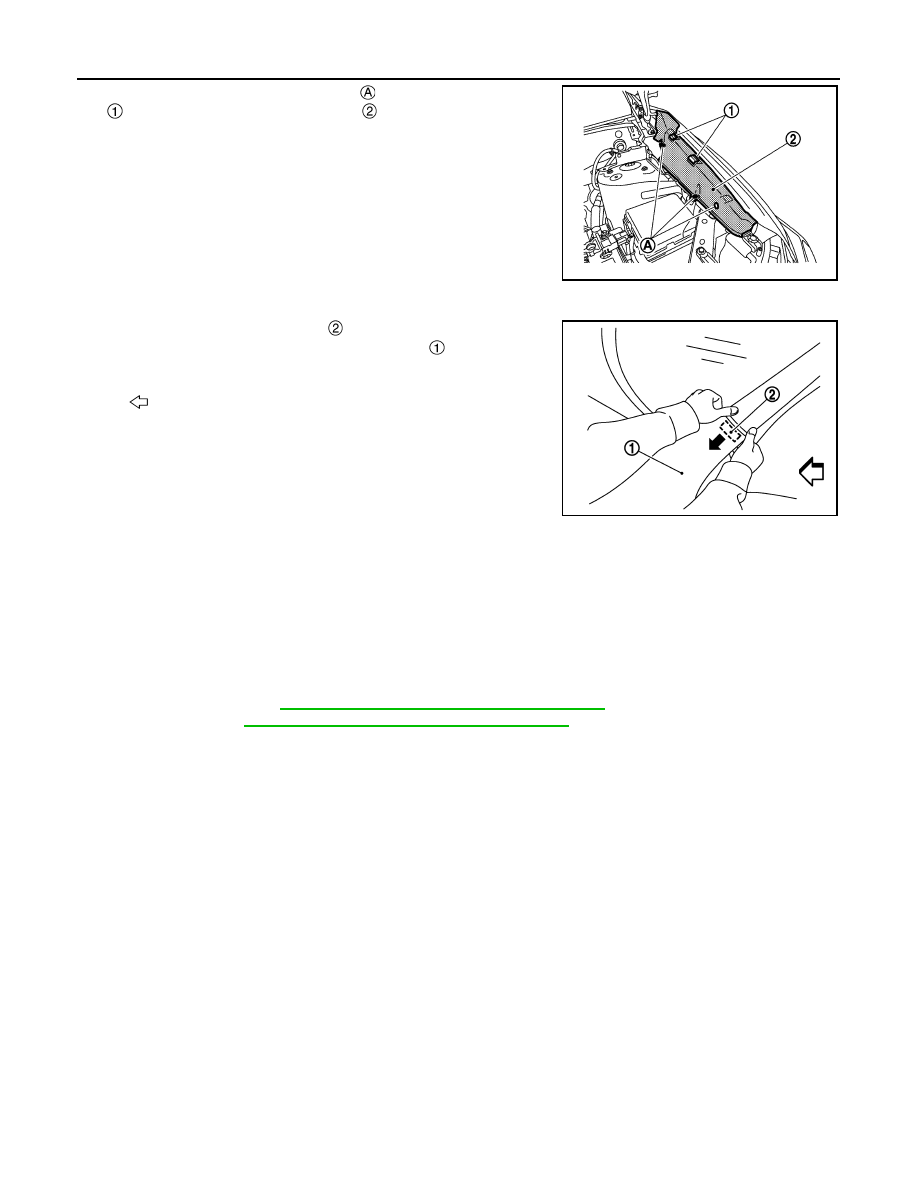

6.

Remove front hood seal fixing clips

 and front fender spacers

, and then remove front hood seal

.

7.

Remove mounting bolts of front fender assembly.

8.

Remove front fender stiffener

 from the vehicle body while

carefully pulling upper portion of front fender

 toward vehicle

outside.

9.

Remove front fender assembly.

CAUTION:

A viscous urethane foam is installed on the back surface of front fender. When removing the front
fender, be careful to not deform the front fender while performing the procedure and removing the
viscous urethane foam a little at a time.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• After installation, adjust the following part.
- Hood assembly: Refer to

DLK-733, "HOOD ASSEMBLY : Adjustment"

.

- Front door: Refer to

DLK-746, "DOOR ASSEMBLY : Adjustment"

.

• After installation, apply the touch-up paint (the body color) onto the head of front fender mounting

bolts.

FENDER COVER

FENDER COVER : Removal and Installation

INFOID:0000000010728551

REMOVAL

1.

Fully open hood assembly.

JMKIB3666ZZ

: Vehicle front

JMKIA5633ZZ

FRONT FENDER

DLK-743

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2.

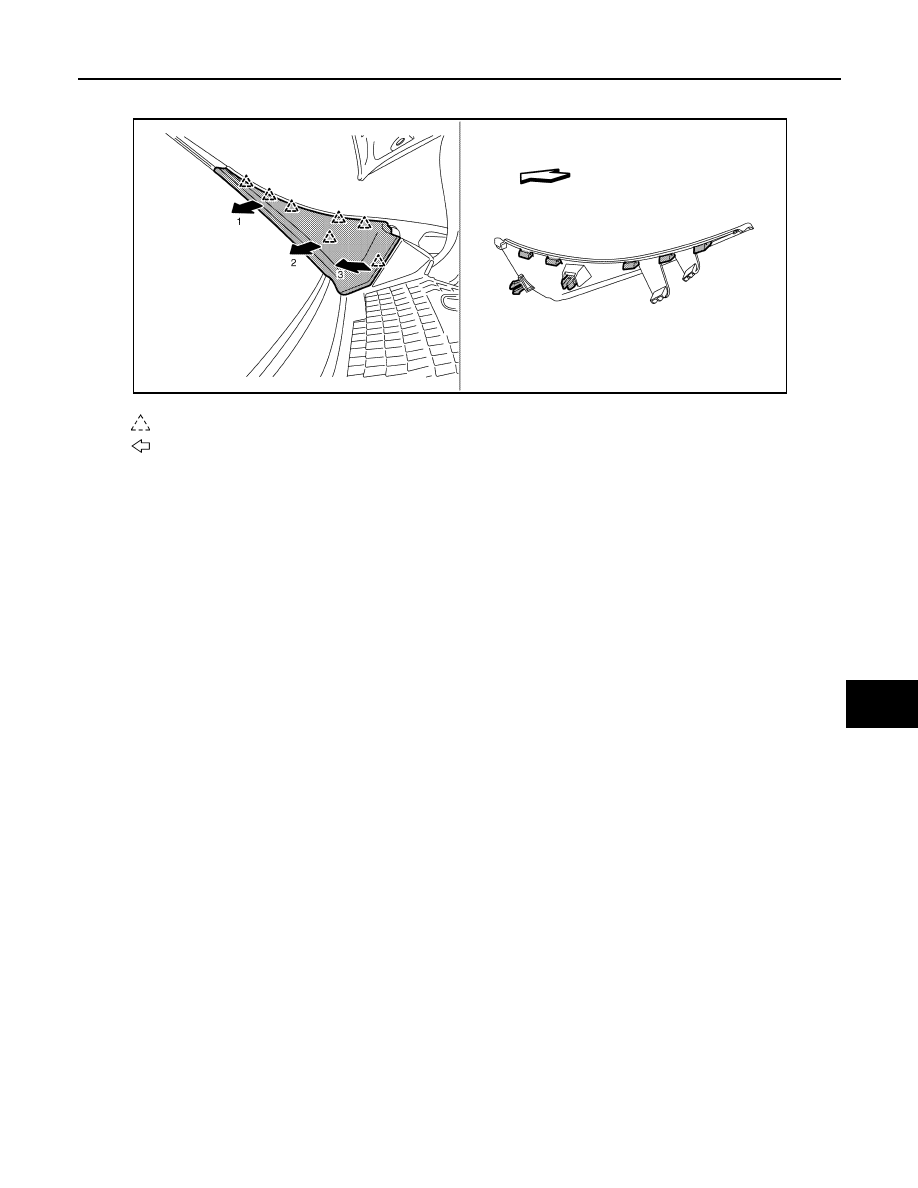

Disengage fixing pawls according to the numerical order 1

→

3 indicated by arrows as shown in the figure,

and then remove front fender cover.

CAUTION:

When performing the procedure after removing fender cover, protect the lower of windshield glass
with urethane etc.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Install so that there is no clearance between windshield and cowl top cover.

: Pawl

: Vehicle front

JMKIB3008ZZ

DLK-744

< REMOVAL AND INSTALLATION >

[TYPE 3]

FRONT DOOR

FRONT DOOR

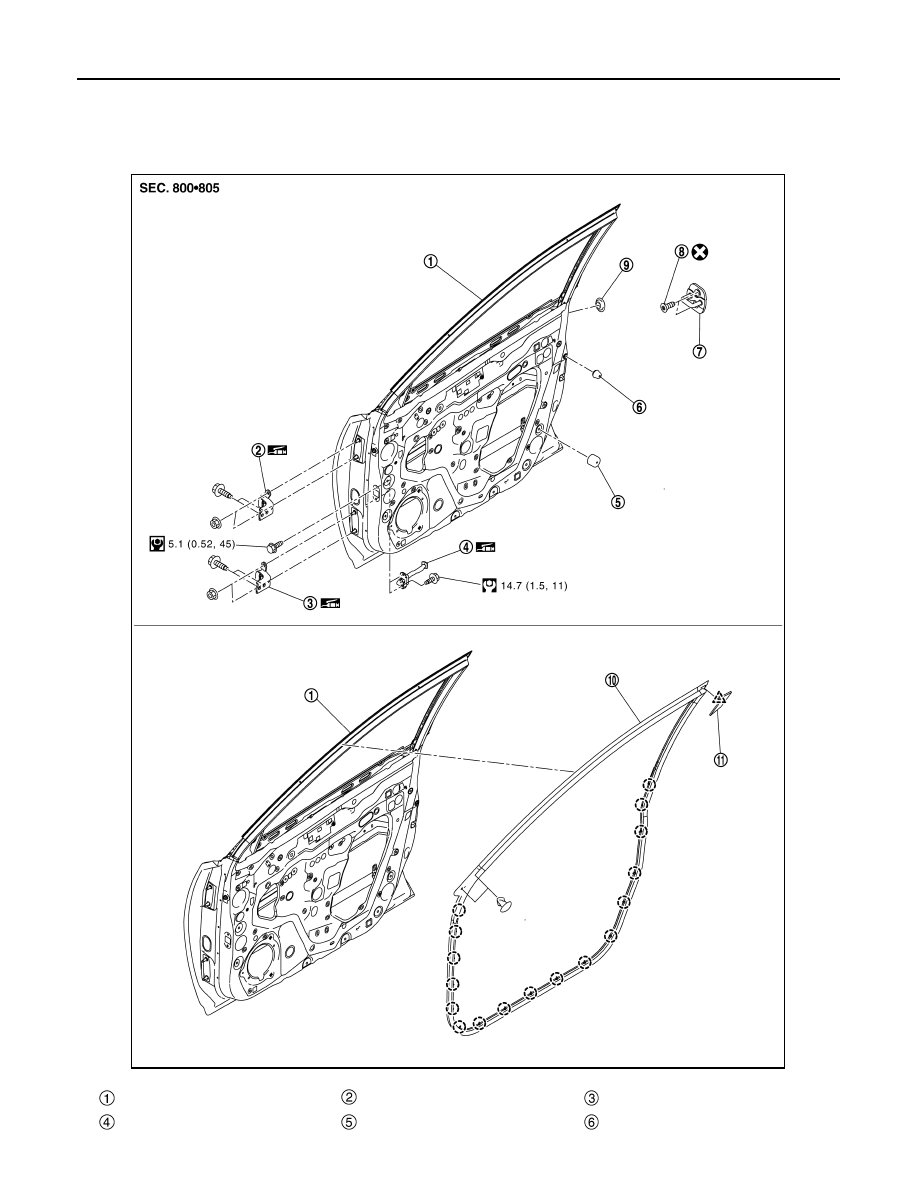

Exploded View

INFOID:0000000010728552

Front door panel

Door hinge (upper)

Door hinge (lower)

Door check link

Bumper rubber

Bumper rubber

JMKIB3163GB
