Nissan X-Trail 32. Manual - part 562

FRONT DOOR

DLK-589

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

4.

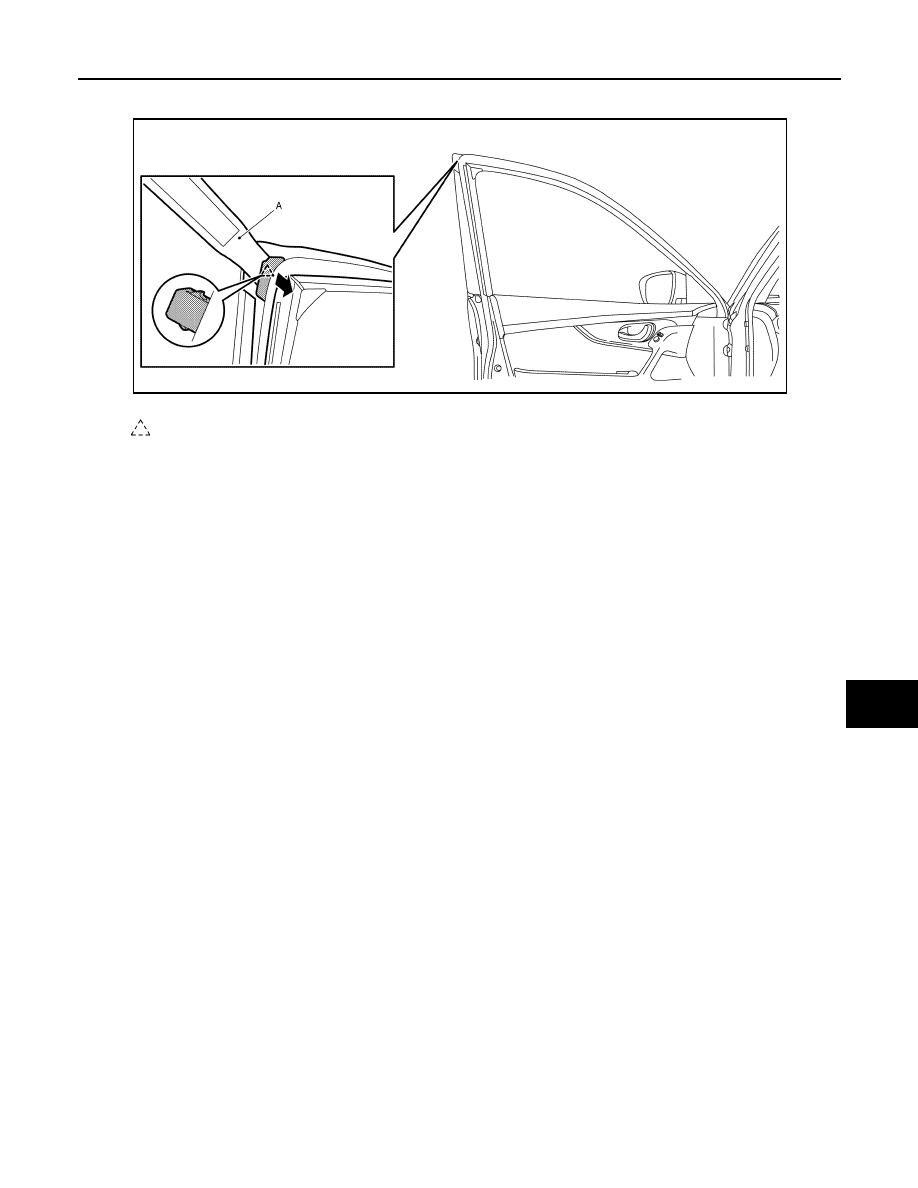

Disengage fixing pawl on rear upper end of front door weather-strip using a remover tool (A), and then
remove weather-strip clip.

5.

Remove door check link mounting bolt of vehicle body side.

6.

Remove front door weather

−

strip from front door panel.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMKIB3508ZZ

DLK-590

< REMOVAL AND INSTALLATION >

[TYPE 2]

REAR DOOR

REAR DOOR

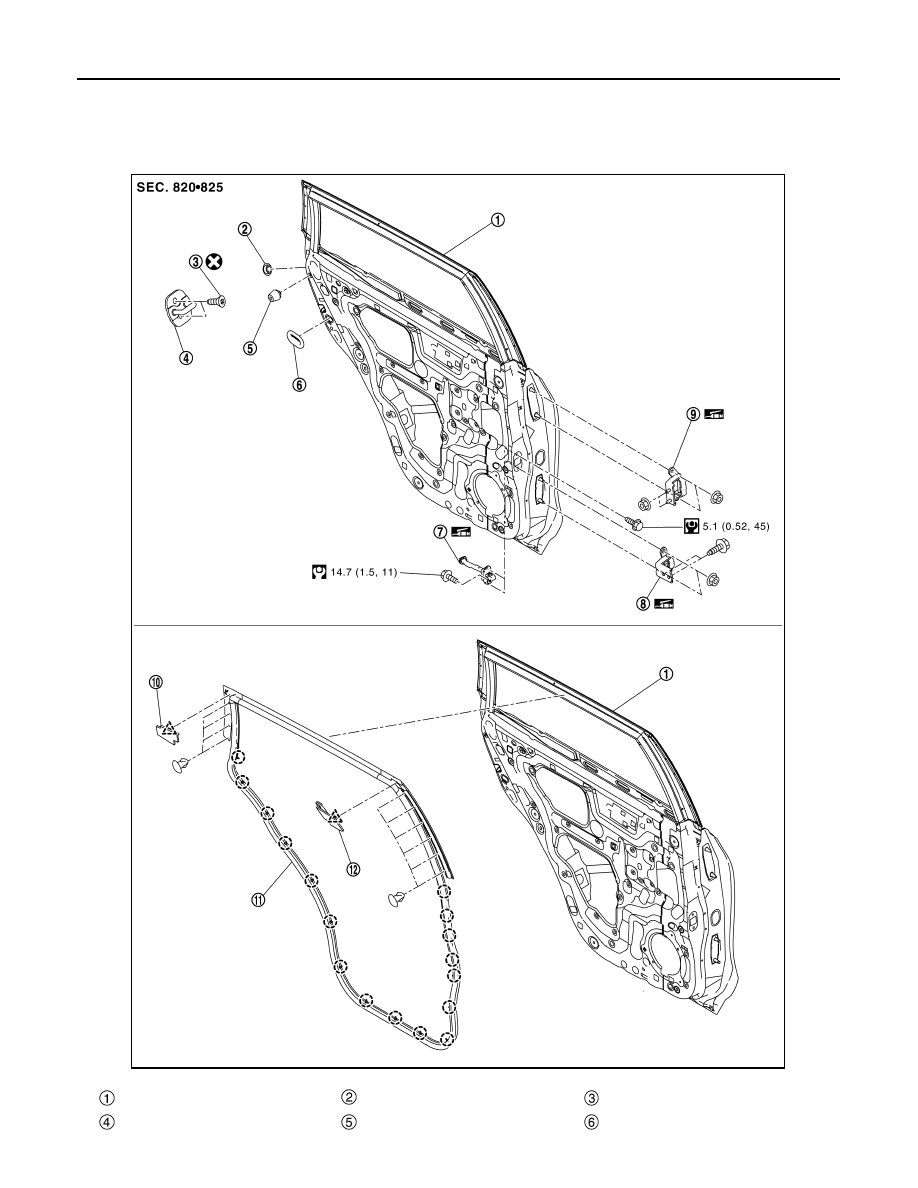

Exploded View

INFOID:0000000010728130

Rear door panel

Grommet

TORX bolt

Door striker

Bumper rubber

Child lock lever cover

JMKIB3509GB

REAR DOOR

DLK-591

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR ASSEMBLY

DOOR ASSEMBLY : Removal and Installation

INFOID:0000000010728131

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing rear door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

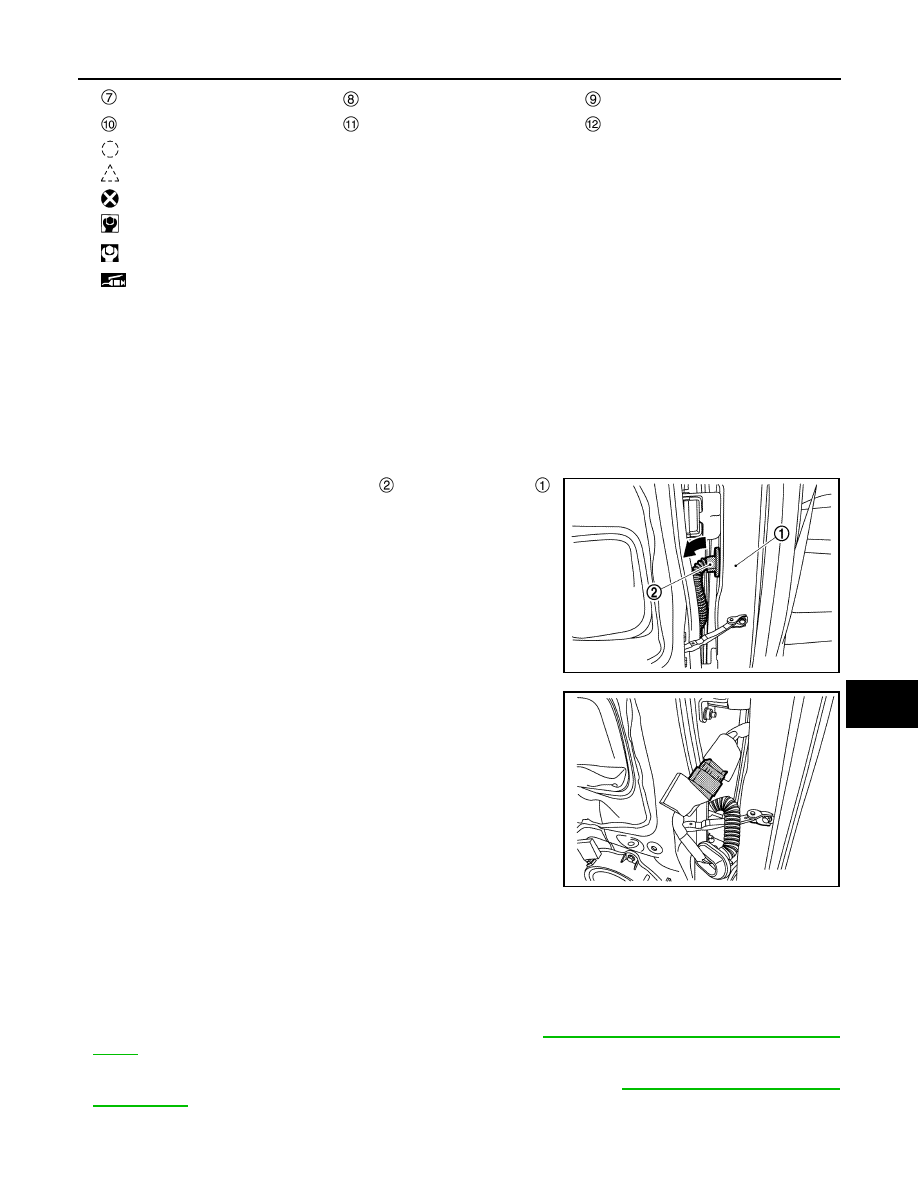

1.

Remove rear door harness grommet

 from vehicle body

,

and then pull out rear door harness.

2.

Disconnect rear door harness connector.

3.

Remove mounting bolt of door check link of vehicle body side.

4.

Remove door hinge mounting nuts of door side, and then remove door assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• After installation, perform the fitting adjustment. Refer to

DLK-592, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
• After installation, check that door opens and closes normally. Refer to

DLK-592, "DOOR ASSEMBLY

: Inspection"

.

Door check link

Door hinge (lower)

Door hinge (upper)

Rear door weather-strip clip

Rear door weather-strip

Rear door weather-strip clip

: Clip

: Pawl

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Body grease

JMKIB3510ZZ

JMKIB3511ZZ

DLK-592

< REMOVAL AND INSTALLATION >

[TYPE 2]

REAR DOOR

DOOR ASSEMBLY : Inspection

INFOID:0000000010728132

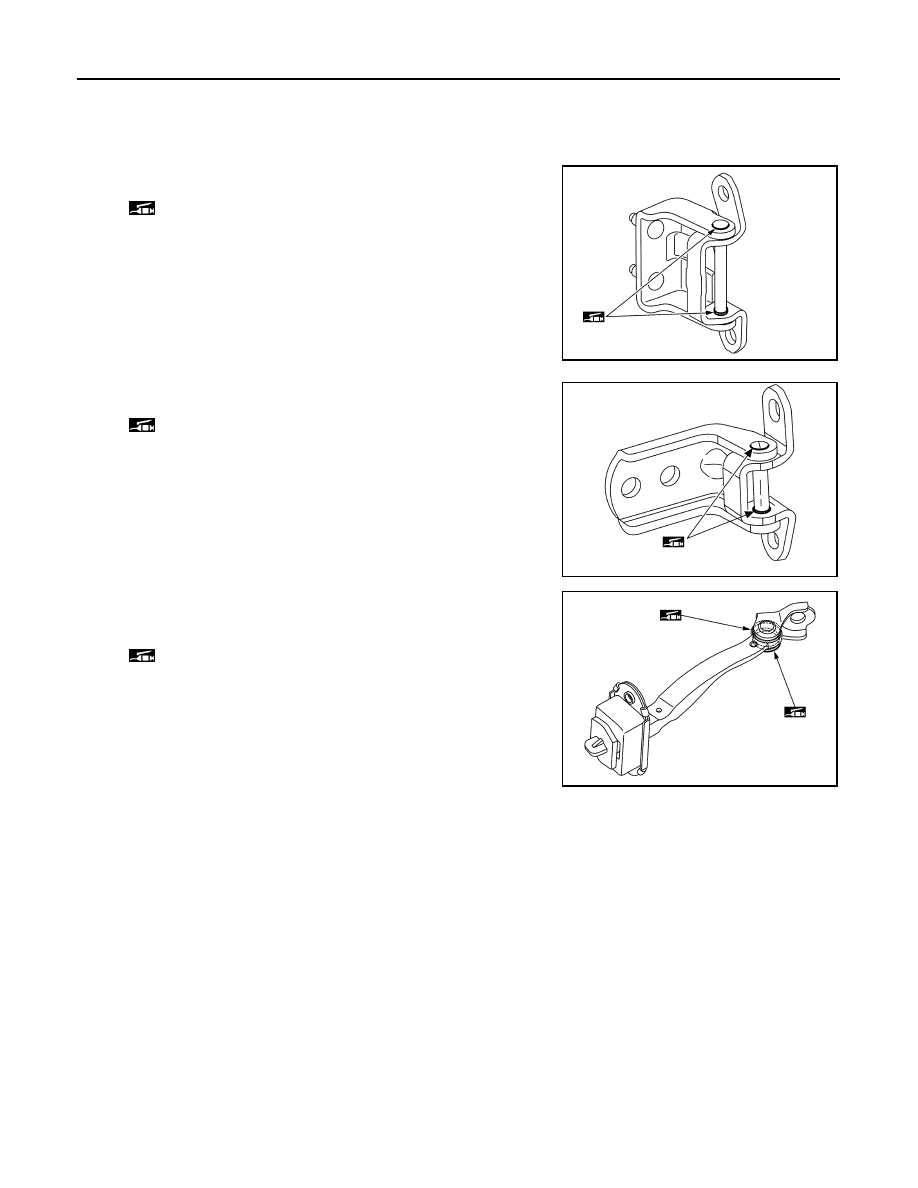

1.

Open and close the door. Check that door hinge and check link rotation portion moves smoothly.

2.

Check door hinge rotating part for poor lubrication. Apply body grease if necessary.
• Door hinge (upper)

• Door hinge (lower)

3.

Check door check link rotating part for poor lubrication. Apply
body grease if necessary.

DOOR ASSEMBLY : Adjustment

INFOID:0000000010728133

FITTING ADJUSTMENT

: Body grease

JMKIB0329ZZ

: Body grease

JMKIB0321ZZ

: Body grease

JMKIB0322ZZ
