INTELLIGENT KEY BATTERY

DLK-325

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTELLIGENT KEY BATTERY

Removal and Installation

INFOID:0000000010708320

1.

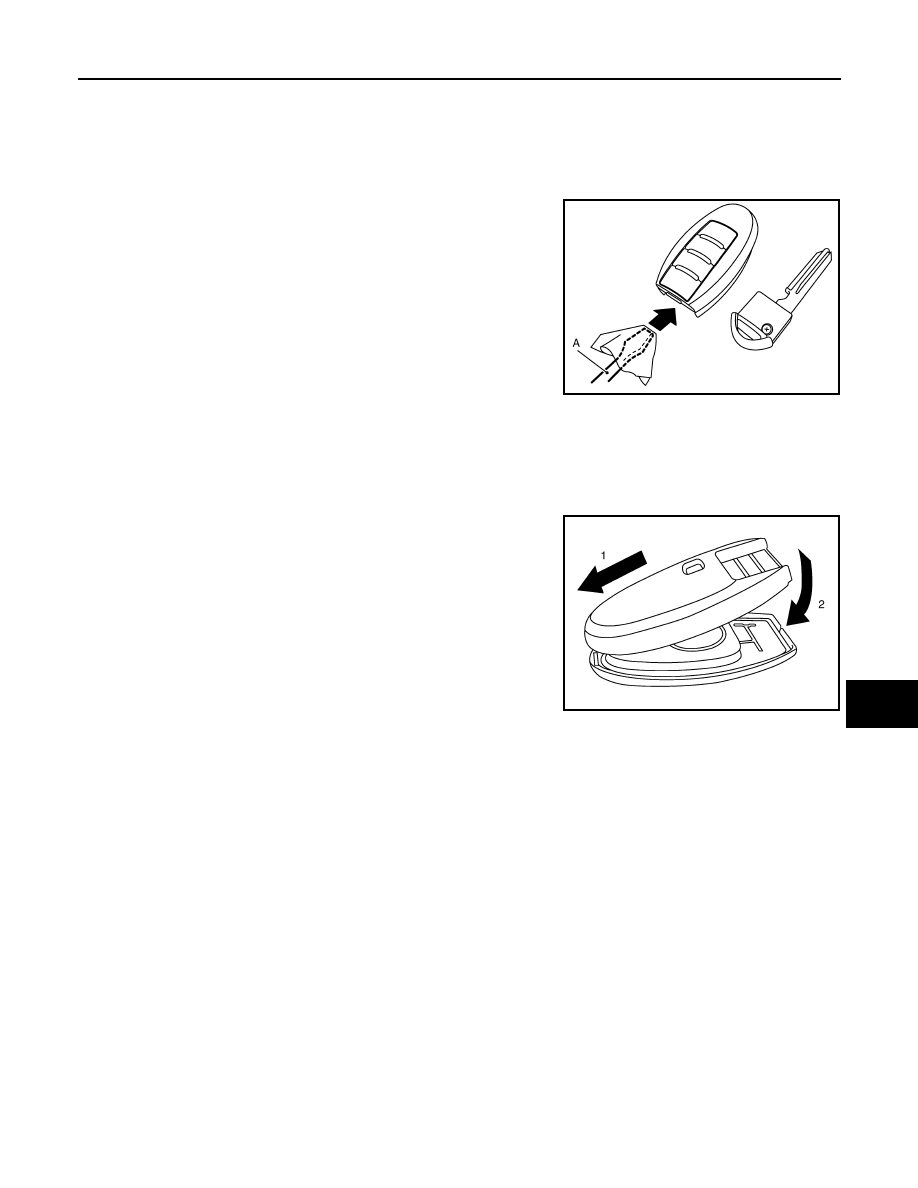

Release the lock knob at the back of the Intelligent Key and remove the mechanical key.

2.

Insert remover tool (A) wrapped with a cloth into the slit of the
corner and twist it to separate the upper part from the lower part.

CAUTION:

• Never touch the circuit board or battery terminal.
• The key fob is water-resistant. However, if it does get wet,

immediately wipe it dry.

3.

Replace the battery with new one.

4.

Align the tips of the upper and lower parts, and then push them
together until it is securely closed.

CAUTION:

• When replacing battery, keep dirt, grease, and other for-

eign materials off the electrode contact area.

• After replacing the battery, check that all Intelligent Key

functions work normally.

PIIB6221E

Battery replacement

:Coin-type lithium battery
(CR2032)

PIIB6222E

DLK-326

< REMOVAL AND INSTALLATION >

[TYPE 1]

BACK DOOR OPENER SWITCH ASSEMBLY

BACK DOOR OPENER SWITCH ASSEMBLY

Removal and Installation

INFOID:0000000010708321

REMOVAL

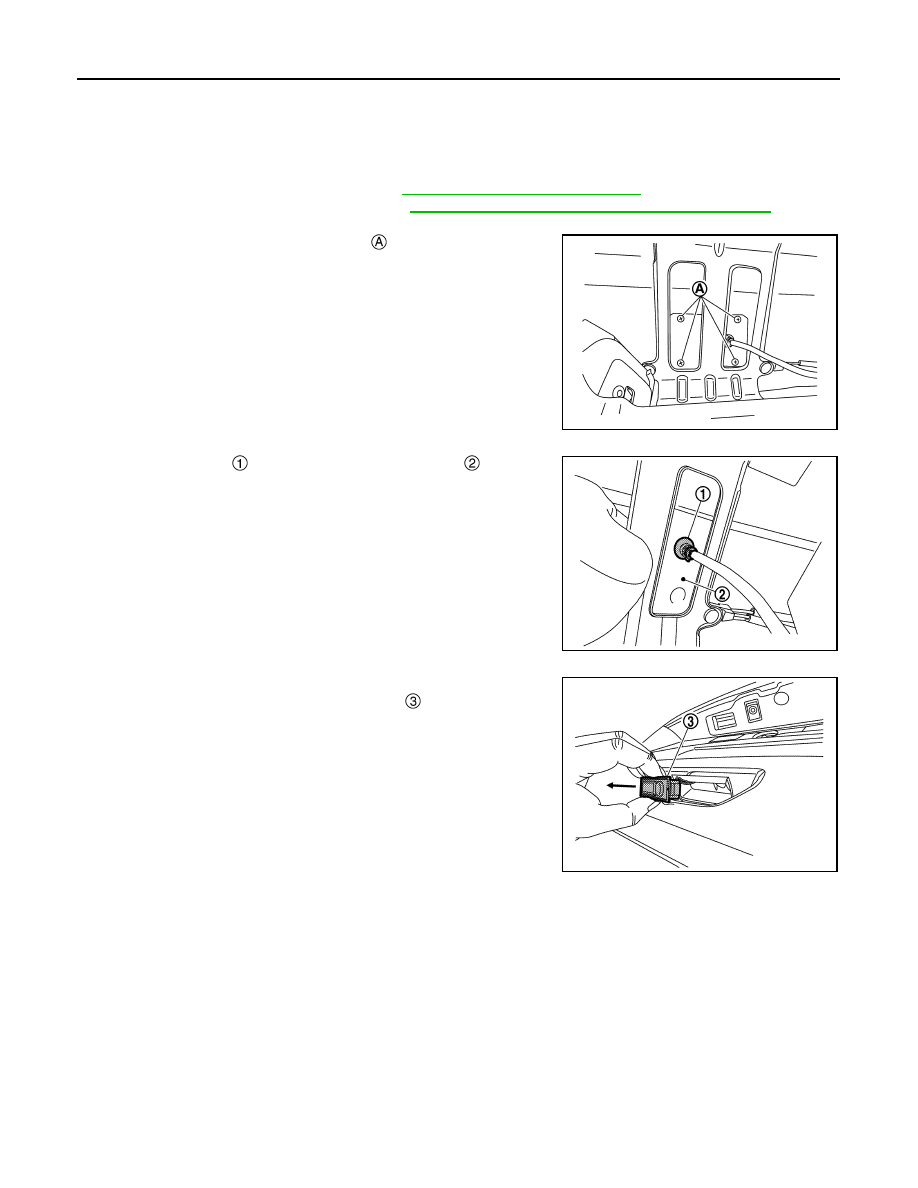

1.

Remove back door inner finisher. Refer to

INT-47, "Removal and Installation"

.

2.

Remove back door lock assembly. Refer to

DLK-312, "DOOR LOCK : Removal and Installation"

.

3.

Disconnect back door opener switch assembly harness connector.

4.

Remove switch cover mounting screw

.

5.

Remove grommet

, and then remove switch cover

.

6.

Press toward outside (in the direction shown by arrow) and then
remove back door opener switch assembly

.

INSTALLATION

Install in the reverse order of removal.

JMKIB2751ZZ

JMKIB2752ZZ

JMKIB2753ZZ

AUTOMATIC BACK DOOR CONTROL UNIT

DLK-327

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

AUTOMATIC BACK DOOR CONTROL UNIT

Removal and Installation

INFOID:0000000010708322

REMOVAL

1.

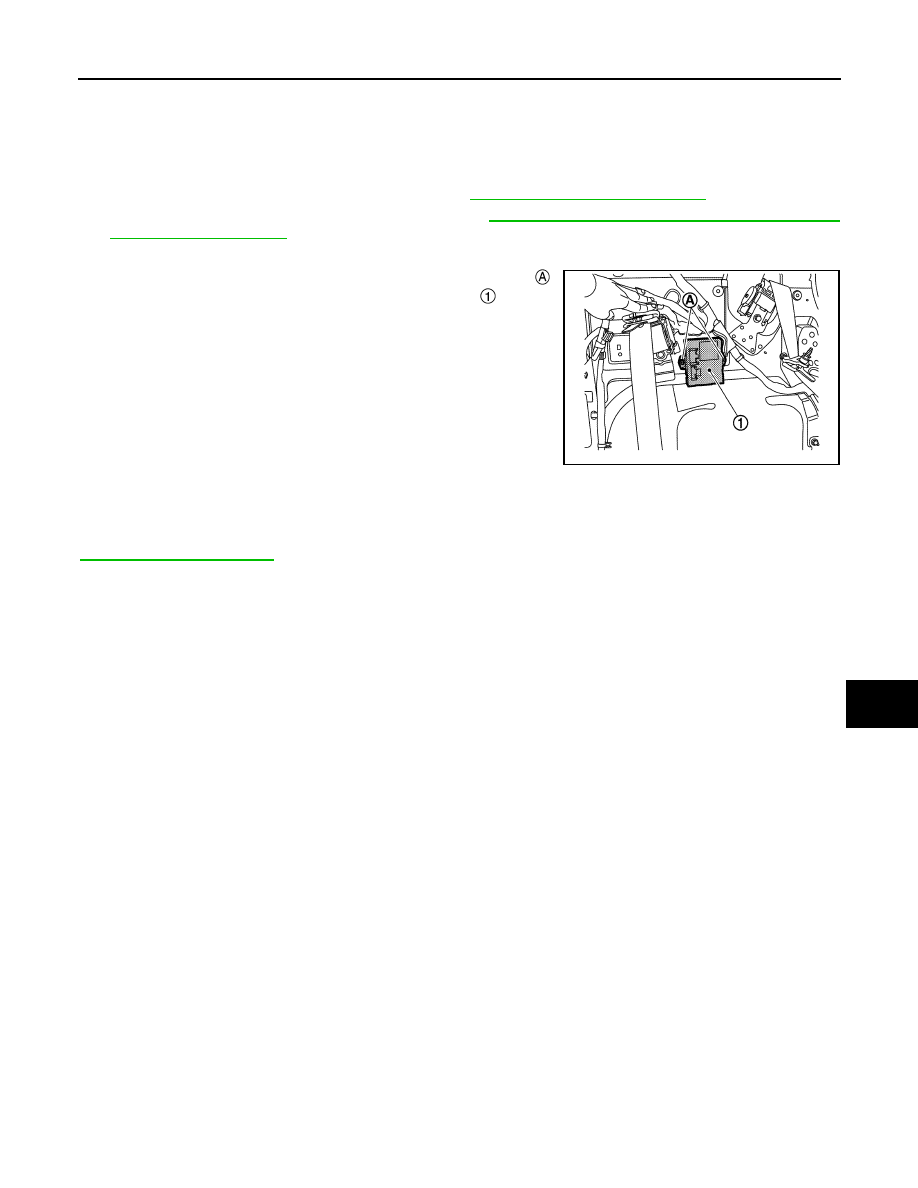

For 3 seat row models: Remove third seat. Refer to

SE-70, "Removal and Installation"

.

2.

Remove luggage side lower finisher LH. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

3.

Disconnect automatic back door control unit harness connector.

4.

Remove the automatic back door control unit mounting bolt

,

and then remove the automatic back door control unit

.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installing automatic back door control unit, perform additional service when replace control unit. Refer to

DLK-116, "Work Procedure"

.

JMKIB2759ZZ

DLK-328

< REMOVAL AND INSTALLATION >

[TYPE 1]

AUTOMATIC BACK DOOR MAIN SWITCH

AUTOMATIC BACK DOOR MAIN SWITCH

Removal and Installation

INFOID:0000000010708323

REMOVAL

1.

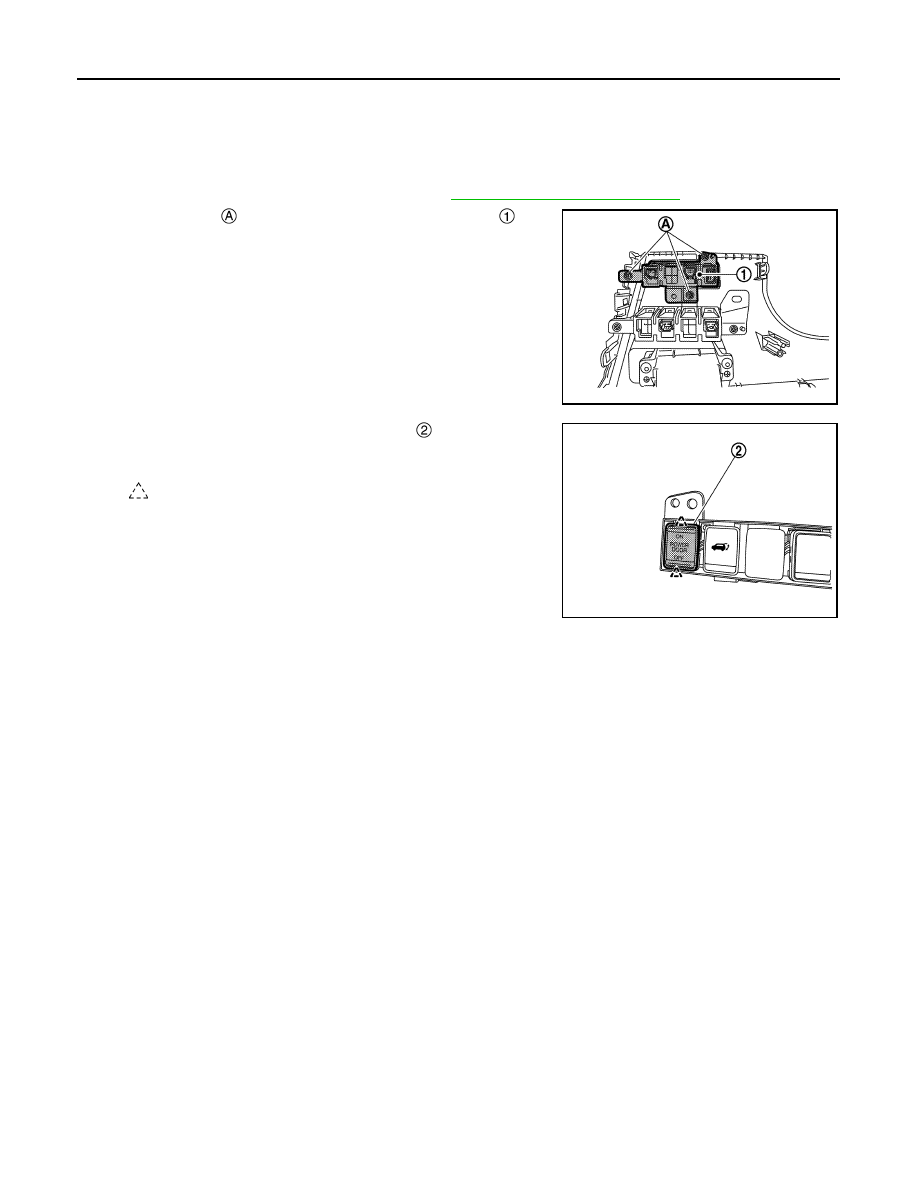

Remove the instrument lower panel RH. Refer to

IP-41, "Removal and Installation"

.

2.

Remove screws

 and then remove the switch bracket

 from

the instrument lower panel RH.

3.

Remove automatic back door main switch

 from the switch

bracket.

INSTALLATION

Install in the reverse order of removal.

JMKIB2781ZZ

: Pawl

JMKIB3654ZZ
