DAS

POWER SUPPLY AND GROUND CIRCUIT

DAS-277

< DTC/CIRCUIT DIAGNOSIS >

[CHASSIS CONTROL]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

POWER SUPPLY AND GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000010721784

1.

CHECK CHASSIS CONTROL MODULE IGNITION POWER SUPPLY

1.

Turn the ignition switch OFF.

2.

Disconnect the chassis control module harness connector.

3.

Check the voltage between chassis control module harness connector and ground.

4.

Turn the ignition switch ON.

5.

Check the voltage between chassis control module harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK CHASSIS CONTROL MODULE IGNITION POWER SUPPLY CIRCUIT

1.

Turn the ignition switch OFF.

2.

Check the 10A fuse (#30).

3.

Check the continuity and for short circuit between chassis control module harness connector terminal (10)
and 10A fuse (#30).

Is the inspection result normal?

YES

>> Perform trouble diagnosis for ignition power supply.

NO

>> Repair or replace error-detected parts.

3.

CHECK CHASSIS CONTROL MODULE GROUND CIRCUIT

Check the continuity between chassis control module harness connector and the ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace error-detected parts.

4.

CHECK TERMINAL

Check the chassis control module pin terminals for damage or loose connection with harness connector.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair or replace error-detected parts.

Chassis control module

—

Voltage

(Approx.)

Connector

Terminal

M73

10

Ground

0 V

Chassis control module

—

Voltage

Connector

Terminal

M73

10

Ground

6.4

−

 16 V

Chassis control module

—

Continuity

Connector

Terminal

M73

12

Ground

Existed

DAS-278

< REMOVAL AND INSTALLATION >

[CHASSIS CONTROL]

CHASSIS CONTROL MODULE

REMOVAL AND INSTALLATION

CHASSIS CONTROL MODULE

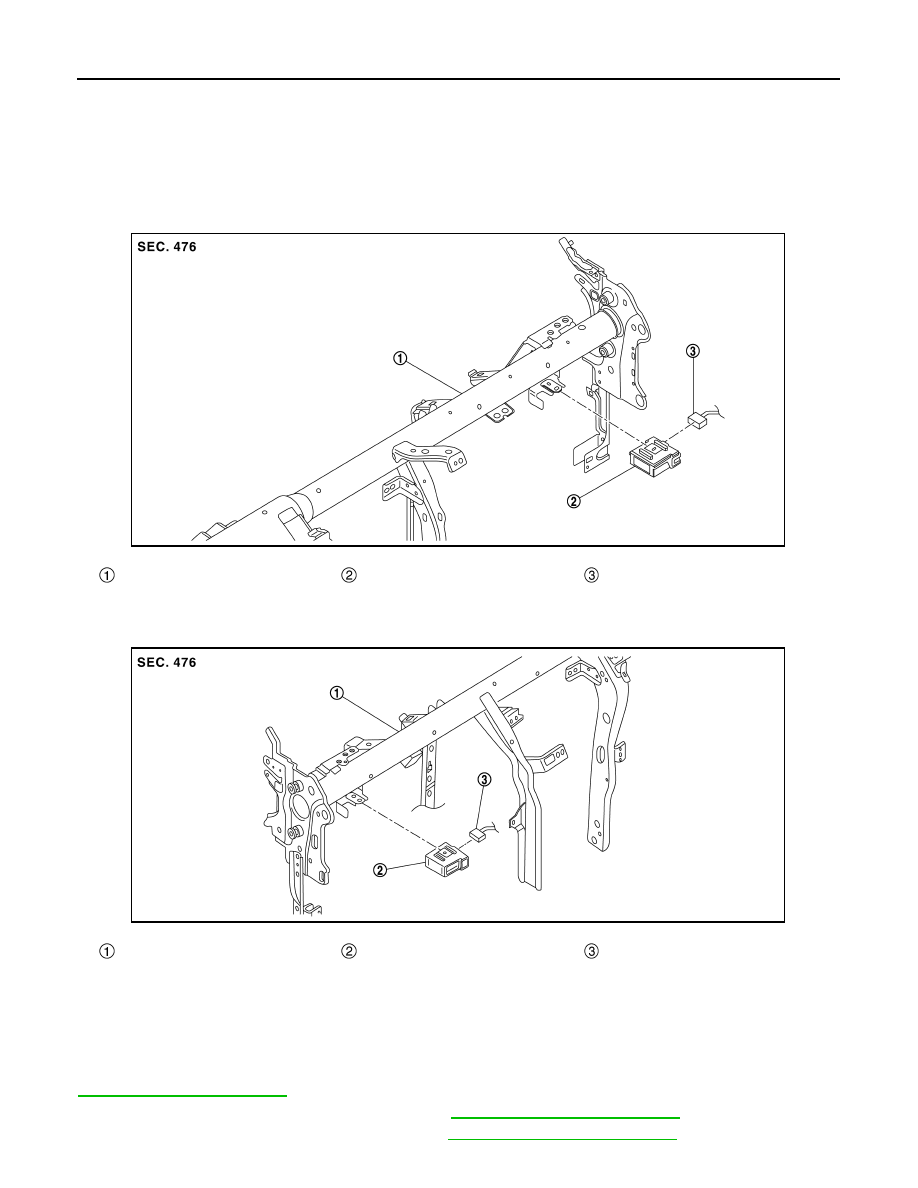

Exploded View

INFOID:0000000010721785

LHD MODELS

RHD MODELS

Removal and Installation

INFOID:0000000010721786

REMOVAL

CAUTION:

When replacing chassis control module, configuration of chassis control module is required. Refer to

DAS-213, "Work Procedure"

.

1.

Remove the instrument lower panel RH. Refer to

IP-14, "Removal and Installation"

. (LHD models)

2.

Remove the instrument lower panel LH. Refer to

IP-41, "Removal and Installation"

. (RHD models)

Steering member

Chassis control module

Chassis control module harness
connector

JSOIA1471ZZ

Steering member

Chassis control module

Chassis control module harness
connector

JSOIA1251ZZ

DAS

CHASSIS CONTROL MODULE

DAS-279

< REMOVAL AND INSTALLATION >

[CHASSIS CONTROL]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

3.

Remove the chassis control module.

CAUTION:

Never drop the chassis control module.

INSTALLATION

Note the following, install in the reverse order of removal.
• When replacing the chassis control module, be sure to perform the configuration of chassis control module.

Refer to

DAS-213, "Work Procedure"

.

• After replace the chassis control module, depress brake pedal and check that the stop lamp turns ON.

DAS-280

< PRECAUTION >

[PARK ASSIST]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010721637

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Removing Battery Terminal

INFOID:0000000011046055

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

SEF289H
