Nissan X-Trail 32. Manual - part 354

DAS

REAR CAMERA WASHER/AIR NOZZLE & TUBE

DAS-157

< REMOVAL AND INSTALLATION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

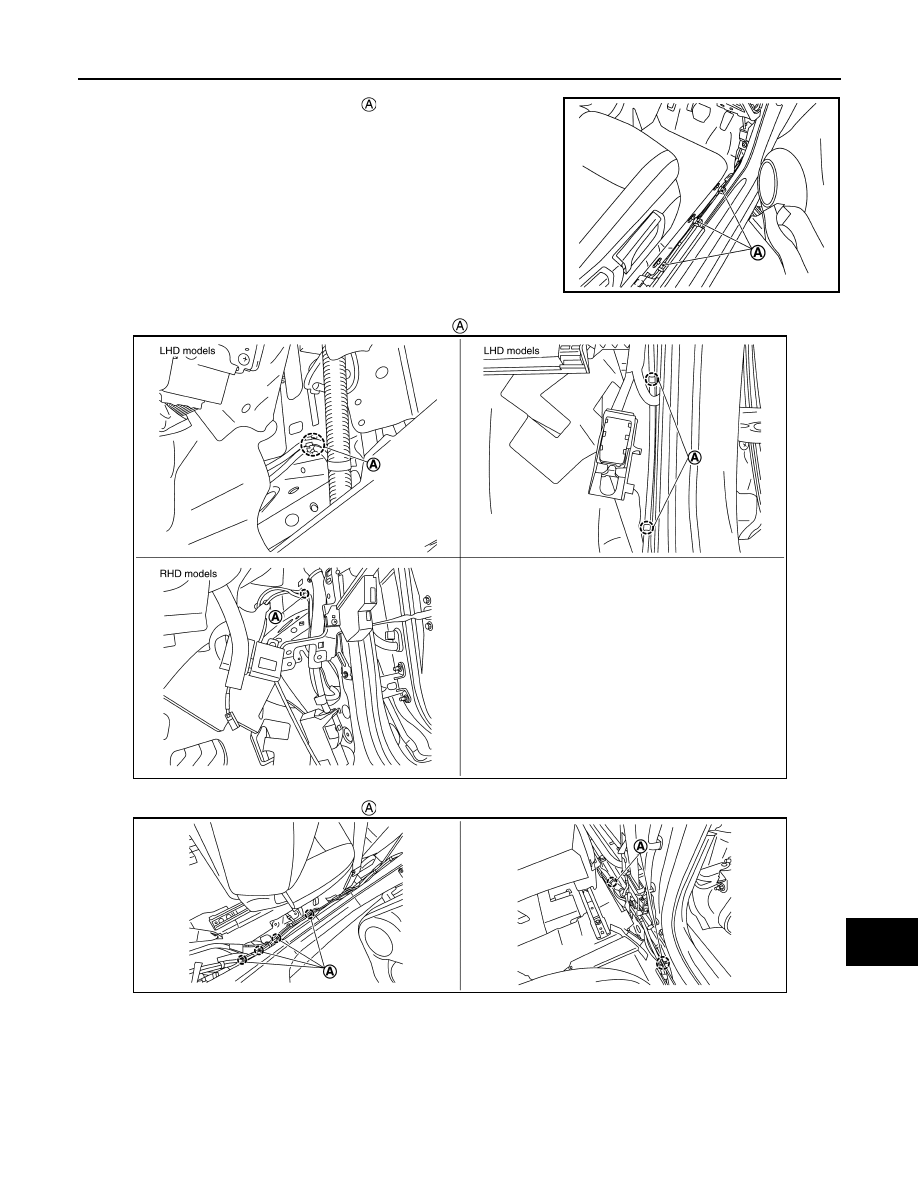

8.

Remove washer tube from tube clip

.

9.

Remove washer tube from harness protector clip

.

10. Remove washer tube from tube clip

.

JSOIA1387ZZ

JSOIA1557GB

JSOIA1389ZZ

DAS-158

< REMOVAL AND INSTALLATION >

[DRIVER ASSISTANCE SYSTEM]

REAR CAMERA WASHER/AIR NOZZLE & TUBE

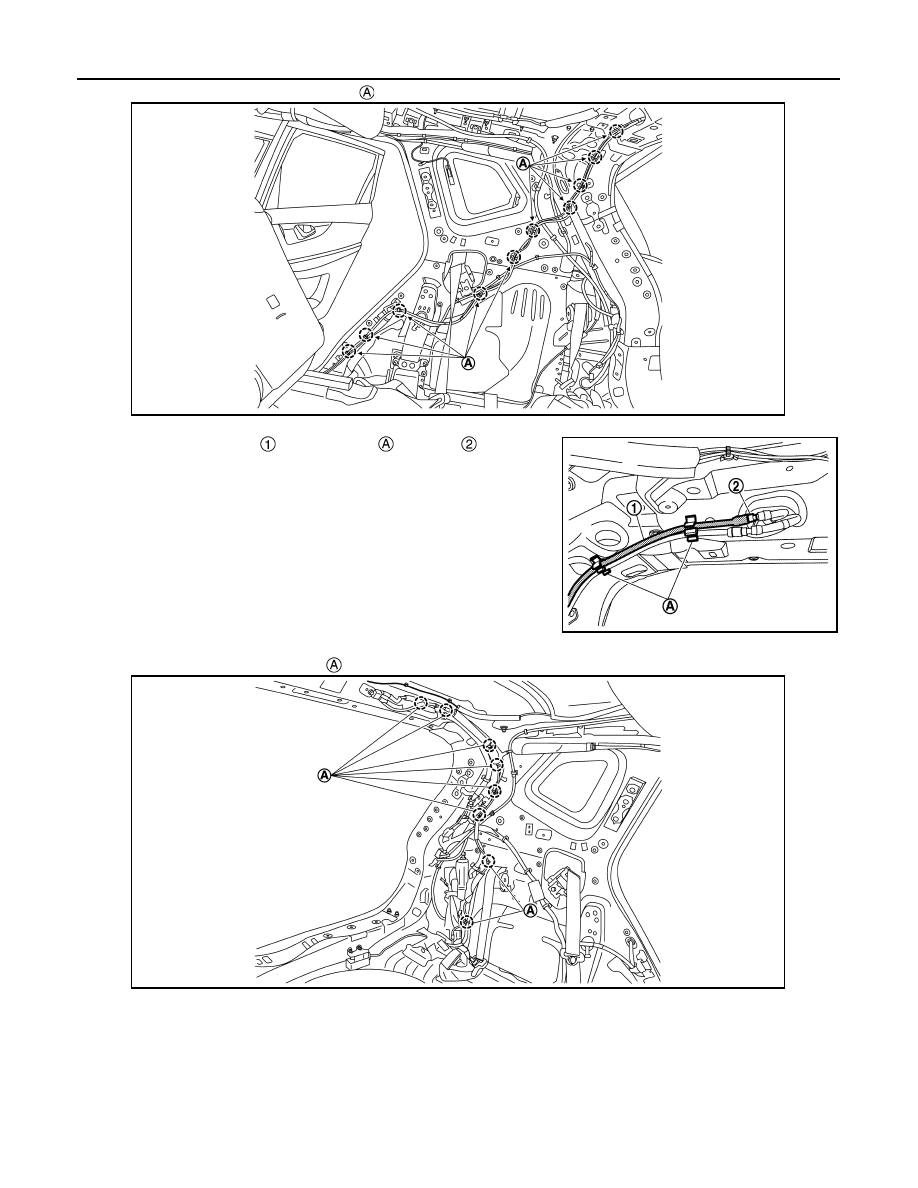

11. Remove washer tube from tube clip

.

12. Remove washer tube

 from tube clip

 and joint

.

13. Remove air tube from tube clip

.

JSOIA1390ZZ

JMLIA5025ZZ

JSOIA1392ZZ

DAS

REAR CAMERA WASHER/AIR NOZZLE & TUBE

DAS-159

< REMOVAL AND INSTALLATION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

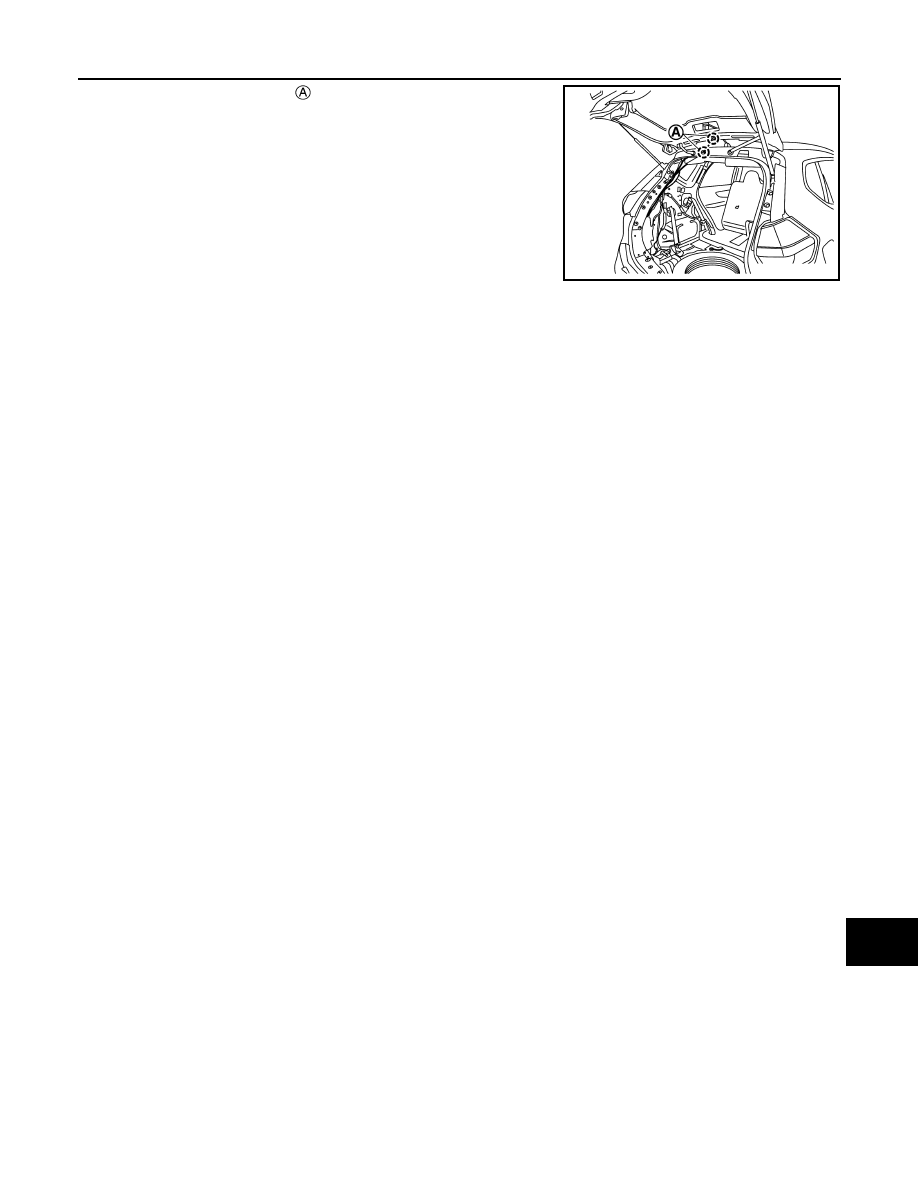

14. Remove air tube protector

.

15. Since the following washer/air tubes are not replaceable, replace back door assembly when replacement

is necessary due to malfunction:
• Between joint described in Step 12 and the rear camera assembly
• Between air tube protector described in Step 14 and the rear camera assembly

INSTALLATION

Note the following items, then install in the reverse order of removal.

CAUTION:

• Securely install grommet to prevent the entry of water and dirt.
• Check washer tube for bend and damage.
• Align the mark of rear camera washer/air tube with the vehicle installation position.

JSOIA1393ZZ

DAS-160

< REMOVAL AND INSTALLATION >

[DRIVER ASSISTANCE SYSTEM]

BSW INDICATOR

BSW INDICATOR

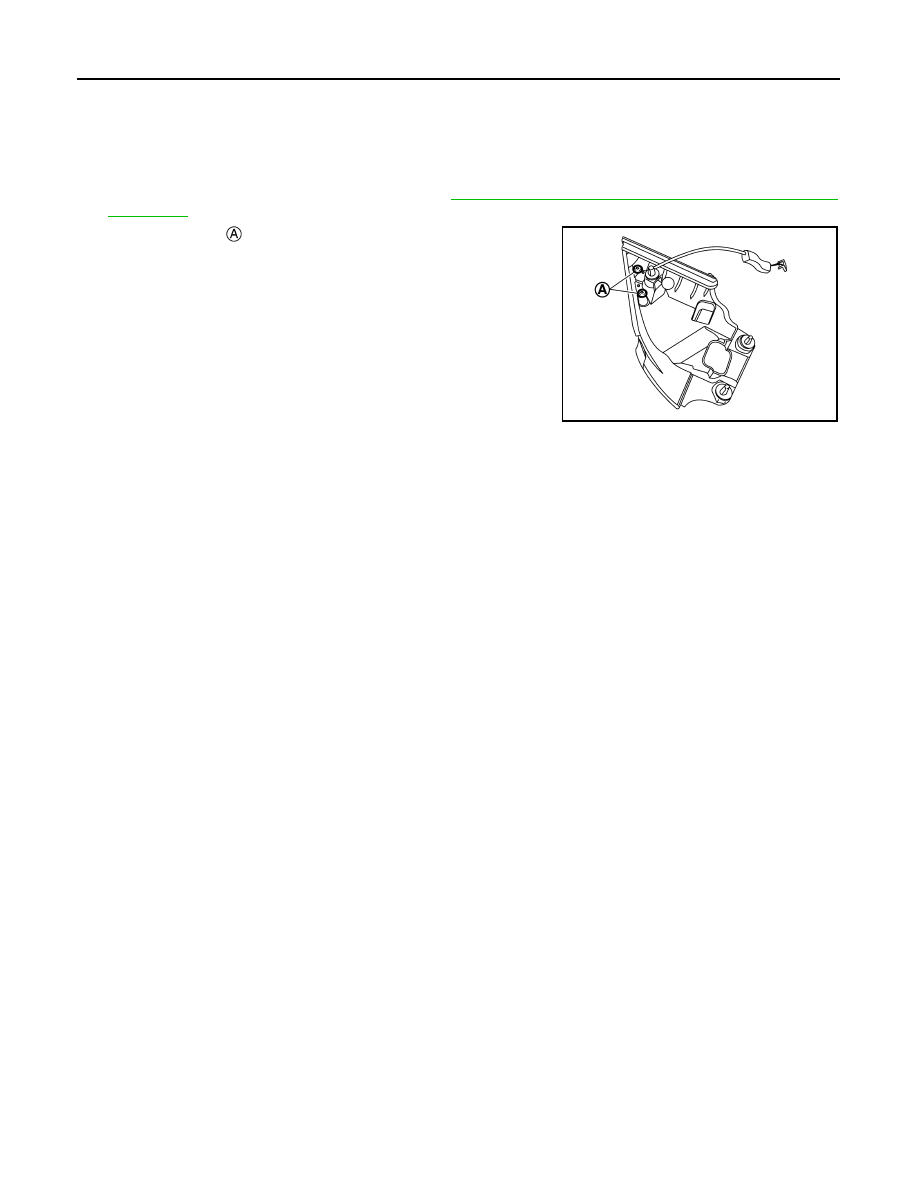

Removal and Installation

INFOID:0000000010727964

REMOVAL

1.

Remove the door mirror corner cover. Refer to

MIR-27, "DOOR MIRROR ASSEMBLY : Removal and

Installation"

.

2.

Remove the bolt

 and remove BSW indicator.

INSTALLATION

Install in the reverse order of removal.

JSOIA1395ZZ
