Nissan X-Trail 32. Manual - part 323

DAS

OPERATION

DAS-33

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

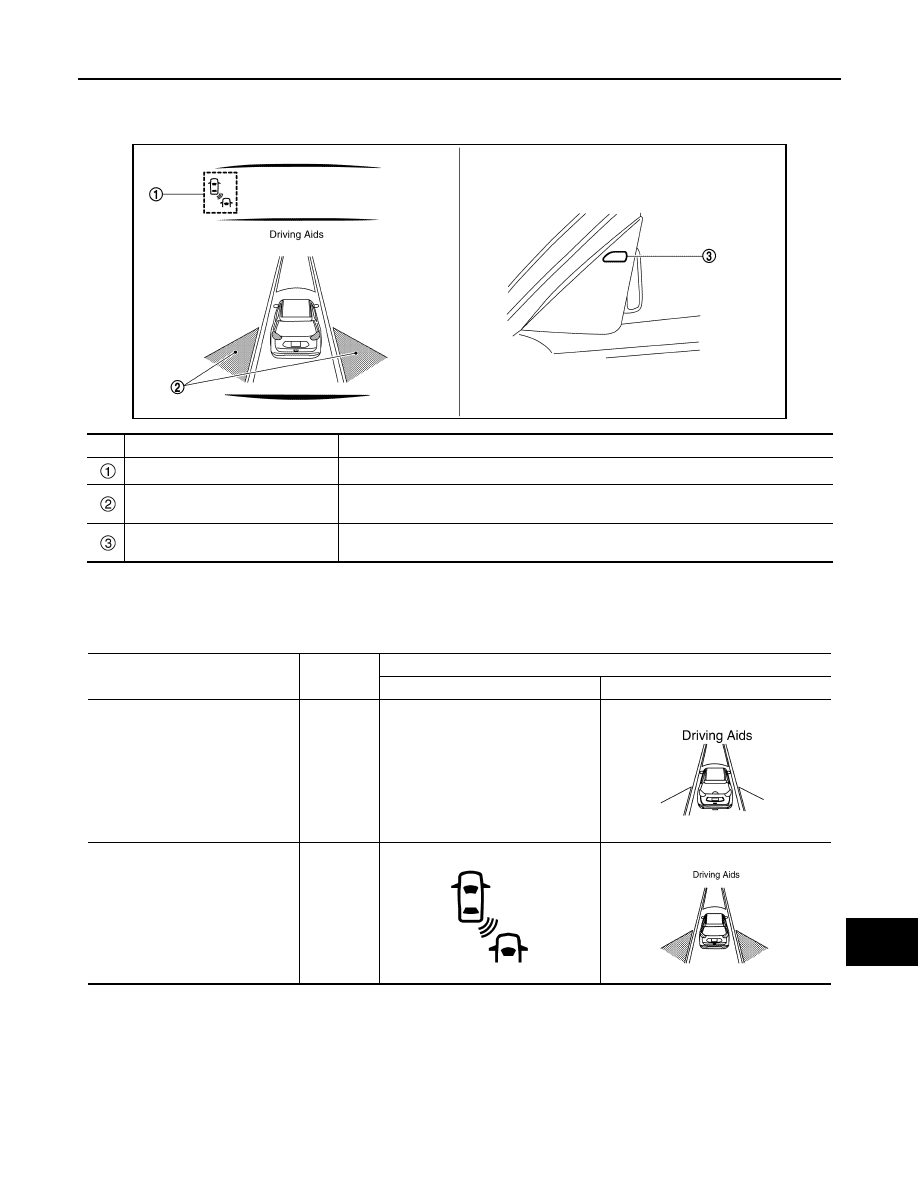

BSW : Menu Displayed by Pressing Each Switch

INFOID:0000000010784381

SYSTEM DISPLAY

DISPLAY AND WARNING

System Display

The BSW systems operate when ON is selected with the combination meter.

JSOIA1596ZZ

No.

Display item

Description

Warning systems indicator (BSW)

Indicates that BSW system is ON

Warning systems indicator “Blind
spot” position

Indicates that BSW system is ON

Blind Spot Warning indicator LH/RH

• Illuminates when detect other vehicles beside vehicle in an adjacent lane
• Blinks when BSW system is warning to driver

System status

Condition

Display on combination meter

Upper part

Middle part

BSW OFF

—

—

White

BSW ON

System ON

White

White

JSOIA1591ZZ

JSOIA1423ZZ

JSOIA1597ZZ

DAS-34

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

OPERATION

*: This indication shows the possibility of no washer fluid. Check washer fluid level.

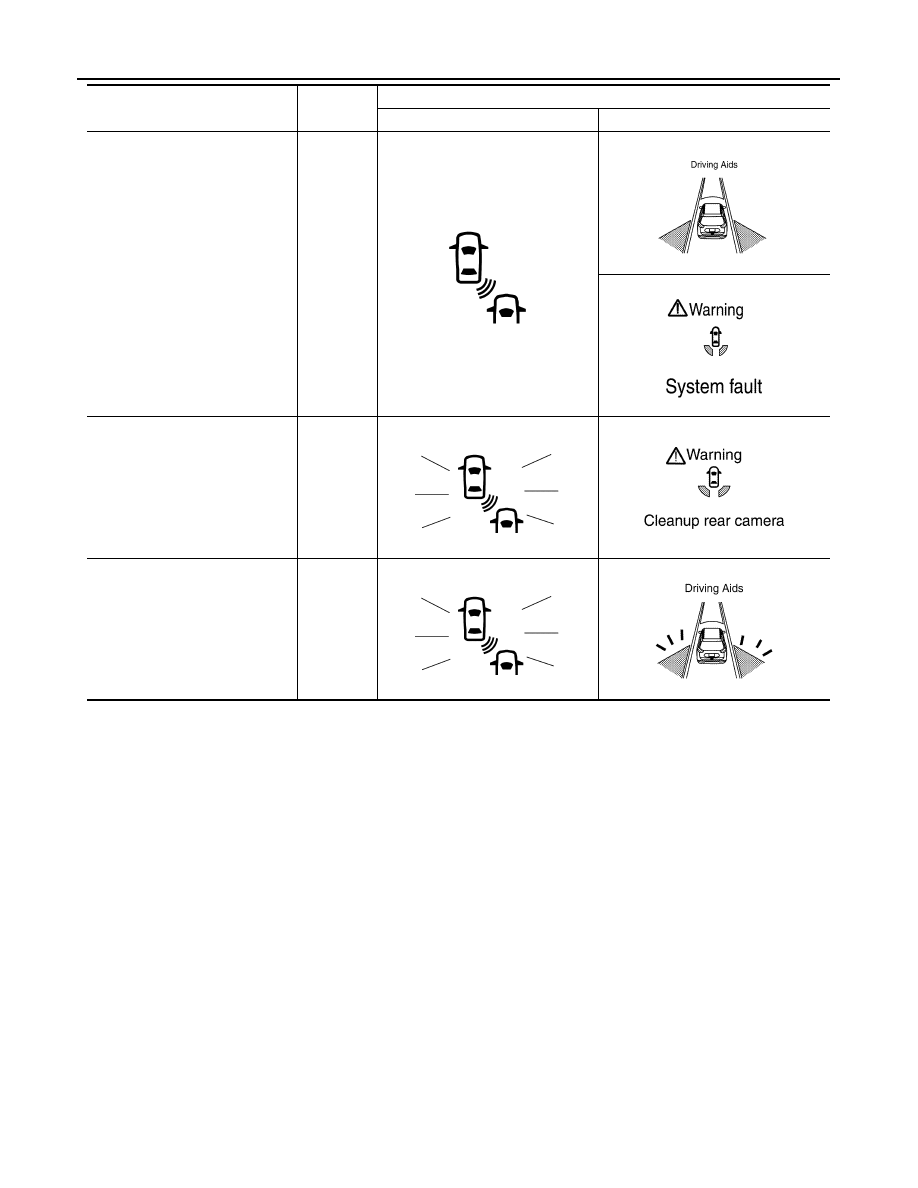

Display And Warning Operation

BSW is malfunction

The BSW

system is
automati-
cally can-

celed.

Orange

Orange

Dirt around the rear camera

*

The BSW
system is
automati-
cally can-
celed.

White (Blink)

When the back door is open
(Back door open warning ON)

The BSW
system is
automati-
cally can-
celed.

White (Blink)

System status

Condition

Display on combination meter

Upper part

Middle part

JSOIA1423ZZ

JSOIA1597ZZ

JSOIA1598ZZ

JSOIA1425ZZ

JSOIA1599ZZ

JSOIA1425ZZ

JSOIA1600ZZ

DAS

OPERATION

DAS-35

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

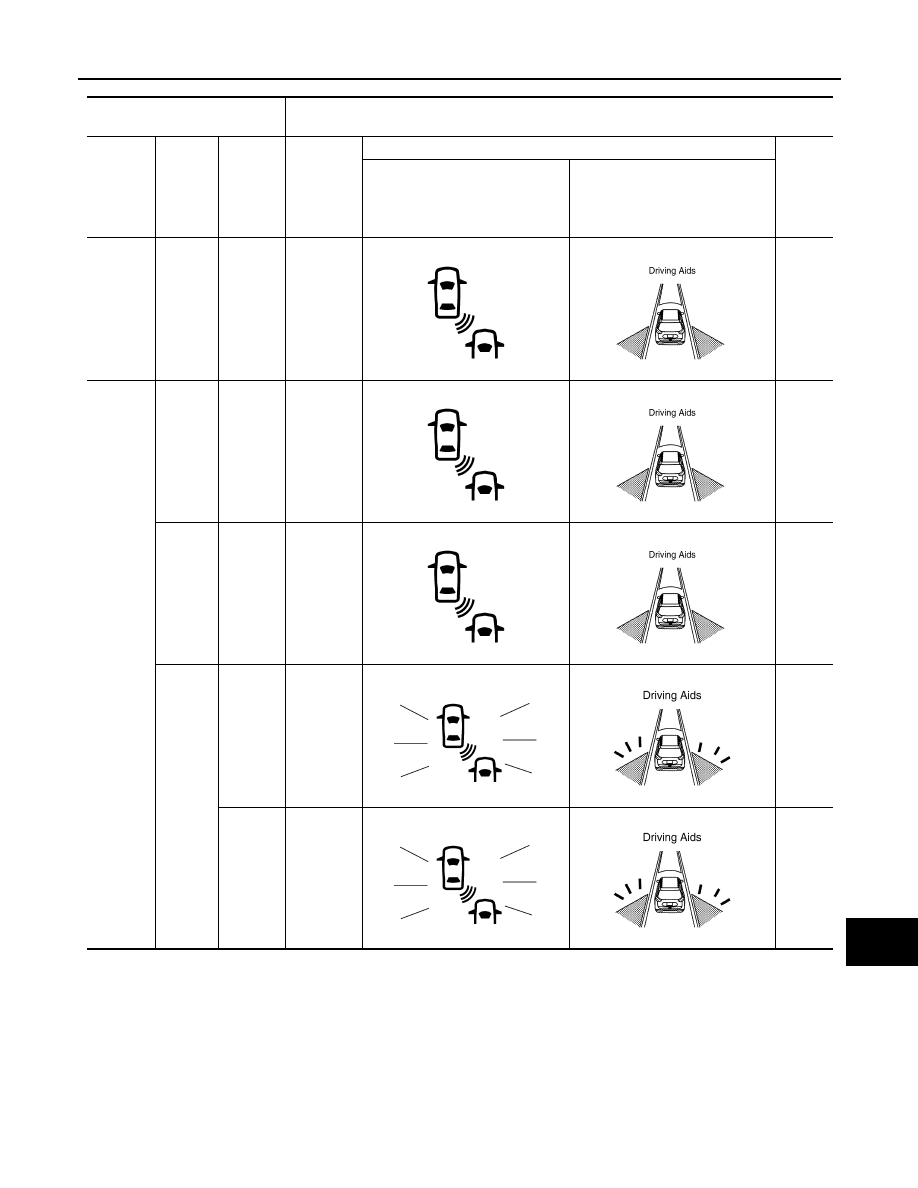

NOTE:
• If vehicle speed exceeds approximately 32 km/h (20 MPH), BSW function operates until the vehicle speed

becomes lower than approximately 29 km/h (18 MPH).

• Time shown in the figure is approximate time.

TSR

Vehicle condition/ Driver's opera-

tion

Action

Vehicle

speed

(Approx.)

Turn sig-

nal con-

dition

Status of

vehicle

detection

within de-

tection

area

Indication

on the

BSW indi-

cator

Indication on the combination meter

Buzzer

Upper part

Middle part

Less than
29 km/h
(18 MPH)

—

—

OFF

White

White

OFF

32 km/h
(20 MPH)
or more

—

Vehicle is
not de-
tected

OFF

White

White

OFF

OFF

Vehicle is
detected

ON

White

White

OFF

ON

(vehicle

detect-

ed direc-

tion)

Before
turn sig-
nal oper-
ates
Vehicle is
detected

Blink

Orange (Blink)

Orange (Blink)

Short

contin-

uous

beeps

Vehicle is
detected
after turn
signal op-
erates

Blink

Orange (Blink)

Orange (Blink)

OFF

JSOIA1423ZZ

JSOIA1597ZZ

JSOIA1423ZZ

JSOIA1597ZZ

JSOIA1423ZZ

JSOIA1597ZZ

JSOIA1425ZZ

JSOIA1600ZZ

JSOIA1425ZZ

JSOIA1600ZZ

DAS-36

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

OPERATION

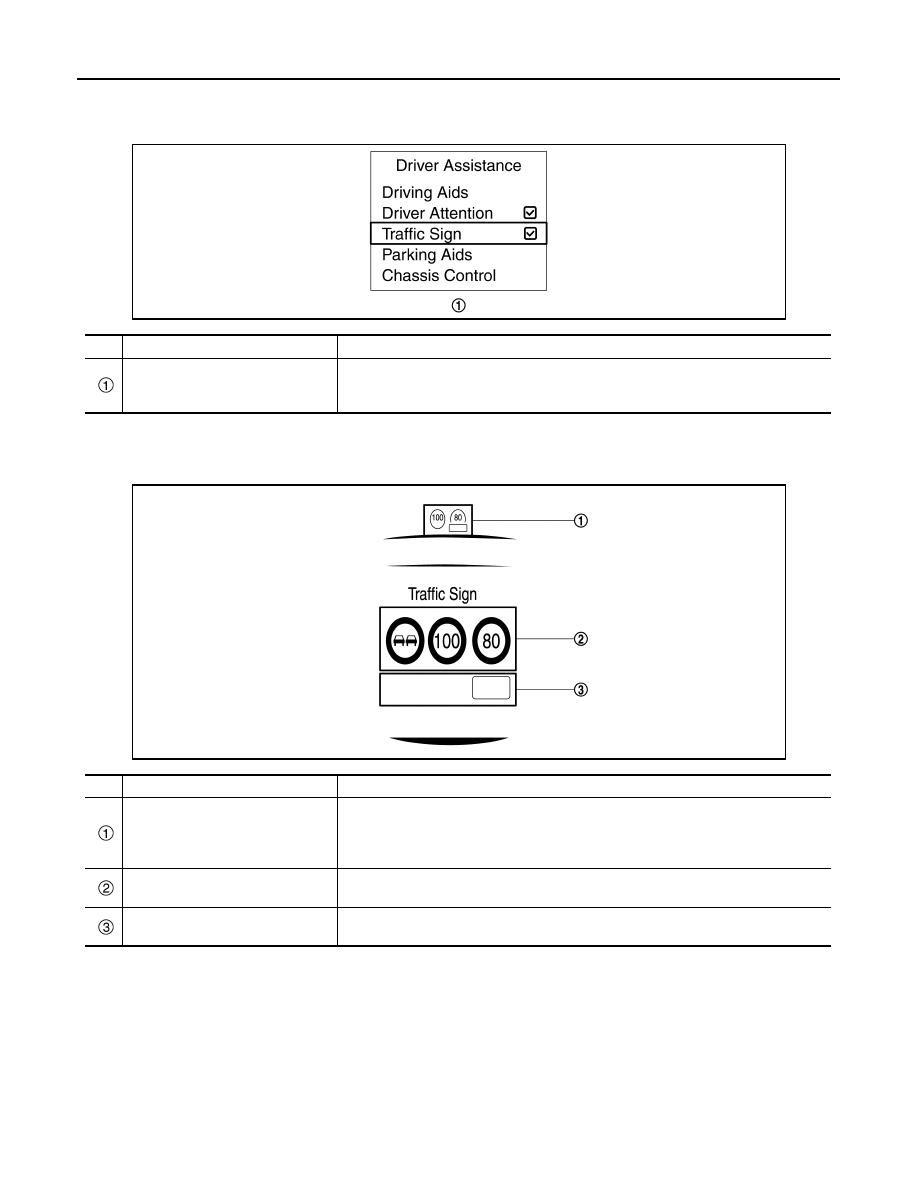

TSR : Switch Name and Function

INFOID:0000000010784384

TSR

TSR : Menu Displayed by Pressing Each Switch

INFOID:0000000010784385

SYSTEM DISPLAY

DISPLAY AND WARNING

System Display

The TSR systems operate when ON is selected with the combination meter.

JSOIA1609ZZ

No.

Switch name

Description

TSR system setting screen
(Combination meter settings
screen)

The setting of TSR system can be switched between ON and OFF

JSOIA1610ZZ

No.

Display item

Description

Speed limit sign indicator

• Displays speed limit signs detected by the front camera unit
• Allows the displaying of up to 2 signs
• For speed limit signs with a supplemental sign, the supplemental sign is displayed

together

Road sign indicator

• Displays road signs detected by the front camera unit
• Allows the displaying of up to 3 signs i.e. 2 speed limit signs and 1 do not pass sign

Supplemental sign indicator

• Displays supplemental signs detected by the front camera unit
• Allows the displaying of up to 3 supplemental signs
