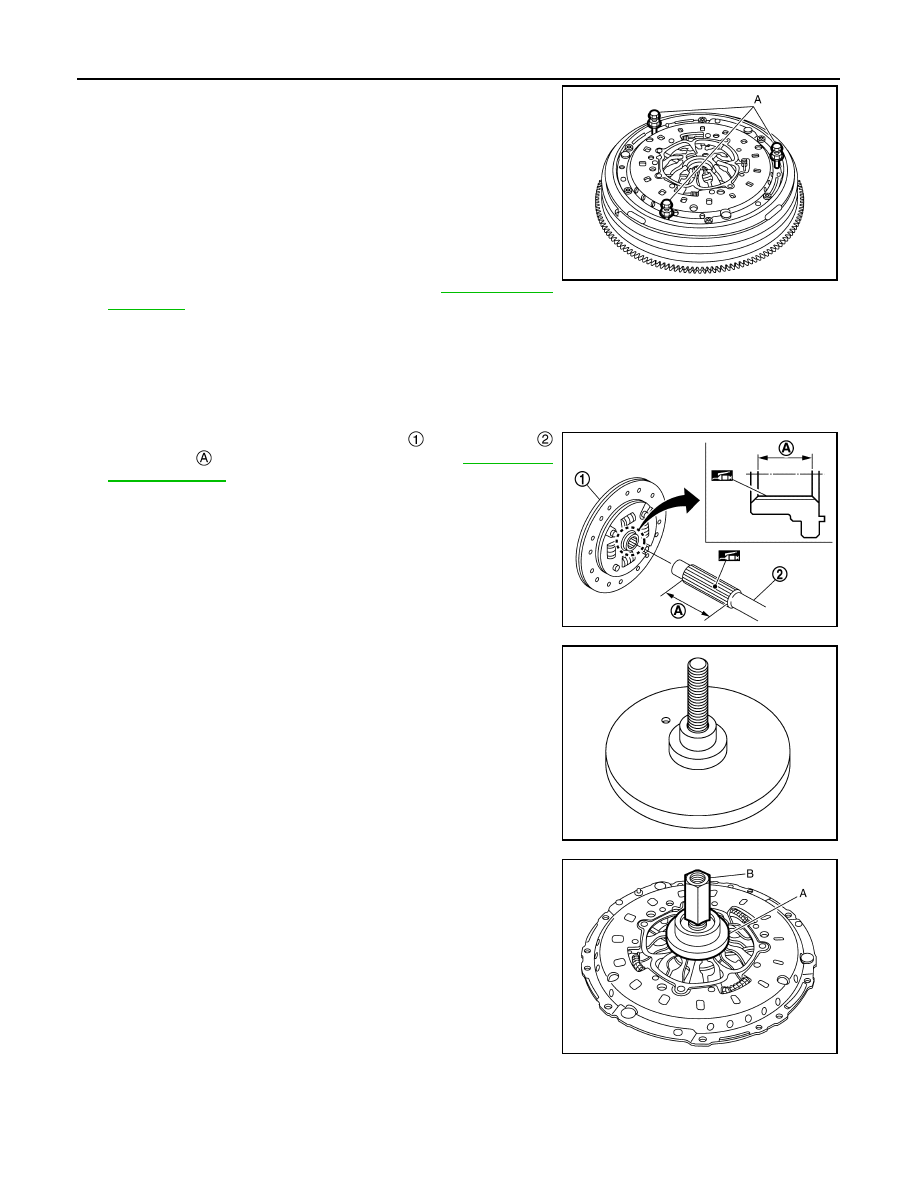

CL-36

< REMOVAL AND INSTALLATION >

CLUTCH DISC AND CLUTCH COVER

b.

Replace these three bolts to the bolts of the tool kit (A)
[SST:

—

 (Emb.1761)].

c.

Place the three spacers of the tool kit [SST:

—

 (Emb.1761)]

in contact with the nuts.

d.

Gradually remove the remaining bolts.

e.

Unscrew and gradually remove by quarter turns the three nuts of
the tool kit [SST:

—

 (Emb.1761)] one by one.

f.

Remove clutch cover and clutch disc.

CAUTION:

Never drop clutch disc.

g.

Perform inspection after removal. Refer to

CL-39, "R9M :

Inspection"

.

INSTALLATION

In Case of Clutch Cover Reused:

NOTE:
The automatic compensation must be repositioned at its first point.
1.

Clean clutch disc and input shaft splines to remove grease and powder arisen from abrasion.

2.

Apply recommended grease to clutch disc

 and input shaft

splines area

. For recommended grease, refer to

CL-35, "R9M

: Exploded View"

.

CAUTION:

Be sure to apply grease to the points specified. Otherwise,
noise, poor disengagement, or damage to the clutch may
result. Excessive grease may cause slip or judder. And if it
adheres to seal of CSC, it cause clutch fluid leakage. Wipe
out excess grease. Wipe out any grease oozing from the
parts.

3.

Place the base plate of clutch compression tool [SST:

—

(Emb.1604)] in a vice jaw.

4.

Install clutch cover onto the base plate then install the ball bear-
ing or bronze ring (A) and the nut (B) of clutch compression tool
[SST:

—

 (Emb.1604)].

JSDIA6086ZZ

JSDIA3617ZZ

E1BIA0779ZZ

JSDIA6088ZZ

CLUTCH DISC AND CLUTCH COVER

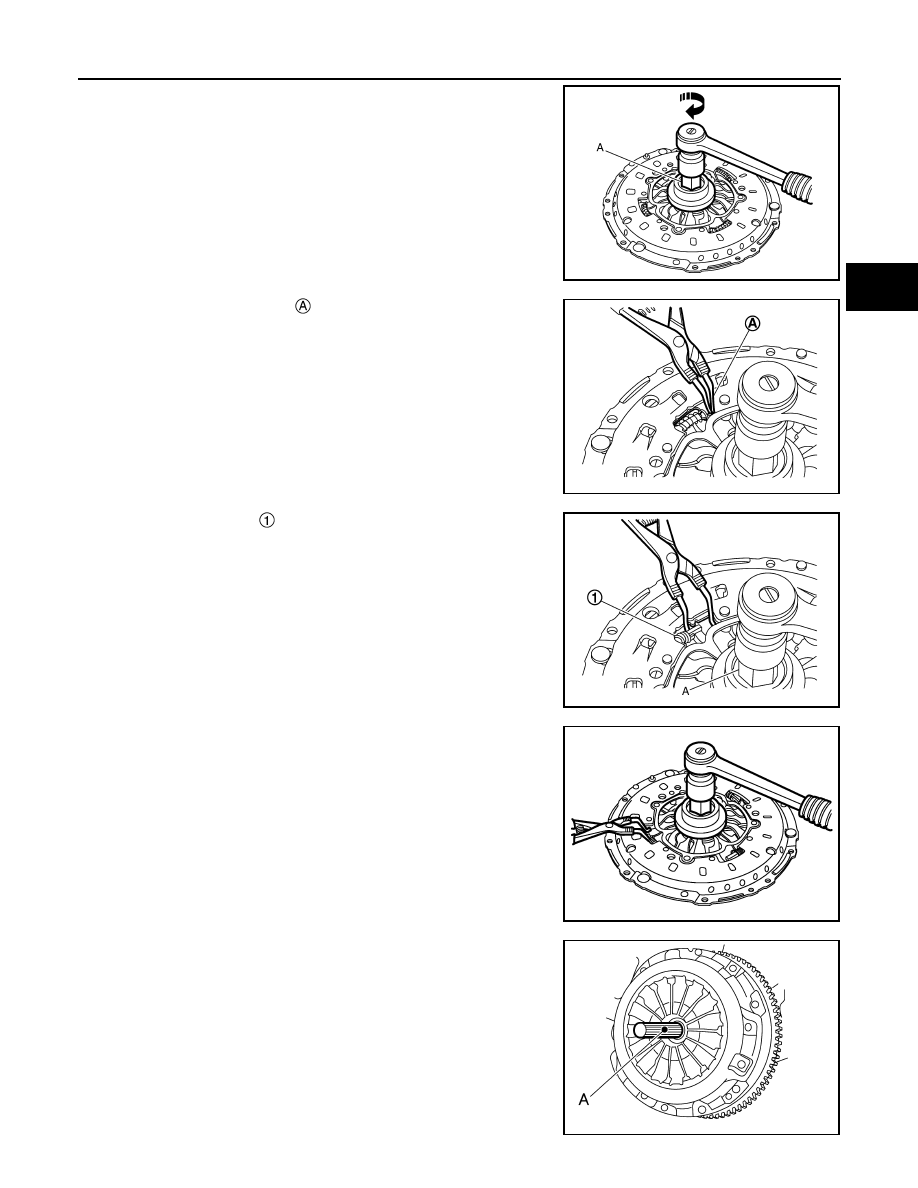

CL-37

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

5.

Tighten the nut (A) fully.

6.

Fit a circlip and clamp it at

.

7.

Compress the spring

 to reprime the automatic compensation.

Then slacken off the nut (A) completely. (Spring is compressed.)

8.

Release clutch cover.

9.

Remove clutch cover from the base plate of clutch compression
tool [SST:

—

 (Emb.1604)].

CAUTION:

Be sure that the springs are correctly compressed.

10. Install clutch disc using clutch aligner (A) (commercial service

tool), and temporarily install clutch cover.

CAUTION:

• Never drop clutch disc and clutch cover.

JSDIA6089ZZ

JSDIA6090ZZ

JSDIA6091ZZ

E1BIA0784ZZ

JSDIA3358ZZ

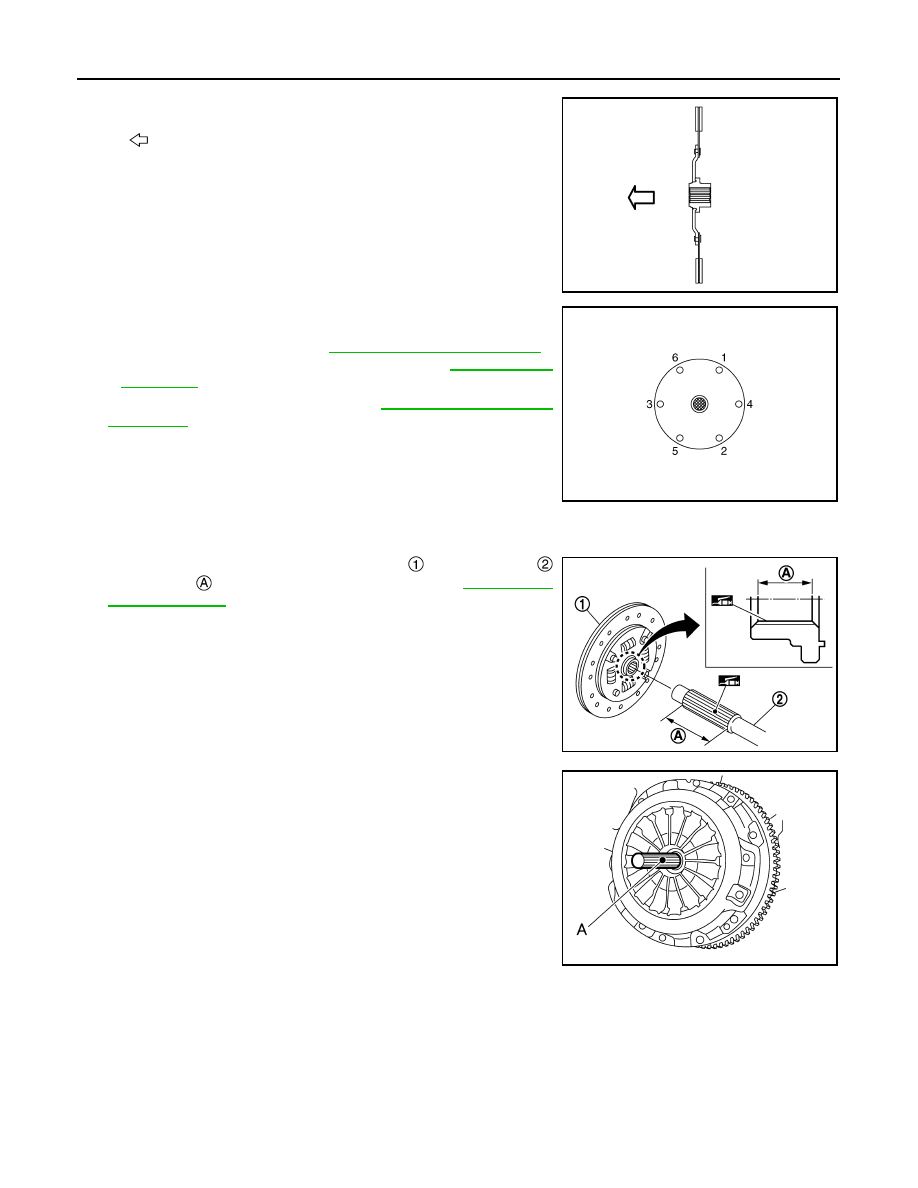

CL-38

< REMOVAL AND INSTALLATION >

CLUTCH DISC AND CLUTCH COVER

• Be careful with the orientation of the clutch disc.

11. Tighten clutch cover mounting bolts to the specified torque

evenly in the numerical order as shown in the figure.
• For tightening torque, refer to

CL-35, "R9M : Exploded View"

.

• After installation, perform inspection. Refer to

CL-39, "R9M :

Inspection"

.

12. Install transaxle assembly. Refer to

TM-122, "Removal and

Installation"

.

In Case of New Clutch Cover Installation:

1.

Clean clutch disc and input shaft splines to remove grease and powder arisen from abrasion.

2.

Apply recommended grease to clutch disc

 and input shaft

splines area

. For recommended grease, refer to

CL-35, "R9M

: Exploded View"

.

CAUTION:

Be sure to apply grease to the points specified. Otherwise,
noise, poor disengagement, or damage to the clutch may
result. Excessive grease may cause slip or judder. And if it
adheres to seal of CSC, it cause clutch fluid leakage. Wipe
out excess grease. Wipe out any grease oozing from the
parts.

3.

Install clutch disc using clutch aligner (A) (commercial service
tool), and temporarily install clutch cover.

CAUTION:

• Never drop clutch disc and clutch cover.

: Engine side

JSDIA6092ZZ

JSDIA3045ZZ

JSDIA3617ZZ

JSDIA3358ZZ

CLUTCH DISC AND CLUTCH COVER

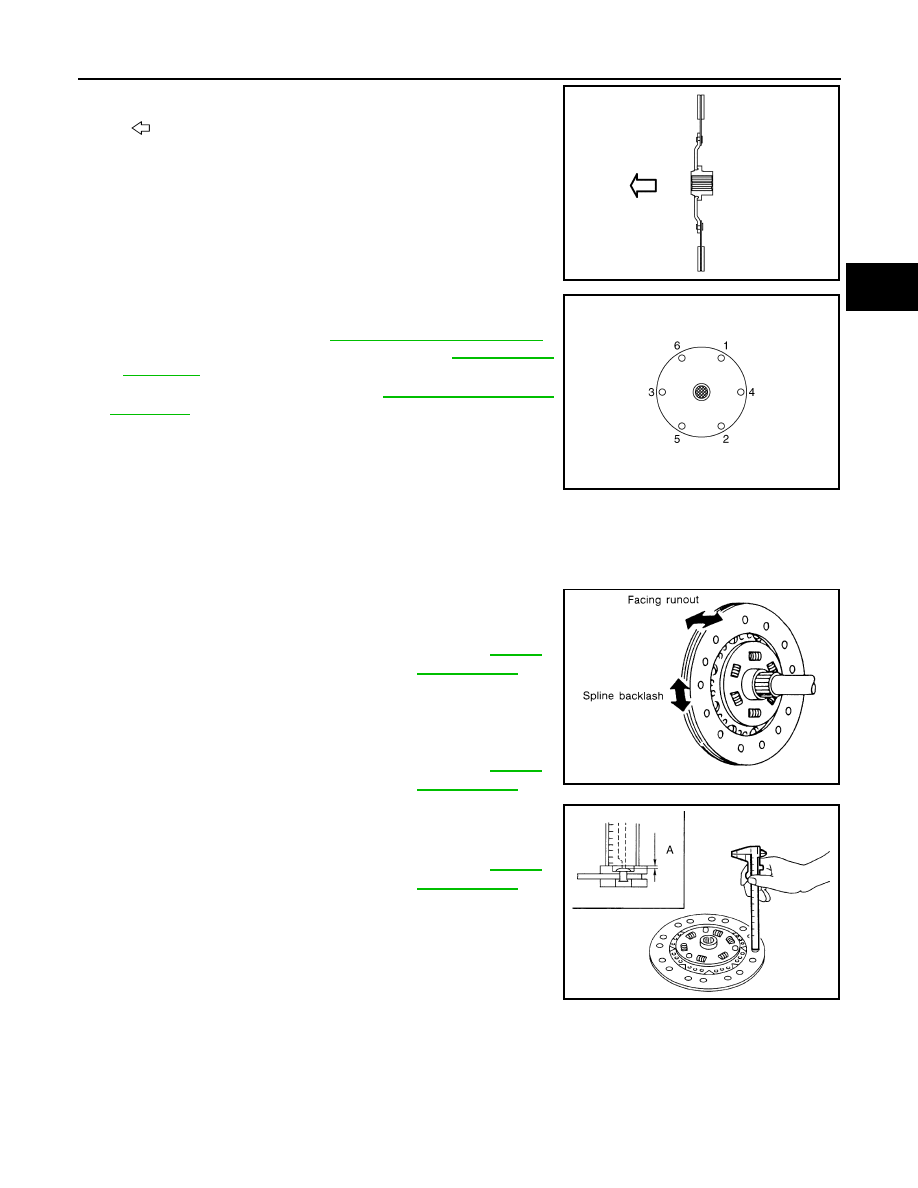

CL-39

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

• Be careful with the orientation of the clutch disc.

4.

Tighten clutch cover mounting bolts to the specified torque
evenly in the numerical order as shown in the figure.
• For tightening torque, refer to

CL-35, "R9M : Exploded View"

.

• After installation, perform inspection. Refer to

CL-39, "R9M :

Inspection"

.

5.

Install transaxle assembly. Refer to

TM-122, "Removal and

Installation"

.

R9M : Inspection

INFOID:0000000010752999

INSPECTION AFTER REMOVAL

Clutch Disc

• Measure circumferential runout relative to clutch disc center spline.

If it is outside the specification, replace clutch disc.

• Measure backlash to clutch disc spline and input shaft spline at the

circumference of clutch disc. If it is outside the specification,
replace clutch disc.

• Measure the depth (A) to clutch disc facing rivet heads, using a

calipers. If it exceeds the allowable wear limit, replace clutch disc.

Clutch Cover

• Check clutch cover thrust ring for wear or breakage. If wear or breakage is found, replace clutch cover.

NOTE:
• Worn thrust ring will generate a beating noise when tapped at the rivet with a hammer.
• Broken thrust ring will make a clinking sound when cover is shaken up and down.

• If a trace of burn or discoloration is found on the clutch cover pressure plate to clutch disc contact surface,

repair the surface with sandpaper. If surface is damaged or distorted, replace clutch cover.

: Engine side

JSDIA6092ZZ

JSDIA3045ZZ

Runout limit/diameter of the area to
be measured

: Refer to

CL-41,

"Clutch Disc"

.

Maximum allowable spline backlash
(at outer edge of disc)

: Refer to

CL-41,

"Clutch Disc"

.

Facing wear limit (depth to the rivet
head)

: Refer to

CL-41,

"Clutch Disc"

.
