REPLACEMENT OPERATIONS

BRM-141

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

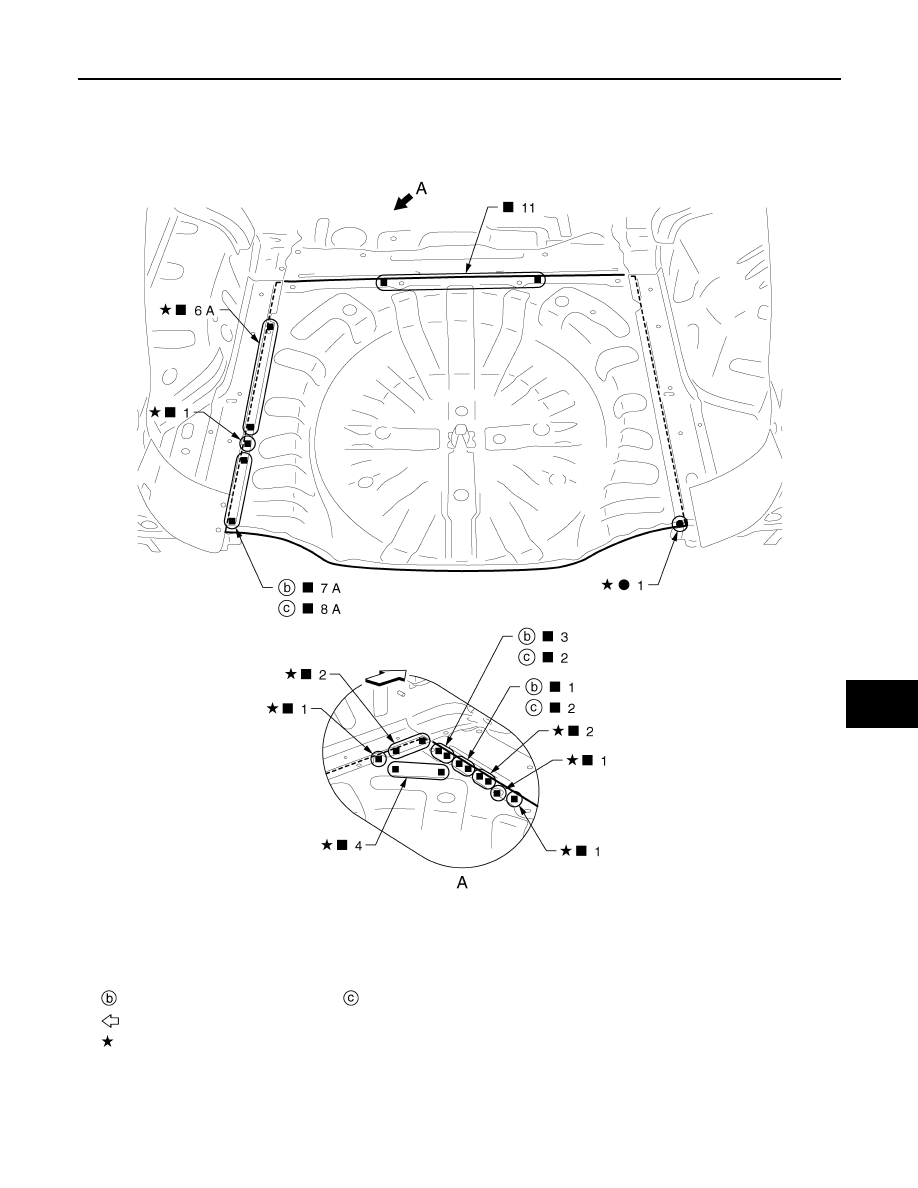

Rear Floor Rear

INFOID:0000000010843515

Work after rear panel is removed.

Left side

Right side

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

Replacement part

z

Rear floor rear

JSKIA3869ZZ

BRM-142

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

REPLACEMENT OPERATIONS

Rear Side Member Extension (SUV Models)

INFOID:0000000010843516

Work after rear panel is removed.

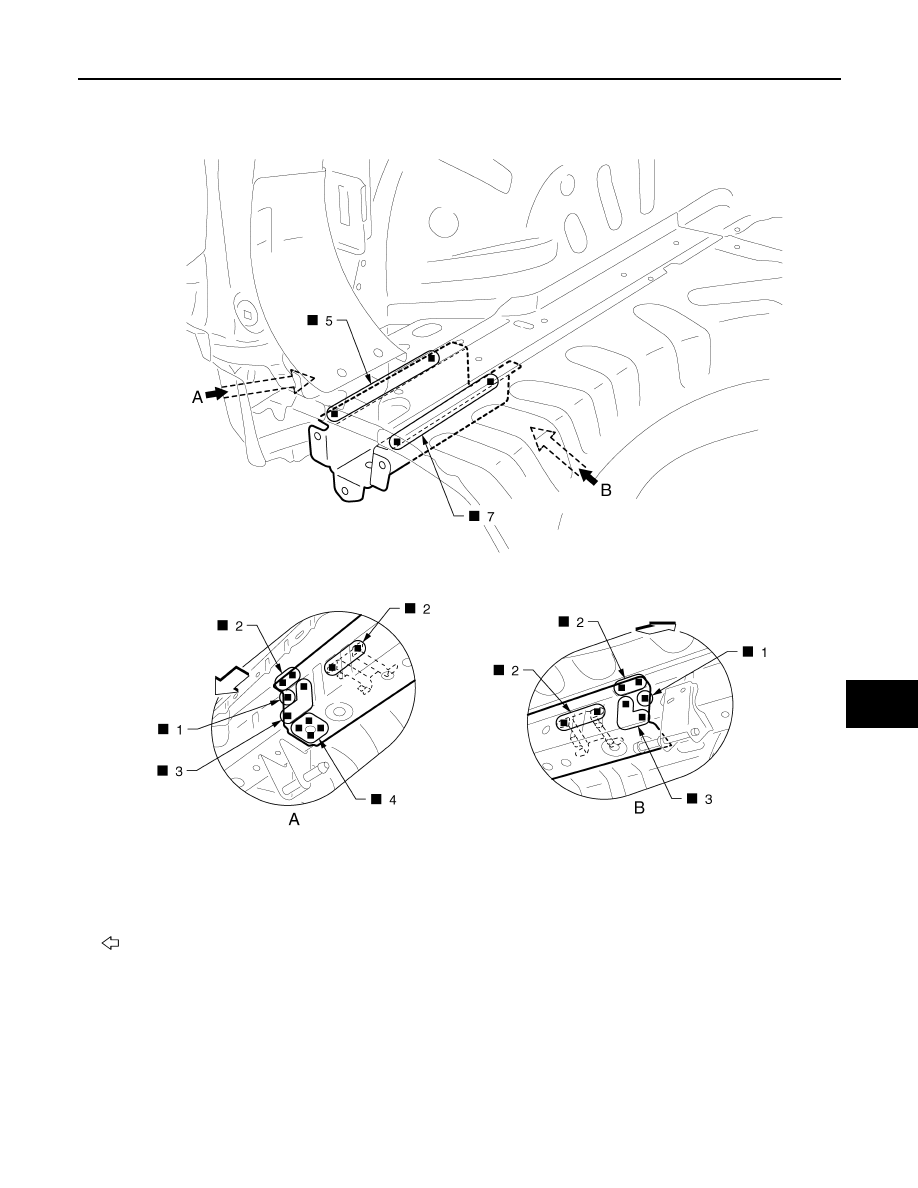

Rear Side Member Extension (Wagon Models)

INFOID:0000000010843517

Work after rear panel is removed.

: Vehicle front

Replacement part

z

Rear side member extension

JSKIA3872ZZ

REPLACEMENT OPERATIONS

BRM-143

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

: Vehicle front

Replacement part

z

Rear side member extension

z

Rear 3rd seat mounting bracket as-
sembly

JSKIA4034ZZ

BRM-144

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

REPLACEMENT OPERATIONS

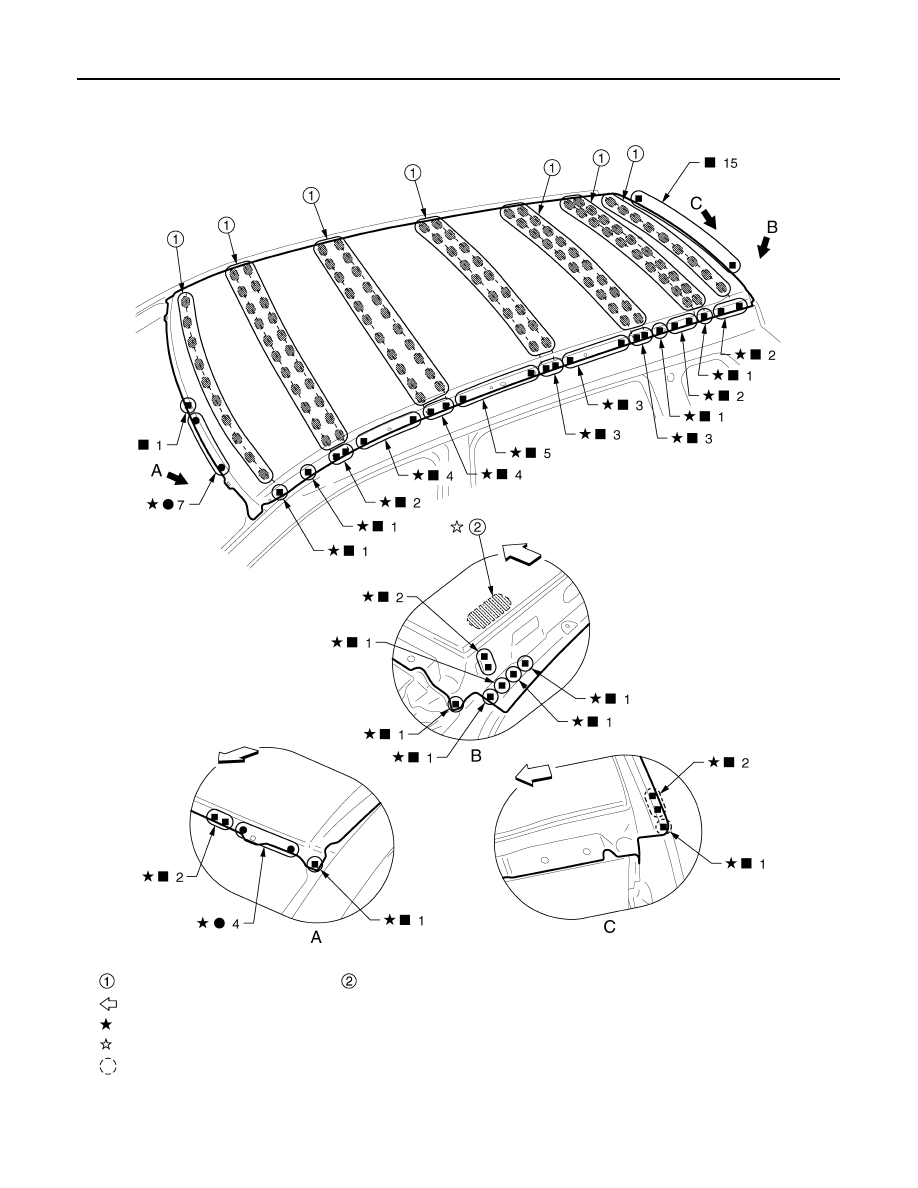

Roof (Normal Roof Models)

INFOID:0000000011005442

Body sealing

adhesive

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

: Adhesive portion apply to both side of the vehicle.

: Weld the parts onto the back of the component part.

Replacement part

z

Roof

z

Roof bow No.1

z

Roof bow No.2

z

Roof bow No.3

z

Roof bow No.4

z

Roof bow No.5

JSKIA3873ZZ
