REPLACEMENT OPERATIONS

BRM-113

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

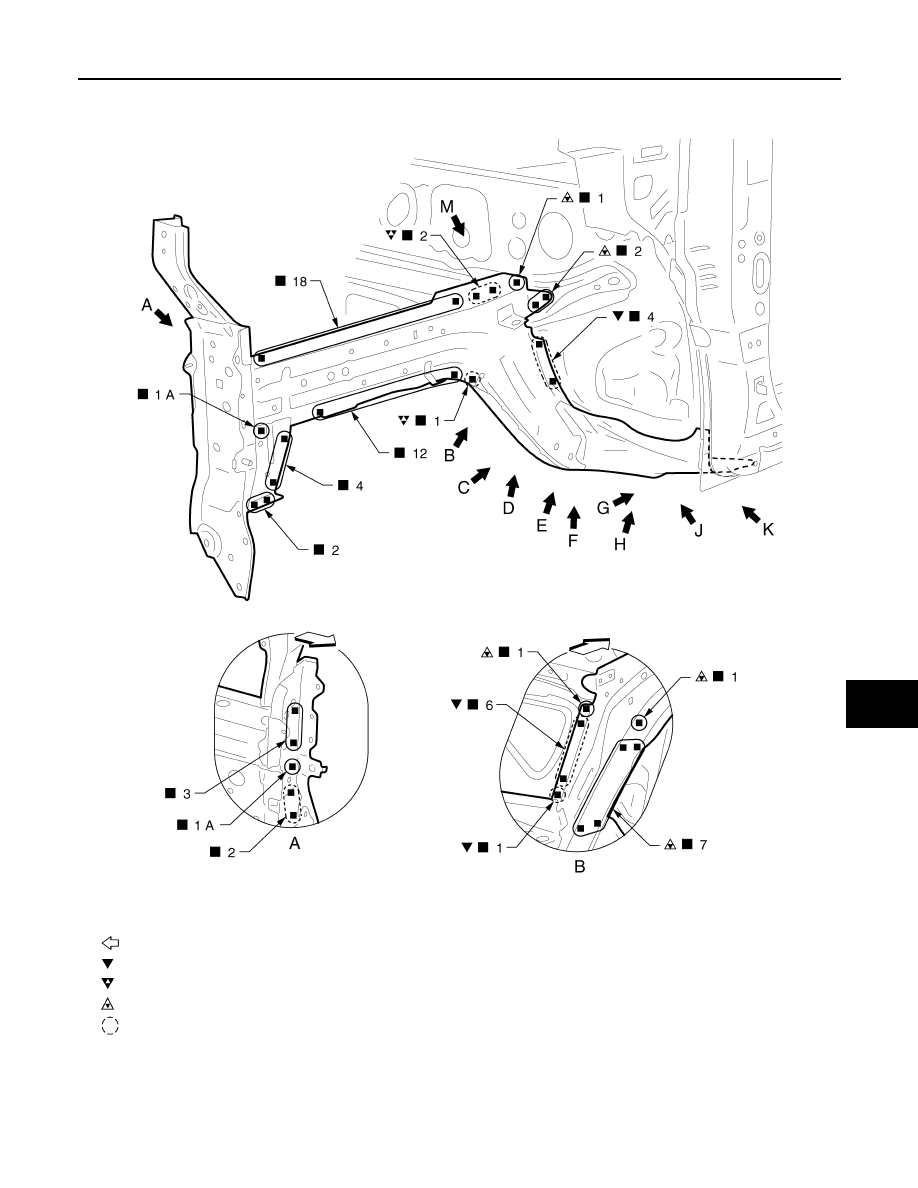

: Vehicle front

Replacement part

z

Upper hoodledge

z

Lower hoodledge

z

Hoodledge reinforcement

z

Hoodledge connector assembly

JSKIA4600ZZ

BRM-114

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

REPLACEMENT OPERATIONS

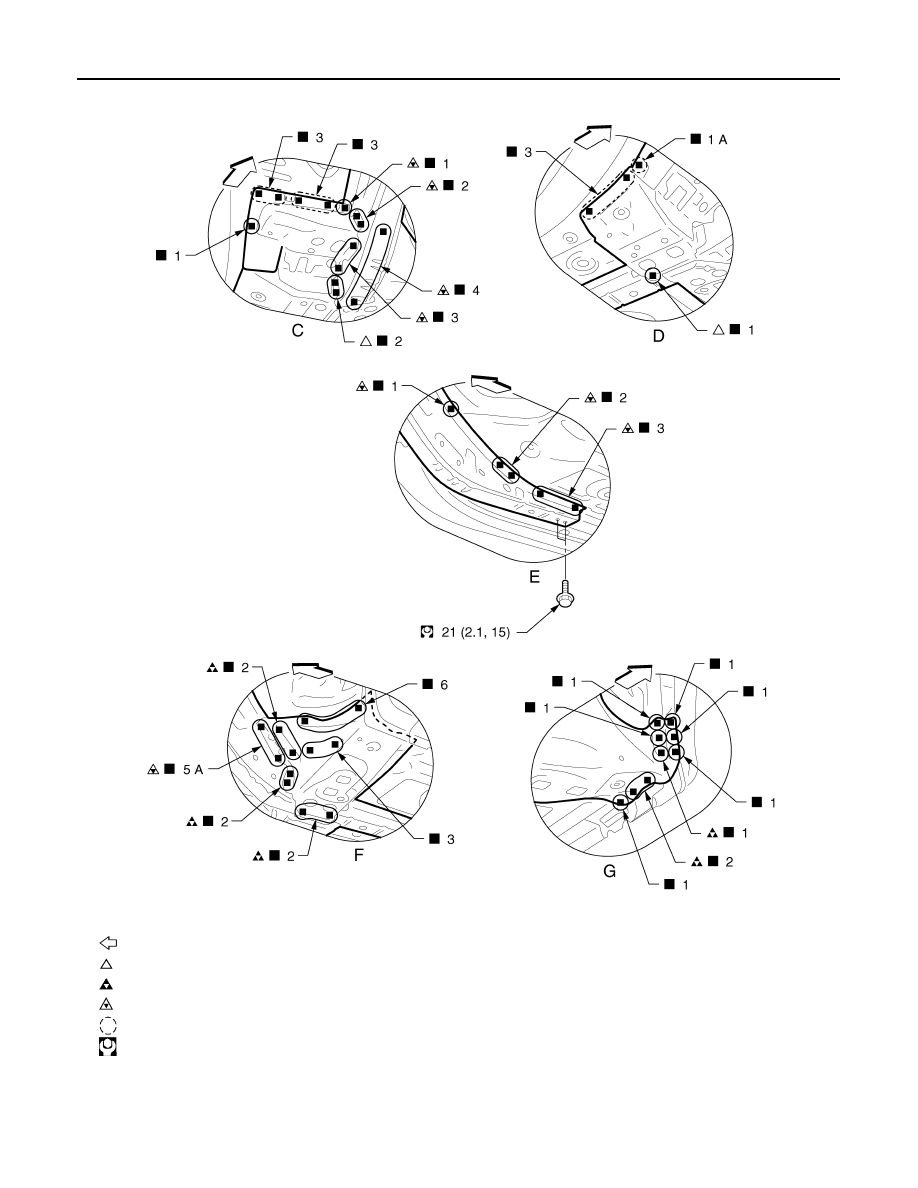

View E: Before installing hoodledge reinforcement

Front Side Member

INFOID:0000000010843507

Work after upper radiator core support assembly and hoodledge are removed.

: Vehicle front

JSKIA4601ZZ

REPLACEMENT OPERATIONS

BRM-115

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

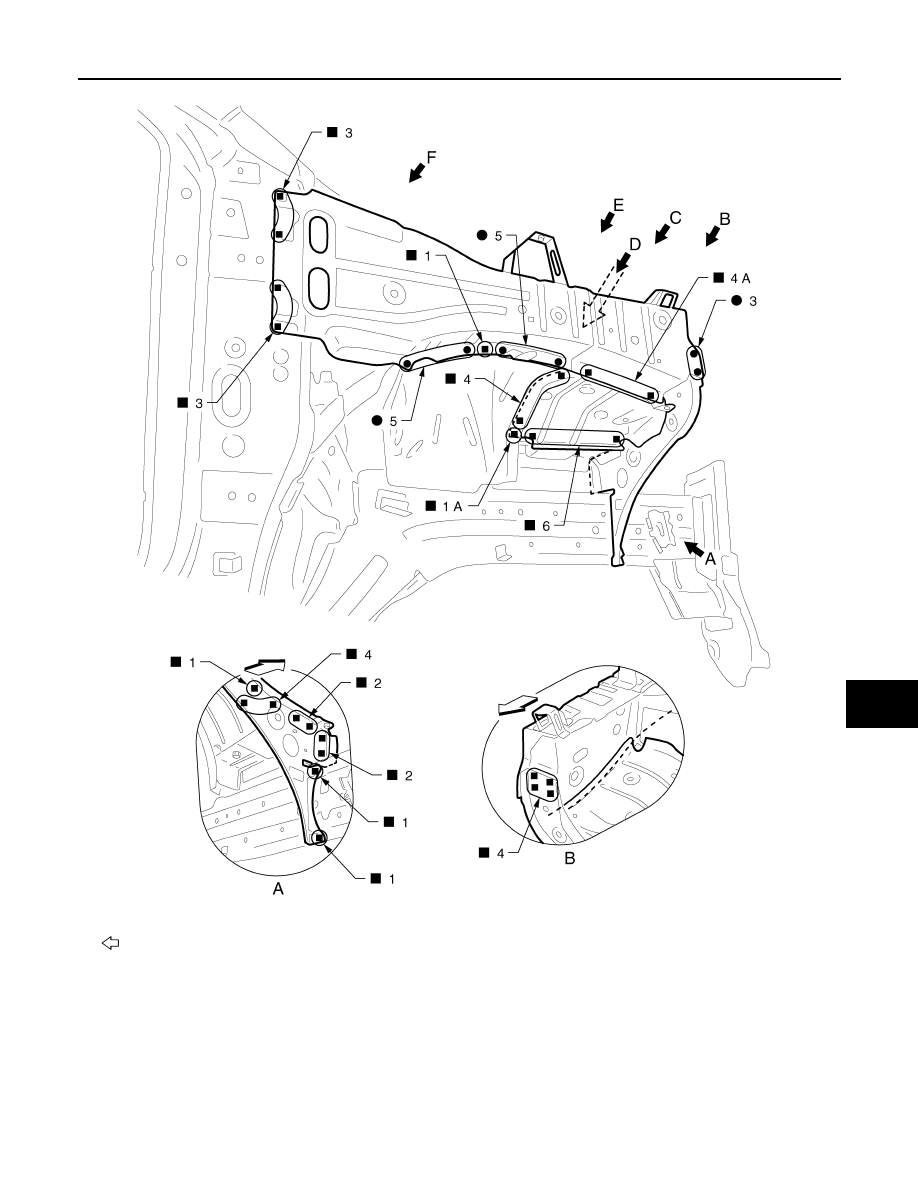

: Vehicle front

: Drill

φ

7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

11 mm (0.43 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

12 mm (0.47 in) hole for the plug welding hole (ultra high strength steel).

: Weld the parts onto the back of the component part.

Replacement part

z

Front side member closing plate

z

Front side member assembly

z

Front suspension mounting bracket

JSKIA3848ZZ

BRM-116

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

REPLACEMENT OPERATIONS

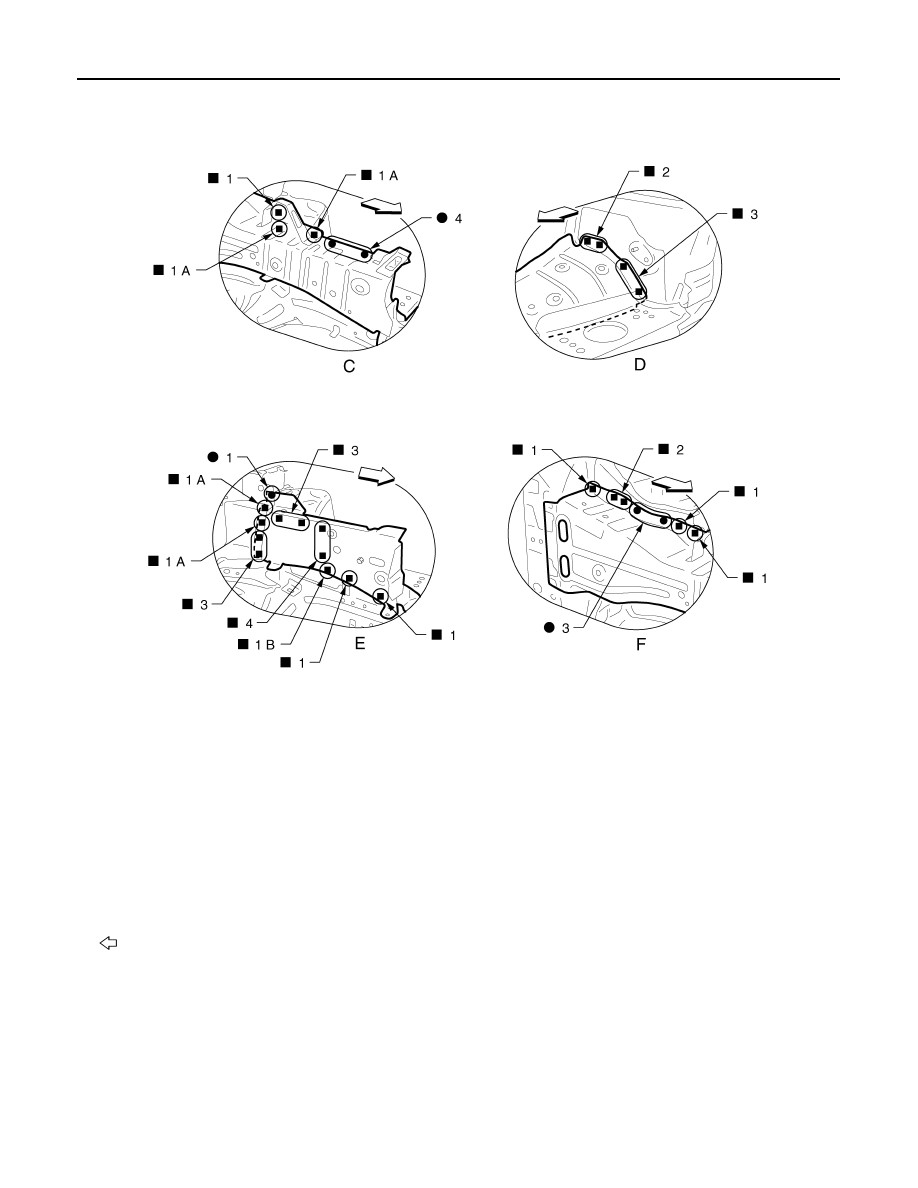

View E: Before installing front suspension mounting bracket

: Vehicle front

: Drill

φ

8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

10 mm (0.39 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

12 mm (0.47 in) hole for the plug welding hole (ultra high strength steel).

: Weld the parts onto the back of the component part.

: N·m (kg-m, ft-lb)

JSKIA4603GB
