DIAGNOSIS AND REPAIR WORK FLOW

WT-29

< BASIC INSPECTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

YES

>> GO TO 8.

NO

>> Perform diagnosis procedure of “TIRE PRESSURE SENSOR ID REGISTRATION CANNOT BE

COMPLETED”. Refer to

WT-55, "Diagnosis Procedure"

. And then GO TO 8.

8.

CHECK LOW TIRE PRESSURE WARNING LAMP STATES (2)

1.

Adjust the tire pressure for all wheels specified to the value. Refer to

WT-66, "Tire Air Pressure"

.

2.

Perform TPMS reset operation. Refer to

WT-14, "TPMS reset operation"

.

3.

Check states of low tire pressure warning lamp in combination meter when ignition switch is turned ON.

Does low tire pressure warning lamp turn ON for 1 second and then turn OFF?

YES

>> Explain to the customer that this is TPMS normal operation, and GO TO 13.

NO

>> GO TO 9.

9.

PERFORM SELF-DIAGNOSIS

With CONSULT

Perform self-diagnosis for “AIR PRESSURE MONITOR”.

Is DTC detected?

YES

>> Record or print self-diagnosis results and freeze frame data (FFD). GO TO 10.

NO

>> GO TO 11.

10.

PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT

Perform DTC CONFIRMATION PROCEDURE for the detected DTC, and then check that DTC is detected
again.

Is DTC detected?

YES

>> GO TO 12.

NO

>> Check harness and connectors based on the information obtained by interview and repair or

replace error-detected parts. Refer to

GI-44, "Intermittent Incident"

. GO TO 13.

11.

CONFIRM THE SYMPTOM

Perform symptom diagnosis. refer to

WT-48, "Symptom Table"

.

>> Repair or replace error-detected parts. GO TO 13.

12.

DIAGNOSIS PROCEDURE

Perform DTC Diagnosis Procedure.

>> Repair or replace error-detected parts. GO TO 13.

13.

FINAL CHECK

Recheck the symptom and check that the symptom is not reproduced on the same conditions.
Is the symptom reproduced?

YES

>> GO TO 3.

NO

>> INSPECTION END

WT-30

< BASIC INSPECTION >

TIRE PRESSURE SENSOR ID REGISTRATION

TIRE PRESSURE SENSOR ID REGISTRATION

Description

INFOID:0000000010715071

This procedure must be performed:
• After replacement of a tire pressure sensor or BCM.
• After replacement of tire or road wheel.

NOTE:
ID registration is unnecessary if there are no change in the positions of each wheels (tire pressure sensors)
before wheel removal and after wheel installation.

• After performing tire rotation.

Work Procedure

INFOID:0000000010715072

1.

TIRE PRESSURE SENSOR ID REGISTRATION PROCEDURE

CAUTION:

To perform ID registration, observe the following points:

• Never register ID in a place where radio waves are interfered (e.g. radio tower).
• Never register ID in a place close to vehicles including TPMS.
NOTE:
Refer to the manufacture operating instructions for how to use the tire pressure sensor activation tool
[KV48105501 or NI-4032].

With CONSULT

1.

Turn the ignition switch ON.

2.

Display the “WORK SUPPORT” screen and select “ID REGIST”.

3.

Select the start button on the “ID REGIST” screen.

4.

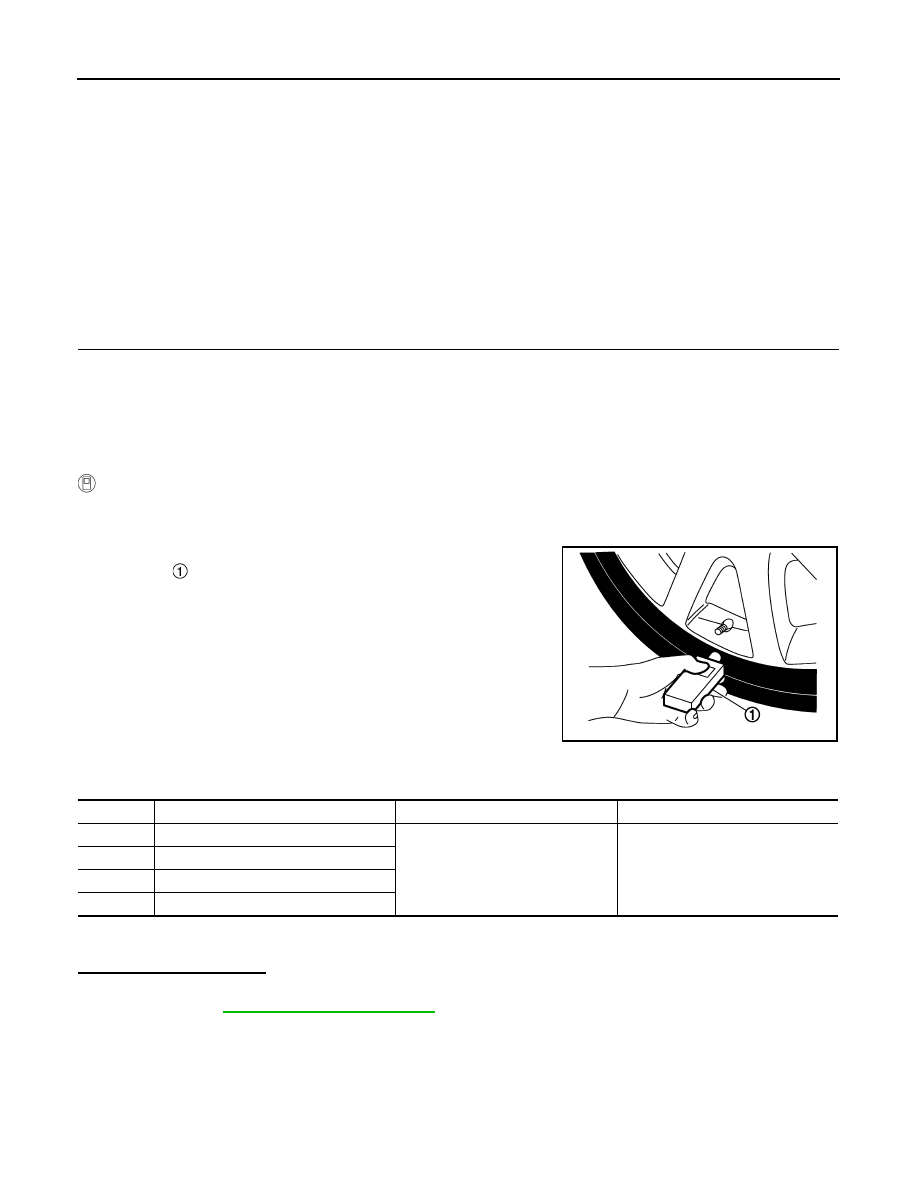

Contact the tire pressure sensor activation tool [KV48105501 or
NI-4032]

 to the side of the tire at the location to the tire pres-

sure sensor.

5.

Press the registration button and wait until the hazard warning
lamp blinks twice.

CAUTION:

Perform the ID registration procedure starting from the
vehicle front left wheel, then repeat the procedure in the
order of the front right wheel, rear right wheel, and rear left
wheel.

6.

When ID registration is completed, check the following pattern at each wheel.

7.

After the ID registration procedure for all wheels is completed, press “End” to end ID registration, and
check that ID registration for all wheels is completed.

Is the check result normal?

YES

>> ID registration END.

NO

>> Refer to

WT-35, "Diagnosis Procedure"

.

NNEIC0020ZZ

Sequence

ID registration position

Turn signal lamp

CONSULT

1

Front left wheel

2 blinks

“Yet (red)”

↓

“Done (green)”

2

Front right wheel

3

Rear right wheel

4

Rear left wheel

CONFIGURATION (TIRE PRESSURE MONITORING SYSTEM)

WT-31

< BASIC INSPECTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

CONFIGURATION (TIRE PRESSURE MONITORING SYSTEM)

Work Procedure

INFOID:0000000010715073

CAUTION:

• Use “Manual Configuration” only when “TYPE ID” of BCM cannot be read.
• After configuration, perform the following:
- Turn the ignition switch from OFF to ON and check that the low tire pressure warning lamp turns

OFF after staying illuminated for approximately two seconds.

- Perform tire pressure sensor ID registration. Refer to

WT-30, "Work Procedure"

.

• If an error occurs during configuration, start over from the beginning.

1.

CHECKING TYPE ID (1)

Use FAST (service parts catalogue) to search BCM of the parts number and find “Type ID”.

Is “Type ID” displayed?

YES

>> Print out “Type ID” and GO TO 2.

NO

>> “Configuration” is not required for BCM. Replace in the usual manner. Refer to

BCS-121,

"Removal and Installation"

.

2.

CHECKING TYPE ID (2)

CONSULT Configuration

1.

Select “AIR PRESSURE MONITOR”

2.

Select “Before Replace ECU” of “Read/Write Configuration”.

3.

Check that “Type ID” is displayed on the CONSULT screen.

Is “Type ID” displayed?

YES

>> GO TO 3.

NO

>> GO TO 7.

3.

VERIFYING TYPE ID (1)

CONSULT Configuration

Compare a “Type ID” displayed on the CONSULT screen with the one searched by using FAST (service parts
catalogue) to check that these “Type ID” agree with each other.
NOTE:
For the “Type ID” searched by using FAST (service parts catalog), use the last five digits of the “Type ID”.

>> GO TO 4.

4.

SAVING TYPE ID

CONSULT Configuration

Save “Type ID” on CONSULT.

>> GO TO 5.

5.

REPLACING BCM (1)

Replace BCM. Refer to

BCS-121, "Removal and Installation"

.

>> GO TO 6.

6.

WRITING (AUTOMATIC WRITING)

CONSULT Configuration

1.

Select “After Replace ECU” of “Re/programming, Configuration” or that of “Read / Write Configuration”.

2.

Select the “Type ID” agreeing with the one stored on CONSULT and the one searched by using FAST
(service parts catalogue) to write the “Type ID” into the BCM.
NOTE:
For the “Type ID” searched by using FAST (service parts catalog), use the last five digits of the “Type ID”.

>> GO TO 9.

WT-32

< BASIC INSPECTION >

CONFIGURATION (TIRE PRESSURE MONITORING SYSTEM)

7.

REPLACING BCM (2)

Replace BCM. Refer to

BCS-121, "Removal and Installation"

.

>> GO TO 8.

8.

WRITING (MANUAL WRITING)

CONSULT Configuration

1.

Select “Manual Configuration”.

2.

Select the “Type ID” searched by using FAST (service parts catalogue) to write the “Type ID” into the
BCM.
NOTE:
For the “Type ID” searched by using FAST (service parts catalog), use the last five digits of the “Type ID”.

>> GO TO 9.

9.

VERIFYING TYPE ID (2)

Compare “Type ID” written into the BCM with the one searched by using FAST (service parts catalogue) to
check that these “Type ID” agree with each other.
NOTE:
For the “Type ID” searched by using FAST (service parts catalog), use the last five digits of the “Type ID”.

>> GO TO 10.

10.

CHECKING LOW TIRE PRESSURE WARNING LAMP

1.

Turn the ignition switch OFF.

2.

Turn the ignition switch ON and check that the low tire pressure warning lamp turns OFF after staying illu-
minated for approximately two seconds.

CAUTION:

Never start the engine.

Is the inspection result normal?

YES

>> GO TO 11.

NO

>> Perform the self-diagnosis of “AIR PRESSURE MONITOR”. Refer to

WT-15, "CONSULT Func-

tion"

.

11.

PERFORMING SUPPLEMENTARY WORK

1.

Adjust the tire pressure to the specified value. Refer to

WT-66, "Tire Air Pressure"

.

2.

Perform tire pressure sensor ID registration. Refer to

WT-30, "Work Procedure"

.

3.

Perform the self-diagnosis of all systems.

4.

Erase self-diagnosis results.

5.

Perform TPMS reset operation. Refer to

WT-14, "TPMS reset operation"

.

>> End of work.
