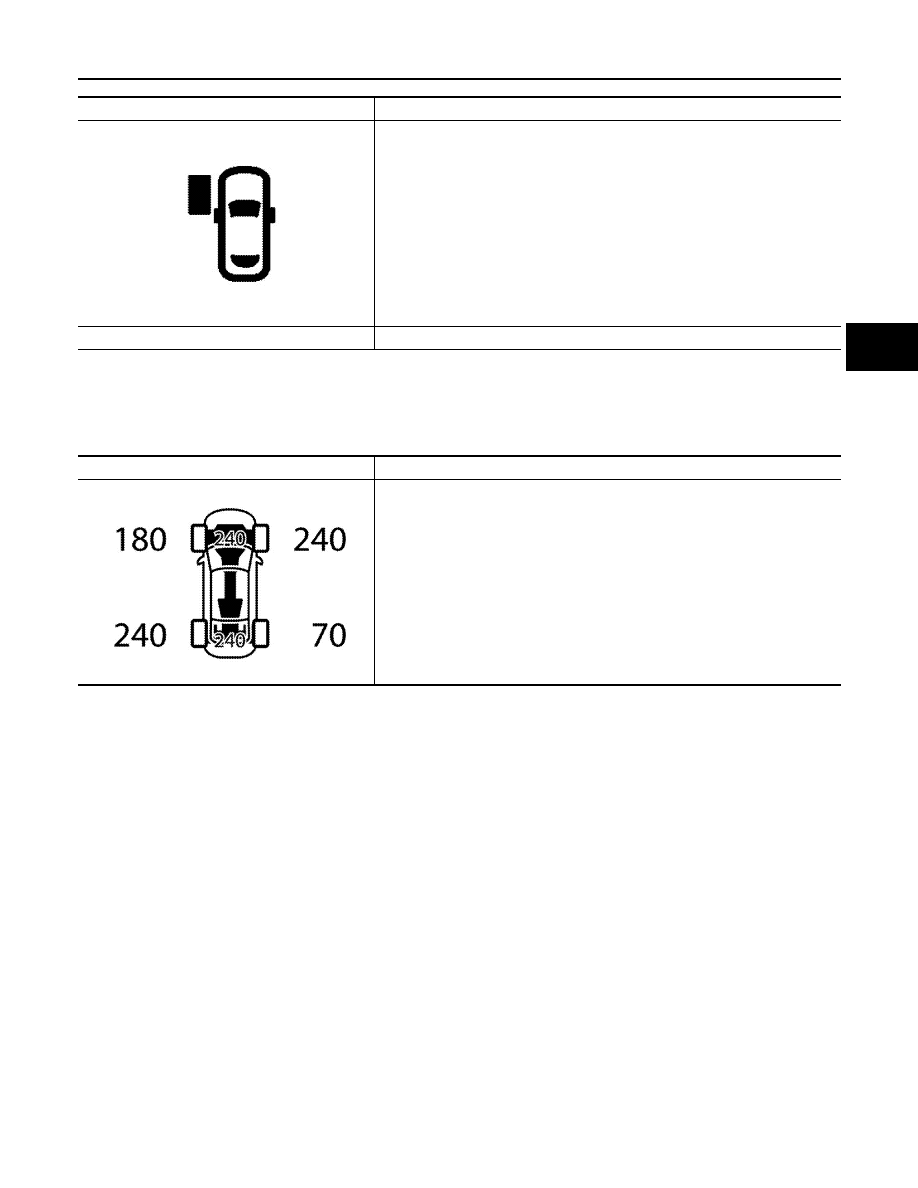

INFORMATION DISPLAY (COMBINATION METER) : Tire Pressure Display

INFOID:0000000010715063

The adoption of this function allows tire pressure indication on the information display installed to the combina-
tion meter.

Design

Massage

Low tyre pressure

–

Tyre pressure system fault

JMEIA0247ZZ

Design

Description

• Tire pressure of each tire is displayed at side of each tire.
• Setting tire pressure of front and rear tires are displayed between front/rear

tires.

JMEIA0248ZZ

WT-14

< SYSTEM DESCRIPTION >

OPERATION

OPERATION

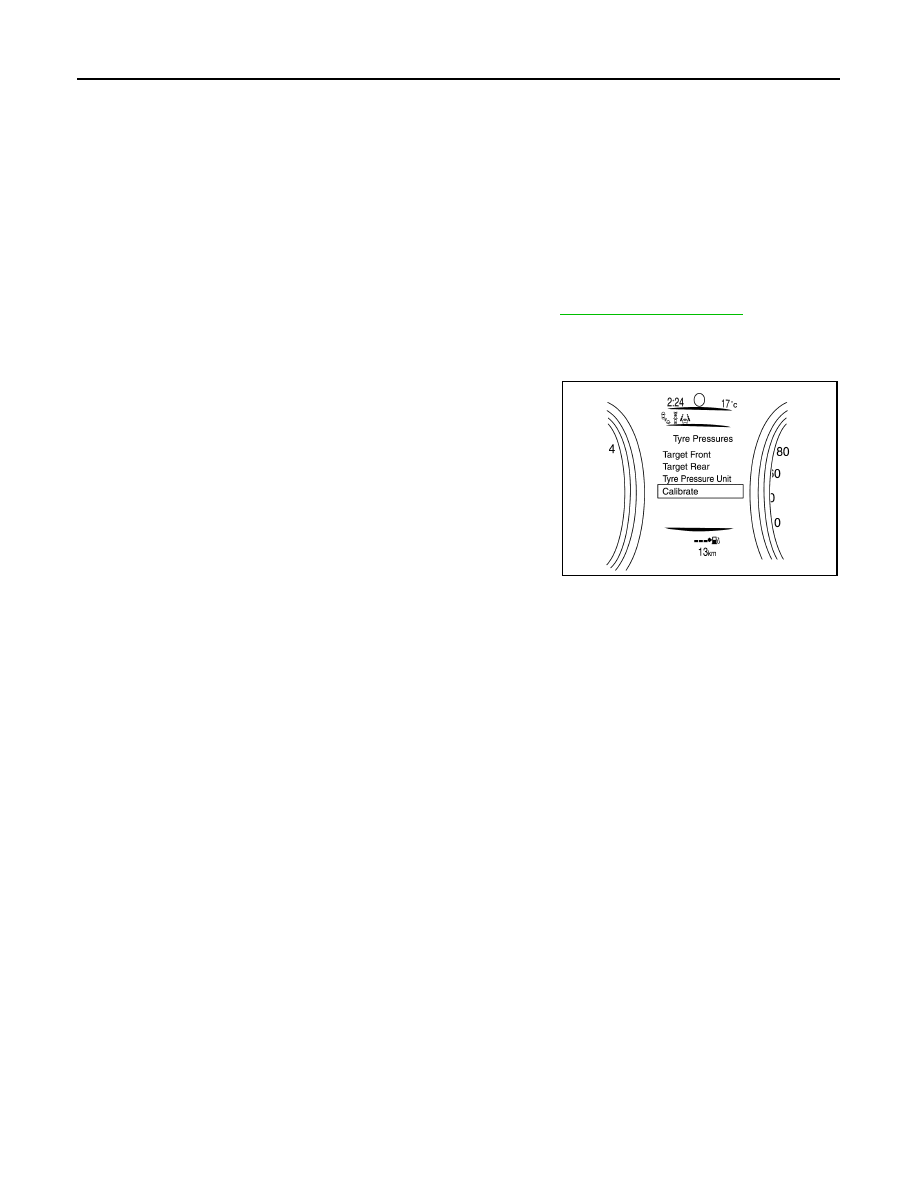

TPMS reset operation

INFOID:0000000010715064

DESCRIPTION

TPMS reset operation can set the present tire air content as a TPMS reference value.
This procedure must be performed:
• After tire pressure adjustment
• After tire or road wheel replacement
• After performing tire rotation

TPMS RESET PROCEDURE

1.

Adjust tire pressure for all wheels to the specified value. Refer to

WT-66, "Tire Air Pressure"

.

2.

Place Ignition in the ON position.

CAUTION:

Never start the engine.

3.

Perform TPMS reset operation on the information display.

4.

Drive the vehicle between 25 km/h (16 MPH) and 100 km/h (62
MPH) for 2 minutes or more.
NOTE:
The TPMS settings are updated to driving.

CAUTION:

TPMS detects low tire pressure after this calibration. Before
calibration finish, low tire warning lamp does not turn ON.
(This is not broken.)

JSEIA0958ZZ

DIAGNOSIS SYSTEM (TIRE PRESSURE MONITORING SYSTEM)

WT-15

< SYSTEM DESCRIPTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

DIAGNOSIS SYSTEM (TIRE PRESSURE MONITORING SYSTEM)

CONSULT Function

INFOID:0000000010715065

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

ACTIVE TEST

ECU IDENTIFICATION

BCM part number can be read.

SELF DIAGNOSTIC RESULT

NOTE:
Before performing Self Diagnostic Result, be sure to register the tire pressure sensor ID or the actual malfunc-
tion may be different from that displayed on CONSULT.
Refer to following:

WT-21, "DTC Index"

.

FREEZE FRAME DATA (FFD)

The following vehicle status is recorded when DTC is detected and is displayed on CONSULT.

Diagnosis mode

Function Description

ECU identification

Parts number of BCM can be read.

Active Test

Send the drive signal from CONSULT to the actuator. The operation check can be performed.

Self Diagnostic Result

• Retrieve DTC from BCM and display diagnostic items.
• Self-diagnostic results and freeze frame data can be read and erased quickly.

Data Monitor

Monitor the input/output signal of the BCM in real time.

Work Support

This mode enables a technician to adjust some devices faster and more accurately.

Re/programming, Configuration

• Read and save the vehicle specification (TYPE ID).
• Write the vehicle specification (TYPE ID) when replacing BCM.

Test Item

Description

FLASHER

This test is able to check turn signal lamp operation [On/Off].

WARNING LAMP

This test is able to check tire pressure warning lamp operation [On/Off].

ID REGIST WARNING

This test is able to check ID regist warning chime operation [On/Off].

HORN

This test is able to check horn operation [On/Off].

Item name

Display item

SET AIR PRESSURE 2 FL

Tire pressure calculated by reference temperature front left tire

SET AIR PRESSURE 2 FR

Tire pressure calculated by reference temperature front right tire

SET AIR PRESSURE 2 RR

Tire pressure calculated by reference temperature rear right tire

SET AIR PRESSURE 2 RL

Tire pressure calculated by reference temperature rear left tire

WARNING AIR PRESSURE FL

Warning air pressure front left

WARNING AIR PRESSURE FR

Warning air pressure front right

WARNING AIR PRESSURE RR

Warning air pressure rear right

WARNING AIR PRESSURE RL

Warning air pressure rear left

AIR PRESS FL

Air pressure front left

AIR PRESS FR

Air pressure front right

AIR PRESS RR

Air pressure rear right

AIR PRESS RL

Air pressure rear left

SET TEMPERATURE

Set temperature

TIRE TEMPERATURE FL

Tire temperature front left

TIRE TEMPERATURE FR

Tire temperature front right

WT-16

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (TIRE PRESSURE MONITORING SYSTEM)

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

TIRE TEMPERATURE RR

Tire temperature rear right

TIRE TEMPERATURE RL

Tire temperature rear left

Item name

Display item

Monitor Item (Unit)

Description

VHCL SPEED SE (km/h)

Vehicle speed of the moment a particular DTC is detected

AIR PRESS FL (kPa, kgf/cm

2

 or Psi)

Indicates air pressure of front left tire.

AIR PRESS FR (kPa, kgf/cm

2

 or Psi)

Indicates air pressure of front right tire.

AIR PRESS RR (kPa, kgf/cm

2

 or Psi)

Indicates air pressure of rear right tire.

AIR PRESS RL (kPa, kgf/cm

2

 or Psi)

Indicates air pressure of rear left tire.

LOW TIRE PRESSURE W/L (Off/On)

Indicates condition of low tire pressure warning lamp in combination meter.

BUZZER 2 (Off/On)

Indicates condition of buzzer in combination meter.

TIRE TEMPERATURE FL (

°

C)

Indicates tire temperature of front left tire.

TIRE TEMPERATURE FR (

°

C)

Indicates tire temperature of front right tire.

TIRE TEMPERATURE RR (

°

C)

Indicates tire temperature of rear right tire.

TIRE TEMPERATURE RL (

°

C)

Indicates tire temperature of rear left tire.

HAZARD (Off/On)

Indicates condition of hazard.

WARNING AIR PRESSURE FL (kPa, kgf/cm

2

 or Psi)

Indicates warning air pressure front left tire.

WARNING AIR PRESSURE FR (kPa, kgf/cm

2

 or Psi)

Indicates warning air pressure front right tire.

WARNING AIR PRESSURE RR (kPa, kgf/cm

2

 or Psi)

Indicates warning air pressure rear right tire.

WARNING AIR PRESSURE RL (kPa, kgf/cm

2

 or Psi)

Indicates warning air pressure rear left tire.

SET AIR PRESSURE 1 FL (kPa, kgf/cm

2

 or Psi)

Reference pressure front left tire.

SET AIR PRESSURE 1 FR (kPa, kgf/cm

2

 or Psi)

Reference pressure front right tire.

SET AIR PRESSURE 1 RR (kPa, kgf/cm

2

 or Psi)

Reference pressure rear right tire.

SET AIR PRESSURE 1 RL (kPa, kgf/cm

2

 or Psi)

Reference pressure rear left tire.

SET AIR PRESSURE 2 FL (kPa, kgf/cm

2

 or Psi)

Tire pressure calculated by reference temperature front left tire.

SET AIR PRESSURE 2 FR (kPa, kgf/cm

2

 or Psi)

Tire pressure calculated by reference temperature front right tire.

SET AIR PRESSURE 2 RR (kPa, kgf/cm

2

 or Psi)

Tire pressure calculated by reference temperature rear right tire.

SET AIR PRESSURE 2 RL (kPa, kgf/cm

2

 or Psi)

Tire pressure calculated by reference temperature rear left tire.

SET TEMPERATURE (

°

C)

Reference temperature registered after resetting the TPMS.

TPMS SET SWITCH (Off/On)

Indicates condition of tire pressure monitor system reset switch.

HORN (Off/On)

Indicates condition of horn.

AUTO LOCATION STATUS RL (N-ID/NO CHG/IN
PROG/T-OUT)

NOTE:
This item is displayed, but cannot be monitored.

AUTO LOCATION STATUS FL (N-ID/NO CHG/IN
PROG/T-OUT)

AUTO LOCATION STATUS FR (N-ID/NO CHG/IN
PROG/T-OUT)

AUTO LOCATION STATUS RR (N-ID/NO CHG/IN
PROG/T-OUT)
