DIFFERENTIAL SIDE OIL SEAL

DIFFERENTIAL SIDE OIL SEAL

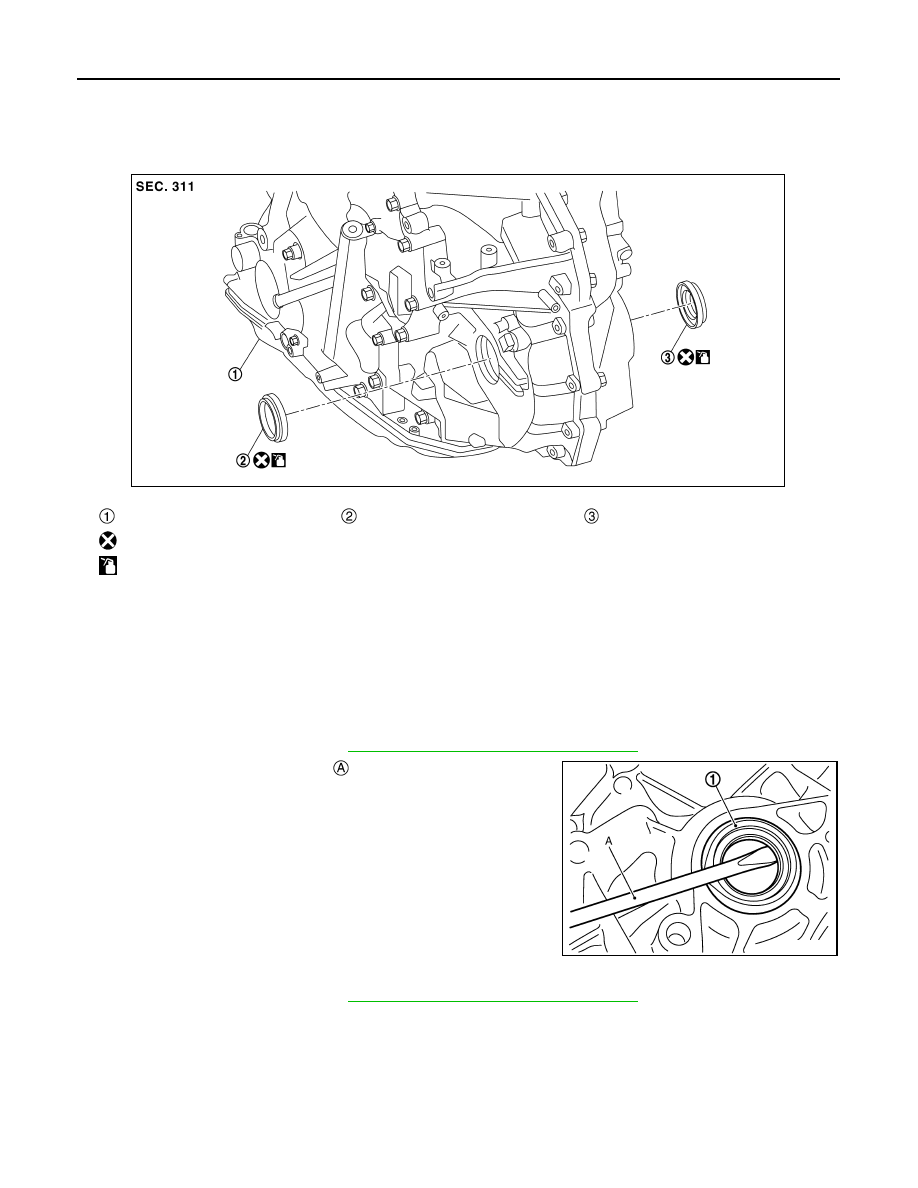

Exploded View

INFOID:0000000010622901

Removal and Installation

INFOID:0000000010622902

REMOVAL

NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-
ing.

Differential Side Oil Seal (Left Side)

1.

Remove front drive shaft. Refer to

FAX-50, "R9M : Removal and Installation"

.

2.

Remove differential side oil seal

 using an oil seal remover (A)

(commercial service tool).

CAUTION:

Be careful not to scratch transaxle case and converter
housing.

Differential Side Oil Seal (Right Side)

1.

Remove front drive shaft. Refer to

FAX-50, "R9M : Removal and Installation"

.

Transaxle assembly

Differential side oil seal (left side)

Differential side oil seal (right side)

: Always replace after every disassembly.

: Apply CVT fluid

JSDIA3729GB

JPDIA0118ZZ

DIFFERENTIAL SIDE OIL SEAL

TM-691

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

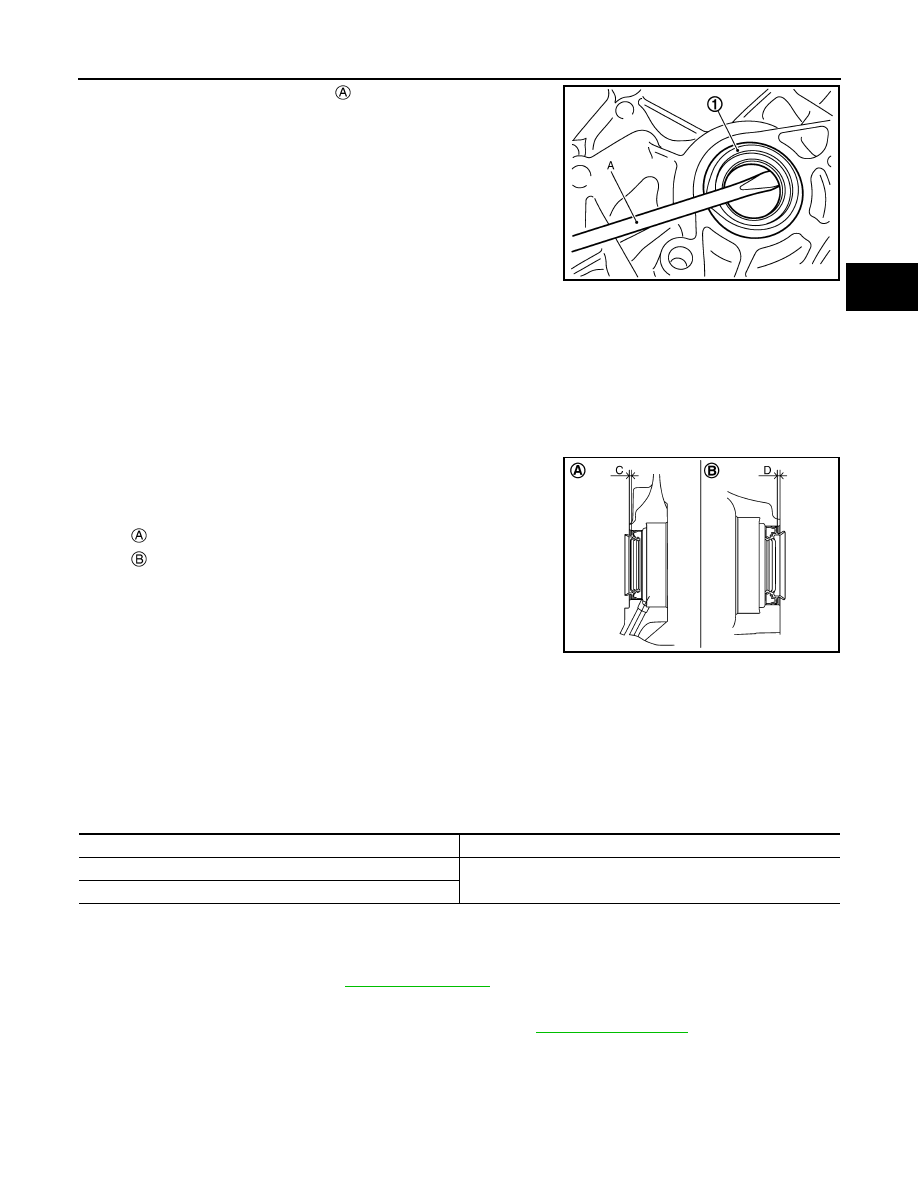

2.

Remove differential side oil seal

 using an oil seal remover (A)

(commercial service tool).

CAUTION:

Be careful not to scratch transaxle case and converter
housing.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never reuse differential side oil seal.
• Apply CVT fluid to differential side oil seals.
• When inserting the drive shaft, be sure to use Tool.

Install each differential side oil seal evenly using suitable tool so that
differential side oil seal protrudes by the dimension (C) and (D)
respectfully.

NOTE:

The reference is the installation direction of the differential side oil seal.

Drift to be used:

Inspection and Adjustment

INFOID:0000000010622903

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to

TM-663, "Inspection"

.

ADJUSTMENT AFTER INSTALLATION

If CVT fluid leaks during work, adjust the CVT fluid level. Refer to

TM-665, "Adjustment"

.

JPDIA0118ZZ

Tool number

: KV38107900

: Differential side oil seal (LH)

: Differential side oil seal (RH)

JPDIA0520ZZ

Dimension (C)

:Height difference from case end surface is within 1.8

±

 0.5 mm (0.071

±



0.020 in).

Dimension (D)

:Height difference from case end surface is within 2.2

±

 0.5 mm (0.087

±



0.020 in).

Location

Commercial Service Tools

Transaxle case side

Commercial service tool with outer dia. 56 mm (2.20 in) and in-
ner dia. 50 mm (1.97 in)

Converter housing side

TM-692

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

WATER HOSE

WATER HOSE

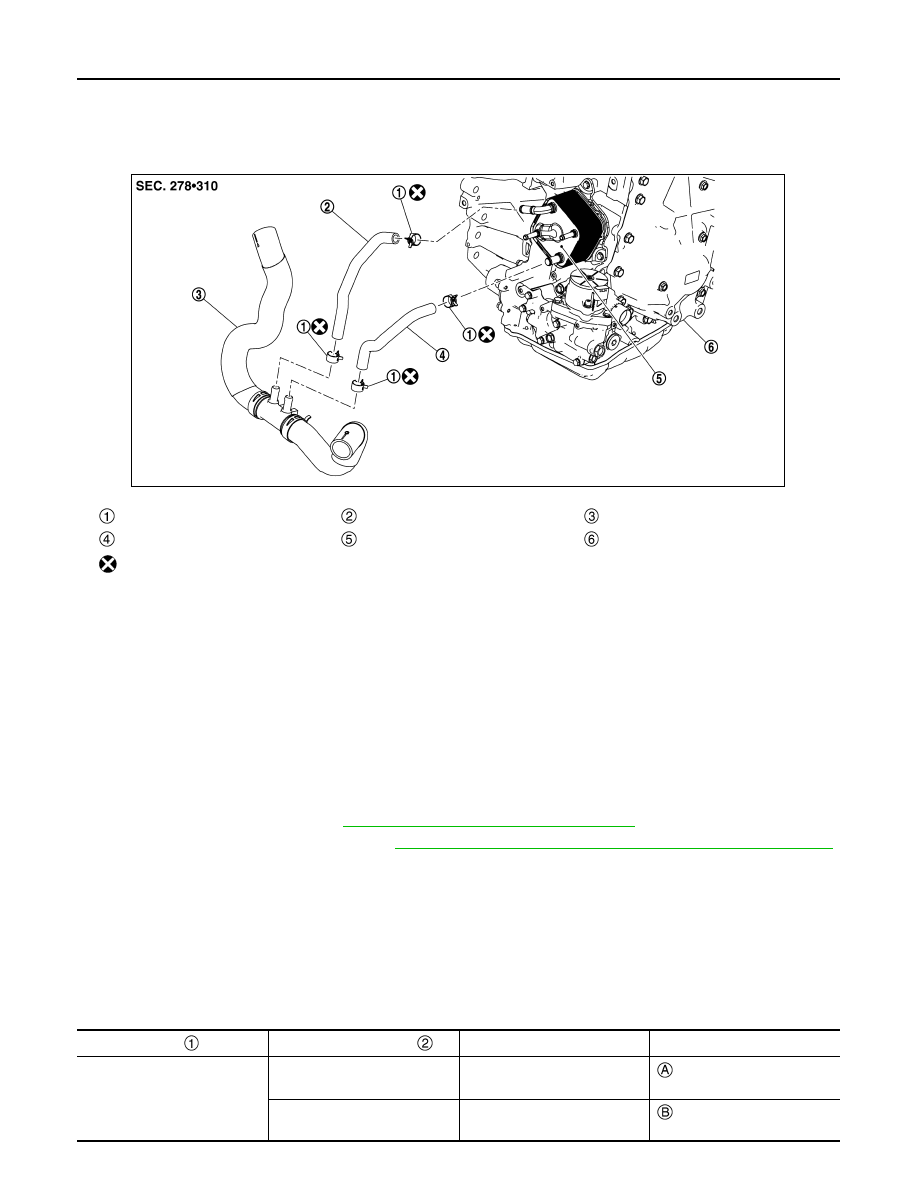

Exploded View

INFOID:0000000010622904

Removal and Installation

INFOID:0000000010622905

REMOVAL

WARNING:

Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter turn to
allow built-up pressure to escape. Carefully remove the cap by turning it all the way.

CAUTION:

Perform when the engine is cold.
NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-
ing.

1.

Remove the battery tray. Refer to

PG-143, "R9M : Removal and Installation"

.

2.

Remove the engine undercover. Refer to

EXT-40, "ENGINE UNDER COVER : Removal and Installation"

.

3.

Release hose clamps and remove water hose A and B.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never reuse hose clamps.
• Securely install the water hose clip to the converter housing.

• Refer to the following when installing water hoses.

Hose clamp

Water hose A

Radiator hose assembly

Water hose B

CVT oil warmer

Transaxle assembly

: Always replace after every disassembly.

JSDIA5221ZZ

Hose

Installation side tube

Direction of paint mark

Hose insertion depth (L)

Water hose A

Radiator hose assembly

Frontward

: Hose end reaches the end

of radiator hose assembly tube.

CVT oil warmer

Frontward

: End reaches the 2-stage

bulge.

WATER HOSE

TM-693

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

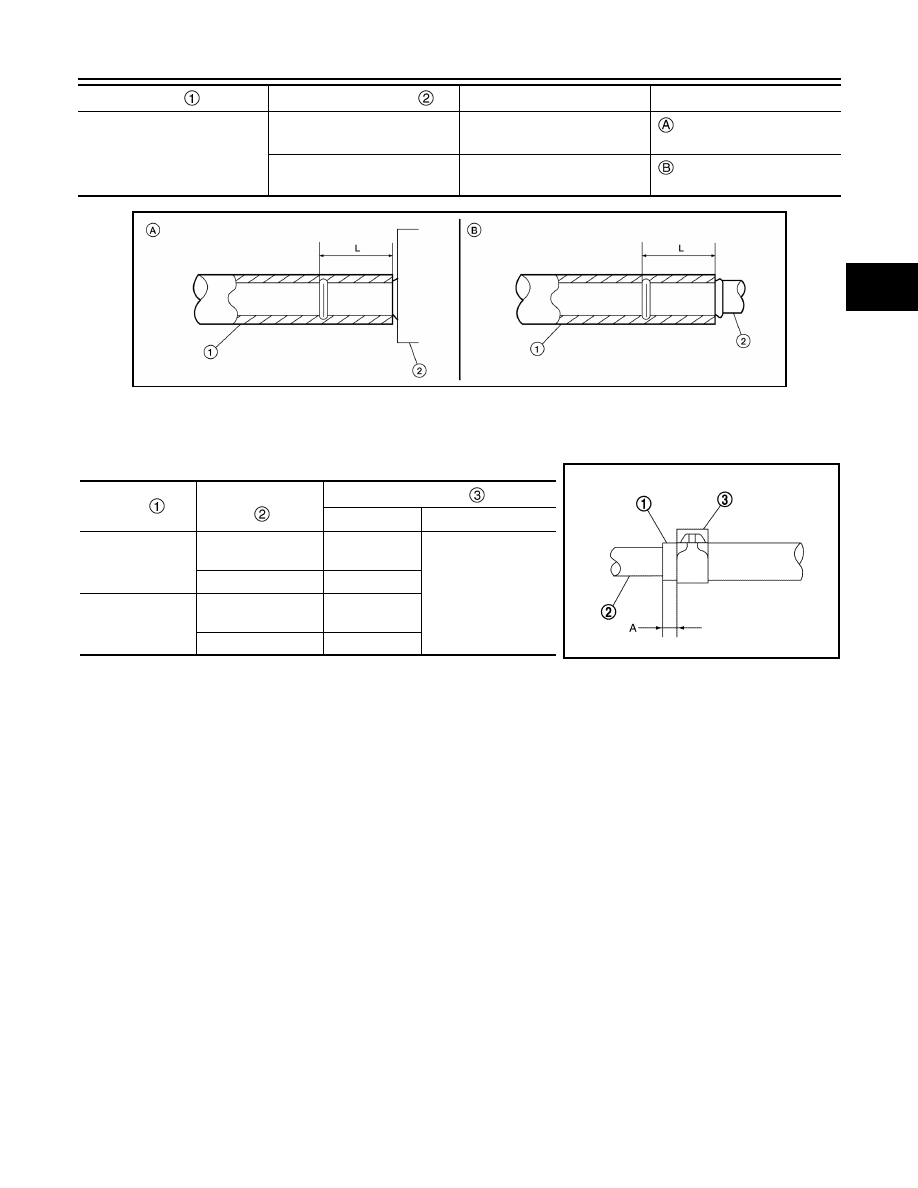

• Refer to the followings when installing hose clamp.

CAUTION:

Hose clamp should not interfere with the bulge of tube.

Inspection

INFOID:0000000010622906

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of engine coolant.

Water hose B

Radiator hose assembly

Frontward

: Hose end reaches the end

of radiator hose assembly tube.

CVT oil warmer

Upward

: End reaches the 2-stage

bulge.

Hose

Installation side tube

Direction of paint mark

Hose insertion depth (L)

ALDIA0475ZZ

Hose

Installation side tube

Hose clamp

Direction of tab

Clamping position (A)

Water hose A

Radiator hose as-
sembly

Rearward

 5 – 7 mm (0.20 – 0.28
in) from hose end

CVT oil warmer

Frontward

Water hose B

Radiator hose as-
sembly

Rearward

CVT oil warmer

Leftward

JSDIA2424ZZ
