< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F10G]

TCM

SHIFT IND SIGNAL

When the selector lever is positioned in be-
tween each position.

OFF

Selector lever: “P” position

P

Selector lever: “R” position

R

Selector lever: “N” position

N

Selector lever: “D” position

D

Manual mode: 1st

1st

Manual mode: 2nd

2nd

Manual mode: 3rd

3rd

Manual mode: 4th

4th

Manual mode: 5th

5th

Manual mode: 6th

6th

Manual mode: 7th

7th

CVT LAMP

Approx. 2 seconds after ignition switch ON

On

Other than the above

Off

SPORT MODE IND

Always

Off

MANU MODE SIGNAL

Driving with manual mode

On

Other than the above

Off

DS RANGE SIGNAL

Selector lever: “DS” position

On

Other than the above

Off

ECO MODE SIGNAL

Always

Off

VDC ON

When VDC malfunction signal is received

On

Other than the above

Off

TCS ON

When TCS malfunction signal is received

On

Other than the above

Off

ABS FAIL SIGNAL

When ABS malfunction signal is received

On

Other than the above

Off

ABS ON

ABS is activated

On

Other than the above

Off

RANGE

Selector lever: “P” and “N” positions

N/P

Selector lever: “R position

R

Selector lever: “D” position

D

Selector lever: “M” position

M GEAR POS

Manual mode: 1st – 7th

1 to 7

G SEN SLOPE

Flat road

0%

Uphill gradient

The value changes to the positive side

along with uphill gradient. (Maximum

40.45%)

Downhill gradient

The value changes to the negative side

along with downhill gradient. (Minimum

−

40.45%)

G SEN CALIBRATION

When G sensor calibration is completed

DONE

When G sensor calibration is not completed

YET

N IDLE STATUS

Always

Off

Monitor item

Condition

Value/Status (Approx.)

TCM

TM-519

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

*: These monitor items do not use.

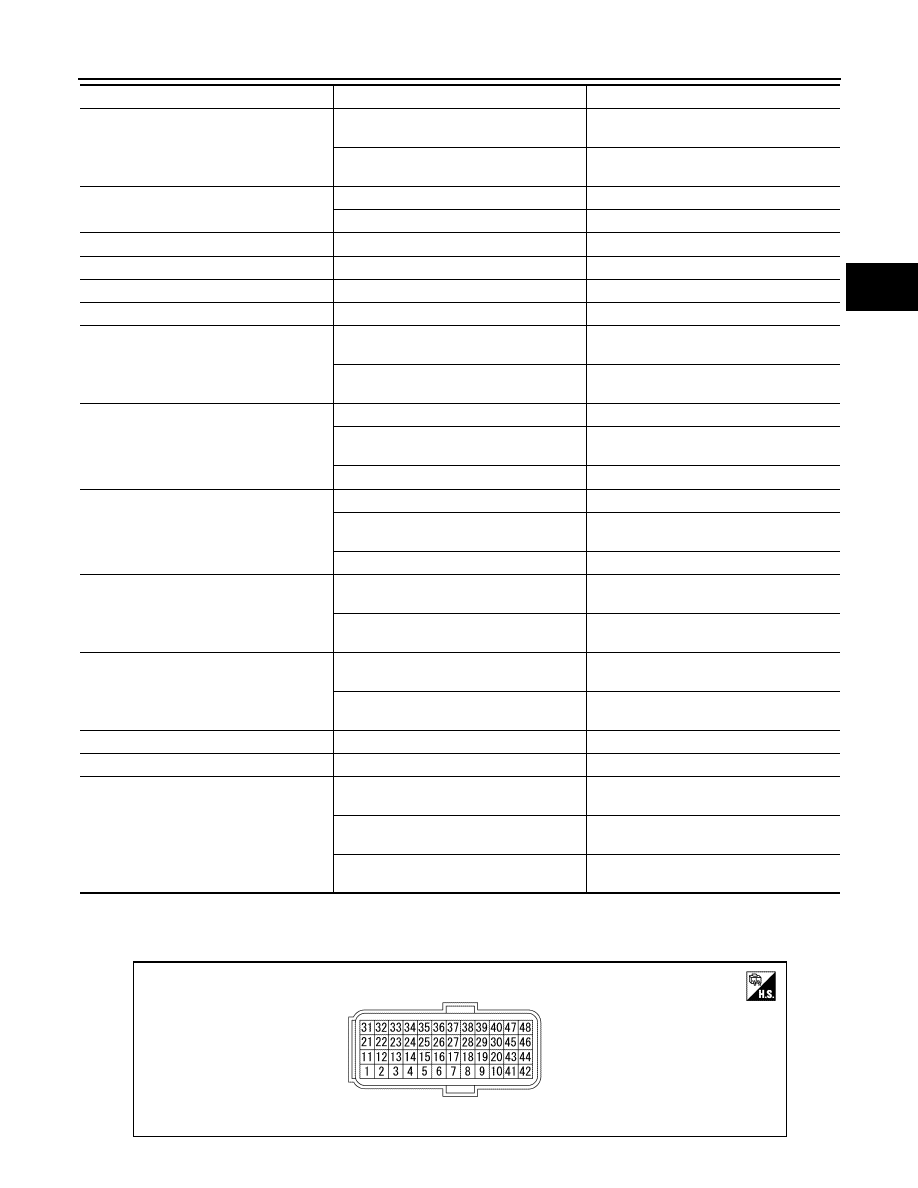

TERMINAL LAYOUT

ENGBRKLVL

When the engine brake level of “ENGINE
BRAKE ADJ”. in “Work Support” is ON

On

When the engine brake level of “ENGINE
BRAKE ADJ”. in “Work Support” is OFF

Off

DRIVE MODE STATS

While driving in ECO mode

ECO

Other than the above

NORMAL

SNOW MODE

Always

Off

ECO MODE

Always

Off

NORMAL MODE

Always

Off

SPORT MODE

Always

Off

AIR BLDING STATE

When air bleeding of the electric oil pump is
completed

COMP

When air bleeding of the electric oil pump is
not completed

INCOMP

ELECTRIC OP DUTY

Ignition switch: ON

5 – 15%

• Selector lever: D position
• Vehicle speed: 11 km/h (7 MPH) or more

5 – 15%

During the stop/start system operation

55 – 85%

E-OP DUTY MON

Ignition switch: ON

25 – 35%

• Selector lever: D position
• Vehicle speed: 11 km/h (7 MPH) or more

0%

During the stop/start system operation

45 – 55%

ELECTRIC OP RELAY

• Selector lever: D position
• Vehicle speed: 6 km/h (4 MPH) or less

On

• Selector lever: D position
• Vehicle speed: 11 km/h (7 MPH) or more

Off

E-OP RELAY MON

• Selector lever: D position
• Vehicle speed: 6 km/h (4 MPH) or less

On

• Selector lever: D position
• Vehicle speed: 11 km/h (7 MPH) or more

Off

CVT-B*

—

—

CVT-A*

—

—

G SENSOR

• Vehicle stopped
• Vehicle is level

0 G

During acceleration

The value changes to the positive side
along with acceleration.

During deceleration

The value changes to the positive side
along with deceleration.

Monitor item

Condition

Value/Status (Approx.)

JSDIA2713ZZ

TM-520

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F10G]

TCM

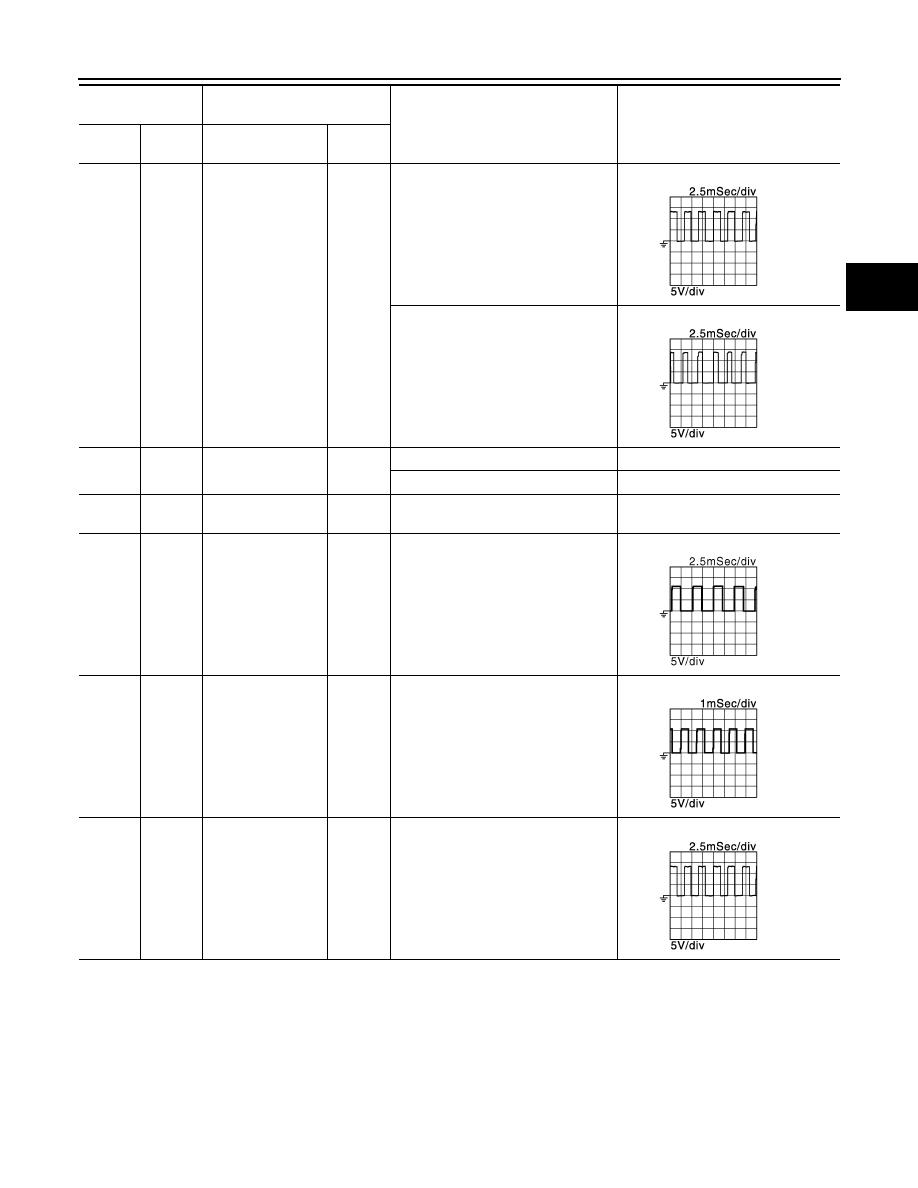

INPUT/OUTPUT SIGNAL STANDARD
