< SYSTEM DESCRIPTION >

[CVT: RE0F10G]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

CVT CONTROL SYSTEM

CVT CONTROL SYSTEM : Component Parts Location

INFOID:0000000010622705

LHD MODELS

COMPONENT PARTS

TM-467

< SYSTEM DESCRIPTION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

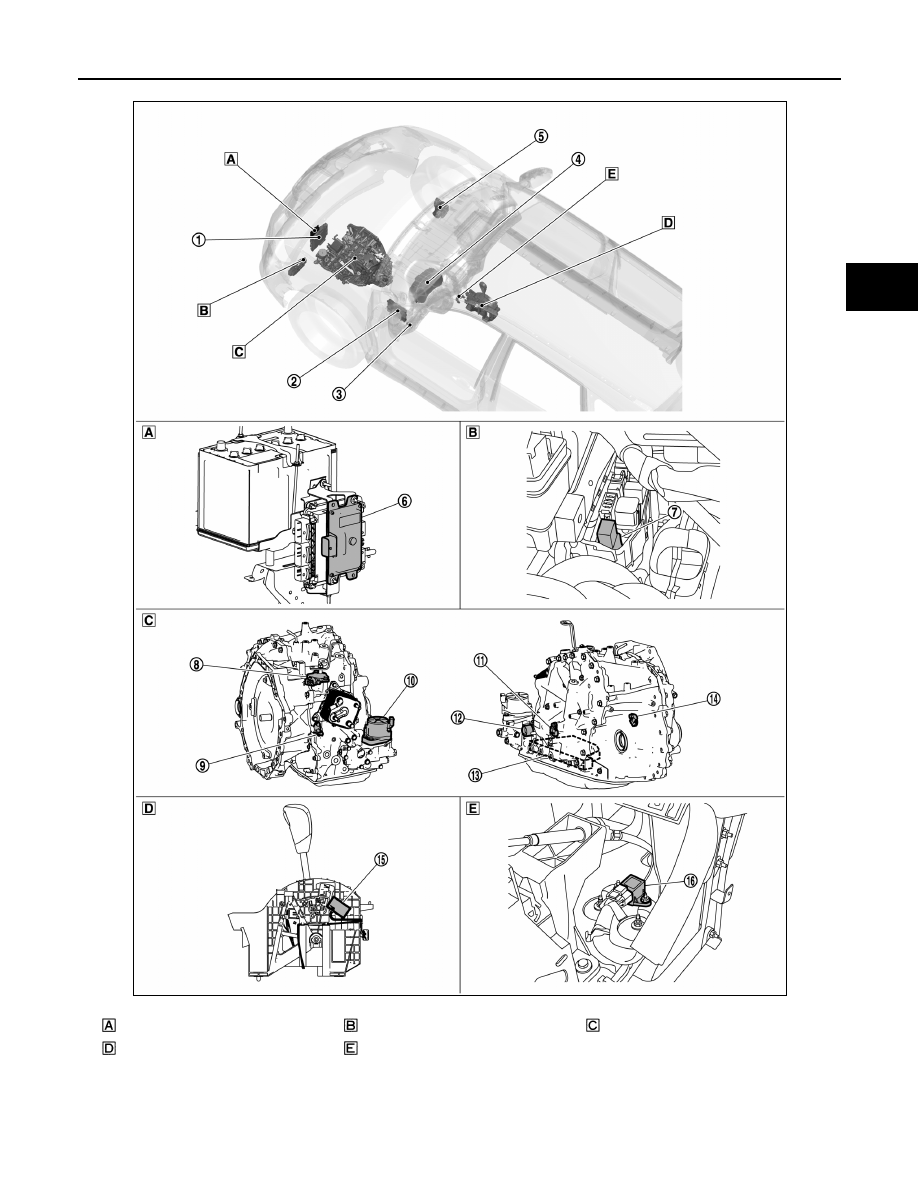

Battery, front

Engine room, LH

Transaxle assembly

CVT shift selector assembly

CVT shift selector assembly, front

JSDIA6093ZZ

TM-468

< SYSTEM DESCRIPTION >

[CVT: RE0F10G]

COMPONENT PARTS

No.

Component

Function

ECM

Mainly transmits the following signal to TCM via CAN communication.
• Engine and CVT integrated control signal

NOTE:
General term for the communication (torque-down permission, torque-
down request, etc.) exchanged between the ECM and TCM.

• Engine speed signal
• Engine coolant temperature signal
• Accelerator pedal position signal
• Closed throttle position signal
Mainly receives the following signals from TCM via CAN communication.
• Malfunctioning indicator lamp signal
• Stop/start indicator lamp signal
Refer to

EC-812, "Component Parts Location"

 for detailed installation loca-

tion.

BCM

Mainly transmits the following signal to TCM via CAN communication.
• Stop lamp switch signal
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"



for detailed installation location.

ECO mode switch

DMS-6, "ECO Mode Switch"

Combination meter

Mainly transmits the following signal to TCM via CAN communication.
• Manual mode signal
• Non-manual mode signal
• Manual mode upshift signal
• Manual mode downshift signal
Mainly receives the following signals from TCM via CAN communication.
• Shift position signal
• Manual mode shift refusal signal
Refer to

MWI-7, "METER SYSTEM : Component Parts Location"

 for de-

tailed installation location.

ABS actuator and electric unit (control unit)

Mainly transmits the following signal to TCM via CAN communication.
• ABS operation signal
• TCS operation signal
• VDC operation signal
• ABS malfunction signal
• Vehicle speed signal
• Decel G signal
Refer to

BRC-14, "Component Parts Location"

 for detailed installation loca-

tion.

TCM

TM-472, "CVT CONTROL SYSTEM : TCM"

Electric oil pump relay

TM-478, "CVT CONTROL SYSTEM : Electric Oil Pump Relay"

Transmission range switch

TM-472, "CVT CONTROL SYSTEM : Transmission Range Switch"

Input speed sensor

TM-474, "CVT CONTROL SYSTEM : Input Speed Sensor"

Electric oil pump

TM-477, "CVT CONTROL SYSTEM : Electric Oil Pump"

Primary speed sensor

TM-472, "CVT CONTROL SYSTEM : Primary Speed Sensor"

CVT unit connector

—

Control
valve

CVT fluid temperature sensor*

TM-474, "CVT CONTROL SYSTEM : CVT Fluid Temperature Sensor"

Primary pressure sensor*

TM-475, "CVT CONTROL SYSTEM : Primary Pressure Sensor"

Secondary pressure sensor*

TM-475, "CVT CONTROL SYSTEM : Secondary Pressure Sensor"

Line pressure solenoid valve*

TM-477, "CVT CONTROL SYSTEM : Line Pressure Solenoid Valve"

Primary pressure solenoid valve*

TM-475, "CVT CONTROL SYSTEM : Primary Pressure Solenoid Valve"

Secondary pressure solenoid valve*

TM-476, "CVT CONTROL SYSTEM : Secondary Pressure Solenoid Valve"

Torque converter clutch solenoid
valve*

TM-476, "CVT CONTROL SYSTEM : Torque Converter Clutch Solenoid

Valve"

Select solenoid valve*

TM-476, "CVT CONTROL SYSTEM : Select Solenoid Valve"

COMPONENT PARTS

TM-469

< SYSTEM DESCRIPTION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

*: These components are included in control valve assembly.

RHD MODELS

Output speed sensor

TM-473, "CVT CONTROL SYSTEM : Output Speed Sensor"

Manual mode switch

TM-478, "CVT CONTROL SYSTEM : Manual Mode Switch"

G sensor

TM-477, "CVT CONTROL SYSTEM : G Sensor"

No.

Component

Function
