TM-130

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

TRANSAXLE ASSEMBLY

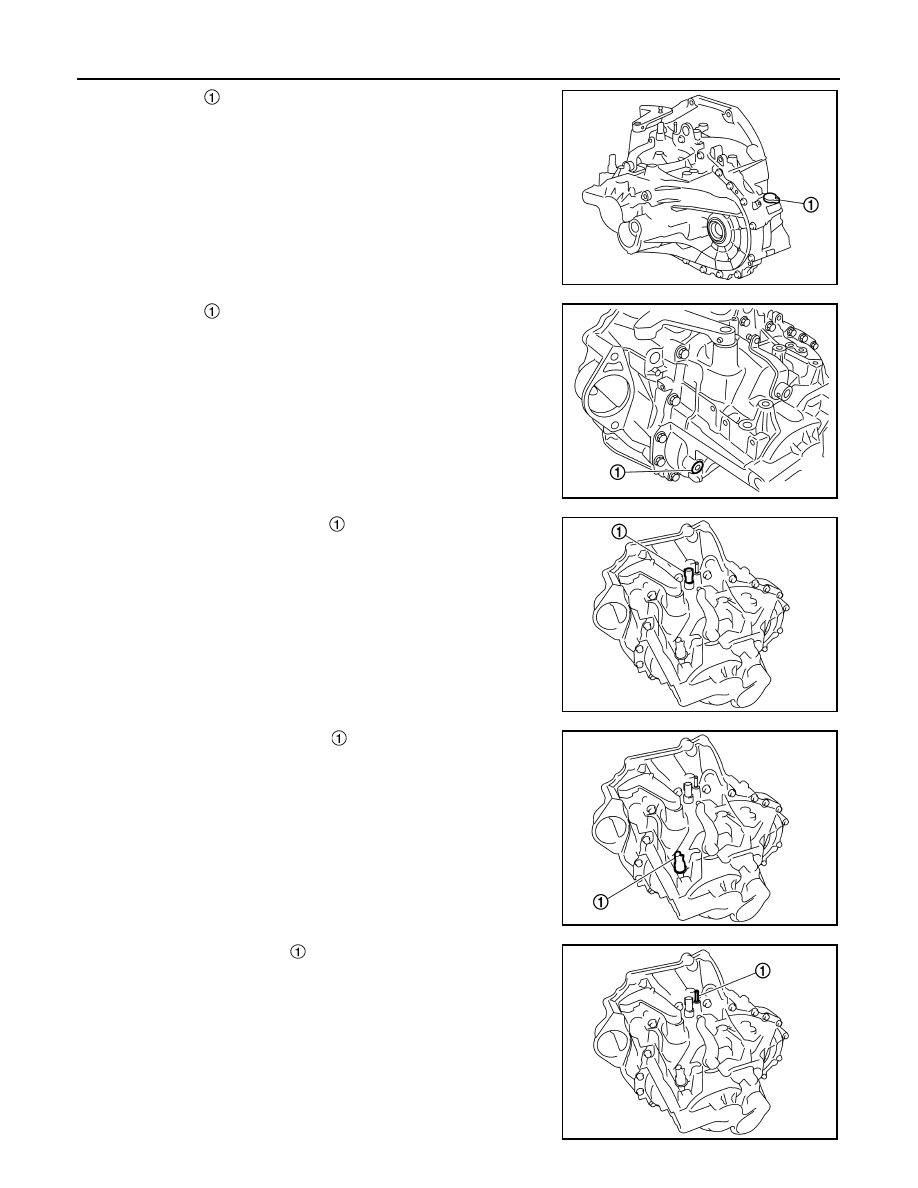

2.

Remove plug

 with O-ring from clutch housing.

3.

Remove plug

 with gasket from transaxle case.

4.

Remove neutral position switch

 from transaxle case.

5.

Remove back-up lamp switch

 and plunger from transaxle

case.

CAUTION:

Never lose plunger.

6.

Remove air breather tube

 from transaxle case.

JSDIA6147ZZ

JSDIA6483ZZ

JSDIA6484ZZ

JSDIA6485ZZ

JSDIA6486ZZ

TRANSAXLE ASSEMBLY

TM-131

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

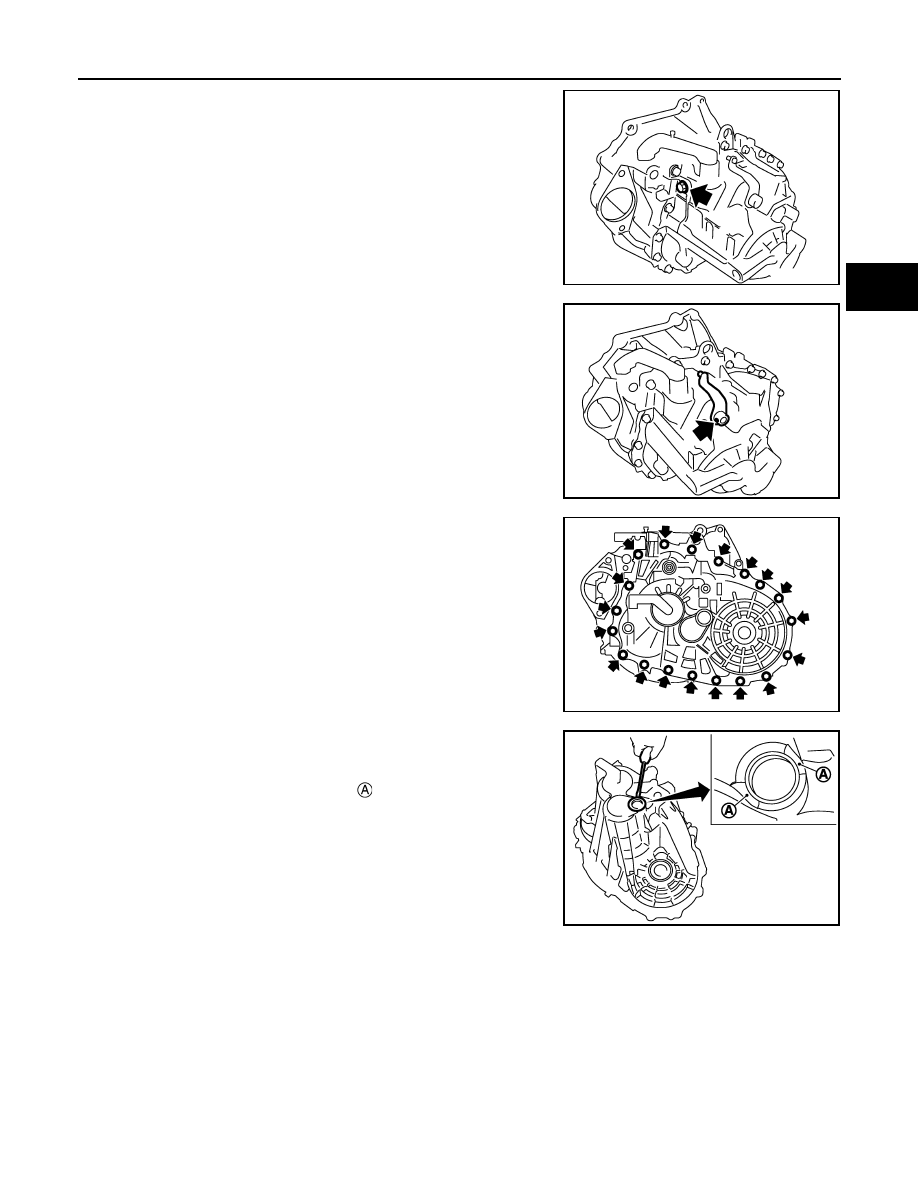

7.

Remove guide bolt from transaxle case.

8.

Remove retaining pin using a pin punch (commercial service
tool) and then remove select lever from transaxle case.

9.

Remove transaxle case mounting bolts.

10. Remove bore plug from transaxle case.

CAUTION:

• Never damage transaxle case.
• Access bore plug from cutout

 of transaxle case when

removing.

11. Remove transaxle case, as per the following procedure.

PCIB1836E

PCIB1837E

PCIB1838E

PCIB1839E

TM-132

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

TRANSAXLE ASSEMBLY

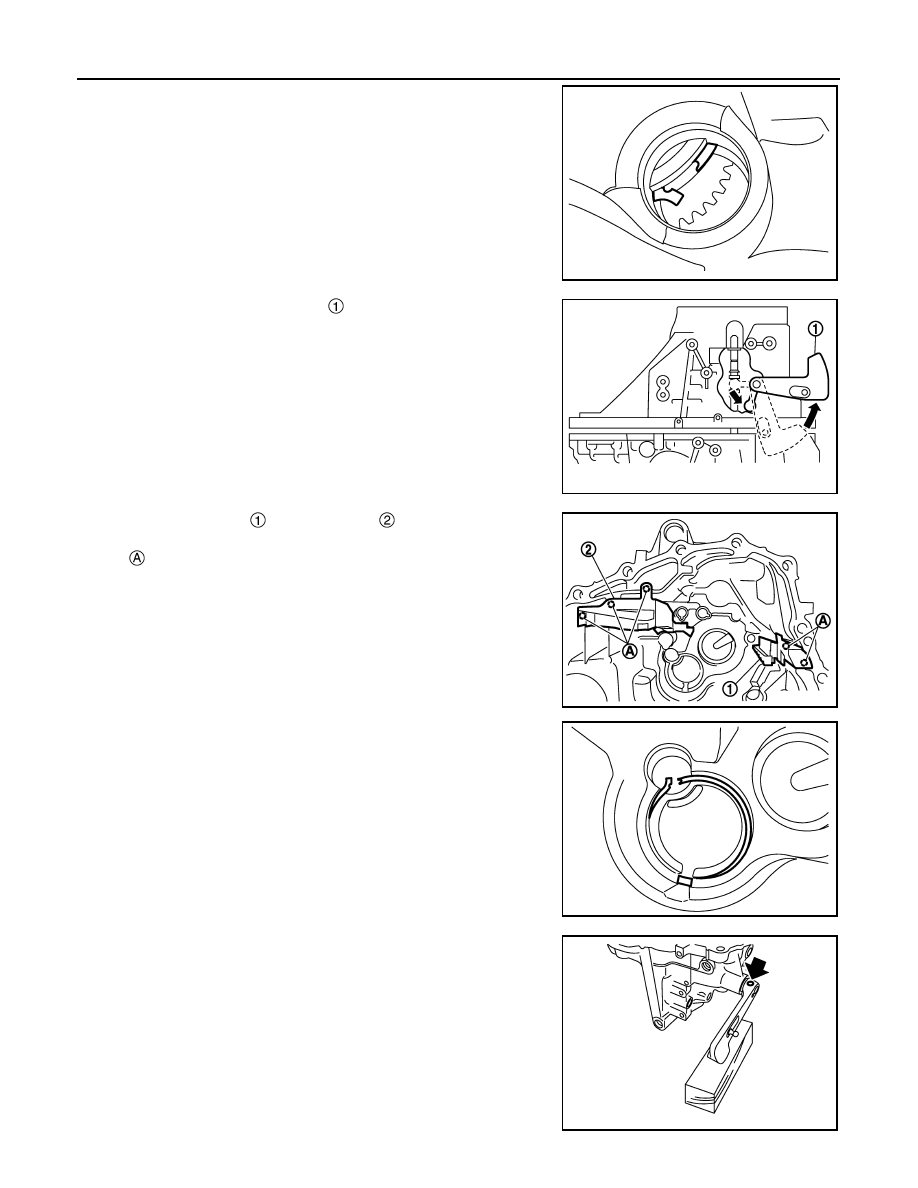

a.

Expand snap ring at mainshaft rear bearing accessing from the
bore plug hole. Then pull up transaxle case from clutch housing
until snap ring comes off.

b.

While rotating shift lever (outer)

 in the direction of the arrow in

the figure, remove transaxle case from clutch housing.

CAUTION:

Never drop each adjusting shim.
NOTE:
Make sure to hold shift lever (outer) in the position shown in the
figure. Otherwise transaxle case cannot be removed from clutch
housing.

12. Remove oil gutter A

 and oil gutter B

 from transaxle case.

13. Remove snap ring from transaxle case.

14. Remove retaining pin using a pin punch (commercial service

tool) and then remove shift lever (outer) and shift lever (inner)
from transaxle case.

PCIB1840E

JPDIC0140ZZ

: Tab of oil gutter

PCIB1841E

PCIB1842E

PCIB1844E

TRANSAXLE ASSEMBLY

TM-133

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

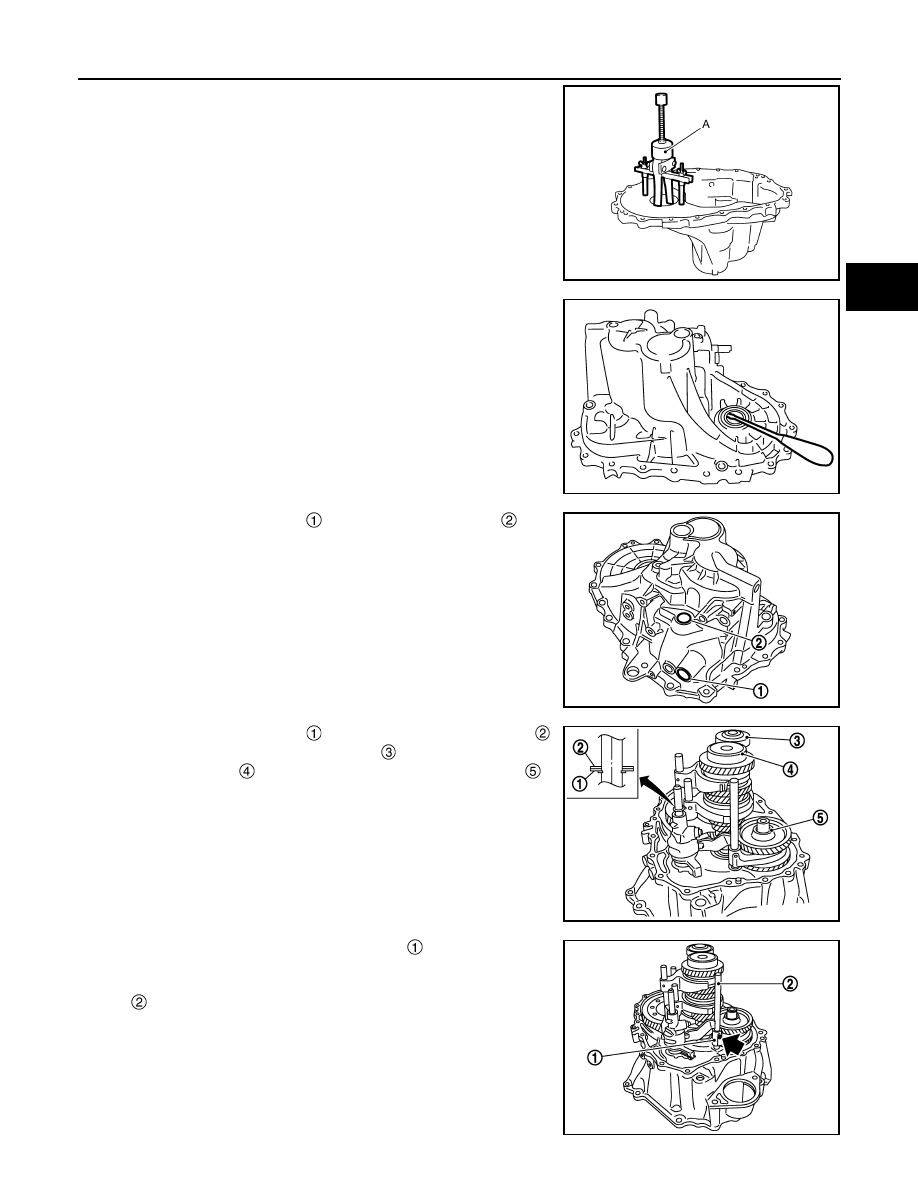

15. Remove differential side bearing outer race (transaxle case

side) from transaxle case using the puller (A) (SST:
KV381054S0) and then remove differential side bearing adjust-
ing shim from transaxle case.

CAUTION:

Never damage transaxle case and differential side bearing
outer race.

16. Remove differential side oil seal from transaxle case, using oil

seal remover (commercial service tool).

CAUTION:

Never damage transaxle case.

17. Remove shift lever oil seal

 and striking rod oil seal

 from

transaxle case, using oil seal remover (commercial service tool).

CAUTION:

Never damage transaxle case.

18. Remove striking rod shim

, striking rod adjusting shim

,

mainshaft rear bearing adjusting shim

, input shaft rear bear-

ing adjusting shim

, and reverse idler gear adjusting shim

.

19. Remove retaining pin of reverse shift fork

 using a pin punch

(commercial service tool).

JSDIA6487ZZ

SCIA0397E

PCIB1846E

PCIB1858E

: Reverse fork rod

PCIB1850E
