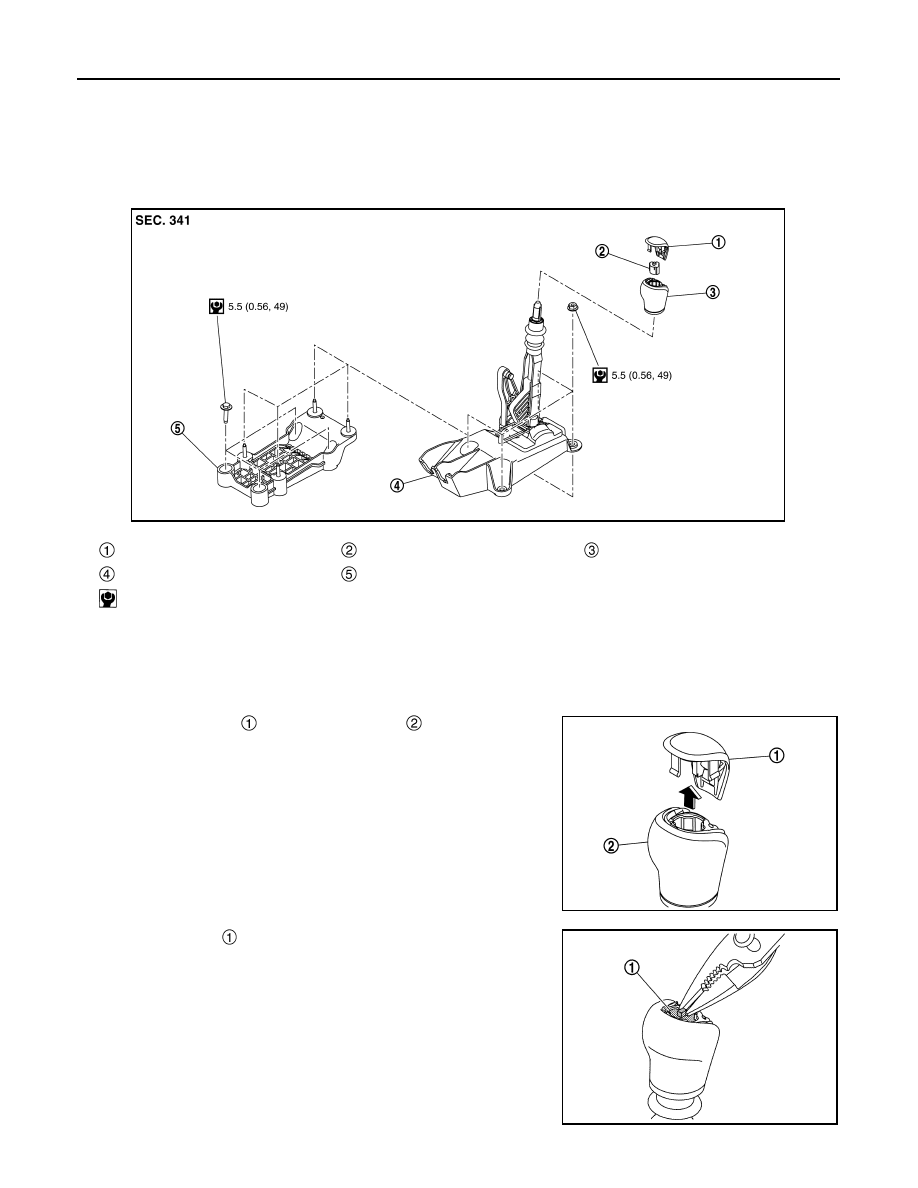

TM-106

< REMOVAL AND INSTALLATION >

[6MT: RS6F52A]

M/T SHIFT SELECTOR

REMOVAL AND INSTALLATION

M/T SHIFT SELECTOR

Exploded View

INFOID:0000000010921084

Removal and Installation

INFOID:0000000010921085

REMOVAL

1.

Shift shift lever to the neutral position.

2.

Remove ornament

 from shift lever knob

.

CAUTION:

Never damage ornament and shift lever knob.

3.

Pull out retainer

 using suitable pliers.

Ornament

Retainer

Shift lever knob

M/T shift selector assembly

M/T shift selector bracket

: N·m (kg-m, in-lb)

JSDIA6131GB

JSDIA6132ZZ

JSDIA6134ZZ

M/T SHIFT SELECTOR

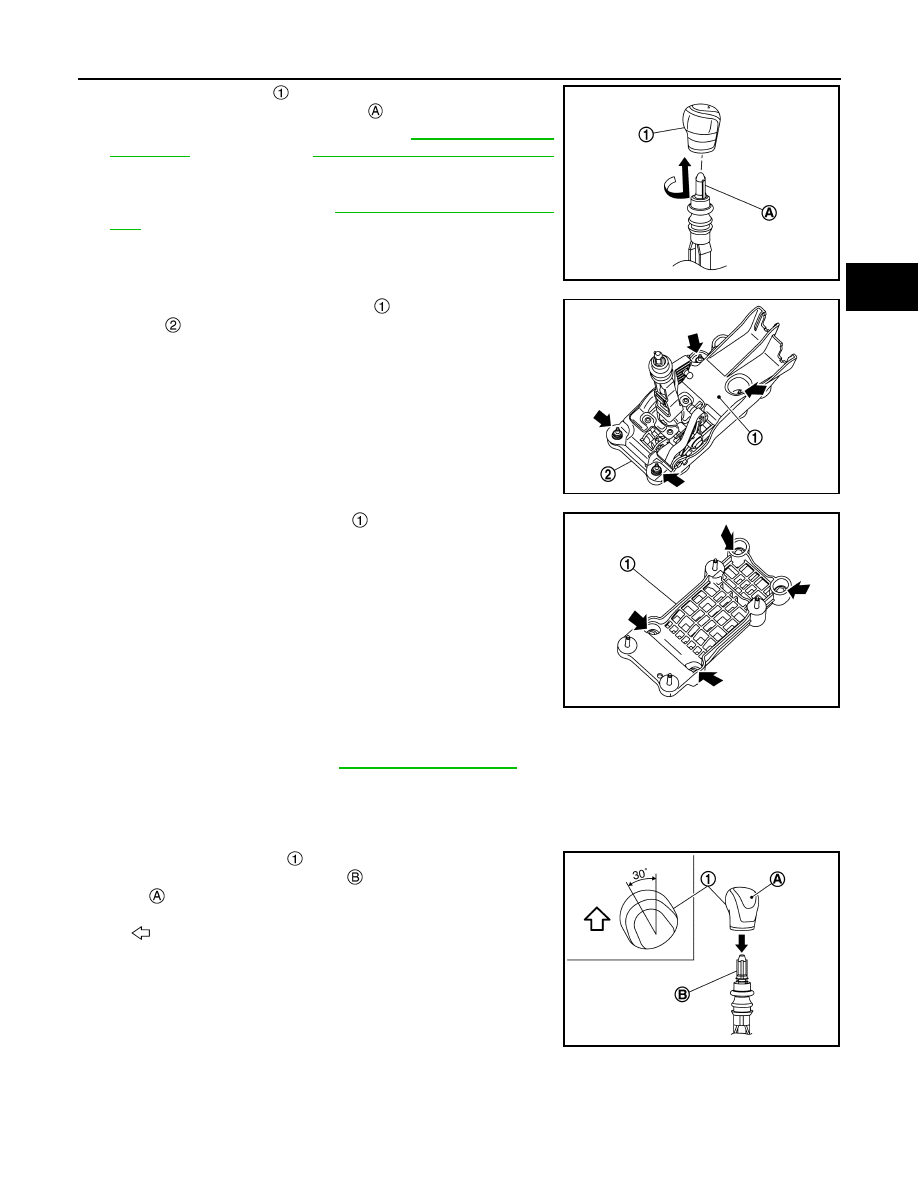

TM-107

< REMOVAL AND INSTALLATION >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

4.

Turn shift lever knob

 counterclockwise (30 degrees) and

remove it straight from the shift lever

.

5.

Remove center console assembly. Refer to

IP-25, "Removal and

Installation"

 (LHD models),

IP-52, "Removal and Installation"

(RHD models).

6.

Disconnect and remove shift cable and select cable from M/T
shift selector assembly. Refer to

TM-109, "Removal and Installa-

tion"

.

7.

Remove M/T shift selector assembly

 from M/T shift selector

bracket .

8.

Remove M/T shift selector bracket

.

INSTALLATION

Note the following, and install in the reverse order of removal.
• For each tightening torque, refer to

TM-106, "Exploded View"

.

• Install shift lever knob to the shift lever, as per the following procedure.

CAUTION:

Never reuse shift lever knob.

1.

Set retainer and ornament into shift lever knob.

2.

Displace shift lever knob

 counterclockwise (30 degrees) and

insert it straight to the shift lever

 without pressing the orna-

ment .

JSDIA6135ZZ

JSDIA5749ZZ

JSDIA5750ZZ

: Vehicle front

JSDIA6032ZZ

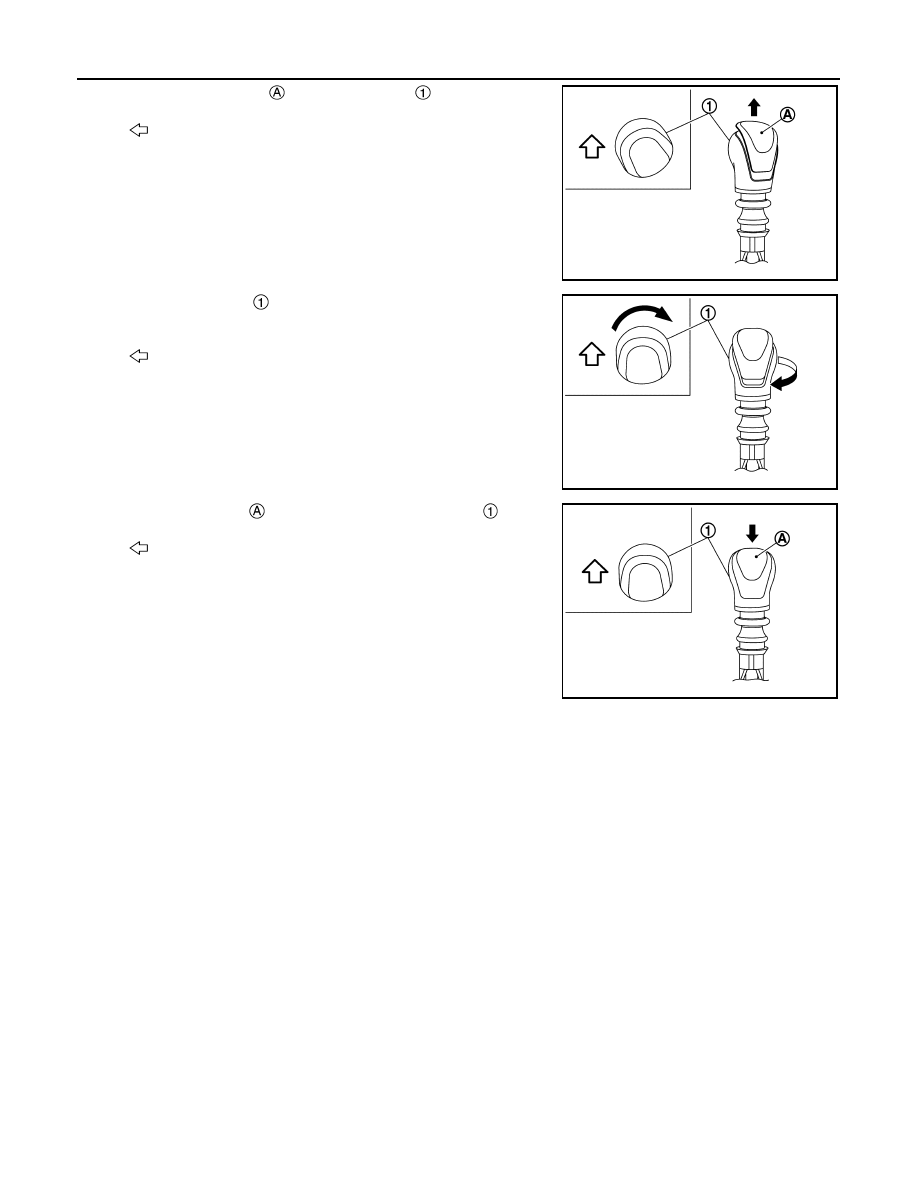

TM-108

< REMOVAL AND INSTALLATION >

[6MT: RS6F52A]

M/T SHIFT SELECTOR

3.

Protrude the ornament

 of shift lever knob

.

4.

Turn shift lever knob

 clockwise (30 degrees) until coming to a

stop.

5.

Press the ornament

 down and lock shift lever knob

.

CAUTION:

Be careful with orientation of shift lever knob.

: Vehicle front

JSDIA6033ZZ

: Vehicle front

JSDIA6034ZZ

: Vehicle front

JSDIA6035ZZ

CONTROL LINKAGE

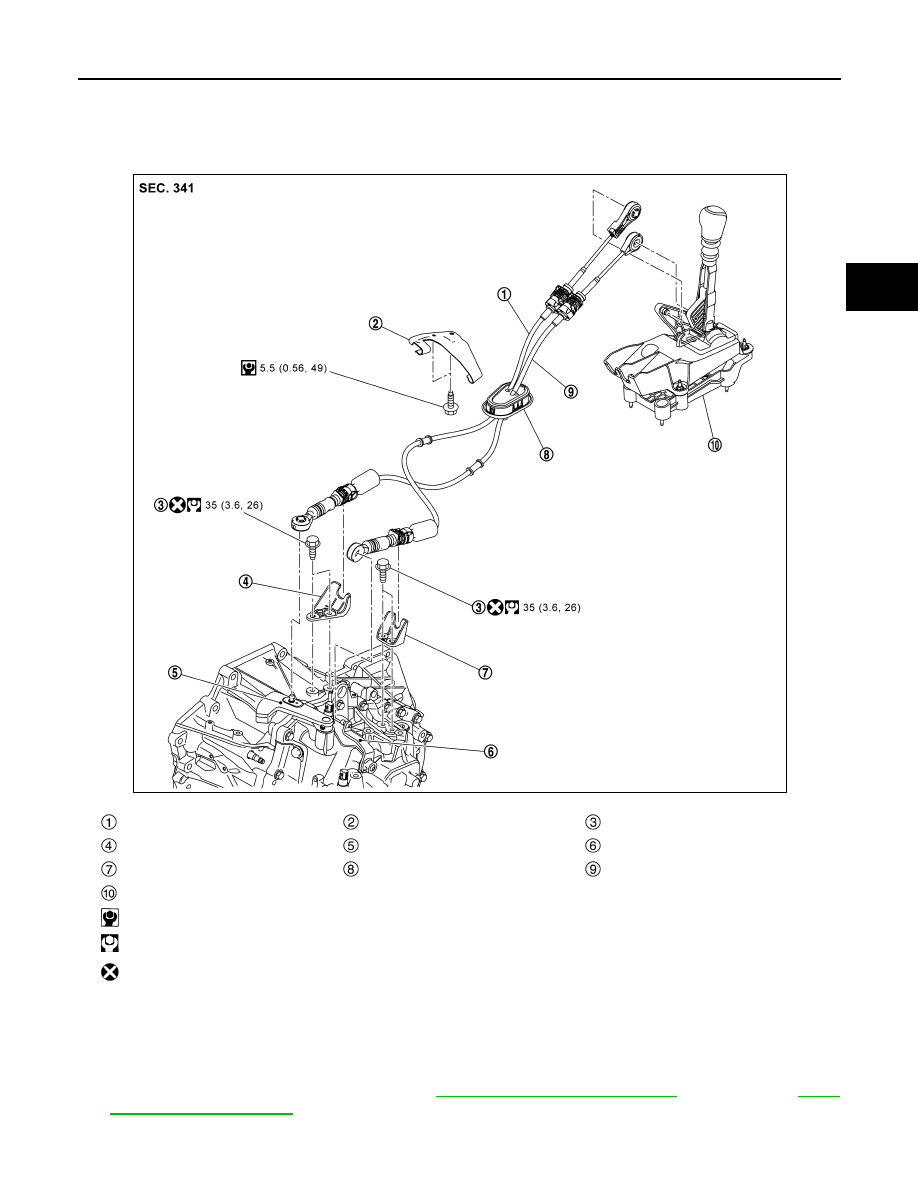

TM-109

< REMOVAL AND INSTALLATION >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CONTROL LINKAGE

Exploded View

INFOID:0000000010921086

Removal and Installation

INFOID:0000000010921087

REMOVAL

1.

Shift shift lever to the neutral position.

2.

Remove center console assembly. Refer to

IP-25, "Removal and Installation"

 (LHD models),

IP-52,

"Removal and Installation"

 (RHD models).

Select cable

Cable mounting bracket (floor)

Tapping bolt

Cable mounting bracket (M/T)

Shift lever

Select lever

Cable mounting bracket (M/T)

Grommet

Shift cable

M/T shift selector assembly

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

JSDIA6332GB
