Nissan X-Trail 32. Manual - part 2023

TM-50

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

TRANSAXLE ASSEMBLY

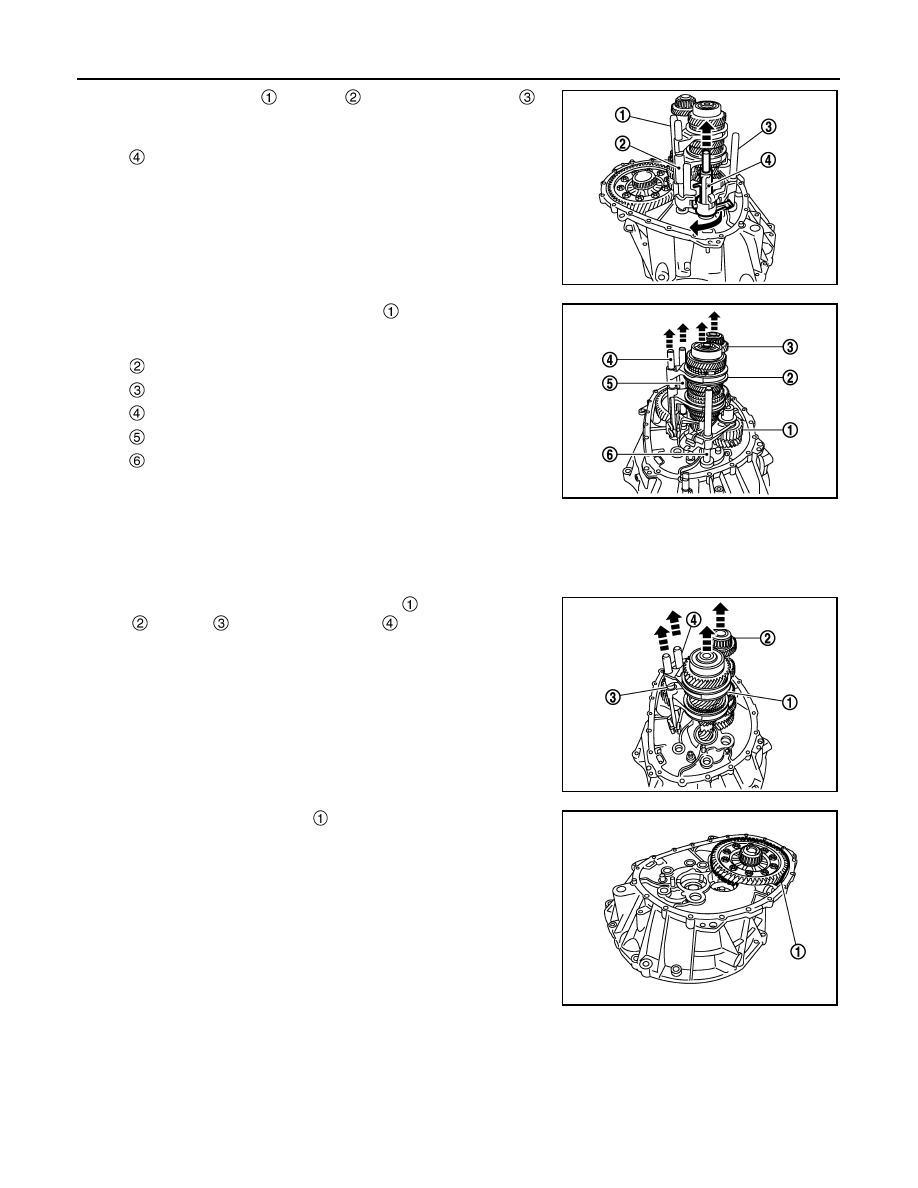

9.

Shift 1st-2nd fork rod

, fork rod

, and reverse fork rod

 to

the neutral position.

10. Remove selector from clutch housing.

11. Remove reverse idler shaft assembly

, as per the following

procedure.

a.

Pull up input shaft assembly, mainshaft assembly, fork rod, and
1st-2nd fork rod.
NOTE:
It is easier to pull up when shifting each fork rod to each shaft side.

b.

Remove reverse idler shaft assembly and reverse fork rod from clutch housing.

12. Remove spring washer from clutch housing.

13. Pull up and remove input shaft assembly

, mainshaft assem-

bly

, fork rod

, and 1st-2nd fork rod

 from clutch housing.

NOTE:
It is easier to pull up when shifting each fork rod to each shaft
side.

14. Remove final drive assembly

 from clutch housing.

15. Remove magnet from clutch housing.

: Selector

PCIB1698E

: Input shaft assembly

: Mainshaft assembly

: Fork rod

: 1st-2nd fork rod

: Reverse fork rod

JPDIC0606ZZ

JPDIC0607ZZ

PCIB1703E

TRANSAXLE ASSEMBLY

TM-51

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

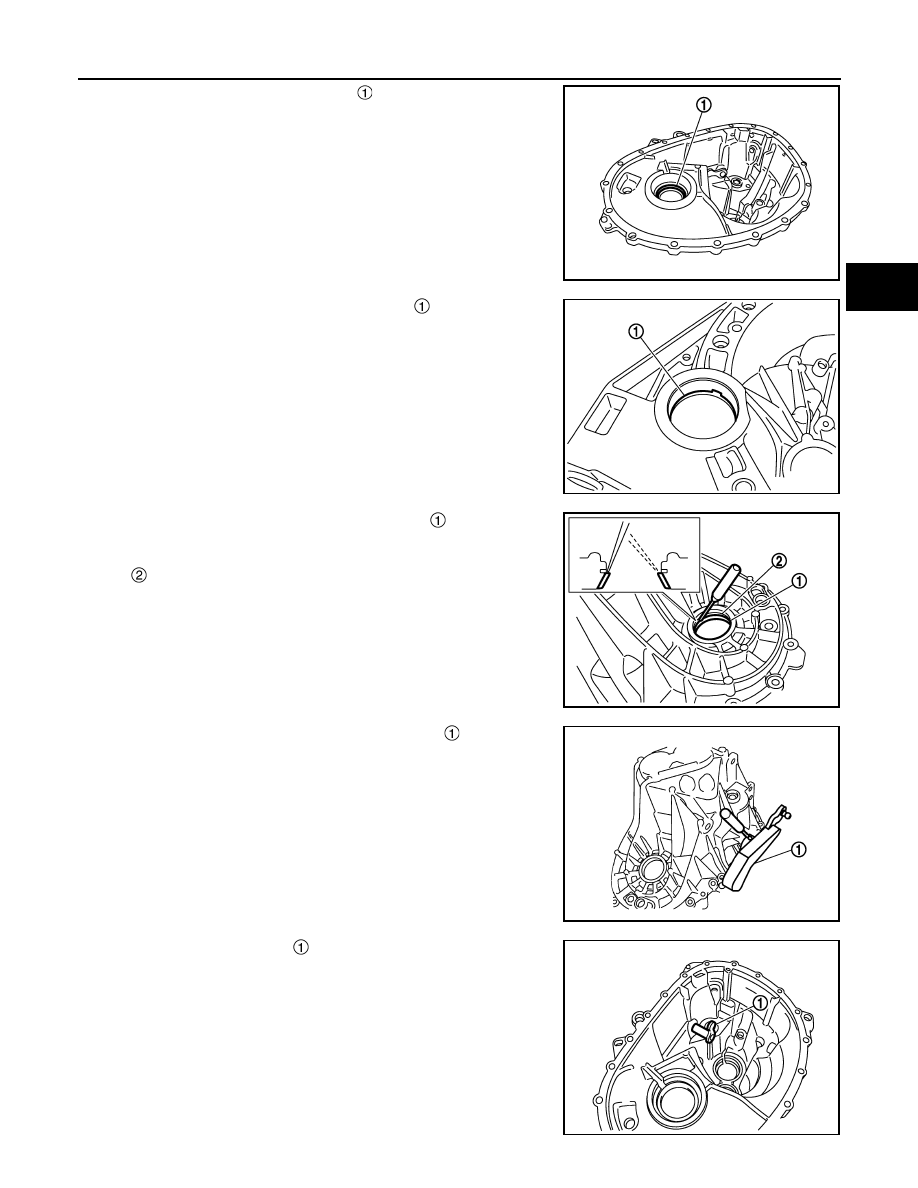

16. Remove differential side oil seals

 from clutch housing and

transaxle case, using oil seal remover (commercial service tool).

CAUTION:

Never damage clutch housing and transaxle case.

17. Remove differential side bearing outer race

 from clutch hous-

ing, using a brass rod.

CAUTION:

Never damage clutch housing.

18. Remove differential side bearing outer race

 from transaxle

case, using a brass rod.

CAUTION:

Never damage transaxle case.

19. Remove shim from transaxle case.

20. Remove retaining pin from shift lever (outer)

, using a pin

punch.

21. Remove shift lever (outer) from transaxle case.

22. Remove shift lever (inner)

 from transaxle case.

PCIB1704E

PCIB1716E

: Shim

PCIB1705E

JPDIC0106ZZ

PCIB1712E

TM-52

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

TRANSAXLE ASSEMBLY

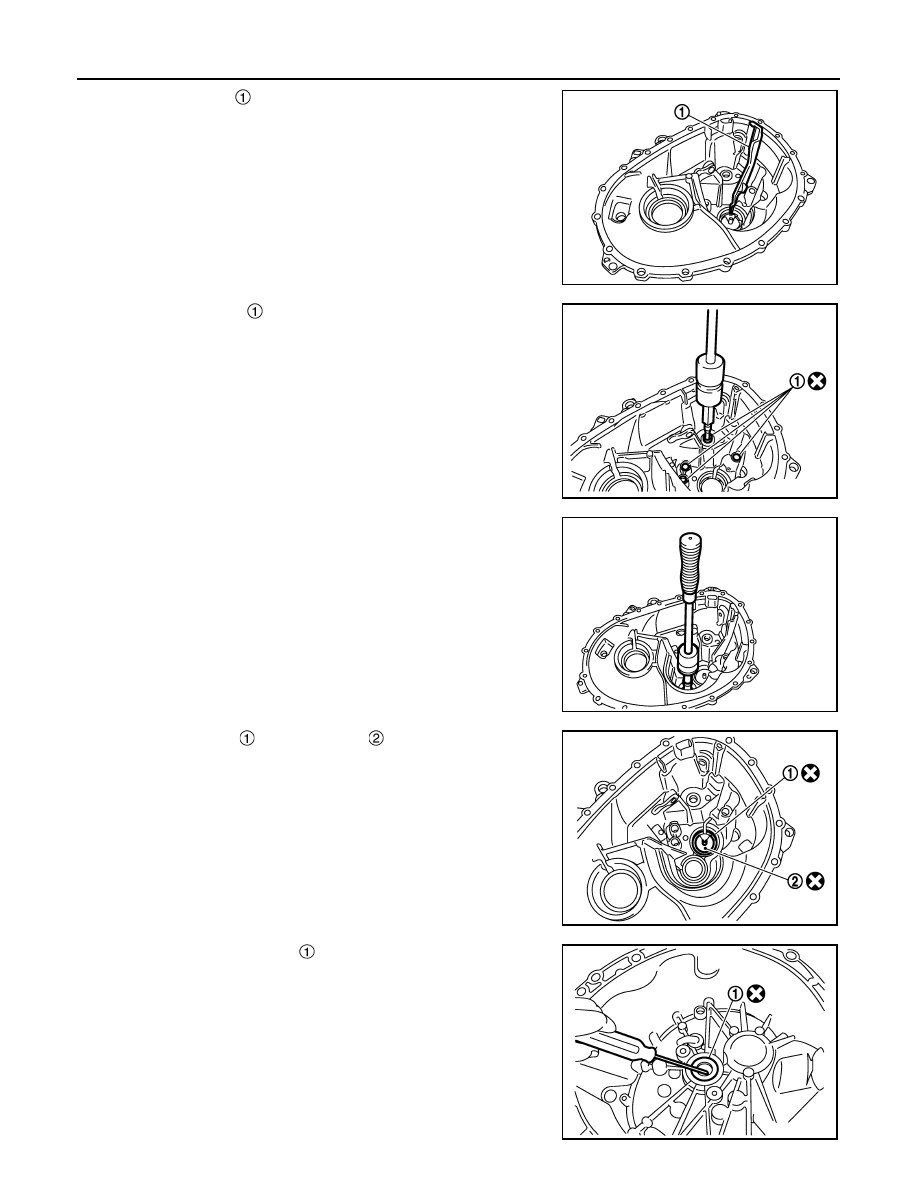

23. Remove oil gutter

 from transaxle case.

24. Remove bushings

 from transaxle case, using a remover

(commercial service tool).

CAUTION:

Never damage transaxle case.

25. Remove mainshaft rear bearing outer race from transaxle case,

using a remover (commercial service tool).

CAUTION:

Never damage transaxle case.

26. Remove mainshaft rear bearing adjusting shim from transaxle

case.

27. Remove snap ring

 and oil channel

 from transaxle case.

28. Remove input shaft oil seal

 from clutch housing, using oil seal

remover (commercial service tool).

CAUTION:

Never damage clutch housing.

PCIB1707E

PCIB1710E

PCIB1706E

PCIB1708E

PCIB1714E

TRANSAXLE ASSEMBLY

TM-53

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

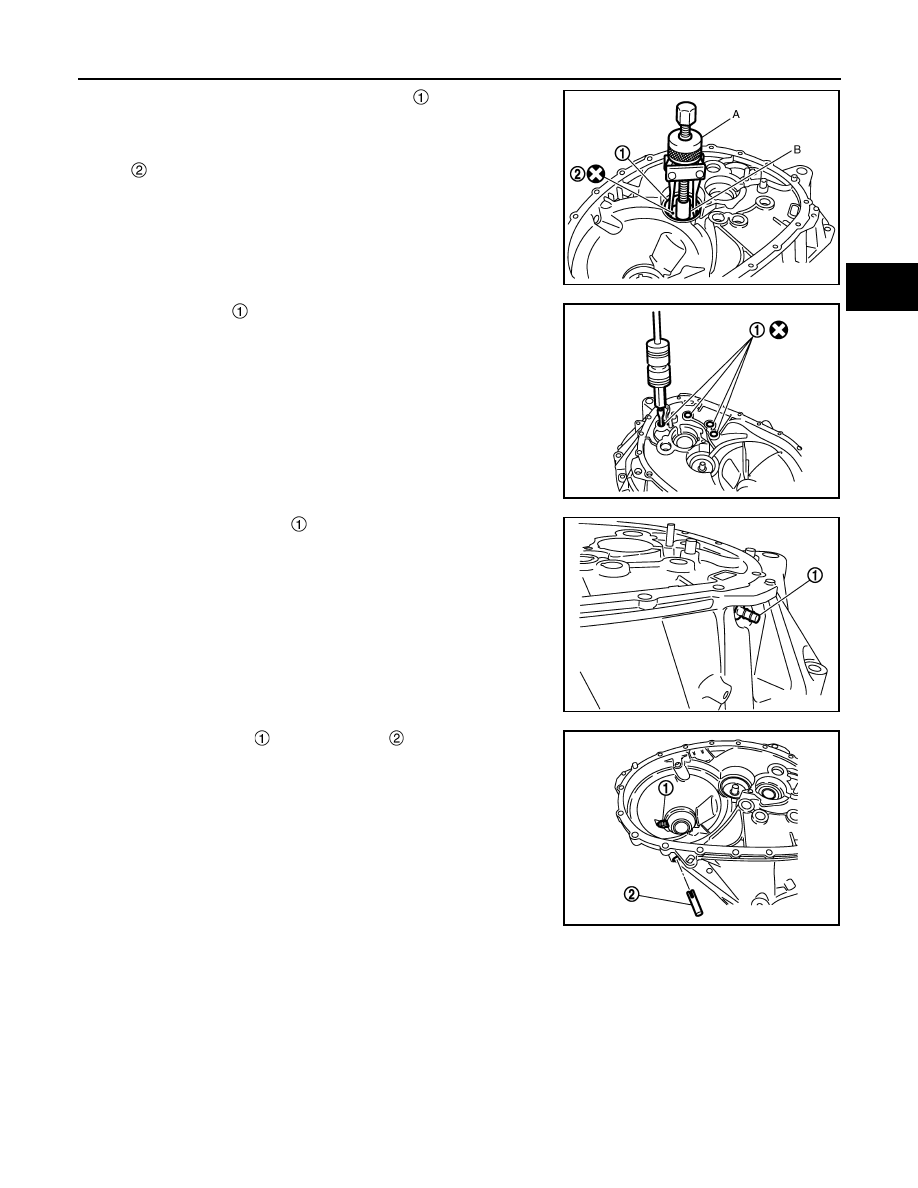

29. Remove mainshaft front bearing outer race

 from clutch hous-

ing, using the puller (A) (SST: KV381054S0) and a spacer (B)
(commercial service tool).

CAUTION:

Never damage clutch housing.

30. Remove oil channel from clutch housing.

31. Remove bushing

 from clutch housing, using a remover (com-

mercial service tool).

CAUTION:

Never damage clutch housing.

32. Remove 2 way connector

 from clutch housing.

33. Remove plug from clutch housing.

34. Remove pinion gear

 and pinion shaft

 from clutch housing.

ASSEMBLY

CAUTION:

Replace transaxle assembly when replacing clutch housing.

: Oil channel

JPDIC0107ZZ

PCIB1717E

PCIB1720E

PCIB1719E
