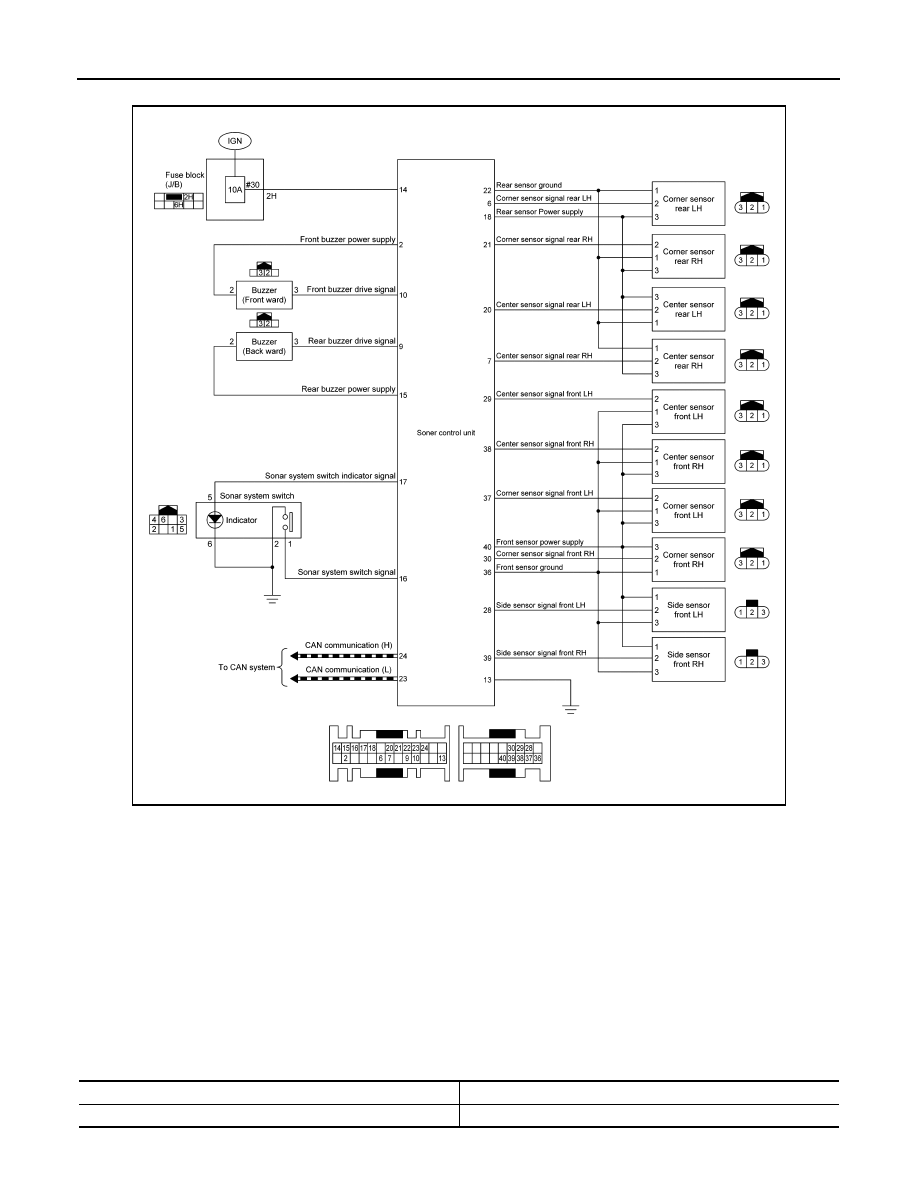

SONAR SYSTEM : Circuit Diagram

INFOID:0000000010736633

SONAR SYSTEM : Fail-Safe (Sonar Control Unit)

INFOID:0000000010828198

The sonar control unit controls as follows if it detects a malfunction in the sonar sensor:
• Obstacle detection function is stopped.
• Alarm display is displayed on the information display of combination meter.
• Parking Assist in parallel mode is stopped.

INFORMATION DISPLAY (COMBINATION METER)

INFORMATION DISPLAY (COMBINATION METER) : Parking Sensor Error

INFOID:0000000010792891

DESIGN/PURPOSE

This warning is displayed when an error occurs in the sonar system.

JSNIA7371GB

Symbol

Message

—

Parking Sensor Error: See Owner

′

s Manual.

SN

SYSTEM

SN-129

< SYSTEM DESCRIPTION >

[WITH PARK ASSIST]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYNCHRONIZATION WITH MASTER WARNING LAMP

Synchronization is applied. Refer to

MWI-47, "WARNING LAMPS/INDICATOR LAMPS : Master Warning

Lamp"

.

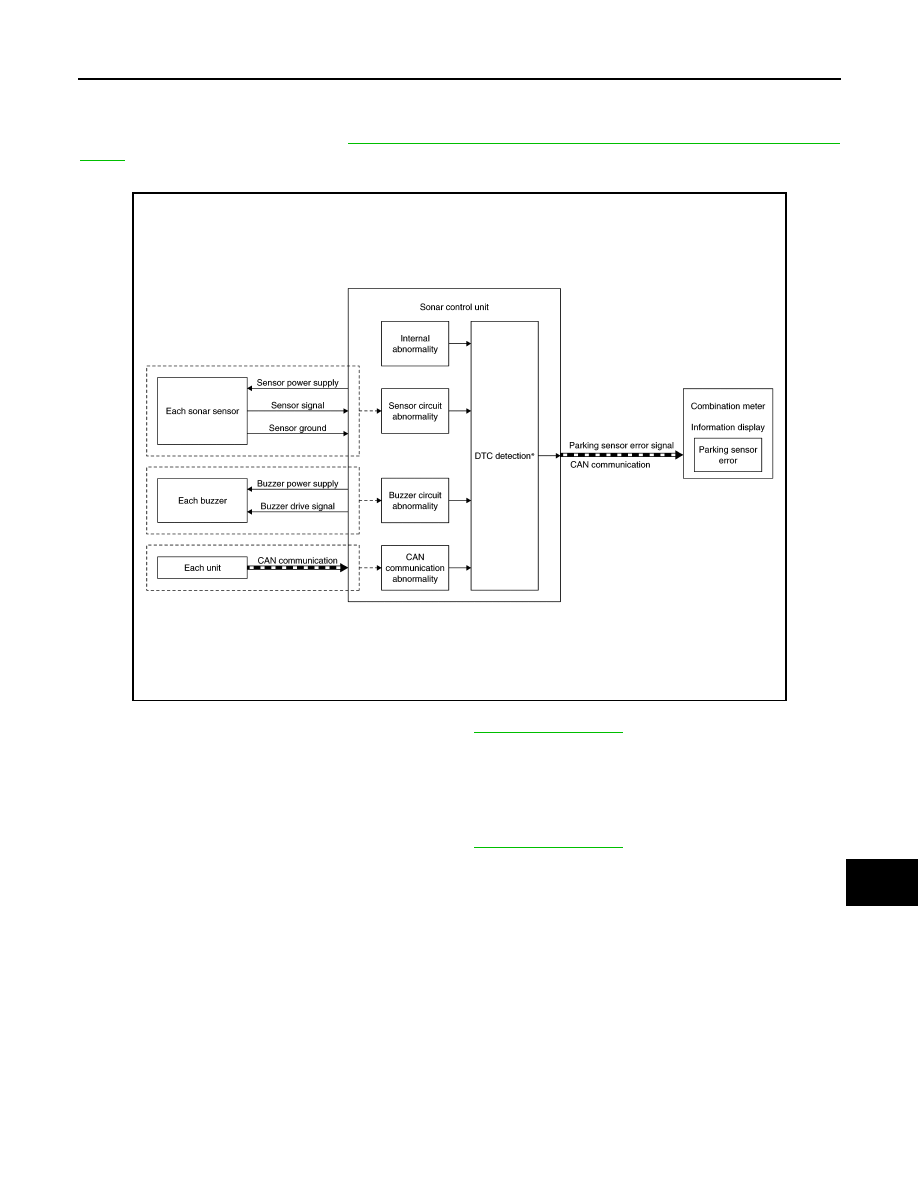

SYSTEM DIAGRAM

NOTE:
*: For DTCs that parking sensor error turns ON, Refer to

SN-143, "DTC Index"

.

SIGNAL PATH

• Sonar control unit transmits parking sensor error signal to the ON/OFF state of the combination meter via

CAN communication when detecting DTC.

• Combination meter turns ON parking sensor error when receiving parking sensor error signal.
NOTE:
*: For DTCs that parking sensor error turns ON, Refer to

SN-143, "DTC Index"

.

WARNING OPERATING CONDITION

When all of the following conditions are satisfied:
• Ignition switch ON
• DTC is detected.

WARNING CANCEL CONDITION

When any of the following conditions is satisfied:
• The ignition switch is in a position other than ON.
• DTC is deleted.

JSNIA5828GB

SN-130

< SYSTEM DESCRIPTION >

[WITH PARK ASSIST]

SYSTEM

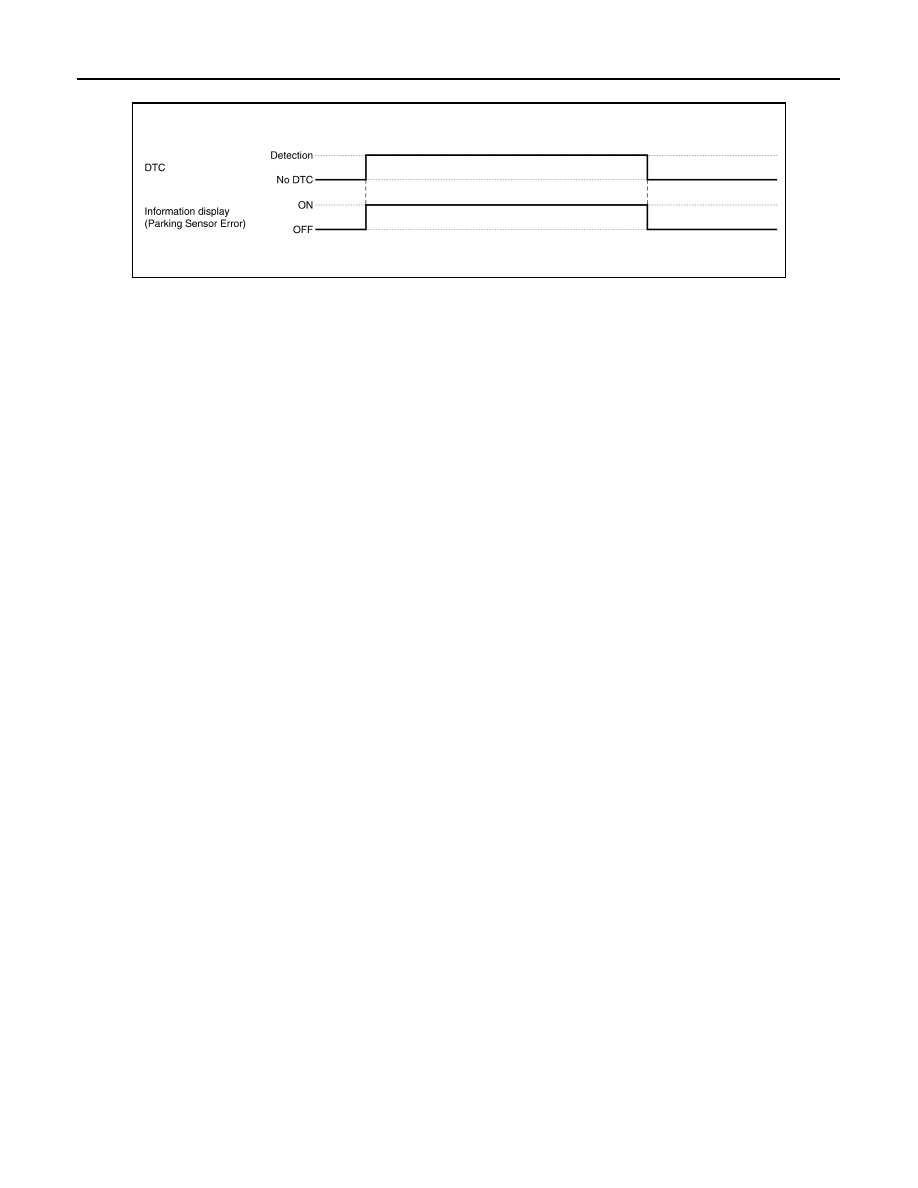

TIMING CHART

JSNIA5900GB

SN

DIAGNOSIS SYSTEM (SONAR CONTROL UNIT)

SN-131

< SYSTEM DESCRIPTION >

[WITH PARK ASSIST]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (SONAR CONTROL UNIT)

CONSULT Function

INFOID:0000000010736636

APPLICATION ITEMS

CONSULT can display each diagnostic item using the diagnostic test modes shown as follows:

ECU IDENTIFICATION

Displays the part number of the sonar control unit.

SELF-DIAGNOSTIC RESULTS

For details, refer to

SN-143, "DTC Index"

.

Freeze Frame Data (FFD)

The following vehicle status is recorded when DTC is detected and is displayed on CONSULT.

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Test mode

Function

Ecu Identification

Sonar control unit part number can be read.

Self Diagnostic Results

Sonar control unit checks the conditions and displays memorized error.

Data Monitor

Sonar control unit input/output data in real time.

Active Test

Gives a drive signal to a load to check the operation.

Work support

Changes setting of each function.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing sonar control unit.

Item name

Display content

ODO/TRIP
METER
(km)

Total driving distance (odometer value) upon DTC detection is displayed.

IGN counter
(0

∼

39)

Numerical value is displayed indicating the number of times that ignition switch is turned ON after the DTC is
detected.
• When “0”is displayed, it indicates that the system is presently malfunctioning.
• When any numerical number other than “0” is displayed, it indicates that system malfunction in the past is de-

tected, but the system is presently normal.
NOTE:
Each time when ignition switch turns OFF

→

ON, numerical number increases from 1

→

2

→

3...38

→

39. When

number of times exceeds 39, numeric display does not increase and 39 is displayed until self-diagnosis is
erased.

Monitor Item

Display/

UNIT

Description

VEHICLE SPEED

km/h

Value of vehicle speed signal.

SONAR C/U POWER
SUPPLY

V

Value of battery voltage (Ignition signal)

SENSOR VOLTAGE

V

Value of sensor voltage

DETECTION MODE

MODE1/

MODE2

NOTE:
This item is displayed, but cannot be monitored.

SW OPRT AFTER IGN
ON

Yes/No

Temporary/permanent OFF operation by the user after turning ON the ignition switch.
