SN-16

< SYSTEM DESCRIPTION >

[WITHOUT PARK ASSIST]

SYSTEM

• The nearest sensor from the detected obstacle applies the buzzer output frequency if plural sensors detect

any obstacle simultaneously.

NOTE:
Buzzer stops when the vehicle moves away from an obstacle and the warning level decreases.

Detection distance (default value)

Trailer Hitch Mode

The trailer hitch mode allows the setting that the sonar sensor does not accidentally detect the trailer hitch as
an obstacle when connecting a trailer hitch.

SETTINGS

• Use “Work Support” of CONSULT and enter the distance to trailer hitch. Refer to

SN-19, "CONSULT Func-

tion"

.

• Connect trailer hitch to the vehicle and drive approximately 10 seconds or more at 5 km/h (3.1 MPH).

How To Cancel The Setting

• Disconnect trailer hitch from the vehicle. Turn the ignition switch ON and maintain this state for 10 seconds

or more.

Detection distance

Warning buzzer frequency

 Less than 30 cm

(Less than 11.81 in)

Continuous tone

31 – 40 cm

(12.2 – 15.75 in)

10.0 Hz

41 – 50 cm

(16.14 – 19.69 in)

8.0 Hz

51 – 60 cm

(20.08 – 23.62 in)

6.7 Hz

61 – 70 cm

(24.02 – 27.56 in)

5.7 Hz

71 – 80 cm

(27.95 – 31.5 in)

5.0 Hz

81 – 90 cm

(31.89 – 35.43 in)

4.4 Hz

91 – 100 cm

(35.83 – 39.37 in)

4.0 Hz

101 – 110 cm

(39.76 – 39.37 in)

3.6 Hz

111 – 120 cm

(35.83 – 43.31 in)

3.3 Hz

121 – 130 cm

(47.64 – 51.18 in)

3.1 Hz

131 – 140 cm

(51.57 – 55.12 in)

2.9 Hz

141 – 150 cm

(55.51 – 59.06 in)

2.7 Hz

151 – 160 cm

(59.45 – 62.99 in)

2.5 Hz

161 – 170 cm

(63.39 – 66.93 in)

2.2 Hz

More than 171 cm

(More than 66.93 in)

2.0 Hz

SN

SYSTEM

SN-17

< SYSTEM DESCRIPTION >

[WITHOUT PARK ASSIST]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

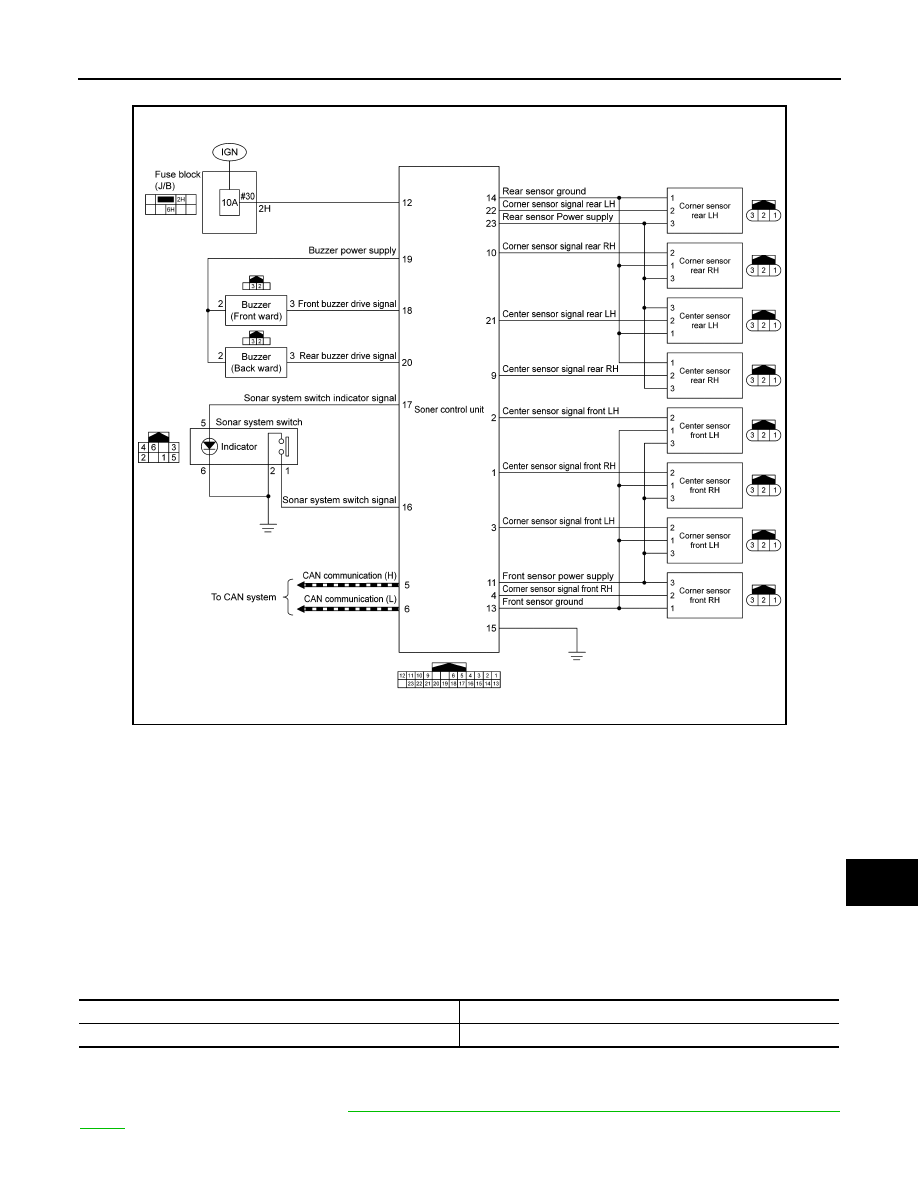

SONAR SYSTEM : Circuit Diagram

INFOID:0000000010735541

SONAR SYSTEM : Fail-Safe

INFOID:0000000010736623

When the shift position is in reverse position, the sonar control unit controls as follows if it detects a malfunc-
tion in the sonar sensor:
• Obstacle detection function is stopped.
• Alarm display is displayed on the information display of combination meter.

INFORMATION DISPLAY (COMBINATION METER)

INFORMATION DISPLAY (COMBINATION METER) : Parking Sensor Error

INFOID:0000000010735542

DESIGN/PURPOSE

This warning is displayed when an error occurs in the sonar system.

SYNCHRONIZATION WITH MASTER WARNING LAMP

Synchronization is applied. Refer to

MWI-47, "WARNING LAMPS/INDICATOR LAMPS : Master Warning

Lamp"

.

JSNIA7365GB

Symbol

Message

—

Parking Sensor Error: See Owner

′

s Manual.

SN-18

< SYSTEM DESCRIPTION >

[WITHOUT PARK ASSIST]

SYSTEM

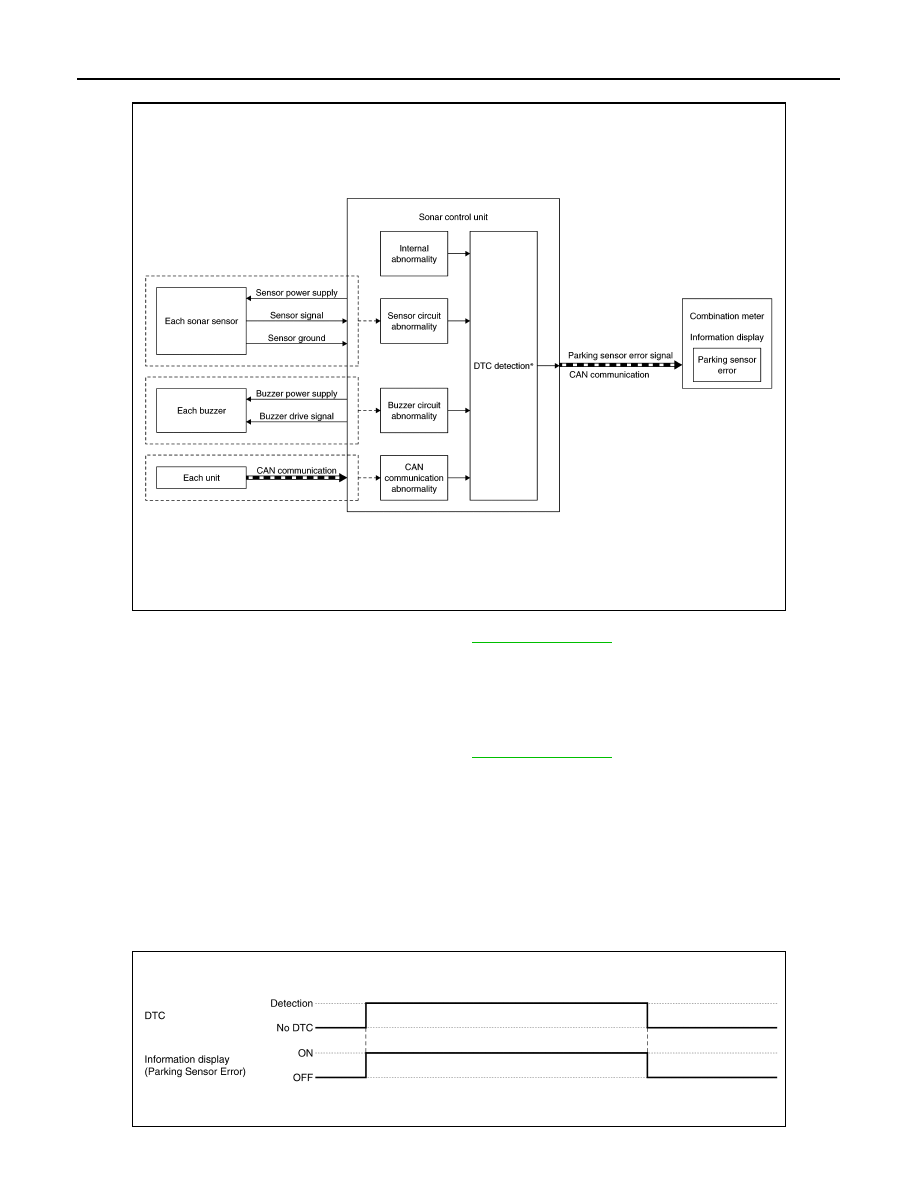

SYSTEM DIAGRAM

NOTE:
*: For DTCs that parking sensor error turns ON, Refer to

SN-28, "DTC Index"

.

SIGNAL PATH

• Sonar control unit transmits parking sensor error signal to the ON/OFF state of the combination meter via

CAN communication when detecting DTC.

• Combination meter turns ON parking sensor error when receiving parking sensor error signal.
NOTE:
*: For DTCs that parking sensor error turns ON, Refer to

SN-28, "DTC Index"

.

WARNING OPERATING CONDITION

When all of the following conditions are satisfied:
• Ignition switch ON
• DTC is detected.

WARNING CANCEL CONDITION

When any of the following conditions is satisfied:
• The ignition switch is in a position other than ON.
• DTC is deleted.

TIMING CHART

JSNIA5828GB

JSNIA5900GB

SN

DIAGNOSIS SYSTEM (SONAR CONTROL UNIT)

SN-19

< SYSTEM DESCRIPTION >

[WITHOUT PARK ASSIST]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (SONAR CONTROL UNIT)

CONSULT Function

INFOID:0000000010735543

APPLICATION ITEMS

CONSULT can display each diagnostic item using the diagnostic test modes shown as follows:

ECU IDENTIFICATION

Displays the part number of the sonar control unit.

SELF-DIAGNOSTIC RESULTS

For details, refer to

SN-28, "DTC Index"

.

Freeze Frame Data (FFD)

The following vehicle status is recorded when DTC is detected and is displayed on CONSULT.

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Test mode

Function

Ecu Identification

Sonar control unit part number can be read.

Self Diagnostic Results

Sonar control unit checks the conditions and displays memorized error.

Data Monitor

Sonar control unit input/output data in real time.

Active Test

Gives a drive signal to a load to check the operation.

Work support

Changes setting of each function.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing sonar control unit.

Item name

Display content

ODO/TRIP
METER
(km)

Total driving distance (odometer value) upon DTC detection is displayed.

Monitor Item

Display/

UNIT

Description

VEHICLE SPEED

km/h

Value of vehicle speed signal.

SONAR C/U POWER
SUPPLY

V

Value of battery voltage (Ignition signal)

SENSOR VOLTAGE

V

Value of sensor voltage

DETECTION MODE

MODE1

NOTE:
This item is displayed, but cannot be monitored.

MODE2

SW OPRT AFTER IGN
ON

Yes

Temporary/permanent OFF operation by the user after turning ON the ignition switch.

No

SONAR TEMPORARY
OFF

Yes

Sonar system is in temporary OFF state.
NOTE:
The user can set temporary OFF by canceling the sonar indicator displayed on the combi-
nation meter.

No

SONAR PERMANENT
OFF

Yes

Sonar system is in permanent OFF state.
NOTE:
The user can set permanent OFF on the settings screen of the combination meter.

No

P N RANGE

ON

Status of shift position

OFF
