NISSAN ANTI-THEFT SYSTEM : System Description

INFOID:0000000010922118

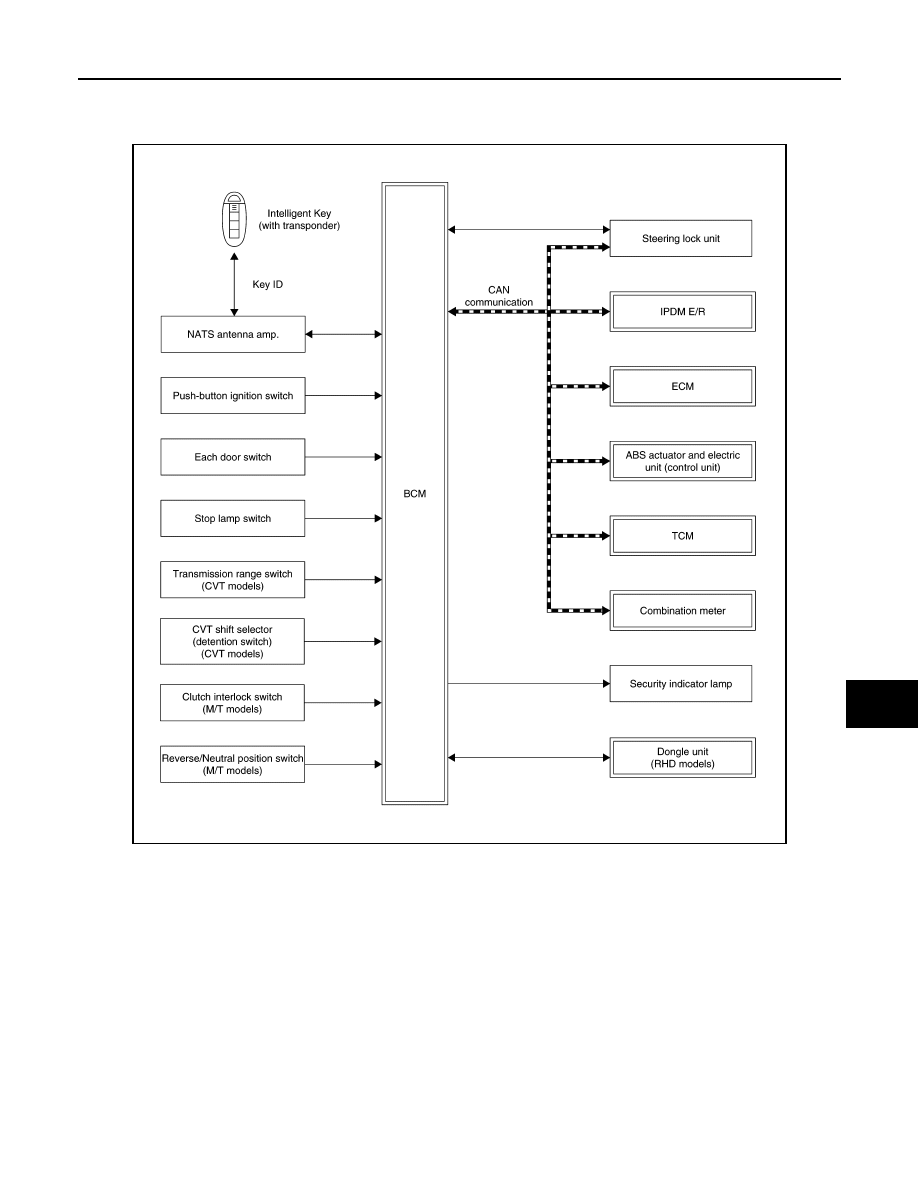

SYSTEM DIAGRAM

BCM INPUT/OUTPUT SIGNAL CHART

Input Signal Item

JMKIB3757GB

SEC-26

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM

Output Signal Item

SYSTEM DESCRIPTION

• The Nissan Anti-Theft System (NATS) prevents the engine from being started by Intelligent Key whose ID is

not registered to the vehicle (BCM). It has higher protection against auto theft involving the duplication of
mechanical keys.

• The ignition key integrated in the Intelligent Key cannot start the engine. When the Intelligent Key battery is

discharged, the NATS ID verification is performed between the transponder integrated with Intelligent Key
and BCM via NATS antenna amp. when the Intelligent Key backside is contacted to push-button ignition
switch while brake pedal is depressed. If the verification result is OK, the engine start operation can be per-
formed by the push-button ignition switch operation.

• Locate the security indicator lamp and always blinks it when the ignition switch is in any position except ON

to warn that the vehicle is equipped with Nissan Anti-Theft System (NATS).

• Up to 4 Intelligent Keys can be registered (including the standard ignition key) upon request from the owner.
• When replacing ECM, BCM or Intelligent Key, the specified procedure (Initialization and registration) using

CONSULT is required.

PRECAUTIONS FOR KEY REGISTRATION

The ID registration is a procedure that erases the current NATS ID once, and then registers a new ID. There-
fore before starting the registration operation, collect all registered Intelligent Keys from the customer.

SECURITY INDICATOR LAMP

• Security indicator lamp warns that the vehicle is equipped with NATS.

Transmit unit

Signal name

ECM

CAN communication

• Engine status signal
• Starter control relay request signal

IPDM E/R

• Push-button ignition switch status signal
• Ignition ON signal
• Starter relay/Starter control relay status signal
• Starter control relay status signal
• Neutral position signal

Combination meter

Vehicle speed signal (Meter)

ABS actuator and electric unit (control unit)

Vehicle speed signal (ABS)

Steering lock unit

• Steering lock unit lock status signal
• Steering lock unit unlock status signal
• Lock/unlock position signal
• Steering lock undefined position signal
• Steering lock wrong code signal

TCM (CVT models)

Shift position signal

NATS antenna amp.

Key ID signal

Push-button ignition switch

Push-button ignition switch operation signal

Each door switch

Door open/close condition signal

Stop lamp switch

Brake pedal operation signal

CVT shift selector (detention switch) (CVT models)

P position signal

Transmission range switch (CVT models)

P/N position signal

Reverse/neutral position switch (M/T models)

Neutral position signal

Clutch interlock switch (M/T models)

Clutch interlock switch signal

Reception unit

Signal name

IPDM E/R

CAN communication

Ignition ON signal

Combination meter

Security indicator lamp signal

Steering lock unit

• Steering lock unit unlock request signal
• Steering lock unit lock request signal
• Steering lock code signal
• Ignition ON signal
